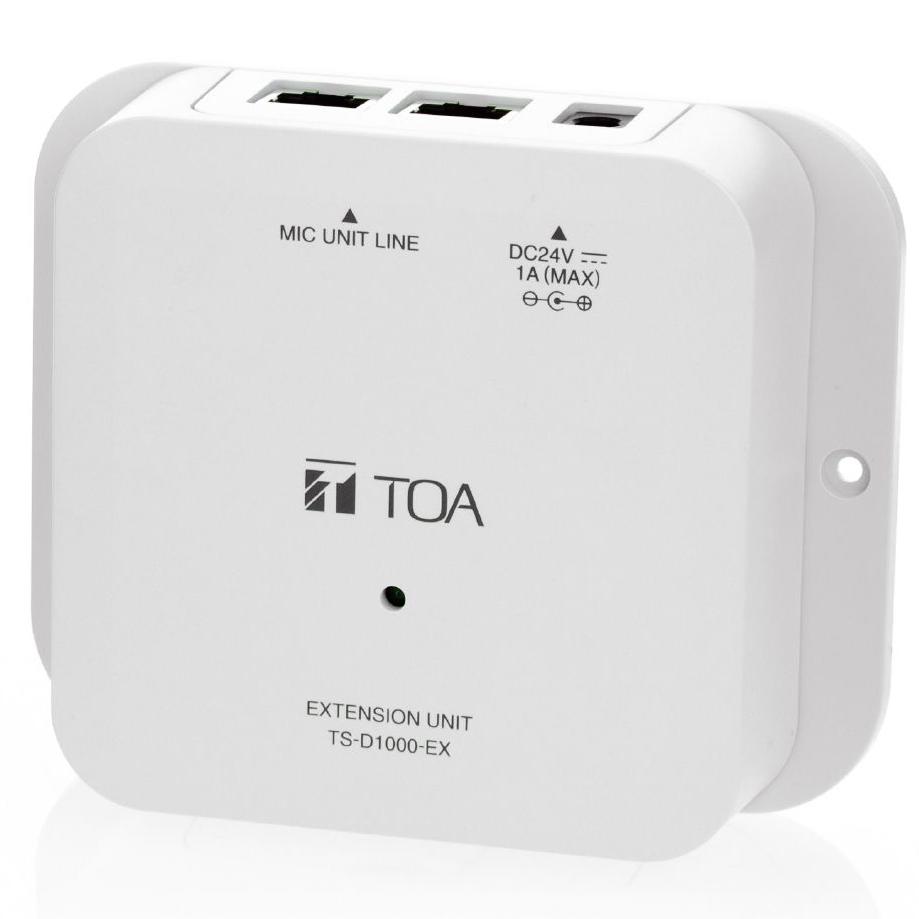

The TOA TS-D1000-EX extension unit is part of the D1000 wired digital conference system. It enables extension of the cable distance of up to 50m.

One extension unit can be connected to each wiring line between master/sub control units and chairman/delegate units at the end of daisy chain using easily-obtainable CAT5e STP LAN cables.

  • Wiring distance can be extended up to 100m (328ft) per 1 line
List Ex VAT: £395.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Specification
Power Source 100 - 240 V AC, 50 / 60 Hz (use of the applied AC adapter)
Power Consumption Max. 25 W
Operating Temperature 0℃ to +40℃ (32゜F to 104゜F)
Operating Humidity Under 90% RH (no condensation)
Finish ABS resin, signal white (RAL 9003 or equivalent)
Dimensions 124.3 x 35 x 100.3 mm (W x H x D)
Weight 0.15 kg
Accessory (included) AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord)

DOWNLOADS

TOA TS-D1000 Brochure
TOA TS-D1000-EX Datasheet
TOA TS-D1000 Instruction Manual
