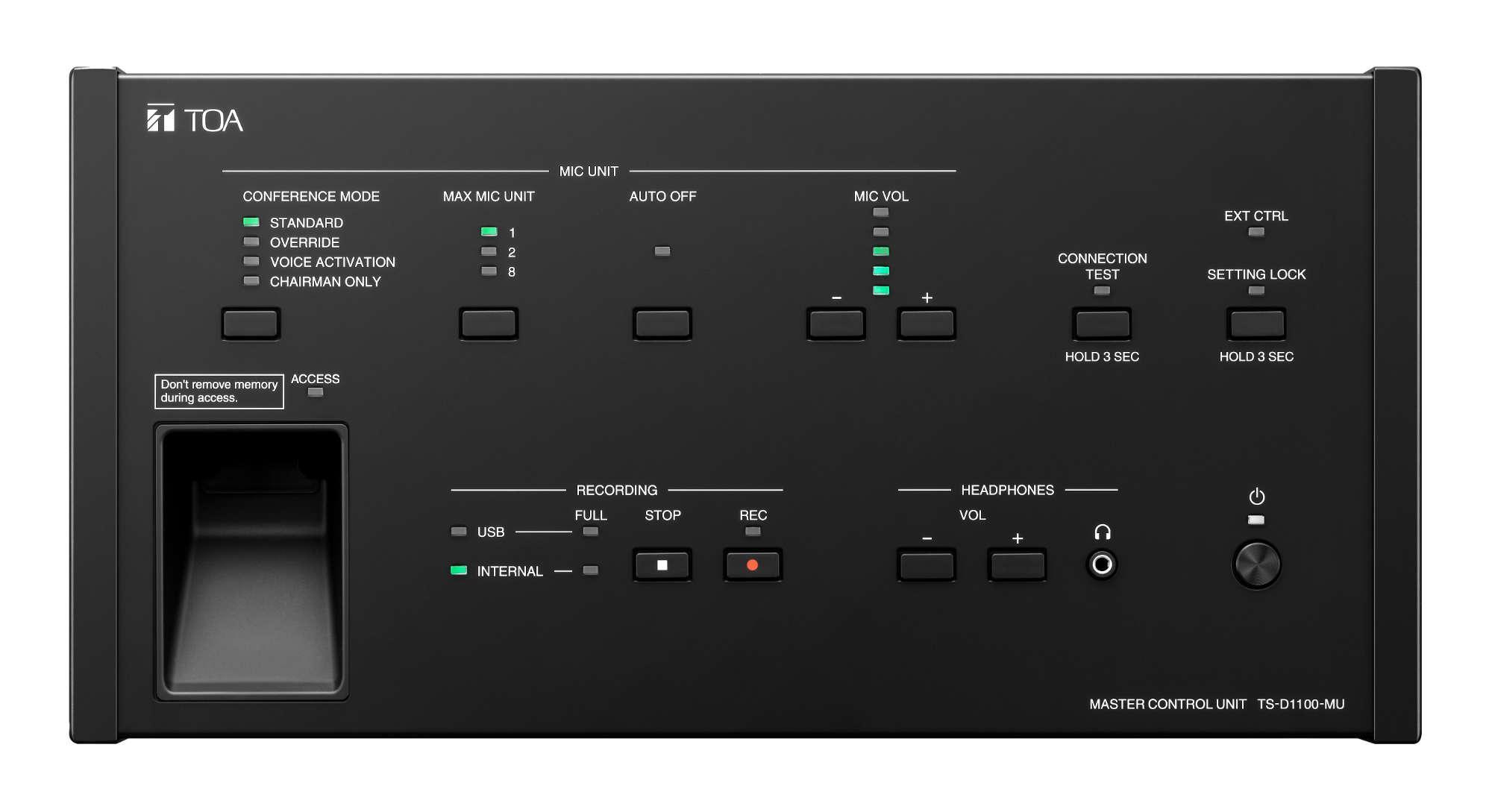

The TOA TS-D1100-MU master control unit is part of the D1000 wired digital conference system.

The master control unit, chairman and delegates microphones are all simply connected with easily-obtainable CAT5e STP LAN cables.

The TS-D1100-MU is equipped with a recording function, PC control (*1) and one-touch connection confirmation capability. Up to 32 Chairman/Delegate units can be connected in a simple daisy chain configuration. For further expansion, up to 5 TS-D1000-SU Sub control units can be added to the system making it possible to connect as many as 246 Chairman/Delegate units in one fully integrated conference system.

The TS-D1100-MU is also equipped with FBS (feedback suppression), enabling effective control of acoustic feedback. It supports up to 8 microphones with speech priority function and also employs an MP3 recorder that makes it possible to record all conference contents to either a USB memory drive or internal memory of up to 32 GB. The control of the conference mode setting could now be easily done with the browser setting with the use of computer.

Due to the increasing importance of hybrid meetings, including both physical and online engagement of participants, the TS-D1100-MU provides an integrated USB audio interface for smooth integration of online participants using a PC.

Rack mountable using an optional bracket, it can be mounted in an EIA standard equipment rack (4 unit size).

• Main unit of the system
• Easy installation and operation
• Up to 246 conference units controllable
• Function setting – number of open microphones, auto mic-off function, speech priority selector, feedback suppressor
• Recording capability with 32 GB USB memory drive and 1GB internal memory
• Included USB audio interface
• Mode selection for ID assignment
• Rack-mountable using MB-TS920 optional bracket
• Warranty: 1 Year

(*1) Relevant control software is supplied on a custom-made basis.
