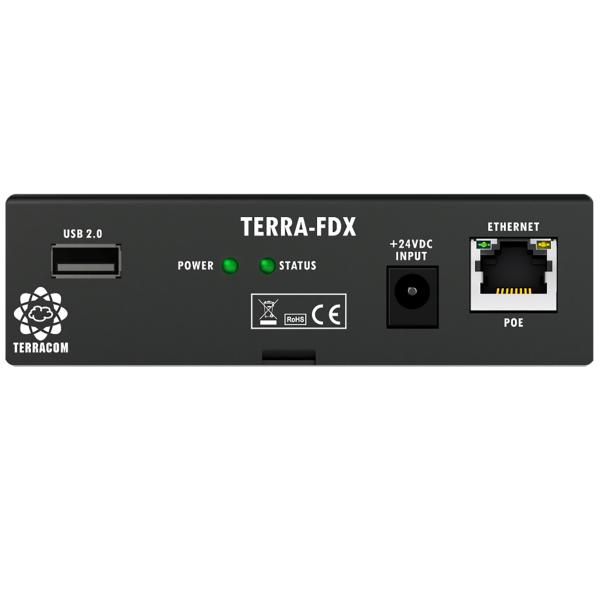

The Terracom TERRA-FDX IP Full Duplex Intercom Terminal is designed for paging and full duplex intercom and offers the creation of bidirectional IP links for high audio quality and data transmission. Ideal for use where an intercom door station,such as the TERRA-DS, is used in your Audio over IP system.

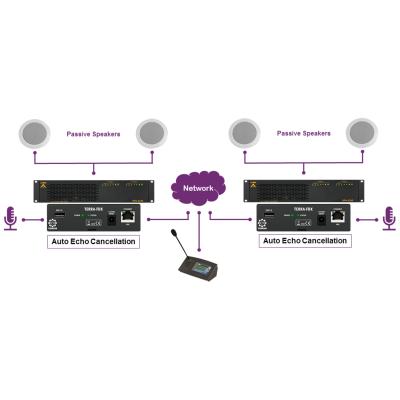

Simultaneous encoding/decoding of audio and Auto Echo Cancellation (AEC) enables bi-directional and full duplex communication operating as an audio source for an IP network. Integrated shoutcast/icecast decoding, scheduler and internal storage are just some of the features of this IP module.

Configuration, control and monitoring is achieved via your favourite web browser.

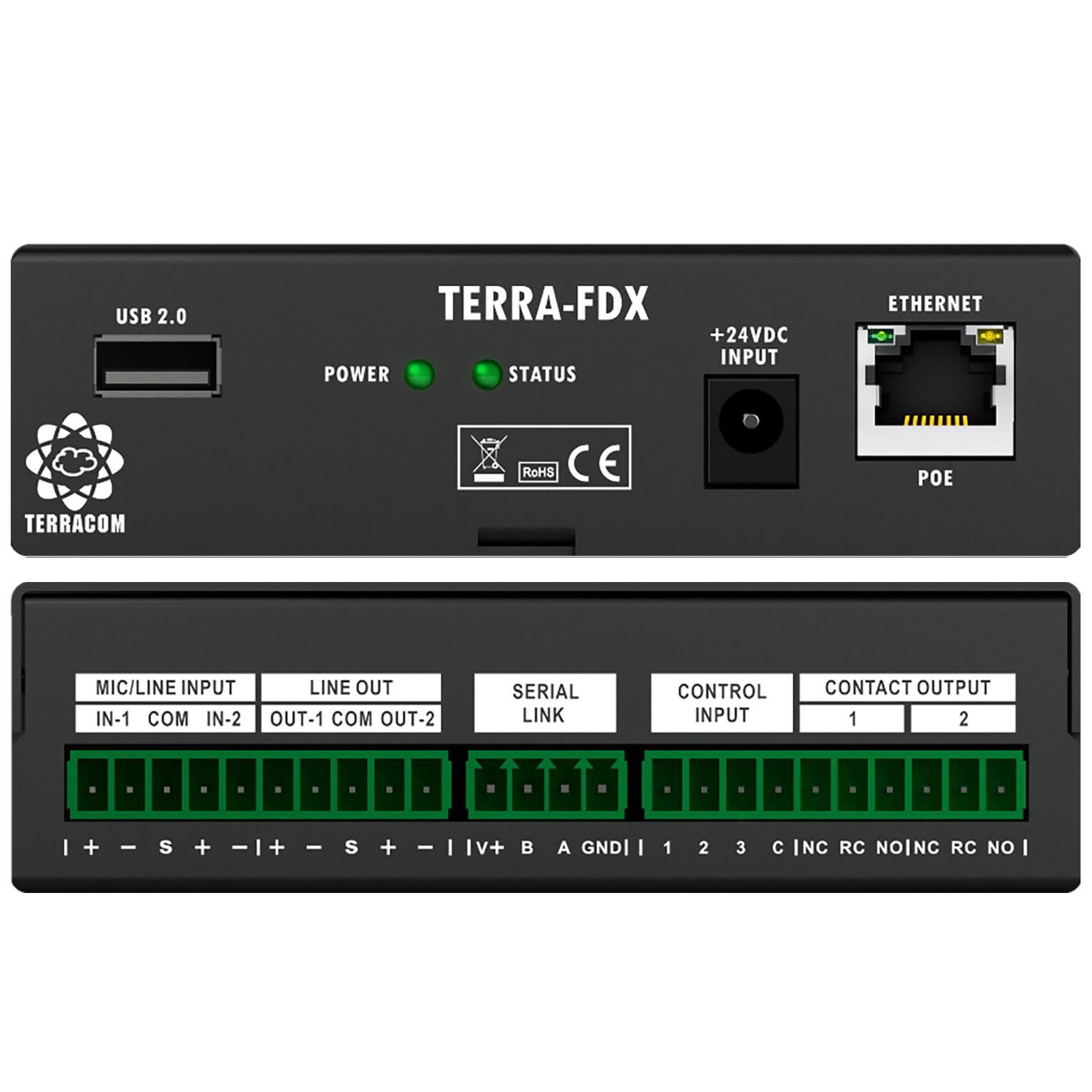

TERRA-FDX is equipped with: Mic/line x 2, stereo line-OUT x 1 or mono x 2, input contact x 3, relay output contact x 2, USB2.0 x 1, RS232 x 1.

SIP compliant, making it compatible with IP intercom and phones systems such as AVAYA, CISCO & 3COM.

Volume and channel selection can be controlled with the wall mounted RAC 5/8 level & source selector. TERRA-FDX is easily configured via web interface for full control over features such as priority and event management, scheduler and output levels.

• 2 Mic/line balanced inputs
• 2 balanced line outputs (1 stereo or 2 mono)
• 3 contact inputs and 2 contact outputs
• RS232 for 3rd party control
• USB interface for for playback / backup of pre-recorded playlists and announcements
• Audio output: maximum level +5 dB, bandwidth 20 Hz - 20 kHz
• Single CAT5/6 cable connectivity for audio and control
• PoE or 24 VDC power supply (if PoE is not available)
• Full duplex with Acoustic Echo Cancellation
• Support G.711, G.722, G.726, G.727, G.729, MP3 audio codec and AAC+ decoding
