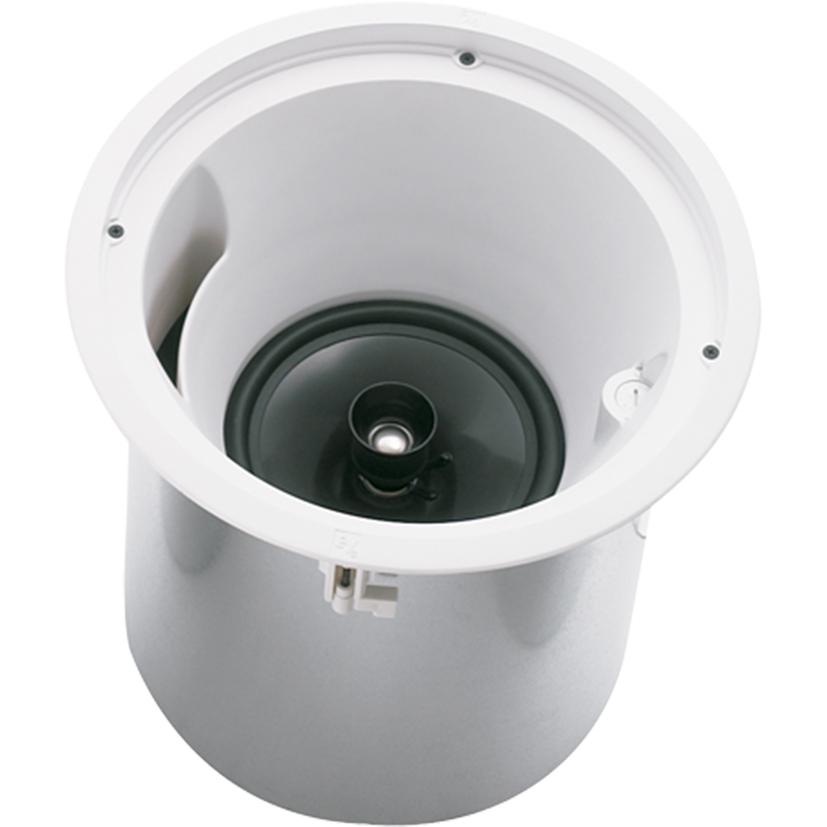

Electro-Voice EVID C8.2HC

The Electrovoice EVID C8.2HC is a dual impedance 8", two way, coaxial ceiling speaker. SOLD BY AND PRICED PER PAIR.

This ceiling speaker system is specially designed for high ceilings providing superb music quality and high speech intellligibility.

The 200 mm (8”) mid-bass driver has a moisture-resistant special membrane in a vented enclosure. The 25 mm (1”) swivel HF-transducer with titanium coating and a horn in co-axial array for symmetrical coverage.

Fitted with an integrated transformer for 70 V, 100 V, or 8 Ω use with front-panel mode / wattage selector.

Perfect for installations where a flush mount design is desired but demand for high quality audio exists. The 4-point mounting system makes installation fast and easy.

Complete with mounting support ring and tile rails. No additional accessories needed for most installations. A low profile version is also available for installations where space is an issue - see EVID C8.2LP.

  • 8" coaxial two-way with dual Integrated Waveguides
  • Defined Coverage for High Ceiling Applications
  • Waveguide coupled Ti Tweeter
  • Full bandwidth overload protection
  • Front baffle wattage tap adjustment
  • Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation
  • Includes tile bridge and mounting ring for easy installation
  • Integrated ported enclosure for extended bass response
  • Warranty: 5 Years
100V 8ohms
List Ex VAT: £425.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Chassis Size

203.2 mm (8")

Color

White (paintable surface)

Coverage (Nominal -6 dB)

110 conical

Diameter (Max)

270 mm (10.63")

Input Formats

8 Ω, 70 V, 100 V

Mounting Systems

Integrated 3-point toggle anchors

Speaker Type

Ported cabinet, internally damped, two-way (passive crossover included)

Transformer

Yes

Transformer Taps (Transformer Version Only)

(1.88 - 70 V only), 3.75, 7.5, 15, 30

Frequency Response (-10 dB)

50 - 20000 Hz

Sensitivity 1 W/1 m

91 dB

System Power Handling (Continuous/Program/Peak)

100 Watts Overload Protected

LF Transducer

8-inch polypropylene cone

HF Transducer

1-inch (25 mm) Ti Mylar Laminate Dome

Enclosure Material

Steel enclosure and UL94V-0 rated baffle and bezel

Outdoor

No

Grill

Powder-coated steel

Height

255 mm (10.0")

Weight Net

5 kg (11.02 lbs)
