AMC iPlay 5TW

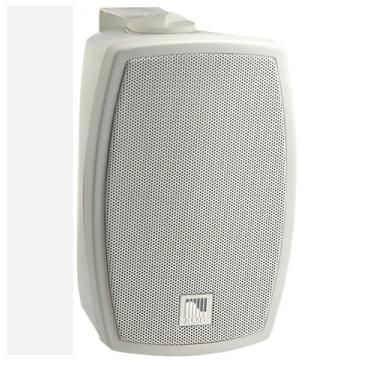

The AMC iPLAY 5TW wall mounted background music speaker is suitable for both 100 volt line distributed sound systems as well as 8Ω, low impedance music systems. Rated at 35 watts, 8 ohm and 30 watts, 100 volt line.

CLEARANCE - LAST SINGLE SPEAKER, No original packaging.

The cabinet is constructed from polypropylene with an aluminium grille and houses a 5" woofer with 1" tweeter.

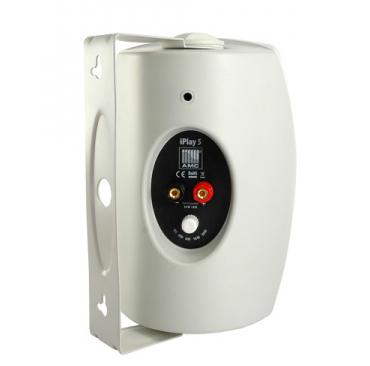

White - iPlay-5TW and supplied with a wall mounting bracket.

100V 8ohms
List Ex VAT: £25.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power: 35W (8 Ω)
Transformer Power Taps 30W - 16W - 8W - 4W - 8 Ω
Sensitivity 89 dB (1W/1 m)
Maximum SPL 109 dB (Pmax/1 m) at 5573 Hz
Frequency Response: 120 Hz – 20 kHz
Dispersion at 1000 Hz 180° (H), 160° (V)
Driver dimensions 5" (101 mm) woofer, 1" (25 mm) tweeter
Dimensions 240 mm x 165 mm x 160 mm
Weight 2.2 kg
Material Polypropylene housing with aluminium grill, U-bracket – steel
Colour Papyrus white (RAL 9018) or Black (RAL 9017)
