The LD Systems LDZONE X 1208D DSP matrix mixer with Dante offers flexible routing options using presets and automated processes which are easy to set up and manage via Ethernet with the universal Xilica Designer software (Mac/Windows).

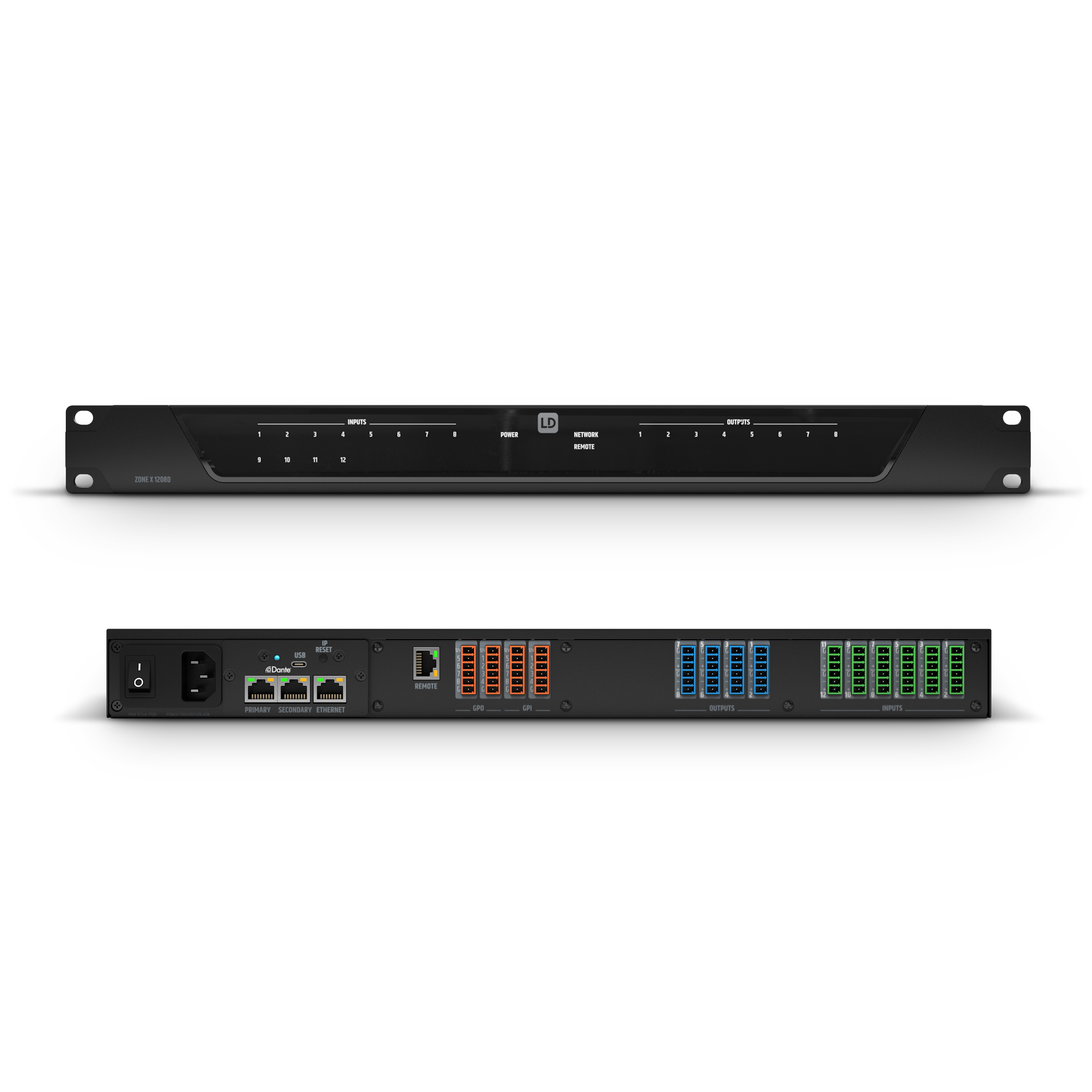

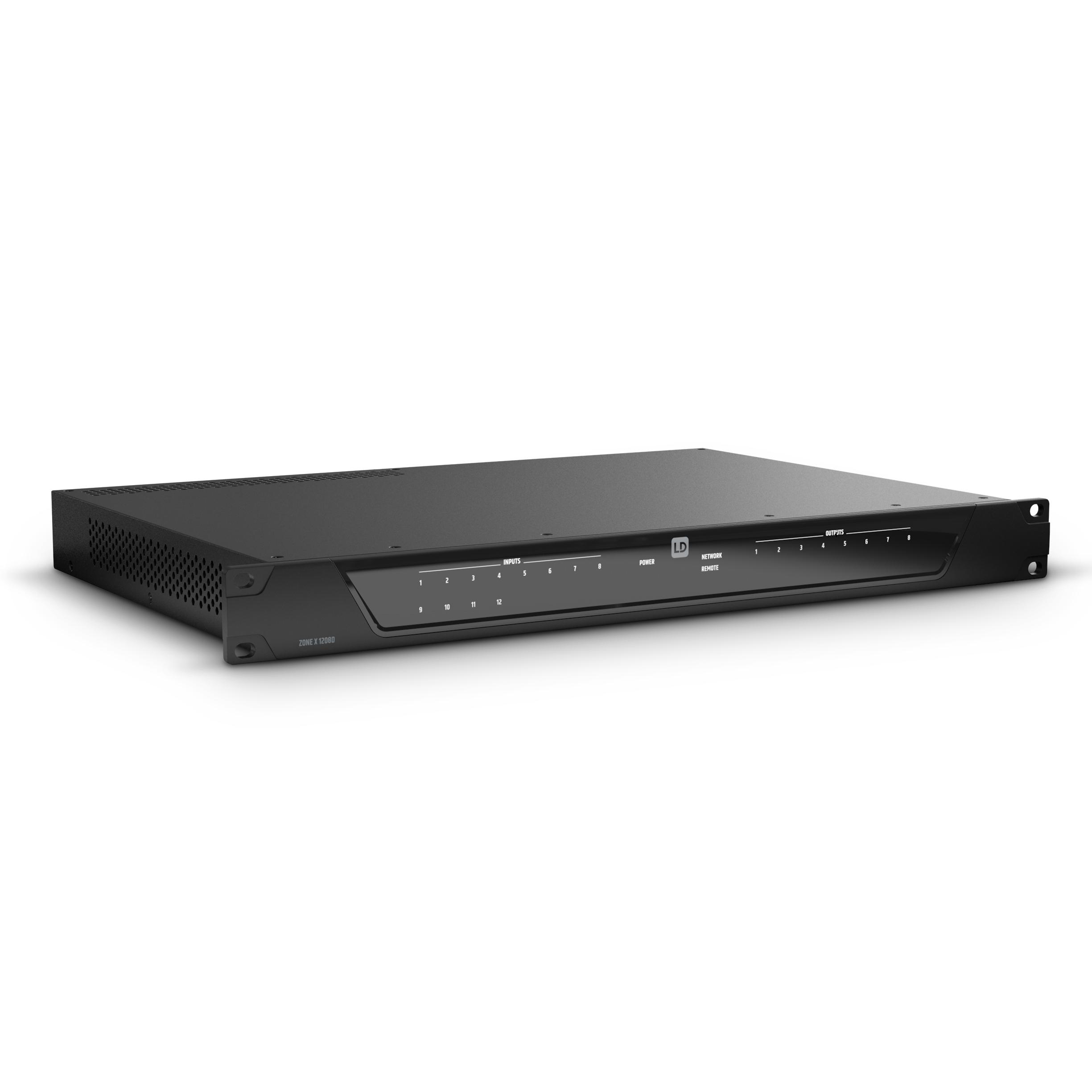

The slimline 1U rack mount chassis features LED indicators to the front displaying Power, Network and Remote Status.

With DSP hybrid architecture, the LDZONE X 1208D offers different DSP templates and an event scheduler to adapt your sound for different circumstances set up calendar-managed workflows with automated preset options.

Routing and processing of different microphone and speaker groups enables different configurations to be created for complex multi-room installations.

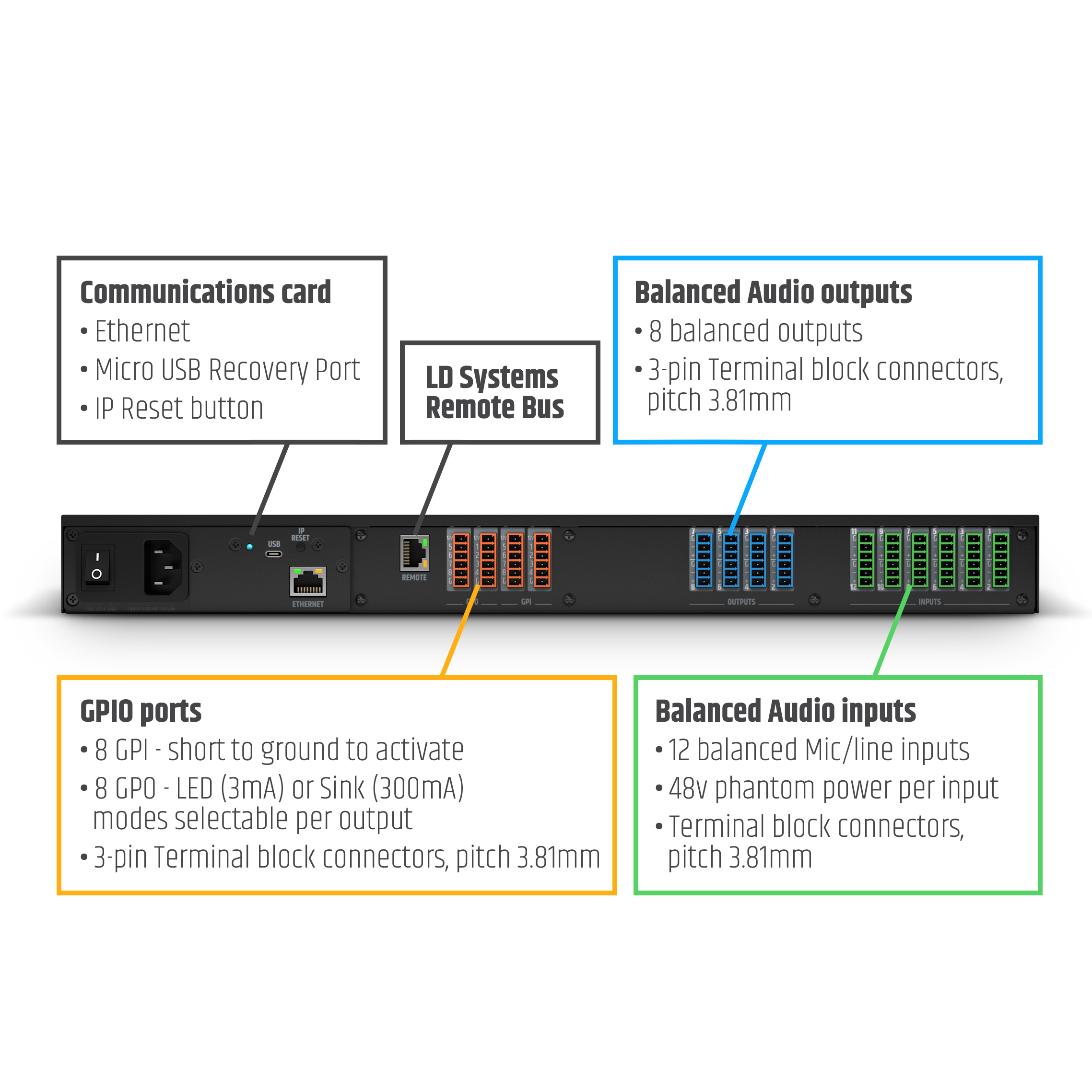

The LDZONEX1208D boasts twelve balanced mic/line inputs with low-noise microphone preamplifiers and separate switchable 48V phantom power as well as eight balanced line outputs.

Eight GPI and GPO logic ports enable automated processes and the integration of third-party devices.

An additional REMOTE bus connection facilitates future expansion with the addition of remote panels and paging microphones from LD Systems.

Dante 64 x 64 channels are available for audio over IP applications. The Dante standard enables compatibility with devices from different manufacturers for maximum flexibility.

Also available without DANTE - Please see the LDZONE X 1208.

Routing and processing of different microphone and speaker groups enables different configurations to be created for complex multi-room installations.

• Hybrid architecture DSP processor with DSP templates
• 40-bit floating point DSP engine with analog devices dual core SHARC+ and ARM Cortex A5 processor
• New generation Linux operating system
• Premium grade microphone preamps and high-performance 32 bit AD/DA converters
• 12 balanced mic/line inputs with 48V phantom power selection per input
• 8 balanced outputs
• 8 GPI and 8 GPO logic ports
• 6-pole terminal block connectors for all audio and control inputs/outputs
• REMOTE bus for integration with wall panels and paging microphones
• Clean and intuitive front panel design
• Ethernet interface for remote control via Xilica Designer
• Remote control apps available in both iOS and Android, for custom user panels
• Integrated event scheduler
• 64x64 Dante expansion card fitted
