LD Systems Zone X 1212

The LD Systems LDZONE X 1212 DSP matrix mixer offers flexible routing options using presets and automated processes which are easy to set up and manage via Ethernet with the universal Xilica Designer software (Mac/Windows).

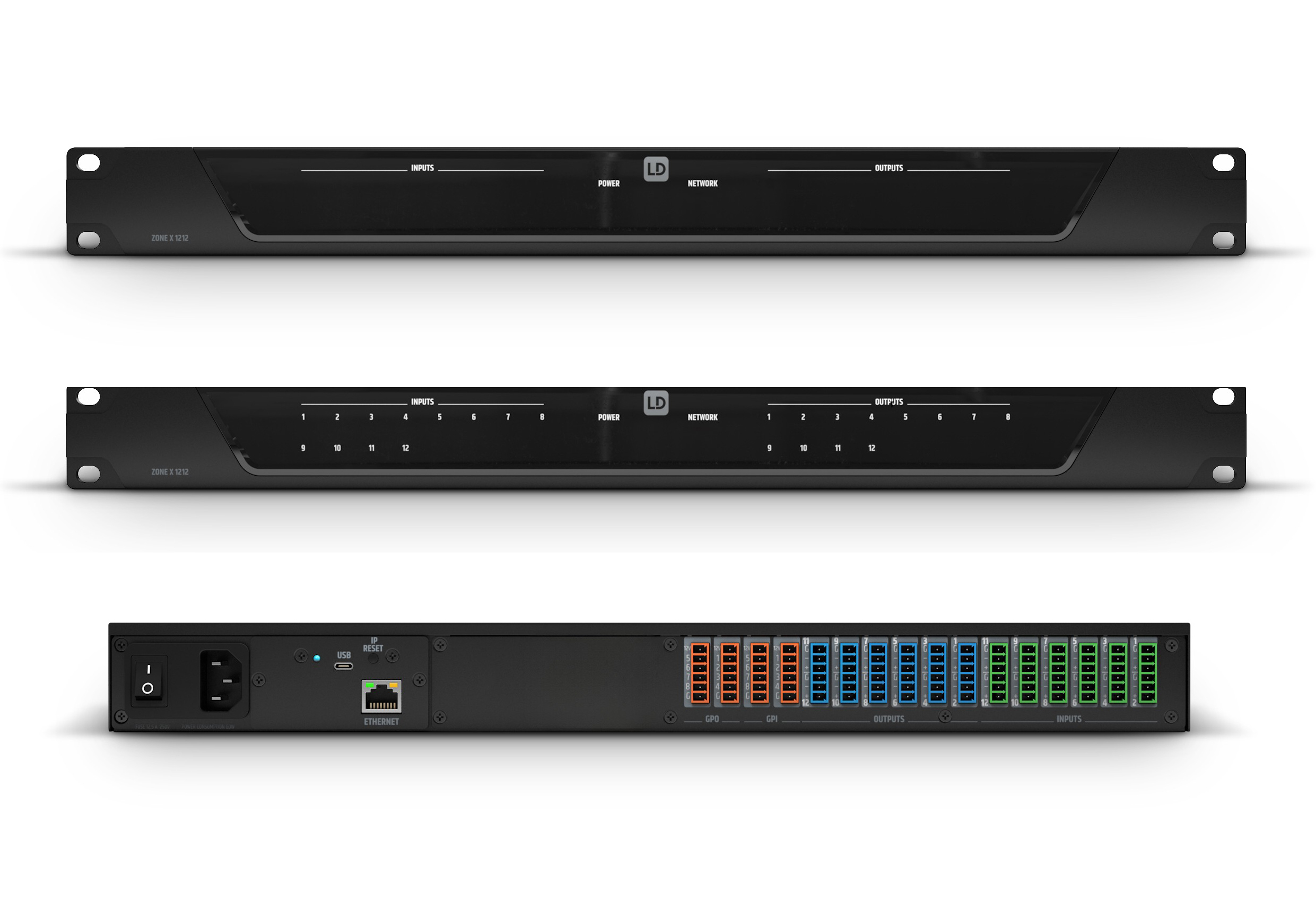

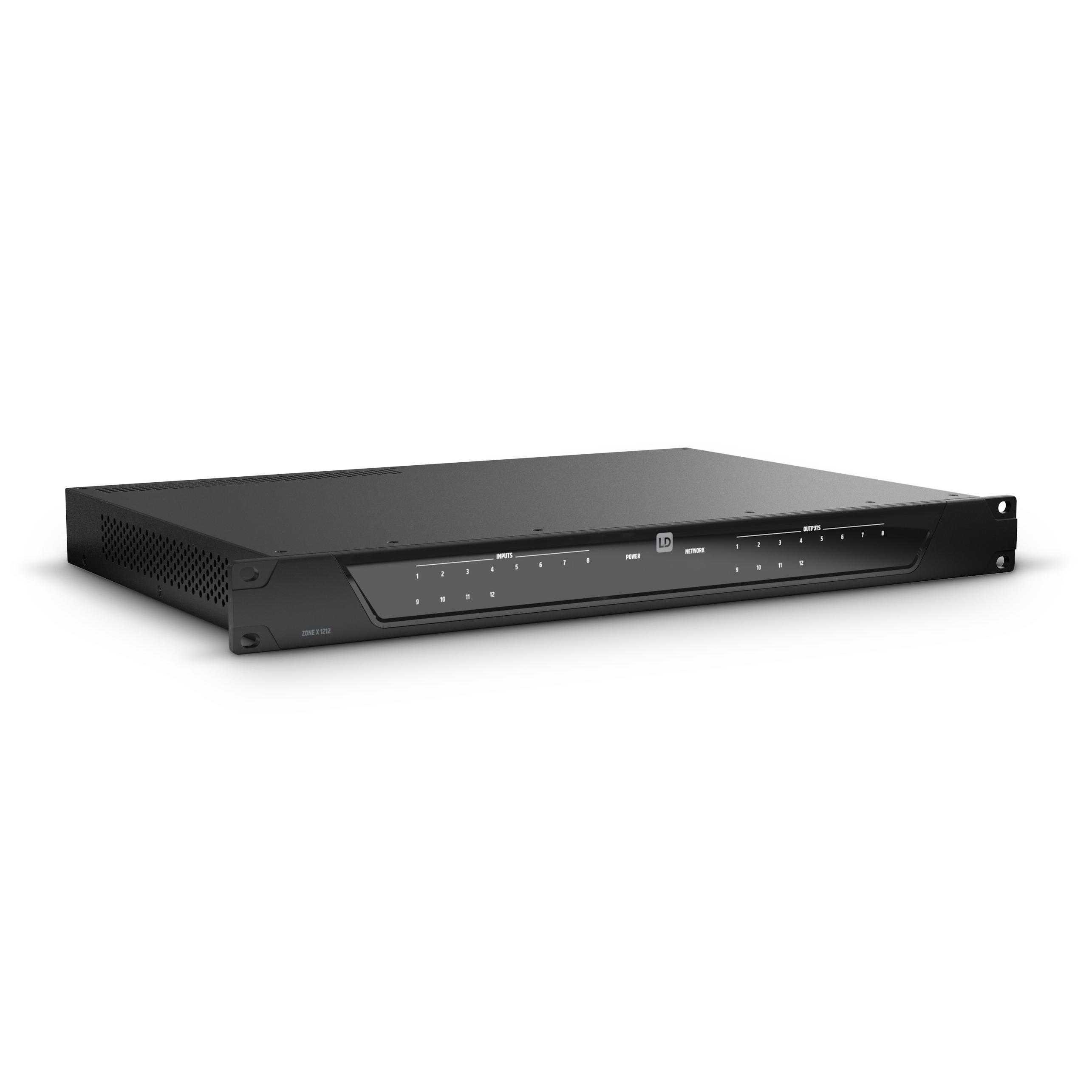

The slimline 1U rack mount chassis features LED indicators to the front displaying Power and Network Status.

With DSP hybrid architecture, the LDZONE X 1212 offers different DSP templates and an event scheduler to adapt your sound for different circumstances set up calendar-managed workflows with automated preset options.

Routing and processing of different microphone and speaker groups enables different configurations to be created for complex multi-room installations.

The LDZONEX1212 boasts twelve balanced mic/line inputs with low-noise microphone preamplifiers & separate switchable 48V phantom power and twelve balanced line outputs.

Eight GPI and GPO logic ports enable automated processes and the integration of third-party devices.

The ZONEX1212 is convenient to set up and manage via Ethernet with the universal software Xilica Designer (Mac/Windows) providing an overview of all connections and settings.

Also available with a 64 x 64 channel Dante card for audio over IP applications. The Dante standard opens up a whole world of compatible devices from different manufacturers for all conceivable applications. Please see the Dante enabled LDZONE X 1212 D.

Routing and processing of different microphone and speaker groups enables different configurations to be created for complex multi-room installations.

  • Hybrid architecture DSP processor with DSP templates
  • 40-bit floating point DSP engine with analog devices dual core SHARC+ and ARM Cortex A5 processor
  • New generation Linux operating system

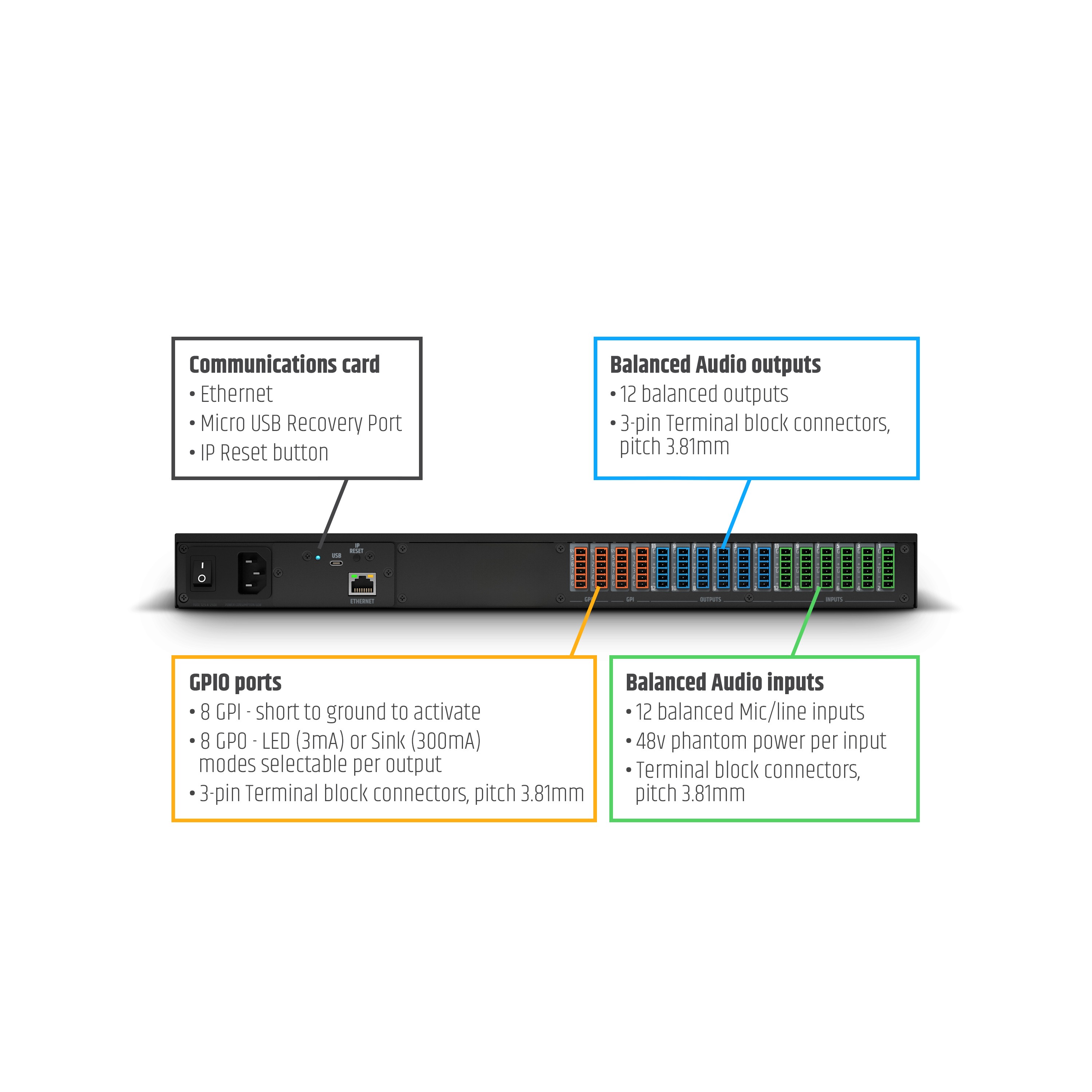

  • Premium grade microphone preamps and high-performance 32 bit AD/DA converters
  • 12 balanced mic/line inputs with 48V phantom power selection per input
  • 12 balanced outputs
  • 8 GPI and 8 GPO logic ports
  • 6-pole terminal block connectors for all audio and control inputs/outputs
  • Clean and intuitive front panel design
  • Ethernet interface for remote control via Xilica Designer
  • Integrated event scheduler
  • Optional 64x64 Dante expansion
  • Warranty: 5 Years
multi-zn 1U
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Audio inputs

12 balanced mic/line inputs

Audio outputs

12 balanced line outputs

Logic inputs

8 GPI - activation via ground connection.

Logic outputs

8 GPO – modes: LED (3 mA) or sink (300 mA)

Connectors

3-pin Terminal Block Pitch 3.81mm, Ethernet RJ45, I/O Connectors, Service connection MicroUSB Type-C

Indicators

Inputs 1 - 12 and outputs 1 - 12: Signal LED white, Network, Power

Front panel controls

No

Rear panel controls

Mains ON/OFF, “IP RESET”

Expansion slots

for Ethernet (ZONEX1212) or Ethernet + Dante (ZONEX1212D) cards

Cooling

Passive convection cooling

Power supply

Wide-range switch mode power supply

Power supply connector

3-pole power supply socket (IEC)

Operating voltage

90 – 240 V AC; 50/60 Hz

Power consumption

Idle: 23 W, Max: 60 W

Height x Width x Depth

44.5 mm (1U) x 483mm x 315 mm (inc terminal blocks)

Weight

4 kg

Related Products

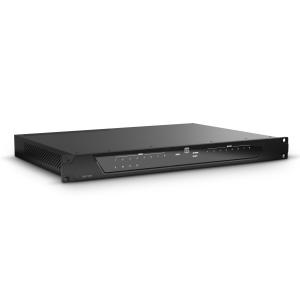

LD Systems Zone X 1208D Discontinued
