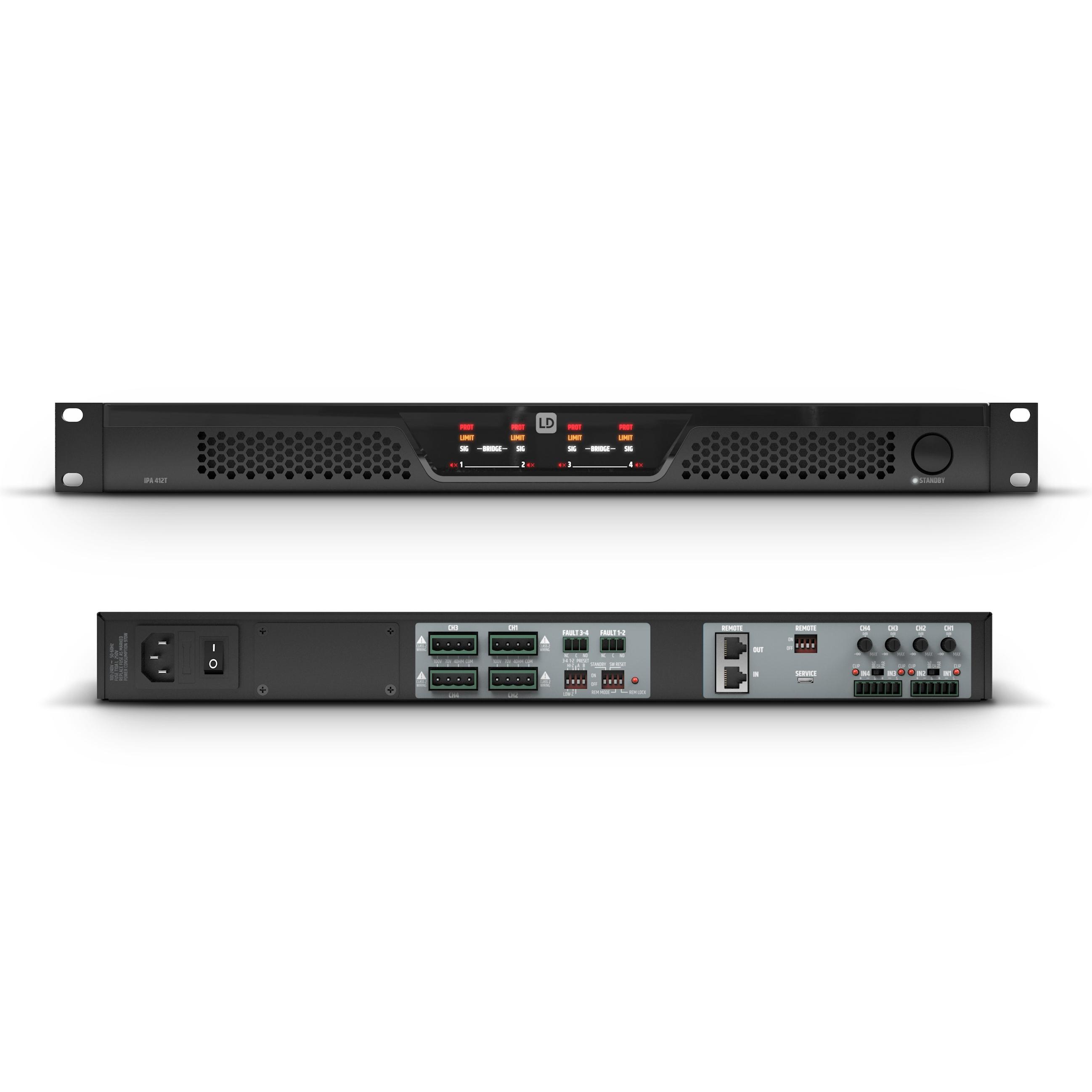

LD Systems IPA 412 T
LD Systems IPA 412 T
Click to expand

LD Systems IPA 412 T

The LD Systems LDIPA 412 T 4-channel DSP power amplifier offers 4 x 120 W at 4 Ohms / 70V or 100V.

The 70V/100V outputs are equipped with high quality toroidal core transformers, whilst the low impedance 4-Ohm outputs are completely transformerless to ensure the highest possible audio quality. Energy efficient Class D design with switchable Auto Standby function.

The versatile DSP functions include, amongst others, a parametric EQ with matching speaker library, dynamic tools, a matrix mixer, priority source selection and delay. Despite this range of functions, the IPA Series power amps are easy to operate.

Front panel LED’s indicate functions such as signal, limit, protection and bridge mode.

HPF/LPF presets can be enabled directly on the device via DIP switches.

The LDIPA 412 T is equipped for remote control using future remote panels and paging microphones from LD Systems. The rear mounted expansion card slot provides future connectivity for Ethernet card / Ethernet+Dante card offering comprehensive configuration and management via software & Dante audio networking capabilities with potential connection to a wide range of Dante-enabled devices.

Also available in a 4 x 240 watts variant (LDIPA 424 T) for larger installations.

  • Professional 4-channel installation amplifier
  • Powerful class-D power amplifier with 4 x 120 W (IPA 412 T) at 4 Ohm (transformer bypass) or 70V/100V outputs through toroidal core transformer
  • Stereo/parallel/bridge mode selector switch per channel pair
  • 4 balanced line inputs and 4 speaker outputs with terminal block connections
  • Signal, limit, protection, mute and bridge mode LEDs per channel and clipping LEDs for the inputs
  • Speaker protection circuits: DSP limiter, overcurrent, direct current, overheating, short circuit as well as switchable auto standby mode
  • DSP presets with HPF and LPF which can be activated via DIP switches
  • REMOTE audio and control bus based on CAN architecture (Controller Area Network)
  • Equipped for future LD Systems remote control panels and paging microphones
  • Slot for future optional expansion cards for Ethernet or Ethernet + Dante
100V multi-ch 16ohms 4ohms 8ohms 1U
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Audio Channels

4

Output Circuitry

Class D

Operating voltage

Wide Range SMPS with PFC (power factor control)

Auto-Standby Power

Yes, after 20 Mins no audio input signal. Switchable (On-Off)

DSP

Yes

Remote-Bus

Yes

Indicators

Front Panel: "PROT", "LIMIT", "SIG", "BRIDGE" and Mute Symbol LED´s. Power On/ Standby LED.
Rear Panel: 4x Input Clip LED´s, Remote Lock LED (Red.)

Front Controls

On / off switch, standby

Rear Controls

"BRG“ (Bridge), "PAR“ (Parallel), "ST“ (Stereo), Amplifier Channel Mode, Low-Z and High-Z switches (paired), Output Volume potentiometers, Preset A and B switches, Remote Lock, Remote ON/OFF, Remote-Mode, Standby On/Off

Inputs

4x Balanced Line Inputs, Remote Bus Audio Input

Input connectors

6-pin Terminal Block Pitch 3.81mm, Remote IN/OUT RJ45, Service Micro USB Type-B

Expansion Slot

For optional Ethernet, or Ethernet + Dante cards

Cooling

Front to rear/side airflow,
Passive + 2-zone temperature controlled active cooling

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Height x Width x Depth

44.5 mm x 483 mm x 425 mm

Weight

8.7 kg
