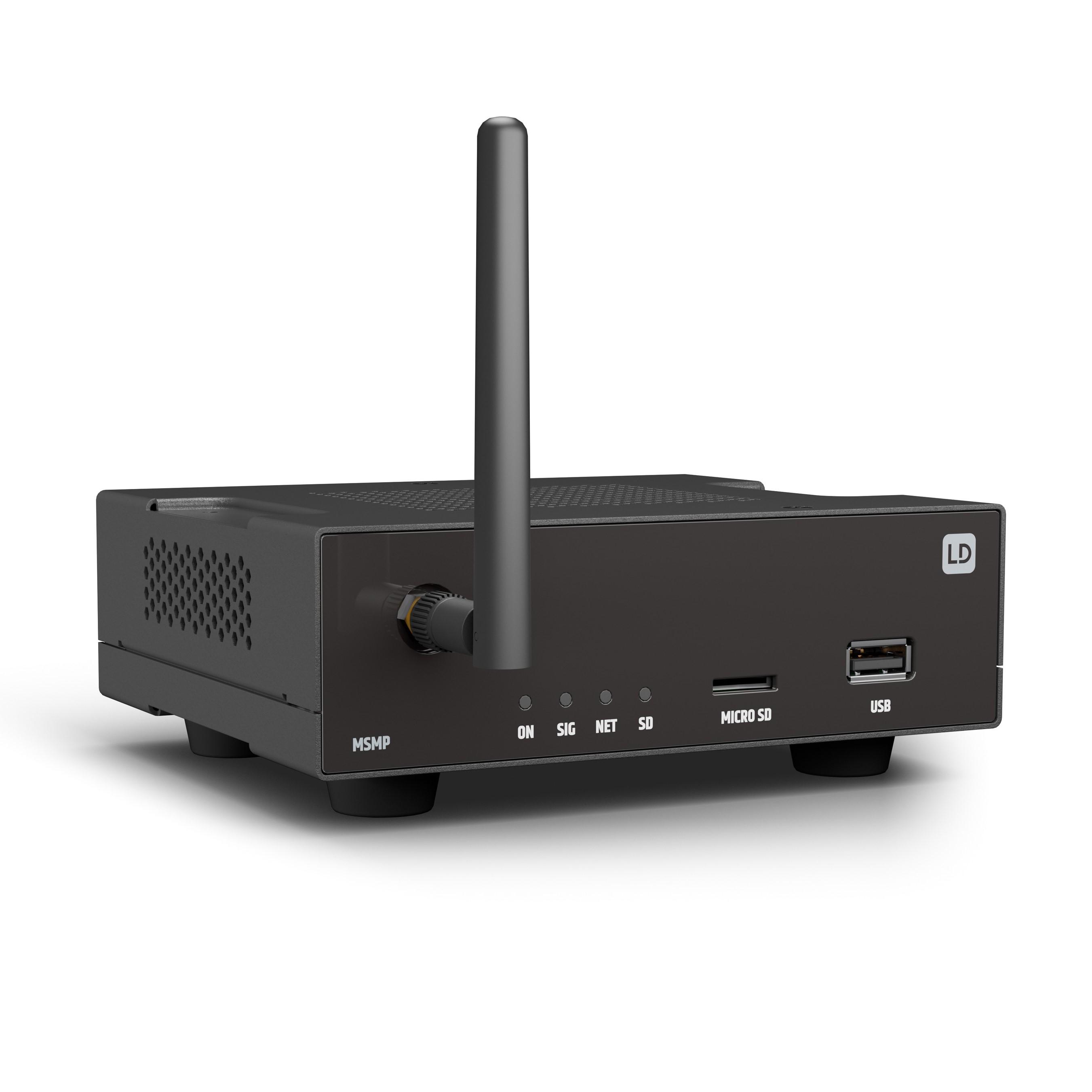

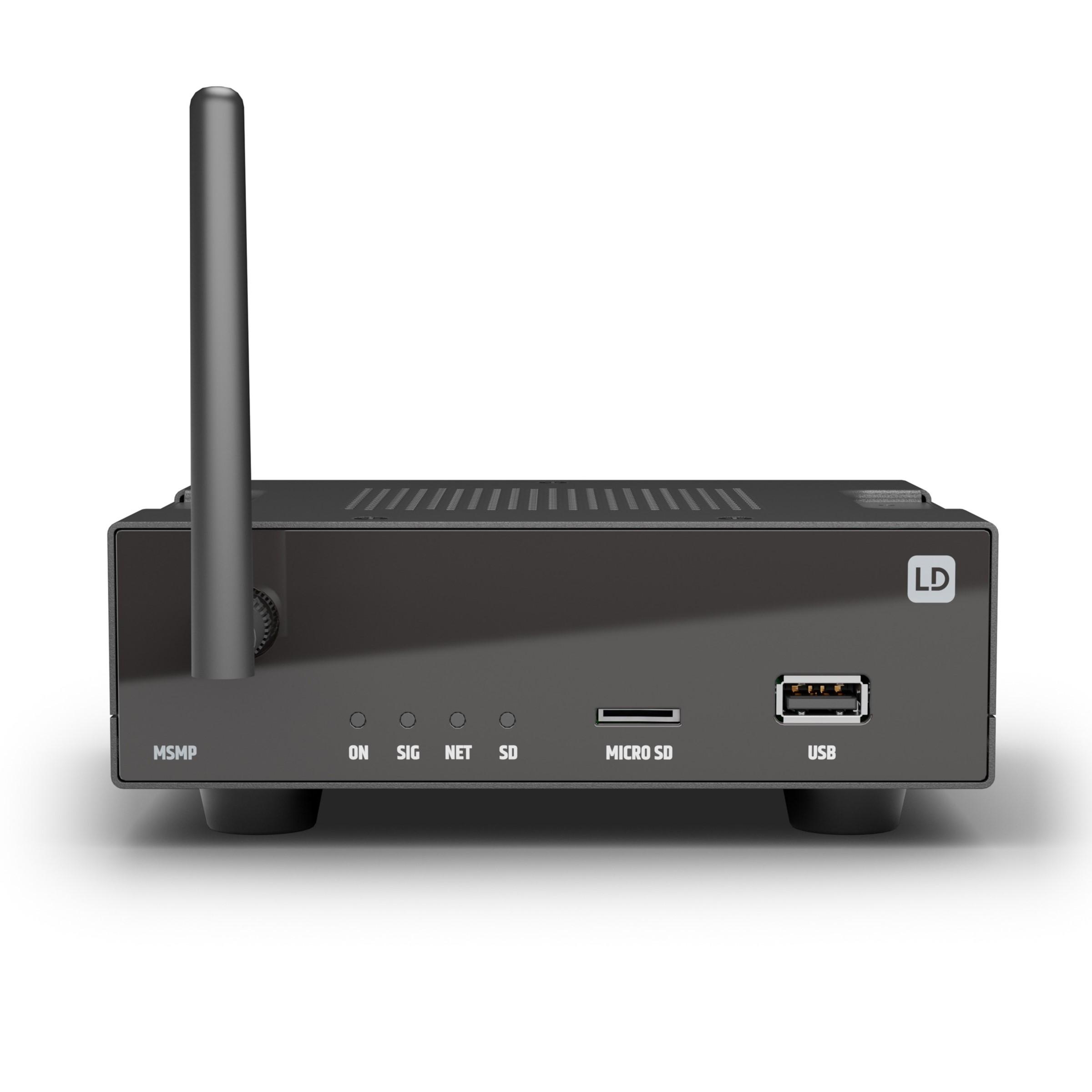

LD Systems MSMP

The LD Systems MSMP Music Player & Message Scheduler plays music & announcements from USB or MicroSD inputs. It can also connect to music streaming streaming services via URL sources and is compatible with DLNA and AirPlay for complete flexibility. Ideal for any commercial audio system requiring background music with the ability to manage announcements to staff or customers.

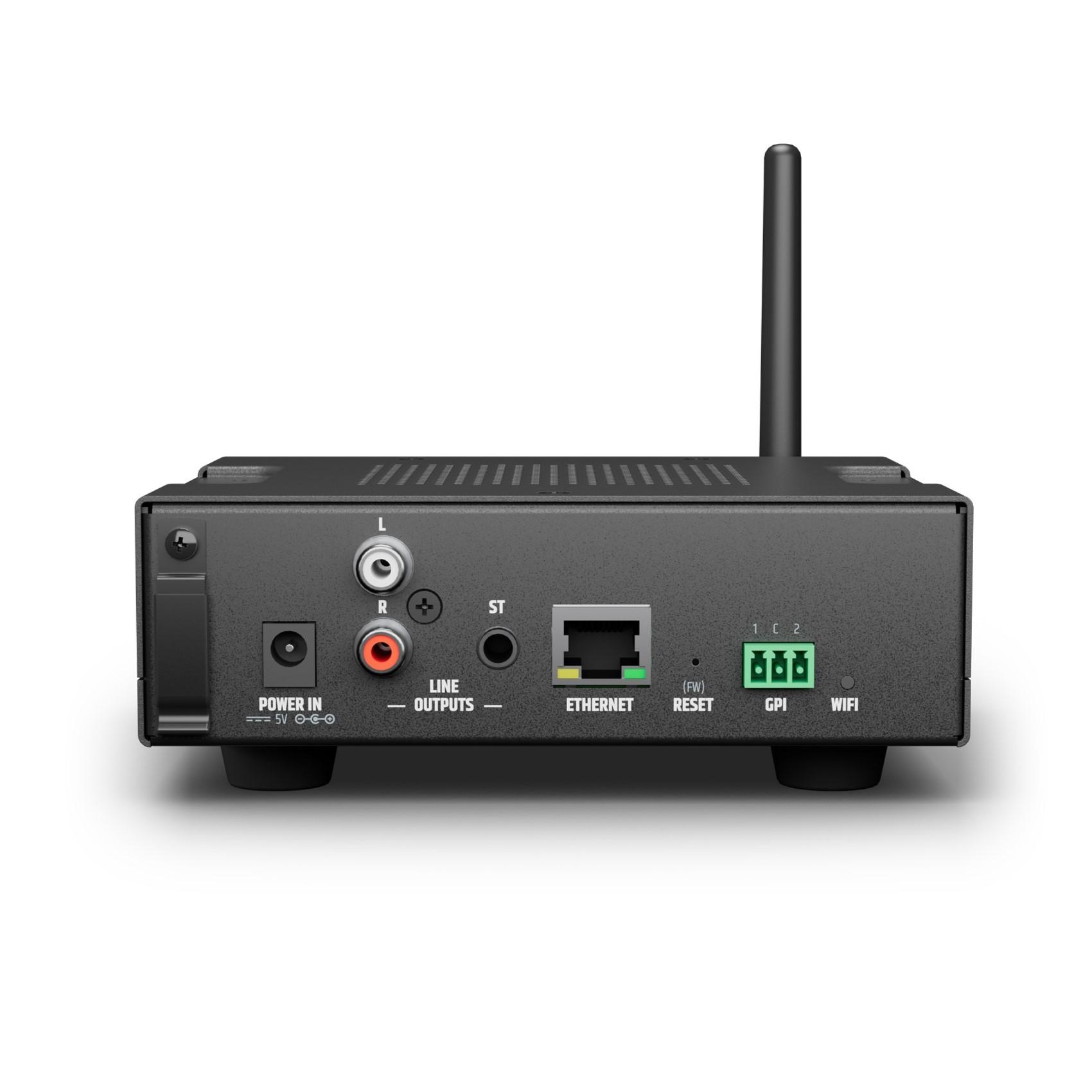

Stereo audio output is on RCA phono as well as minijack. Connect using Wi-Fi or with a wired internet connection.

Announcements can be scheduled for specific times or at regular intervals, or remotely activated using an external trigger into the two GPI inputs.

The MSMP can be operated via QUESTRA* software for fast playout access control and the built-in web browser gives you access to the complete set of configuration menus, including the scheduler.

Part of the LD Systems TICA series, the LDMSMP is super compact, just 1 rack unit high and 1/3 width. The optional rack tray, TICARK, can be used to mount up to 4 TICA® series products alongside each other to build a bespoke system, using minimal rack space.

  • Stream audio from online sources
  • Compatible with AirPlay and DLNA
  • Audio message scheduler
  • Stereo line output
  • Remote level control
  • Automatic music ducking for announcements
  • USB and MicroSD audio playback
  • Works with Questra® design and management software
  • Warranty: 5 Years

*QUESTRA® is a design and management software solution developed by LD Systems. It enables seamless configuration and control of LD Systems devices as well as third-party equipment such as lighting and video devices, from a centralised platform.

With powerful integration capabilities, it supports third-party controlled solutions and logic nodes for automation and system-wide management. In addition, customisable user panels provide intuitive control on Windows computers, as well as on Android and iOS devices.

QUESTRA® facilitates access to the full DSP capabilities of LD Systems' audio installation devices. Configure and manage networked audio solutions of any size, while integrating lighting and video with support for third-party controls and automation features, enabling seamless control of all devices from a single application.

1U SD USB
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Product type

Installation Media Player

Number of outputs

2

Audio modes

AirPlay, DLNA, Local storage Player ( USB & microSD ), URL Radio streaming

Media formats

aiff, FLAC, m3u, MP3, Ogg Vorbis, pls, WAV-CD

Line Outputs

2 x Stereo unbalanced Line Level RCA

Network connection (cable)

RJ45

Connections Wireless Unit

Wi-Fi 802,11a/b/g/n (2.4GHz Band)

GPI Remote Control Ports

2 x 3-pin terminal block, Dry contact to ground

Storage media type

Micro SD SDXC, USB

USB connection

USB 2.0 High Speed (480 Mbps)

USB storage capacity

Up to 2 TB

Power Supply

External SMPS, 100 V AC - 240 V AC, 50 - 60 Hz

Power supply plugs

International AC plug set

Housing / Front panel material

Steel / Plastic

Dimensions (W x H x D)

142 x 53 x 124.2 mm (height with rubber feet),

Rack Measurement

1RU, 1/3 width

Weight

1 kg

Cooling

Convection

Optional accessories

Rack mounting hardware (LDTICARK)
