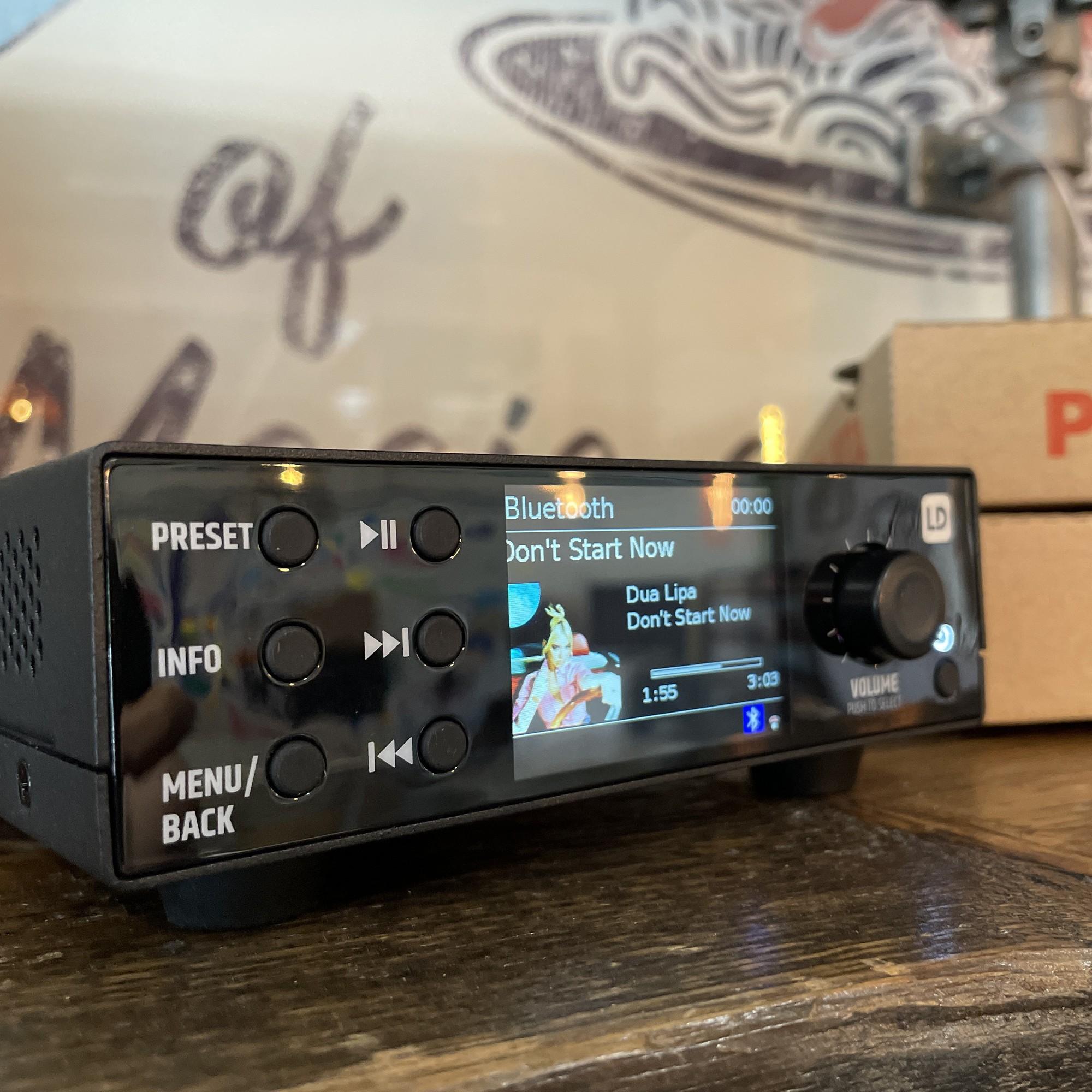

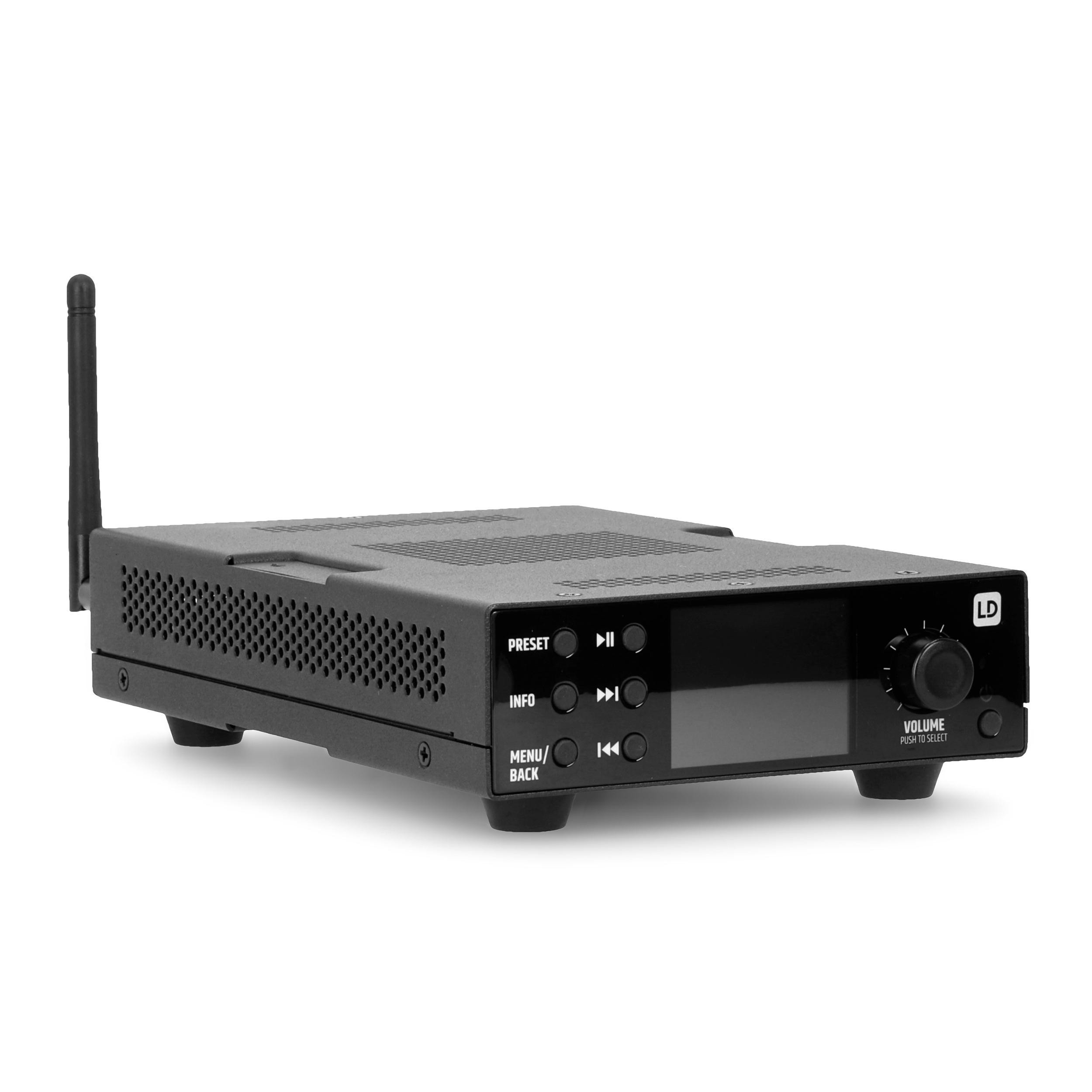

LD Systems RSMP

The LD Systems RSMP universal media player combines an integrated FM, DAB and DAB+ tuner, Spotify, Amazon Music and Deezer streaming, Internet radio as well as a USB media player for playing MP3 files via a USB stick. Bluetooth 5.0 radio standard ensures secure transmissions and long ranges when streaming. The variety of sources gives users freedom in content management, ideal for permanently installed sound reinforcement solutions

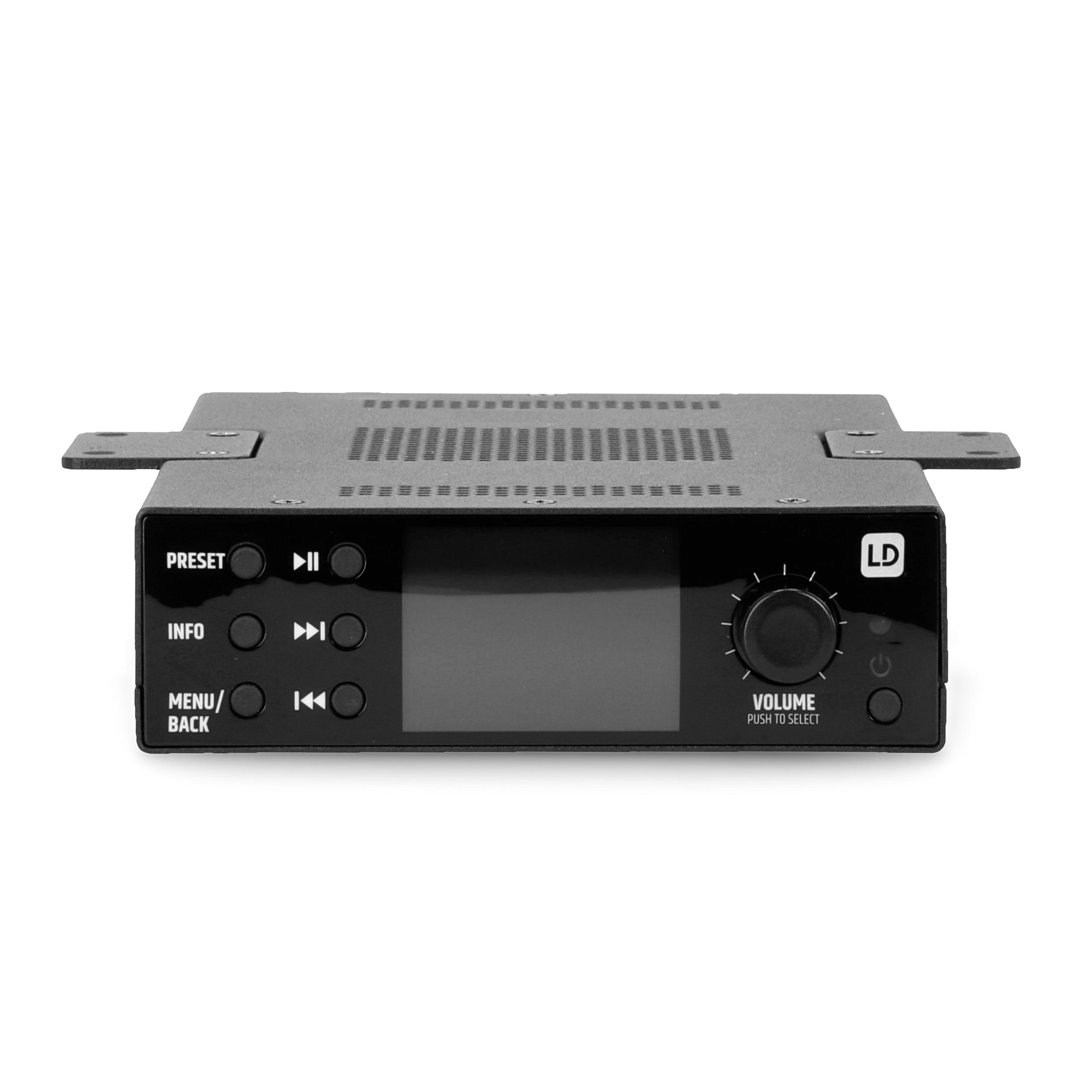

Part of the TICA series, the compact housing requires only a third of the width of a 19'' rack (1U). An optional rack tray allows three RSMPs to be placed side by side. Or combine with other LD Systems TICA Series products for a bespoke set-up in minimal rack space. For flexibility, rubber feet are supplied for table top use as well as accessories for mounting on the wall or under a tabletop.

The Internet Radio Module enables worldwide reception of more than 50,000 Internet radio stations. Connection to the Internet is via LAN port or dual-band WLAN (2.4 GHz and 5 GHz). An FM and a DAB+ tuner are also available for the playback of conventional radio programmes.

The LDRSMP Radio Streaming Media Player provides independent preset storage locations for Internet Radio/Podcast, FM, DAB+, Spotify and Amazon Music.

A large 2.4'' colour display, quick access buttons and rotary controls makes configuration quick and easy. Using the free UNDOK app from Frontier Smart Technologies (iOS & Android), the LDRSMP can also be conveniently controlled via a smartphone or tablet, including source and media selection. An infrared remote control is also supplied.

  • Multi-source content player
  • Streaming via Spotify Connect, Amazon Music and Deezer
  • Reception of more than 50,000 Internet radio stations
  • Integrated FM and DAB/DAB+ tuner
  • MP3 audio player with USB 2.0 Type-A interface for USB sticks
  • Bluetooth 5.0 standard for streaming and control
  • Compatible with free UNDOK Remote app (iOS/Android)
  • Internet connection via LAN and WLAN (2.4 GHz & 5 GHz)
  • Large 2.4'' colour display

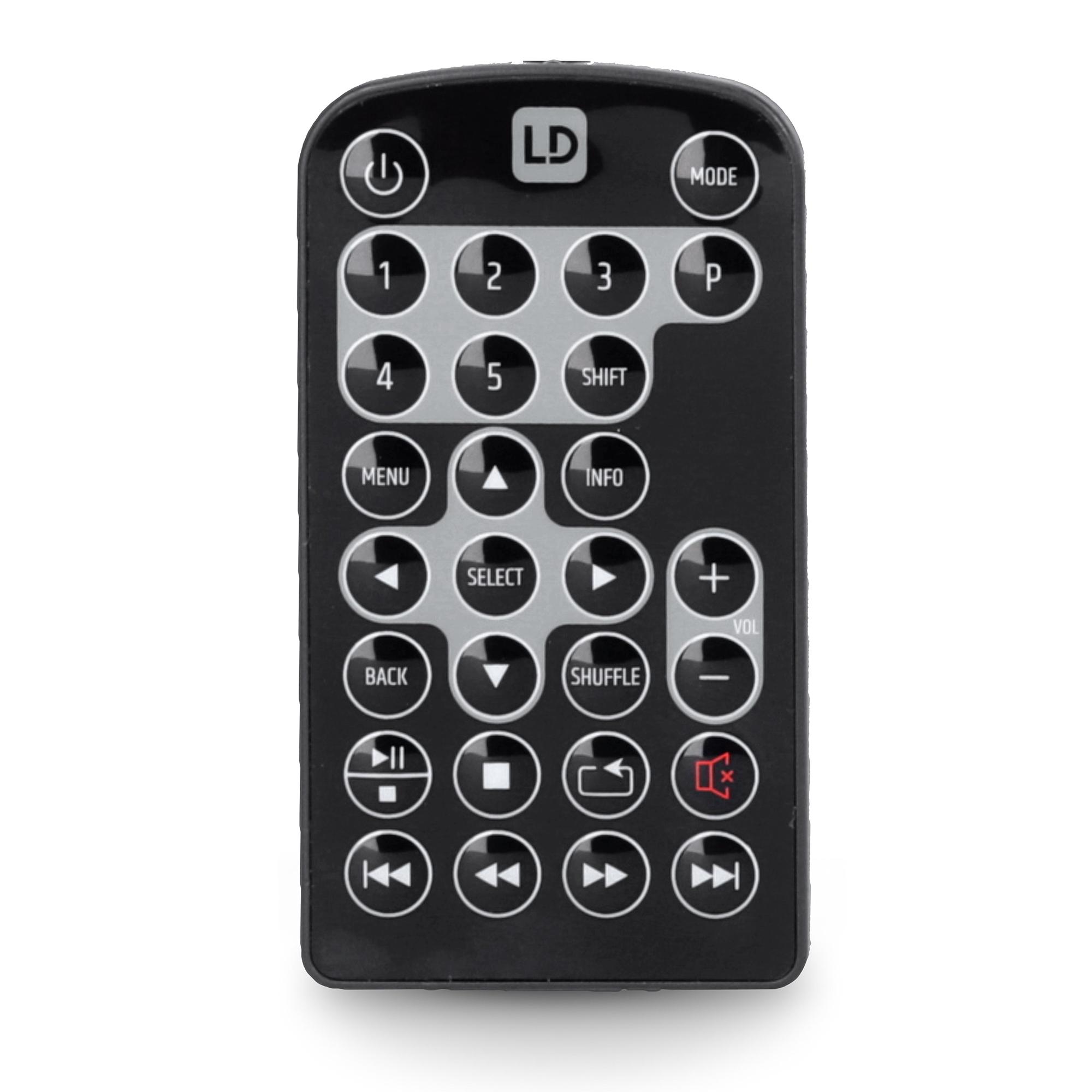

  • Infrared remote control included
1U amfm bluetooth DAB Internet Spotify USB
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Audio modes

Audio Streaming services, Bluetooth Audio Receiver, DAB/DAB+, FM Radio, Internet Radio, USB Player (.mp3)

Outputs

1 x Balanced stereo line signal

Bluetooth Standard

5.0

Cooling

Convection

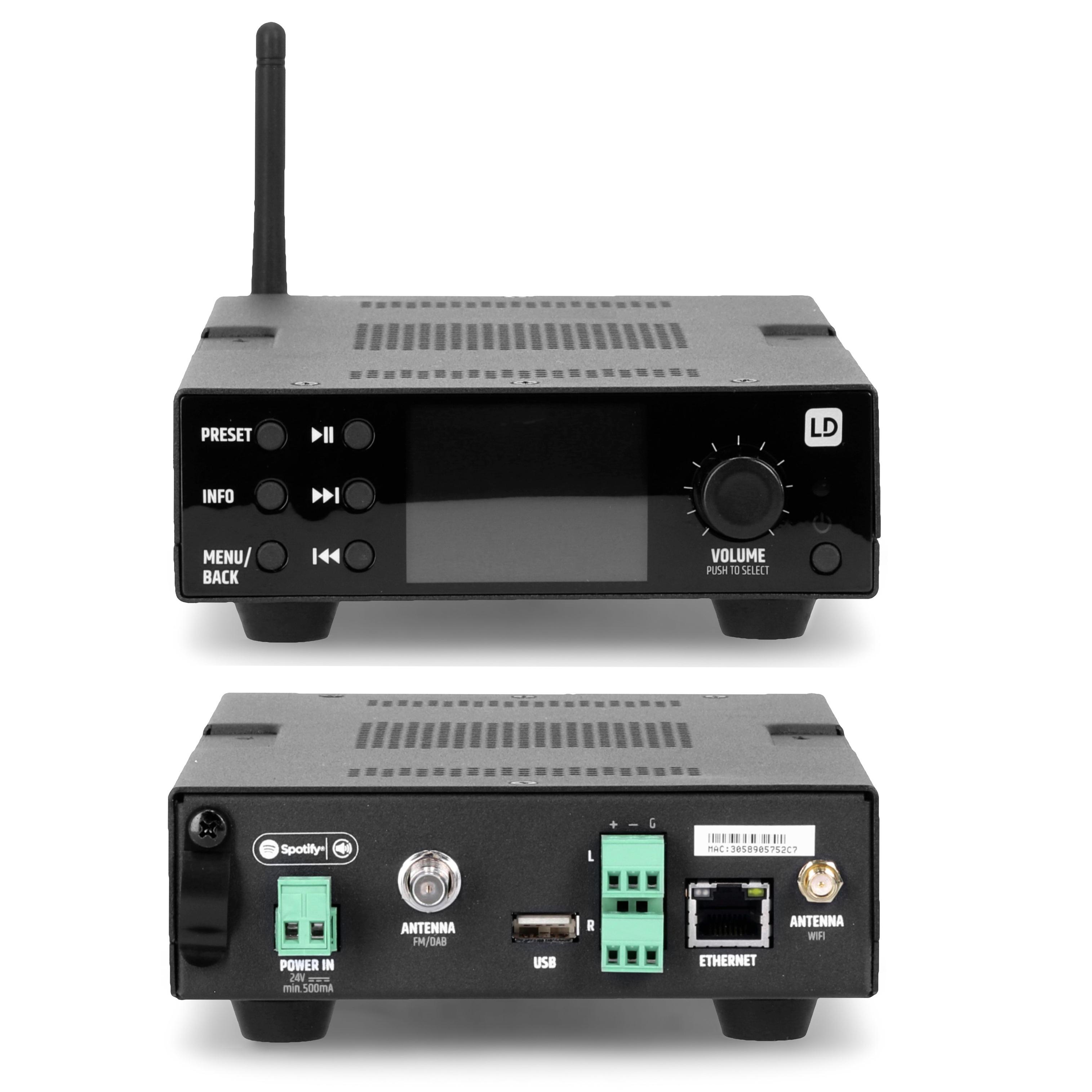

Output connectors

2 x 3-pin terminal block, Pitch 3.81 mm

Network connection type

RJ45

Wireless

Wi-Fi 802.11a/b/g/n (2.4GHz and 5GHz bands)

WLAN security

WEP, WPA, WPA2, WPS

Remote Control

Infrared

Display Type

2.4" TFT Colour 320 x 240

Mains connector

SMPS

Operating voltage

100 VAC - 240 VAC (±10%), 50-60 Hz

Secondary Power Supply

24 V DC / 500 mA

Max. Power consumption

4 W

Dimensions (W x H x D)

(height with rubber feet)

143 x 54 x 235 mm

Weight

0.9 kg

Accessories (included)

External power supply with interchangeable plugs, FM /DAB antenna, IR Remote Control, Mounting plates for surface mount applications, Wi-Fi antenna

Related Products

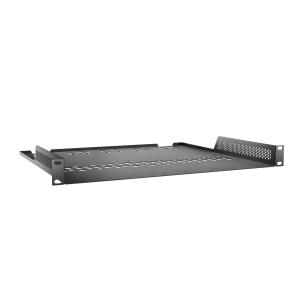

LD Systems TICA RK
