Bosch LBC 3081/02

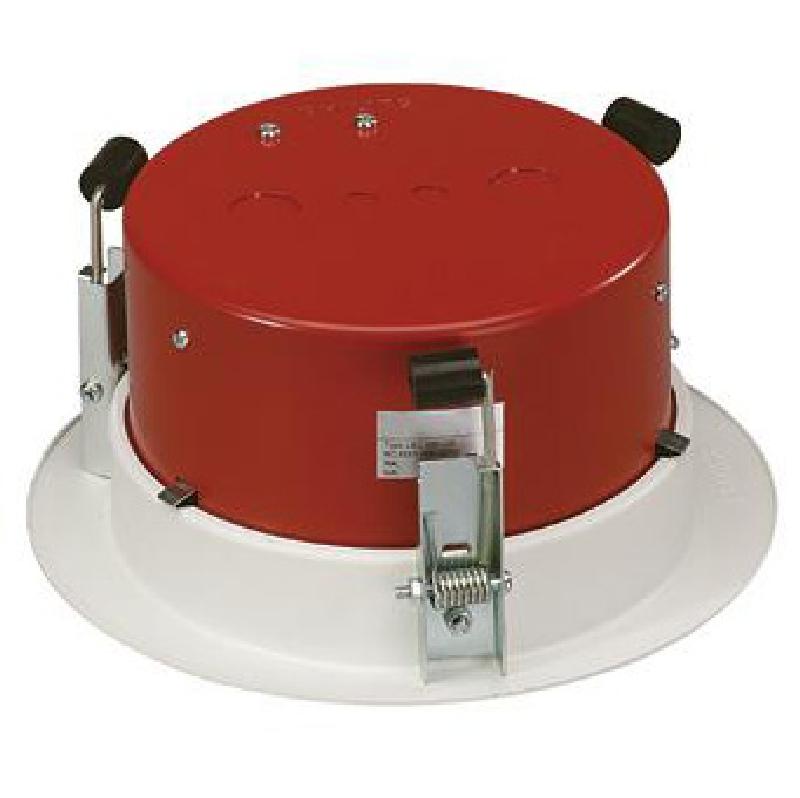

Bosch LBC 3081/02 steel firedome for Bosch LBC 3086/41 ceiling loudspeaker. If the loudspeakers are to be used for fire or emergency paging, this firedome will ensure they comply with EN 54-24 regulations.


During a fire, the ceiling cavity in which loudspeakers are installed can allow flames to spread throughout a building.


To prevent fire entering the cavity via the loudspeaker, the ceiling loudspeaker can be fitted with a steel fire dome. This optional LBC 3081/02 fire dome is clicked into the mounting ring via three leaf springs, before the loudspeaker is inserted. For extra convenience, a safety cord from the fire dome allows the installer to temporarily hang the loudspeaker unit during installation. This cord also provides reassurance after installation. The fire-dome has knockout holes for two grommets (supplied) and two cable glands (PG 13).

List Ex VAT: £14.00
Log in for Trade Prices


Dimensions (dia. x max. depth)

157 x 70 mm (6.2 x 2.8 in)


360 g (0.8 lb)


Flame red (RAL 3000)


B15 Acc. to DIN 4102
