The LD Systems LDDSP 44 K 4-channel power amplifier ideal for demanding large-scale sound reinforcement. It includes extensive DSP control and Audinate’s Dante™ networking technology, a self-configuring solution to distribute digital audio over Ethernet with extremely low latency. Designed for concert-quality performance, the LDDSP 44K delivers a massive 1,200 watts per channel (2 / 4 Ohms or 70V) and 2 x 2,400 watts bridged (4 Ohms or 100V).

The high-efficiecy Class H topology and switch mode power supply with power factor correction (PFC) provide a wide dynamic range and excellent transient response. Comprehensive protection circuitry including power-up, DC, overcurrent, thermal and short circuit protection plus current and clip limiters to prevent SMPS overload and loudspeaker damage. Together with a pair of temperature controlled fans, they ensure exceptional reliability in the most demanding applications.

The 24-bit DSP allows precise control with FIR and IIR filters, parametric EQ, crossover, delay, RMS and peak limiter functions. User configurable loudspeaker presets with password protection enable fast setup. The LD Systems® DSP 44 K sports a menu driven 4-line display and rotary encoder with push button switch for easy configuration. The Dante™ interface permits instant integration into networks using the Dante™ protocol, and the included software enables computer control and monitoring.

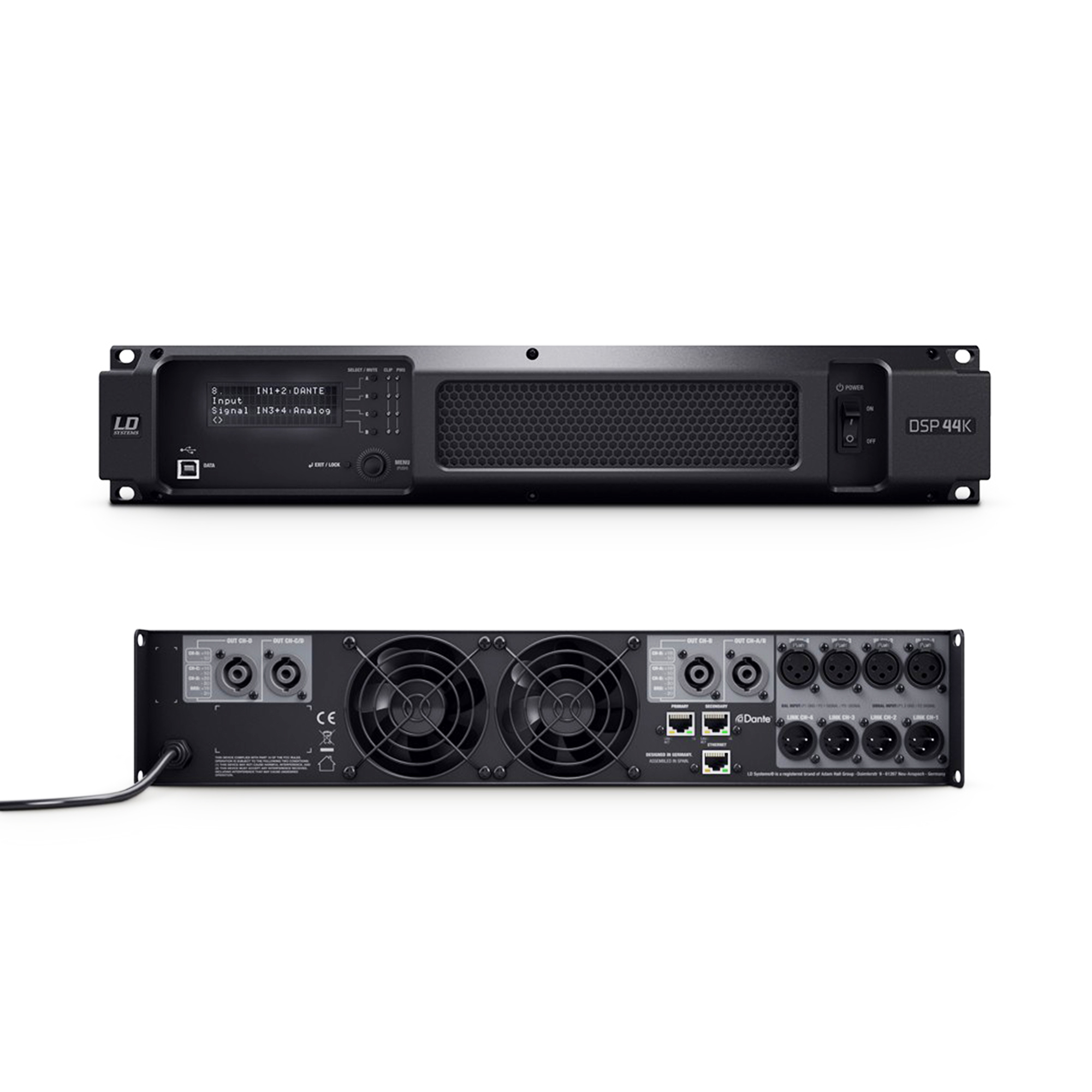

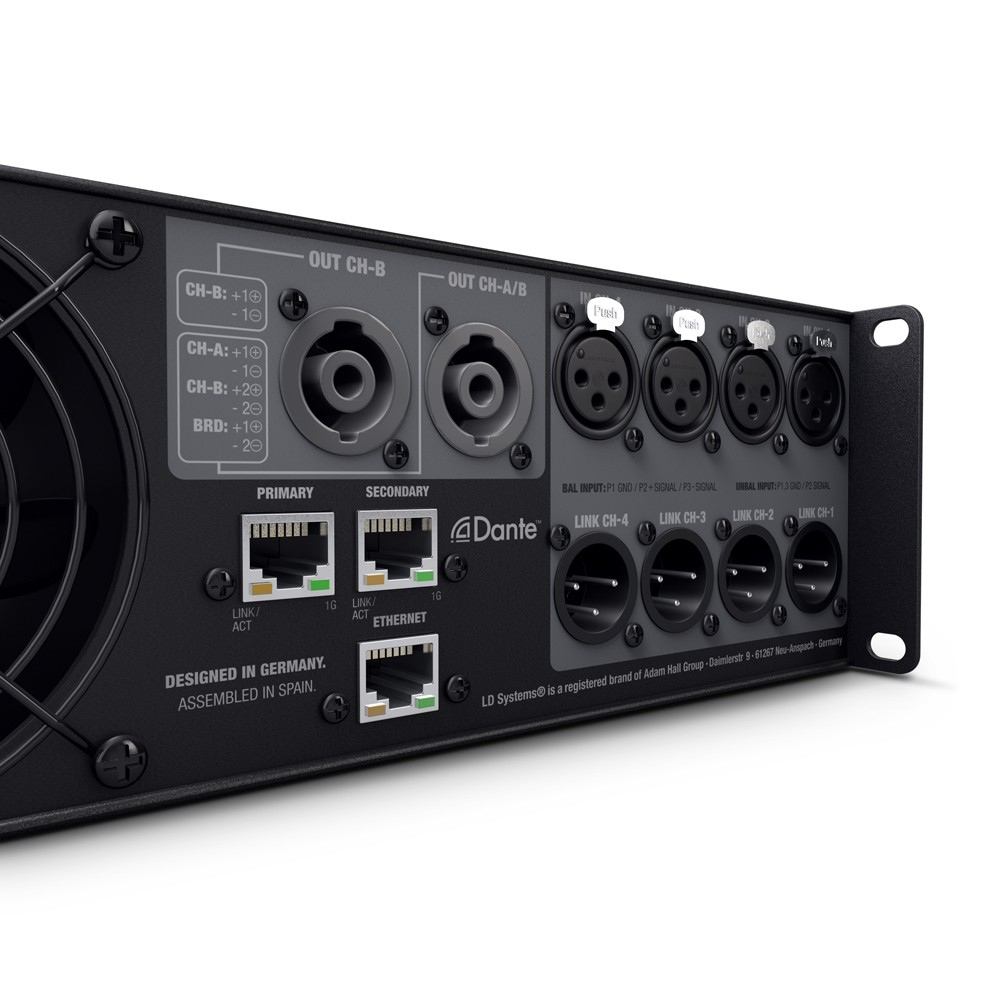

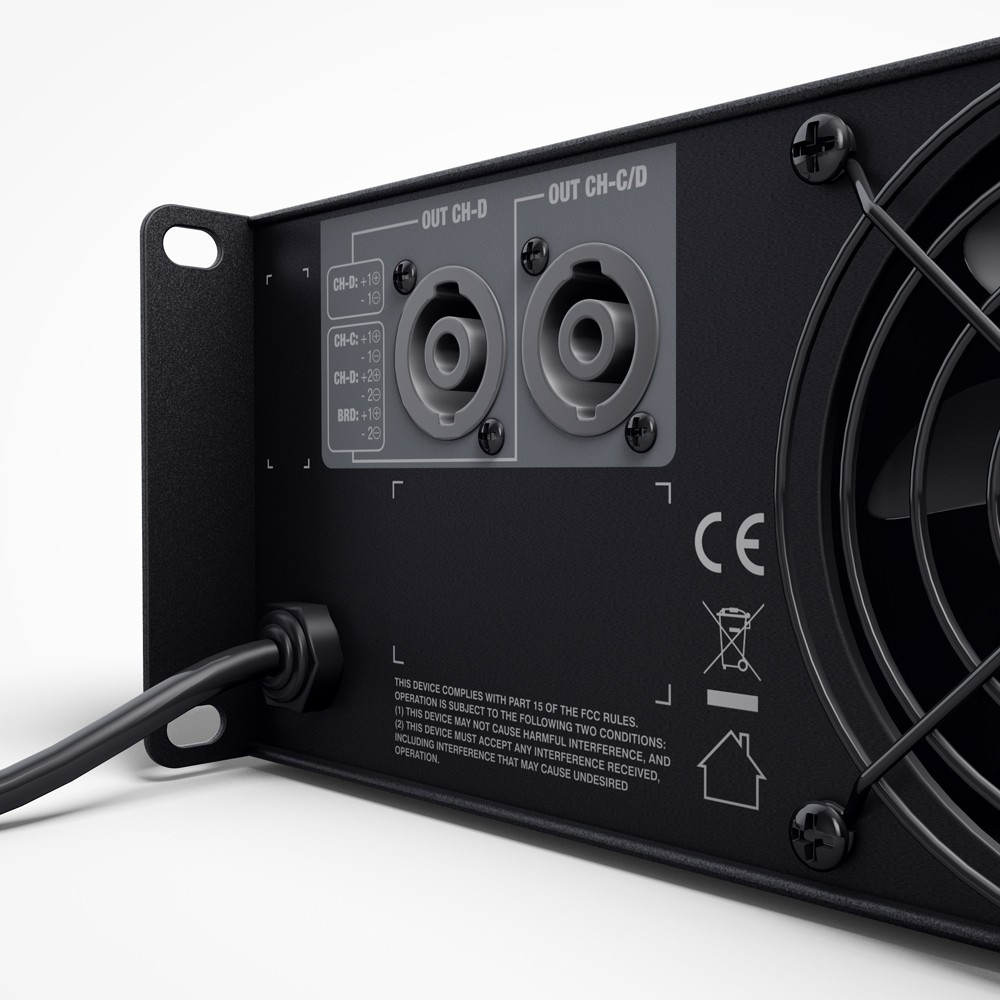

The LD Systems® DSP 44 K is housed in a 2U all-steel chassis and weighs just 7 kg. It provides balanced Neutrik® XLR inputs, speakON® output connectors plus USB and Ethernet ports. For optimal speaker performance and safe operation the DSP 44 K comes with an LD Systems® loudspeaker preset library.

• Dante™ enabled 4-channel power amplifier with DSP control
• 4 x 1,200 watts @ 4 & 2 ohms, 2 x 2,400 watts bridged @ 4 ohms
• 10 Hz – 22 kHz frequency response with 120 dB dynamic range
• 24-bit/48kHz DSP with FIR and IIR filters, parametric EQ, crossover, delay, RMS and peak limiters
• DC, overcurrent, thermal & short circuit protection, soft start, clip & SMPS overload limiters
• Dual temperature-controlled fans
• Power factor correction (PFC)

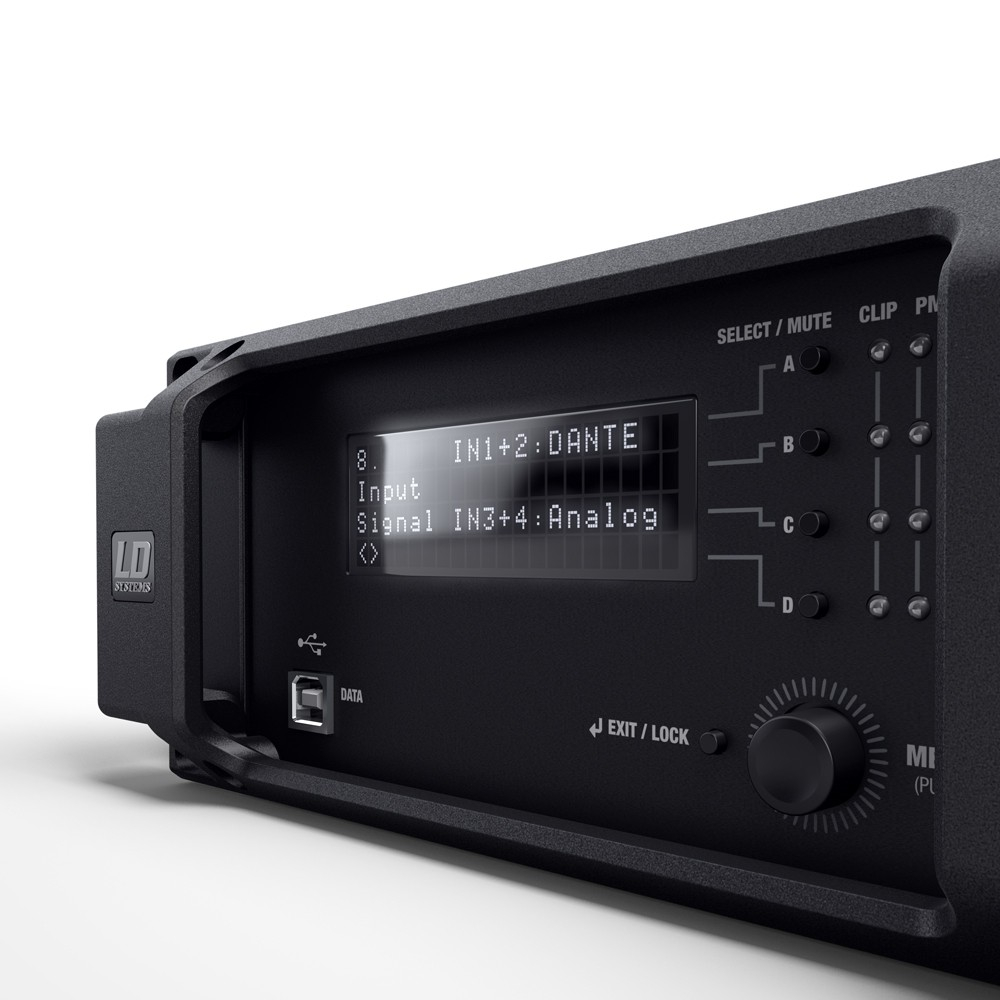

• Menu driven 4-line display with rotary encoder & security lock
• Includes control & monitoring software & LD Systems® Loudspeaker Preset Library
• 19” Rack mounted, 2U high
