Soundtube FP6030 mk11

Soundtube FP6030 mk11

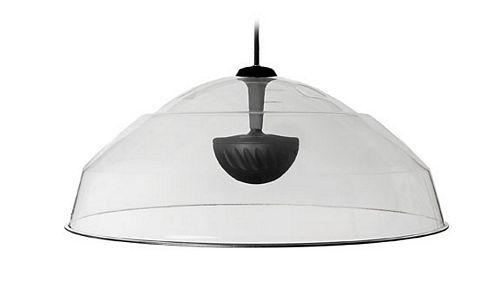

The Soundtube FP6030 mkII focus point loudspeaker is a stereo, 15 watt dual parabolic pendant speaker suitable for 8 Ohm Stereo / 4 Ohm Mono.

The narrow dispersion of the FP6030 mk11 suspension speaker offers highly focussed, targeted sound and is perfect for museum exhibits, trade shows etc.

  • Patented Dual-Parabolic dispersion control technology provides a dramatic audio hot spot with crisp stereo separation.
  • Engineered for stereo or mono applications.
  • Twin 25 mm (1 in) convex aluminum High Excursion Micro Transducers in individually sealed enclosures for stereo or mono music & messaging.
  • Patented ZeroReflection enclosure technology for accurate sound reproduction.
  • Narrow 41º coverage angle for a targeted sound focus point.
  • Single-point balanced mounting for easier and cleaner-looking installs.
  • Mounting hardware included, optional wall bracket available.
4ohms 8ohms
List Ex VAT: £722.22
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response(-3 dB)

160 Hz - 22 kHz

Low Frequency(-10 dB)

130 Hz - 22 kHz

Sensitivity

75.0 dB

Power Capacity RMS

15 W

Max SPL dB @ 1 M

87 dB

Nominal Impedance

8 ohm stereo / 4 ohm mono

Full Range Drivers

2 x 25 mm (1 in) aluminum, high excursion

Connections

Four-conductor 16-gauge hardwire leads
CAT-V cable included for optional accessories

Height

332.7 mm (13.10 in)

Diameter

781.1 mm (30.75 in) Dome

Weight

4.1 kg (9 lbs)

Colour

Clear dome, black pod

DOWNLOADS

Soundtube FP6030 Datasheet
