TOA SC-615

TOA SC-615

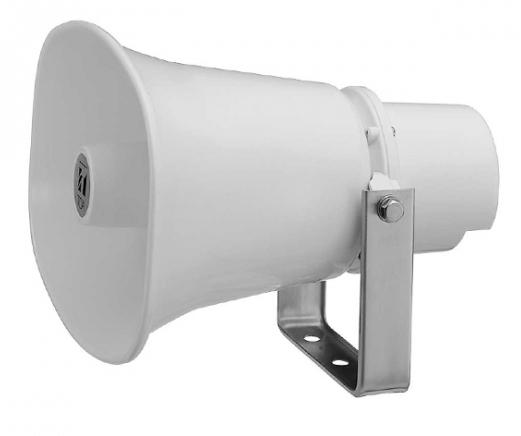

The TOA SC-615 is a low impedance horn loudspeaker with an oval flare for enhanced speech clarity.

Available in 3 power options - see related products for the SC-610 - 10 watts or SC-630 - 30 watts.

Constructed from aluminium and finished with off-white powder coating. Supplied with stainless steel mounting bracket and hardware.

The diaphragm is of a new design employing special heat-resistant fibres impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape.

  • 15 W
  • Low Impedance (8 Ω).
  • Stainless steel brackets and hardware.
  • Shock resistant aluminium oval horn.
  • Unobtrusive off-white colour.
  • Water resistant, rated IP65.
IPxx 8ohms
List Ex VAT: £55.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 15 W
Impedance

8 Ω
SPL (1W/1m) 112 dB (1 W, 1 m at 500 to 2,500 Hz peak level)
Frequency Range (-10dB) 280HZ - 12500HZ
IP rating IP65
Material / finish

Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, Screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Colour Off-White
Dimensions mm 222 (W) x 179 (H) x 234 (D) mm
Weight (kg) 1.2 kg

DOWNLOADS

TOA SC-610M, SC-615M & SC-630M Brochure
TOA SC610, 615, 630 (M) Datasheet
