TOA SC-610

TOA SC-610

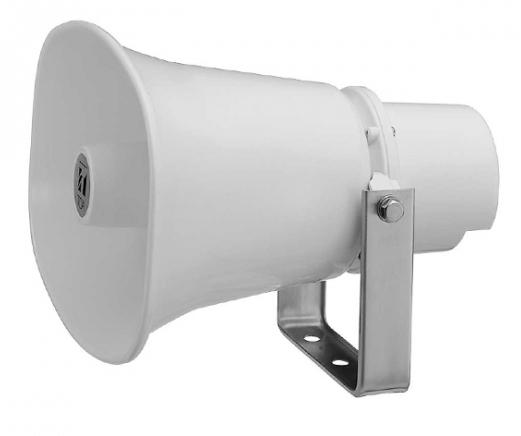

The TOA SC-610 low impedance horn loudspeakers has an oval flare for enhanced speech clarity. Rated at 10 watts RMS.

Available in a choice of power levels - see SC-615 - 15 watts or  SC-630 - 30 watts, in related products.

Constructed from aluminium and finished with off-white powder coating. Supplied with stainless steel mounting bracket and hardware.

The diapragm is of a new design employing special heat-resistant fibers impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape.

  • 10W
  • Low Impedance (8 Ω).
  • Stainless steel brackets and hardware.
  • Shock resistant aluminium oval horn.
  • Unobtrusive off-white colour.
  • Water resistant, rated IP65.
IPxx 8ohms
List Ex VAT: £50.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 10 W (Mobile Mount use: 5W)
Impedance

8 Ω
SPL (1W/1m) 110 dB (1 W, 1 m at 500 to 2,500 Hz peak level)
Frequency Range (-10dB) 315HZ - 12500HZ
IP rating IP65
Material / finish

Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, Screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Colour Off-White
Dimensions mm 172 (W) x 161 (H) x 188 (D) mm
Weight (kg) 1 kg

DOWNLOADS

TOA SC-610M, SC-615M & SC-630M Brochure
TOA SC610, 615, 630 (M) Datasheet
