Aiphone JO-WIFI Series

Aiphone JO-WIFI Series

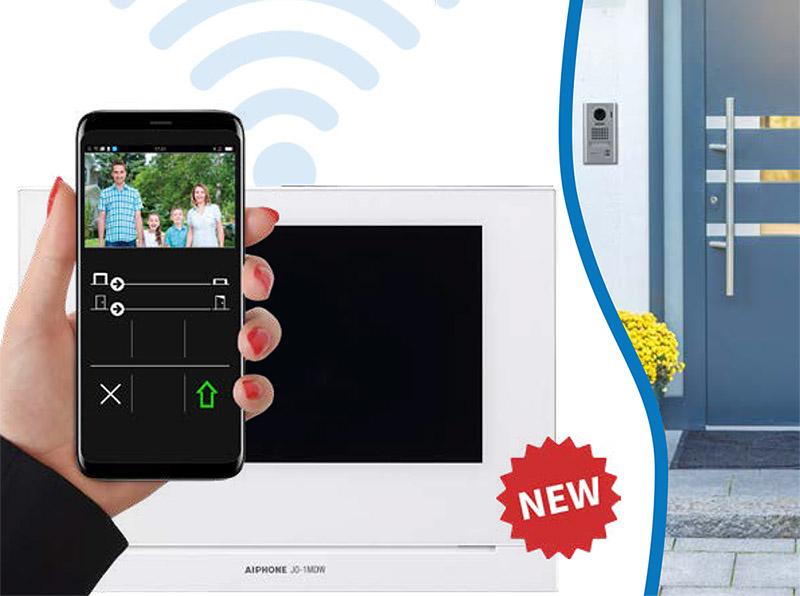

The Aiphone JO-WIFI Series conveniently identifies visitors at locked doors. Inside stations feature easy to use touch buttons and a large, 7 inch video screen. The JO-WIFI Series can accommodate one door and up to two inside stations.

Ready to install box sets are available which include one door station, one inside station, and power supply.

  • Answer calls and unlock your door via the large 7″ screen or your mobile devices
  • Store calls with no added fees using onboard memory or MicroSD card
  • Watch recorded calls from the on-site master or on the mobile app
  • See and hear who is at the door while remaining safe
  • Easy installation using just 2 wires, like existing doorbell wire
  • See & hear activity at the entrance via the door station
  • Stylish modern design
  • A sliding button in the app prevents accidental unlocking of your door
  • Warranty: 3 Years

Download the Aiphone JO & JO-WIFI Series Brochure here.

List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power Source:

18V DC - use PS-1820UL

Calling:

Chime with image, approx. 45 seconds

Communication:

Open-voice (VOX) or push-to-talk (PTT)

Video Monitor:

7" TFT color LCD touchscreen

Door Release:

JO-1MDW: N/O dry contact, 24V AC/DC, 1A
JO-1MD, JO-1FD: N/O dry contact, 24V AC/DC, 500mA (use RY-1824L for larger contact rating)

Wire Type:

Door to Master/Expansion stations: 2-cond., mid cap, solid, non-shielded - use Aiphone #871802
Extension Station to Master Station: 4-cond., mid cap, solid, non-shielded – use Aiphone #87104
Expansion Station to Master Station (with door release): 6-cond., mid cap, solid, non-shielded – use Aiphone #871804 + #871802

Wiring Distance:

Door Station to Master/Expansion stations: 165' (22 AWG) 330' (18 AWG)
Door Station to Expansion Station: 165’ (22 AWG) 330’ (18 AWG)
Power Supply to Master Station: 16’ (22 AWG) 33’ (18 AWG)

Wireless Protocol:

2.4 GHz IEEE802.11 b/g/n

Mobile App:

Max per system; 8 devices
