LD Systems CURV500 S2
Click to expand

LD Systems CURV500 S2

The LD Systems CURV 500 S2 set of 2 satellite speakers can be combined with further S2 single satellites or CURV500 DSAT Duplex satellite speakers. Connection of up to four singles is simple with the Smartlink adapter - no interconnecting cables required.

Constructed from die-cast aluminium with a robust metal grille, powder coated in black or white.

The compact cabinets (12cm x 12cm) are equipped with a single 4-inch midrange driver and three 1-inch high-frequency drivers. WaveAhead® technology developed by LD Systems whereby the tweeters are arranged vertically ahead of the high-performance full-range speaker, provide the perfect sound mix.

The 110 degrees horizontal dispersion angle is very wide but dispersion is limited vertically to 10 degrees per satellite reducing reflections on ceilings and floors for clear consistent coverage.

An M3 screw connection is provided for a safety rope.

  • Pack of two array satellites
  • Rugged and resilient die-cast aluminium cabinet
  • Single 4-inch midrange driver and three 1-inch high-frequency drivers
  • Patented WaveAhead® technology delivers excellent sound
  • SmartLink® system for cable-free assembly of up to four array satellites
  • 16 ohm impedance per satellite
16ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Transducers

1 x 4" midrange
3 x 1" tweeter

Load rating (RMS)

40 W

Peak power

80 W

Speakers per amplifier channel (DSP44/45K)

8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)

Dispersion

110° horizontal, vertical (each satellite) 10 °

Impedance

16 Ohm(s)

SPL (1W/1m)

88 dB

Max. SPL

104 dB

Material

Die-cast aluminium

Colour / finish

Black or White / powder coated

Height x Width x Depth

122 mm x 122 mm x 122 mm

Weight (pair)

3.44 kg

Features

internal crossover, M3 thread for safety rope for installations, metal grille, SmartLink® System, WaveAhead® Technology

Related Products

LD Systems CURV500 SLA T

Curv 500® 70 / 100 V SmartLink® Adapter for up to 6 CURV500 satellites.

see more
List Ex VAT: Contact Us

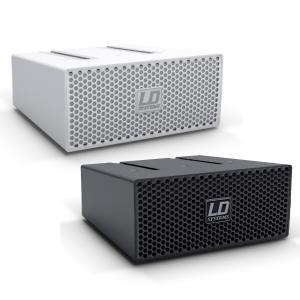

LD Systems CURV500 SLA

SmartLink® Adapter for up to 6 CURV500 satellites.

see more
List Ex VAT: Contact Us

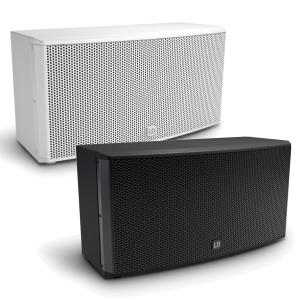

LD Systems CURV500 I SUB
