Apart MPH31G
Click to expand

Apart MPH31G

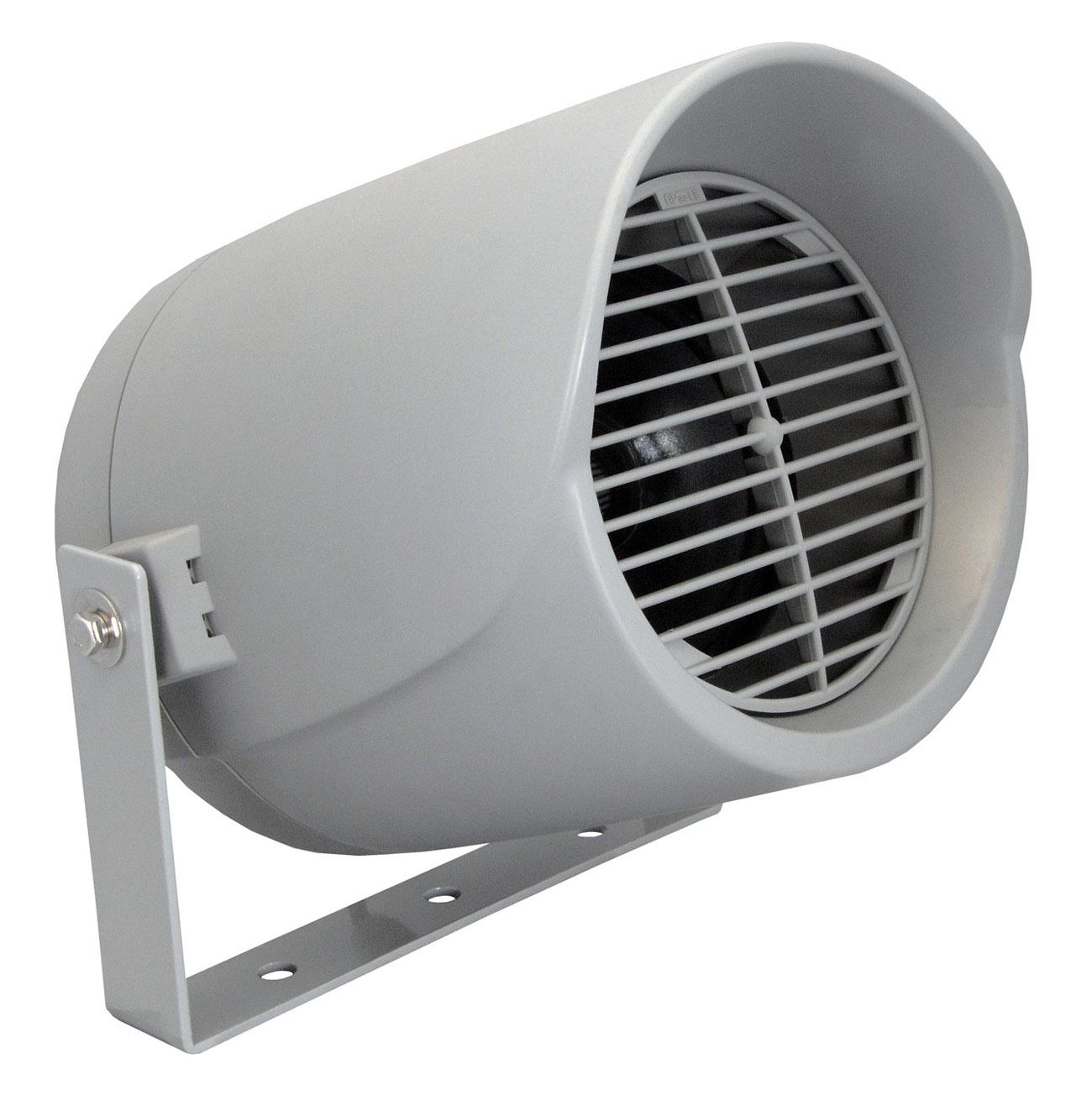

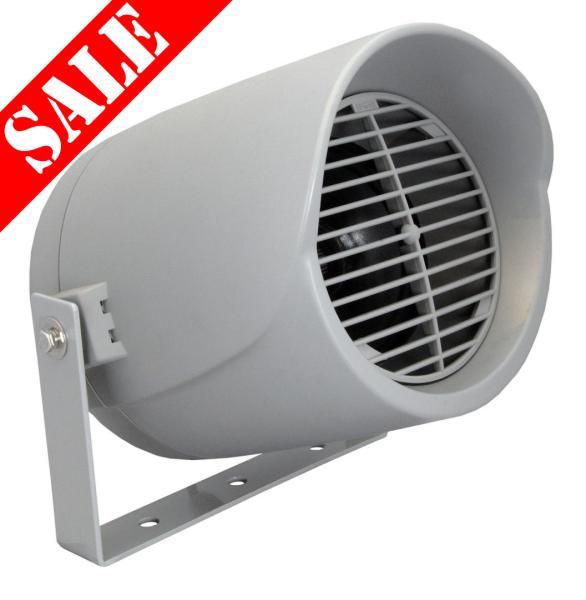

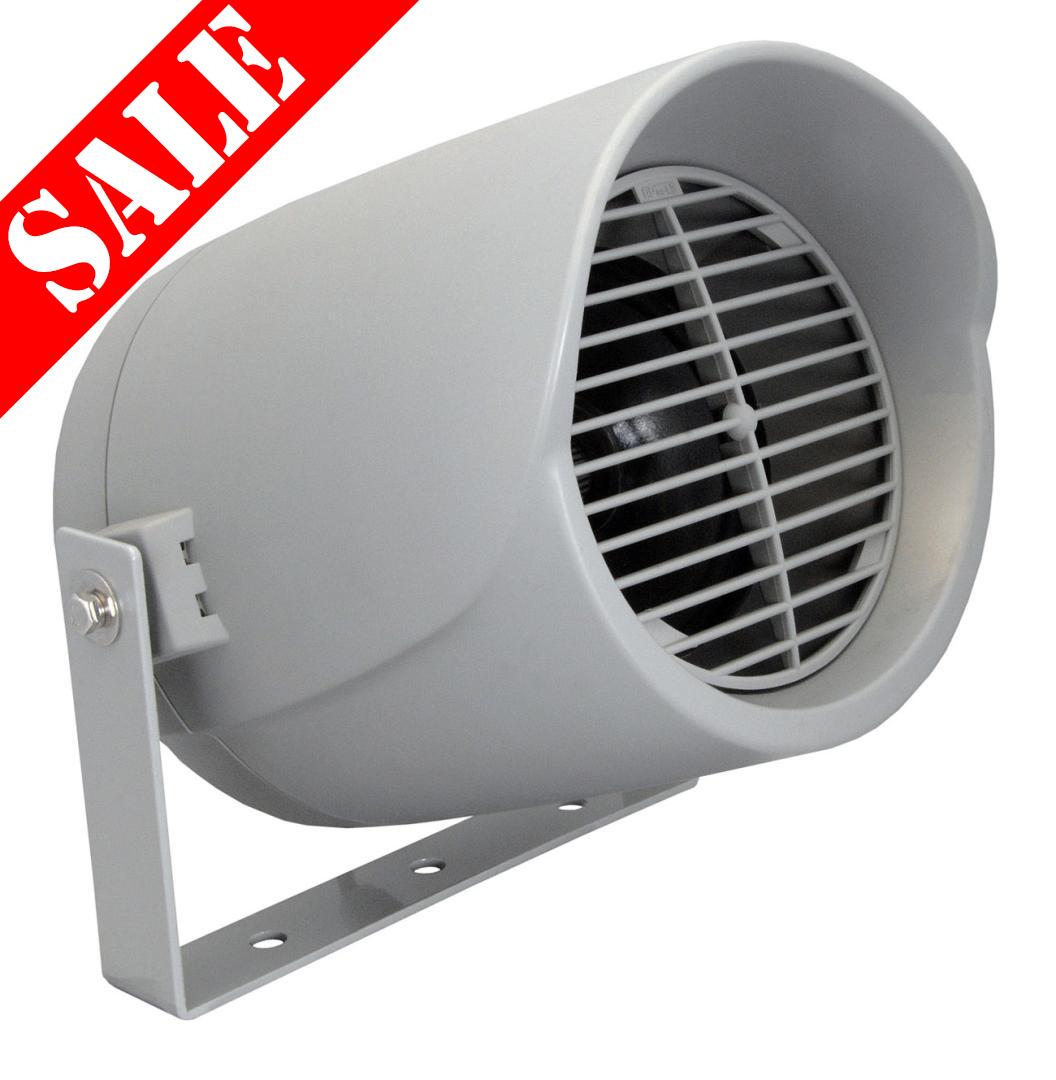

The Apart MPH31G is a very powerful horn-loaded sound projector, effective for both indoor and outdoor use.

Clearance Line - Limited Stock at less than half price! Please contact us for up to date availability.

Water resistant. Rated IP54.

Rated at 30 watts and suitable for use on 100 volt line and 8 ohm systems.

  • Suitable for areas where the back ground noise level is high.
  • High quality 30 watt 100 Volt transformer with several power tappings.
  • Equipped with a treated 5.25” woofer with aluminium dome giving a clear sound reproduction or music and speech, even for long distance use.
  • Supplied with stainless steel bracket and screws, and constructed from ABS plastics.
  • Weather and UV-proof.
100V IPxx 8ohms
List Ex VAT: £20.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

height

170 mm

width

226 mm

depth

244 mm

loudspeaker system

single cone

woofer size

5,25 inch

woofer cone material

coated paper

mounting system

U-bracket

100V transformer power taps

30 - 15 - 7.5 - 4 watts

impedance

8 ohms

low impedance dynamic power

30 watts

low impedance RMS power

30 watts

SPL 1W/1m

92 dB

max SPL 1m

107 dB

frequency response

120 - 15 k Hz

main construction material

ABS plastic

IP rating

54

applicable low impedance

yes

applicable in 100V

yes

Vertical dispersion angle 1000 Hz

180°

closest RAL colour (subject to deviations)

RAL9006

Net weight product (kg)

2.00
