LD Systems SAT 62 A G2
Click to expand

LD Systems SAT 62 A G2

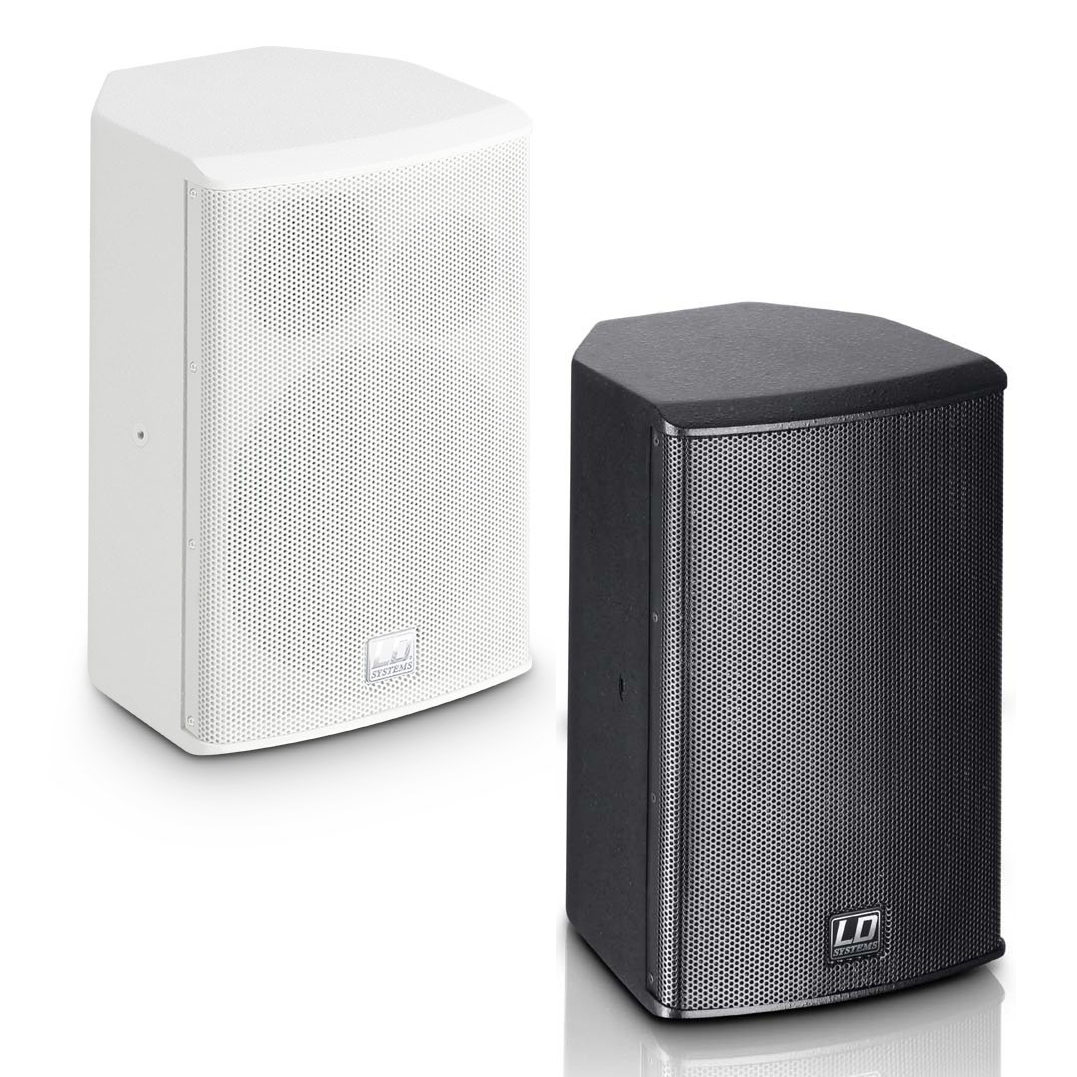

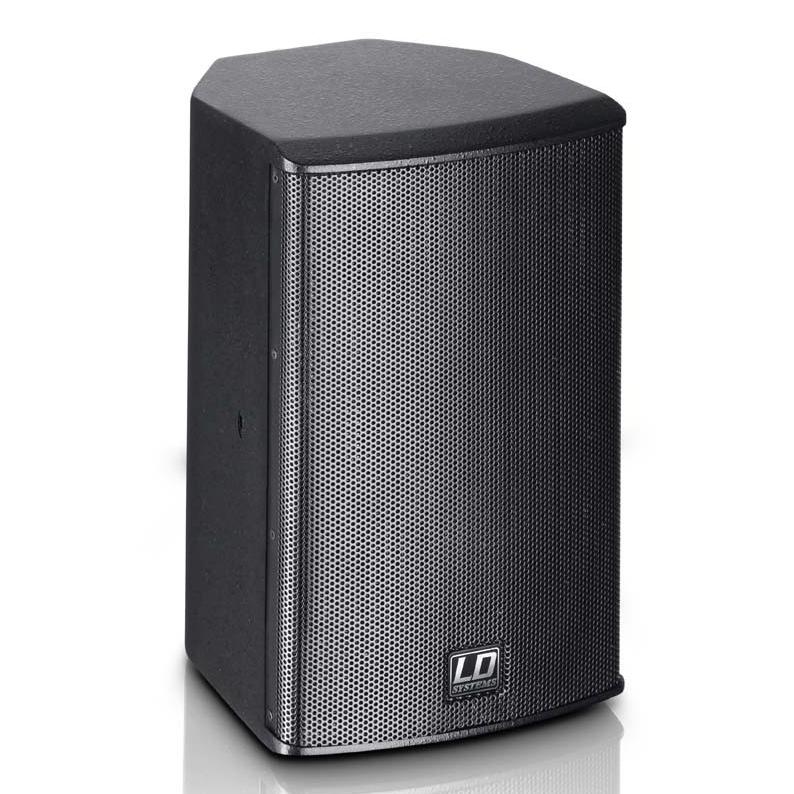

The LD Systems SAT62 A G2 is a compact & reliable 2 way active cabinet speaker ideal for installation but also for a home studio or other sound reinforcement projects. Supplied and priced individually.

The integral Class AB power amplifier offers 50W RMS output power and benefits from overcurrent protection. A switchable power saving mode automatically switches to standby if there is no signal for 3 minutes.

The bass-reflex design with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide provides a powerful and rich reproduction throughout a frequency range of 55 Hz - 20 kHz with a sound-level pressure of up to 108 dB.

The SAT62AG2 is constructed from 12 mm MDF with a rugged textured coating in black or white.

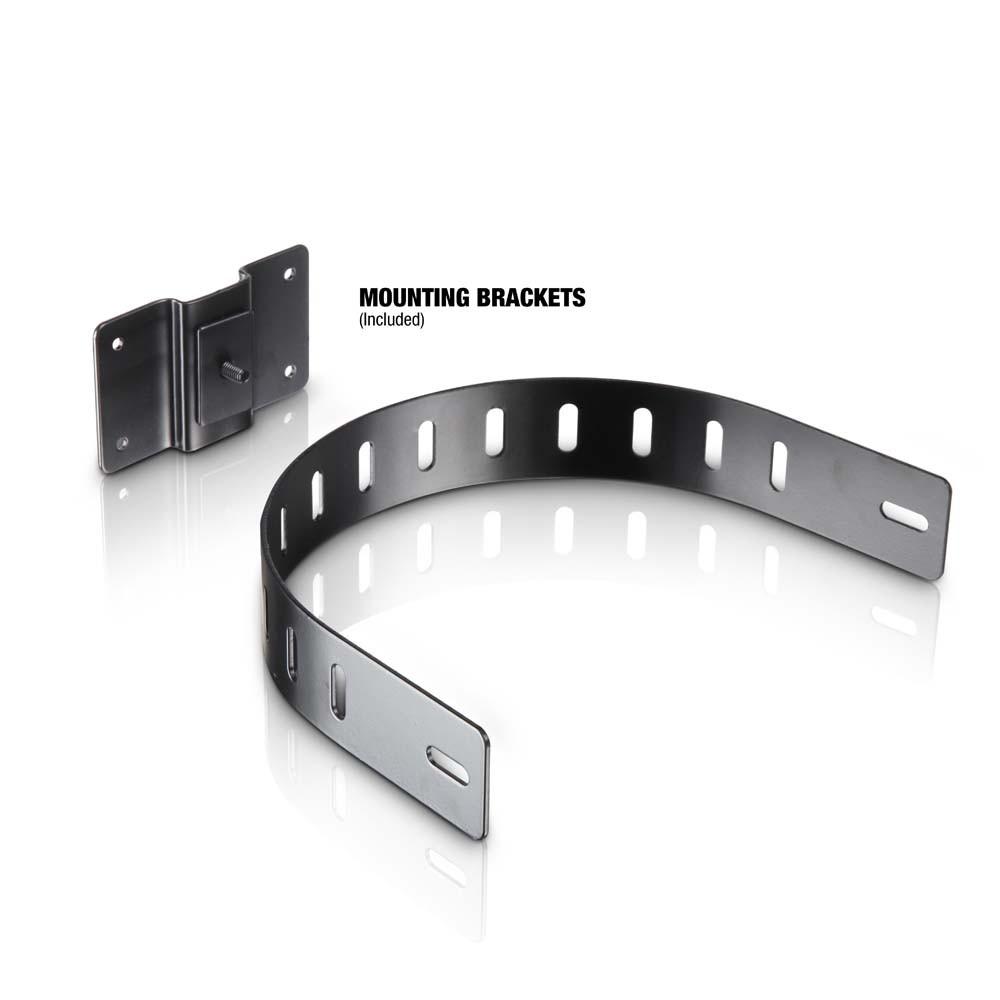

A mounting bracket is included and M6 rigging points offer extensive alternative mounting possibilities; a universal joint mount is available as an accessory.

List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Low/mid Woofer

6.5" / 165 mm

Tweeter

1" / 25 mm

Dispersion

60⁰ x 60⁰

System Power

50W RMS

Frequency Response

55 - 20000 Hz

SPL Max

108dB

Protection Circuits

HF Driver, over voltage

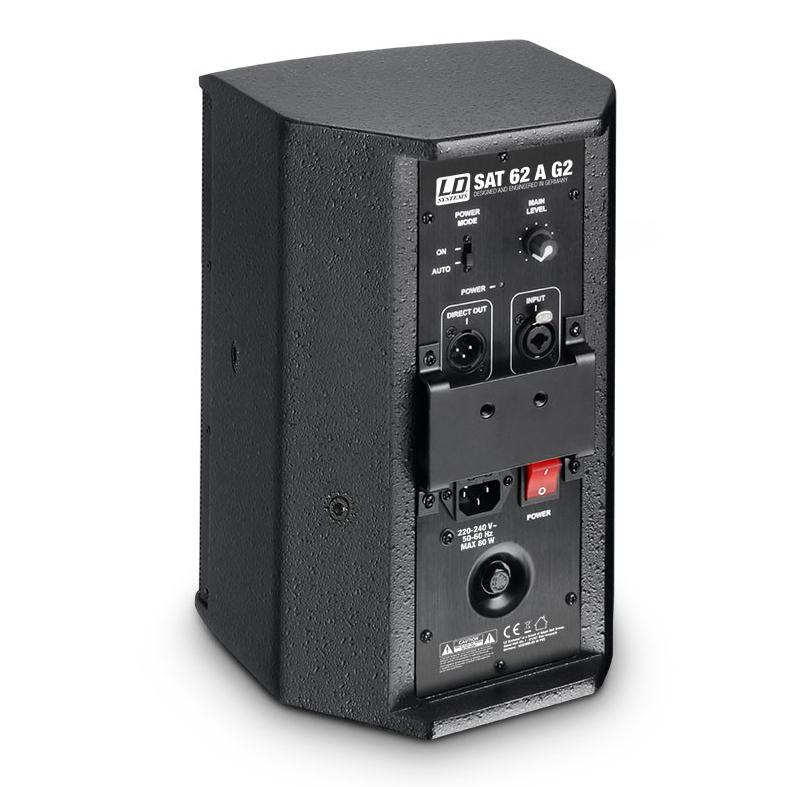

Controls

mains switch (on/off), switchable auto power mode, volume control

Line input connectors

6.3 mm jack, XLR

Line output connectors

XLR

Cabinet material

12mm MDF

Colour

Black or White

Height x Width x Depth

320mm x 200mm x 200mm

Weight (each)

5.25 kg
