LD Systems SAT 82 A G2
Click to expand

LD Systems SAT 82 A G2

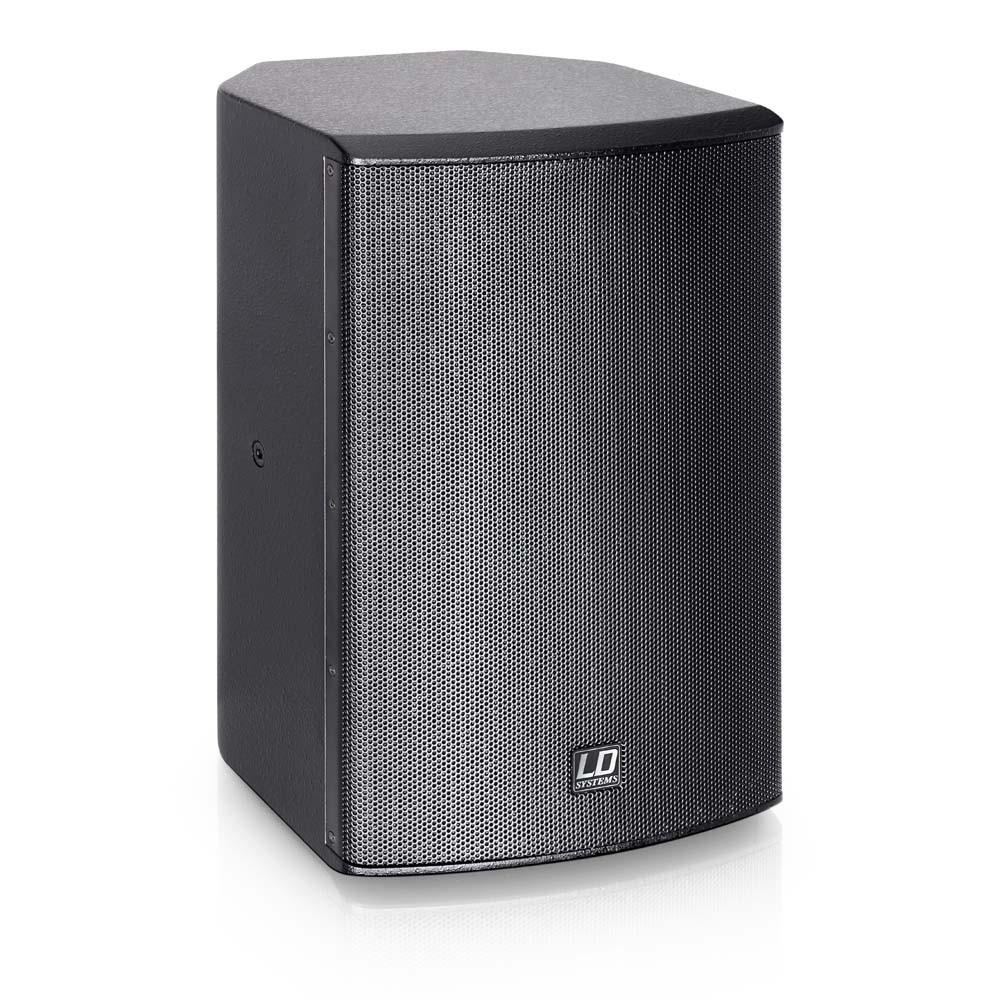

The LD Systems SAT82 A G2 is a compact, black, 2-way active installation monitor ideal for small performances via a laptop or PC or as a home studio monitor. Supplied and priced individually.

The integral Class AB power amplifier offers 80W RMS output power and benefits from overcurrent protection. A switchable power saving mode automatically switches to standby if there is no signal for 3 minutes.

The bass-reflex design cabinet with 8" custom woofer and 1“ compression driver provides a balanced and highly dynamic reproduction throughout a frequency range of 50 Hz - 20 kHz with a sound-level pressure of up to 114dB.

The SAT82AG2 is constructed from 12 mm MDF with a durable textured paint finish in black. Also available in white.

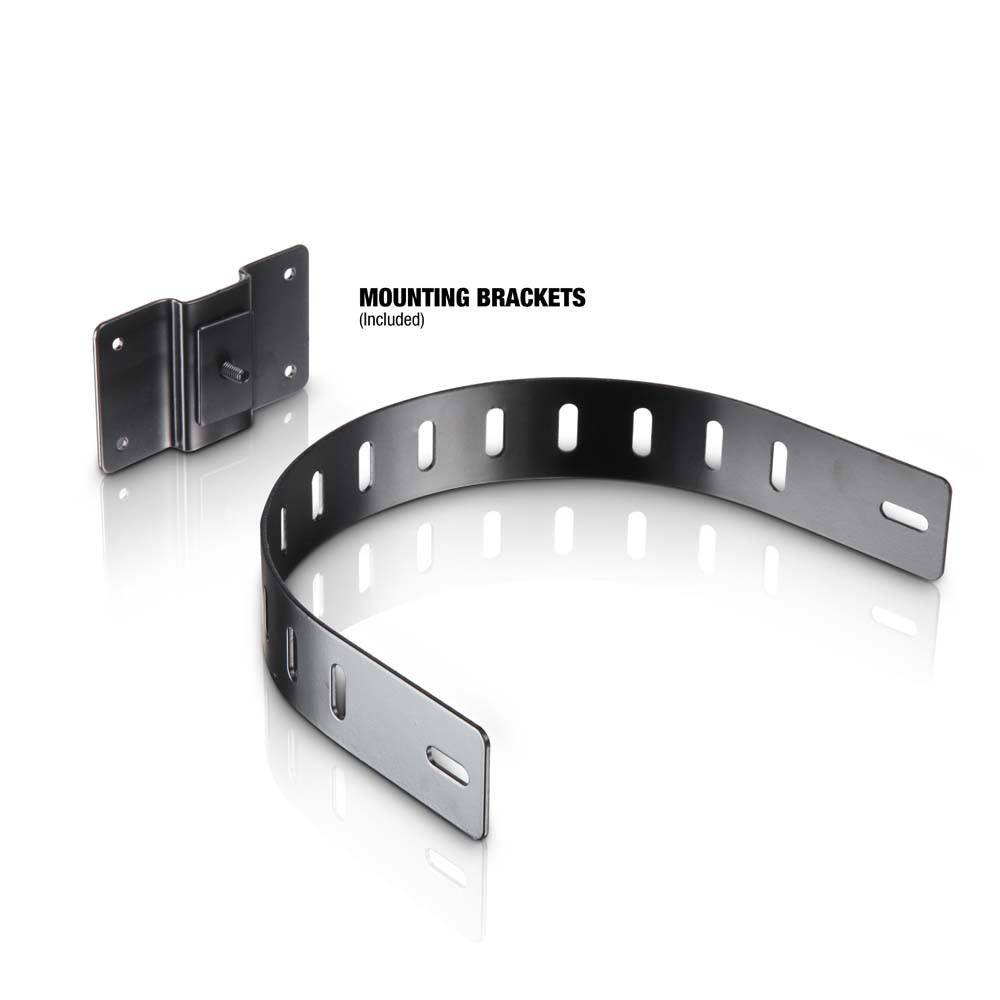

A mounting bracket is included and M6 fixing points offer extensive alternative mounting possibilities; a universal joint mount is available as an accessory. See SAT WMB 10 B.

  • Compact active 2-way installation monitor
  • Ideal for bars, restaurants, shops, as a home recording monitor and PC speaker
  • 8" custom-made woofers
  • 1" high frequency driver with a 60° x 60° dispersion angle
  • Integrated Class AB power amplifier with 80 watts (RMS)
  • Switchable automatic power save mode
  • Mounting bracket and M6 fixing points for a wide variety of installation possibilities
  • Warranty: 2 Years
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

Low/mid Woofer

8" / 203.2 mm

Tweeter

1" / 25 mm

Dispersion

60⁰ x 60⁰

System Power

80W RMS

Frequency response

50 - 20000 Hz

SPL (1W/1m) / Max

114dB

Protection Circuits

HF Driver, over voltage

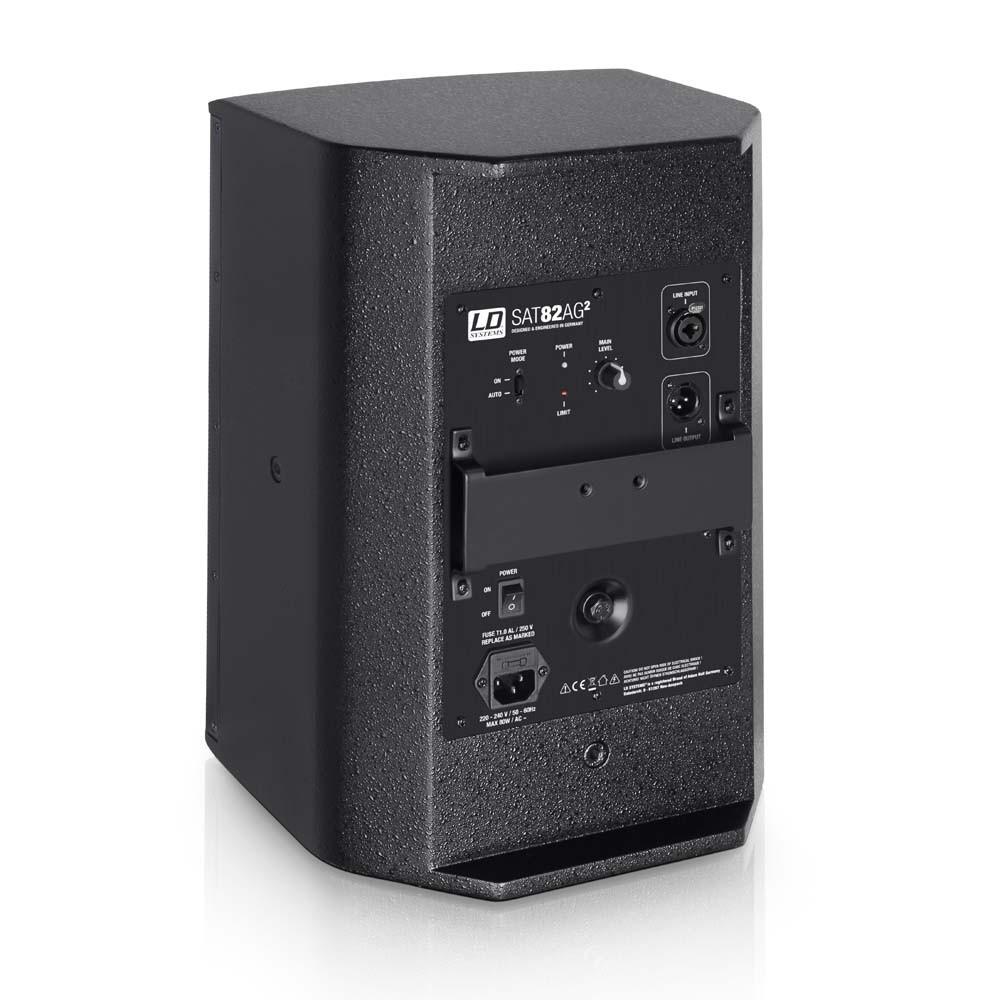

Controls

mains switch (on/off), switchable auto power off, volume

Line input connectors

6.3 mm jack, XLR

Line output connectors

XLR

Cabinet material

12mm MDF

Colour

Black or White

Height x Width x Depth

410mm x 274mm x 243mm

Weight (each)

8.5kg
