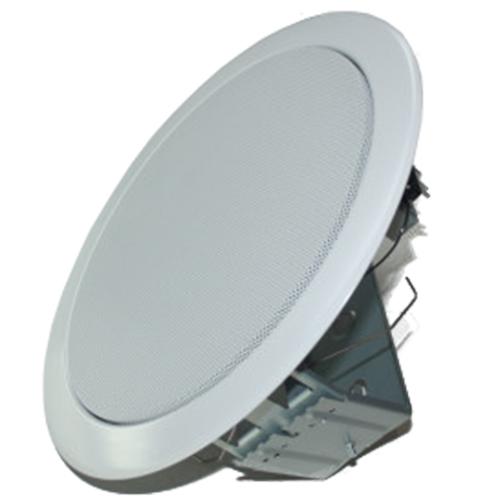

Penton RCS8/T

The Penton RCS8/T ceiling loudspeaker is fitted with a 8” driver and is rated at 10 Watts for use on 100 Volt line loudspeaker circuits. Ideal for background music and speech.

Stylish yet unobtrusive, the RCS8T features a pressed steel epoxy coated chassis incorporating a twin cone driver, offering a wider frequency response than a standard single cone for superior performance.

The spring mount design ensures a quick and easy installation and transformer tappings are provided at 10, 5, 2.5 and 1.25W for plenty of adjustment.

Finished in white, RAL9016.

Other loudspeaker sizes are available in a matching design for a smart and coherent finish across your project.

Warranty: 3 Years.

An EN54-24 compliant version is also available - see RCS8FT/ENC.

100V
List Ex VAT: £56.59
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

10 Watts

Tappings, 100 volt line

10/5/2.5/1.25 Watts

Transformer Impedance

1k/2k/4k/8k Ohms (100V)

Tappings, 70.7 volt line

5/2.5/1.25/0.625 Watts

Driver impedance

8 Ohms

Effective Frequency Range

65Hz – 17KHz

S.P.L. 1watt/1m

94dB

Max S.P.L. rated/1m

104dB

Dispersion at 1k/2kHz

180/110 Degrees

IP Rating

21

Dimensions

Ø280 mm

Net Weight

1.4 Kg

Colour

White RAL9016

Material

Steel

Mounting

Torsion Springs

Cut-out diameter

238mm

Related Products

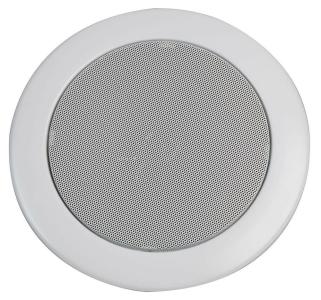

Penton RCS5/T
