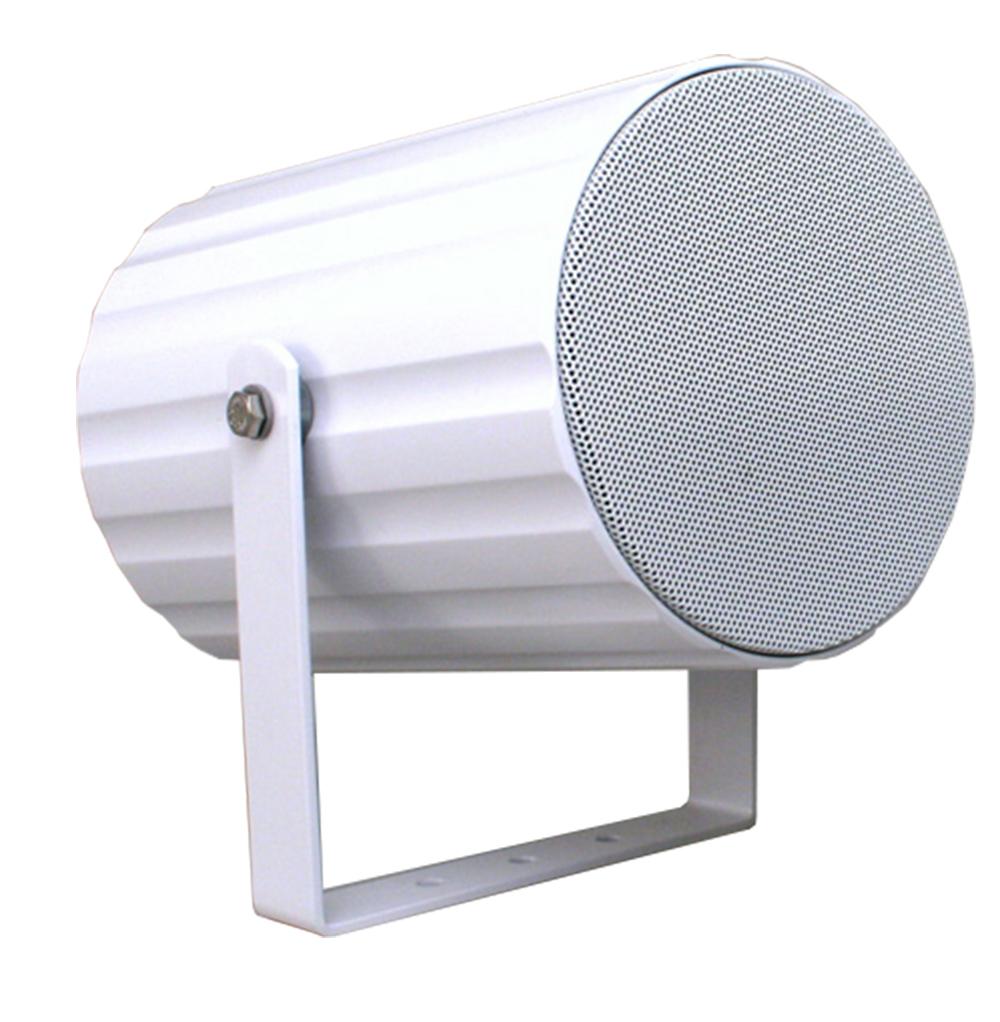

Penton CELL10T/ENC

The Penton CELL10T/ENC is an EN54-24 compliant sound projector fitted with a dual cone driver for clear speech and excellent background music reproduction.

Rated at 10 Watts for use on 100 Volt line loudspeaker circuits.

Water resistant & IP55 rated, the CELL10T/ENC is constructed from high grade extruded aluminium and finished with a white epoxy coating. Easily mounted using the aluminium U bracket supplied. Fitted with a capacitor for DC line monitoring.

This rugged, weatherproof projection loudspeaker is ideal for outdoor use in places like railway stations, shopping centres and prisons.

100 Volt Line transformer tappings are provided at 10, 5, 2.5 & 1.25W.

Warranty: 3 Years.

A standard non-compliant version is also available where EN54-24 certification is not required – see CELL10/T.

100V Evac IP66
List Ex VAT: £117.11
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

10 Watts

Tappings, 100 volt line

10/5/2.5/1.25 Watts

Transformer Impedance

1k/2k/4k/8k Ohms (100V)

Tappings, 70.7 volt line

5/2.5/1.25/0.625 Watts

Driver impedance

8 Ohms

Effective Frequency Range

120Hz – 18KHz

S.P.L. 1watt/1m

91dB

Max S.P.L. rated/1m

101dB

Dispersion at 1k/2kHz

180/120 Degrees

IP Rating

55

Dimensions

Ø140 x 191 mm

Net Weight

1.9 Kg

Colour

White

Material

Aluminium with stainless steel hardware

Mounting

Aluminium U bracket
