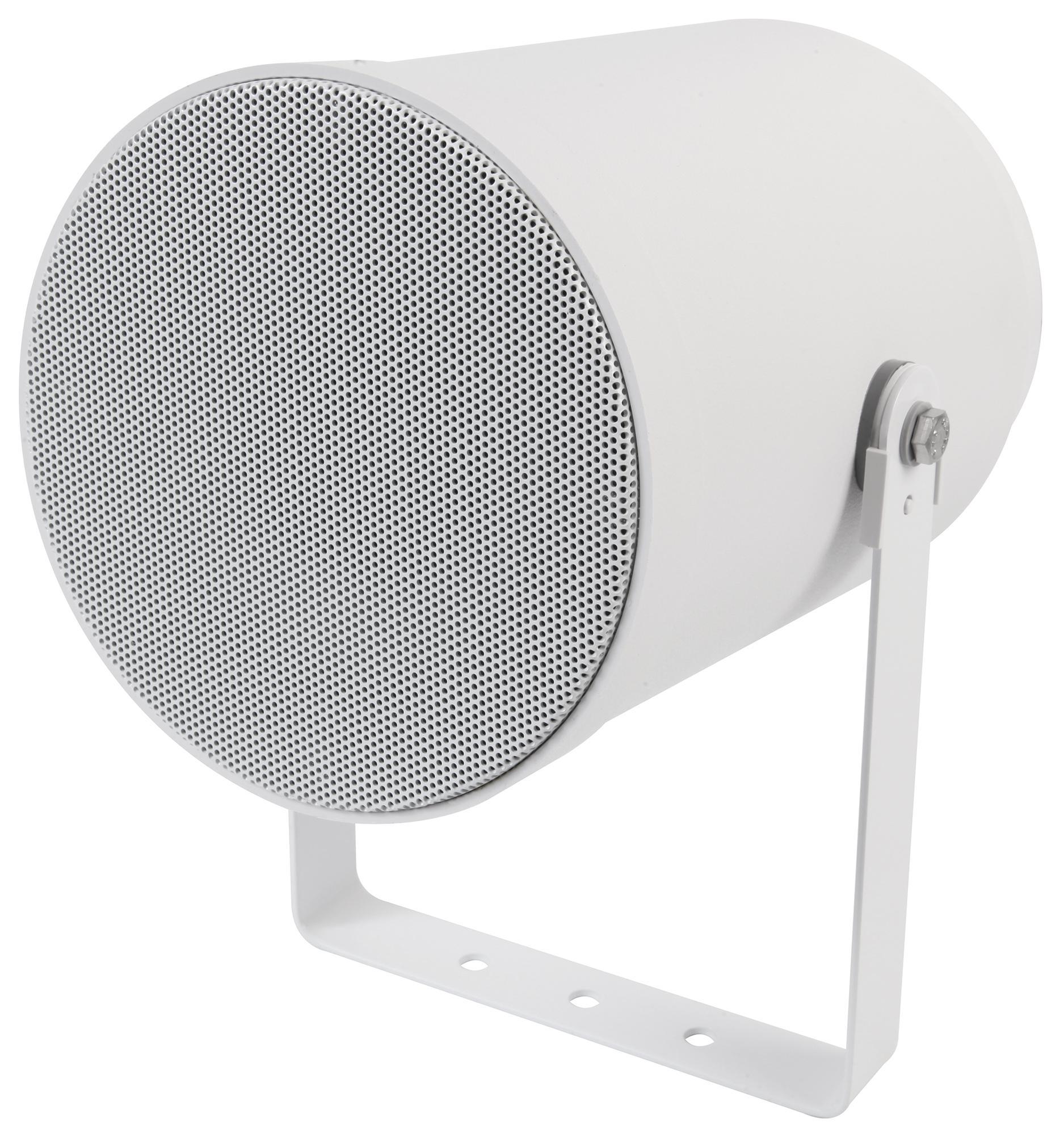

Penton CAD10/T

The Penton CAD10/T sound projector is fitted with a dual cone driver for clear speech and excellent background music reproduction and is rated at 10 Watts for use on 100 Volt line loudspeaker circuits.

Water resistant & IP66 rated, the CAD10T is constructed from white ABS plastic with UV inhibitor & stainless steel hardware,  mounted using the aluminium U bracket supplied.

This weatherproof loudspeaker is ideal for outdoors in places like railway stations, shopping centres and prisons.

100 Volt Line transformer tappings are provided at 10, 5, 2.5 & 1.25W.

An EN54-24 compliant version is also available – see CAD10T/ENC.

100V IP66
List Ex VAT: £71.22
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

10 Watts

Tappings, 100 volt line

10/5/2.5/1.25 Watts

Transformer Impedance

1k/2k/4k/8k Ohms (100V)

Tappings, 70.7 volt line

5/2.5/1.25/0.375 Watts

Driver impedance

8 Ohms

Effective Frequency Range

120Hz – 18KHz

S.P.L. 1watt/1m

90dB

Max S.P.L. rated/1m

100dB

Dispersion at 1k/2kHz

180/120 Degrees

IP Rating

66

Dimensions

Ø138 x 204 mm

Net Weight

1.3 Kg

Colour

White

Material

ABS plastic with UV inhibitor & stainless steel hardware

Mounting

Aluminium U bracket
