Penton CAD10T/ENC
Click to expand

Penton CAD10T/ENC

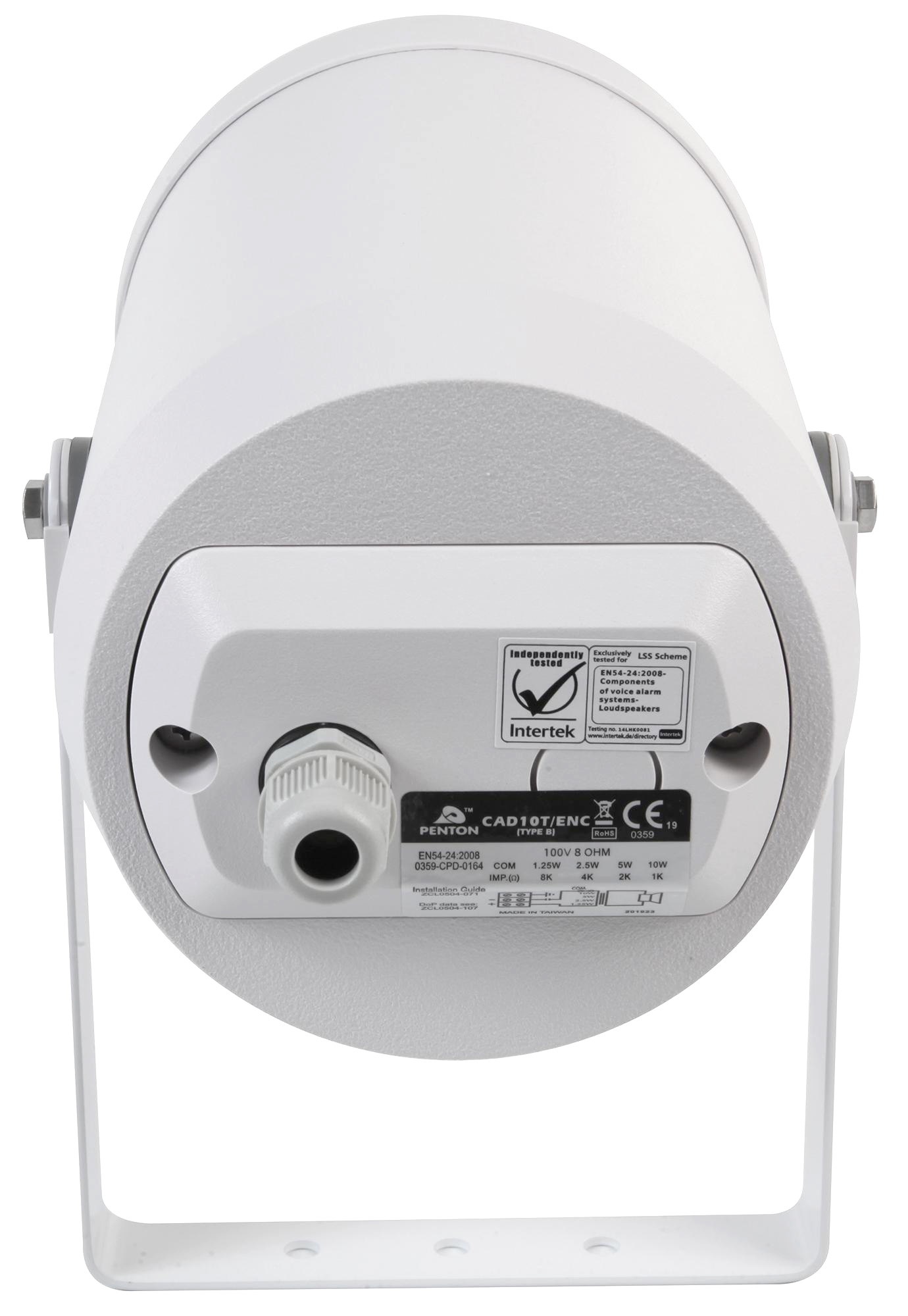

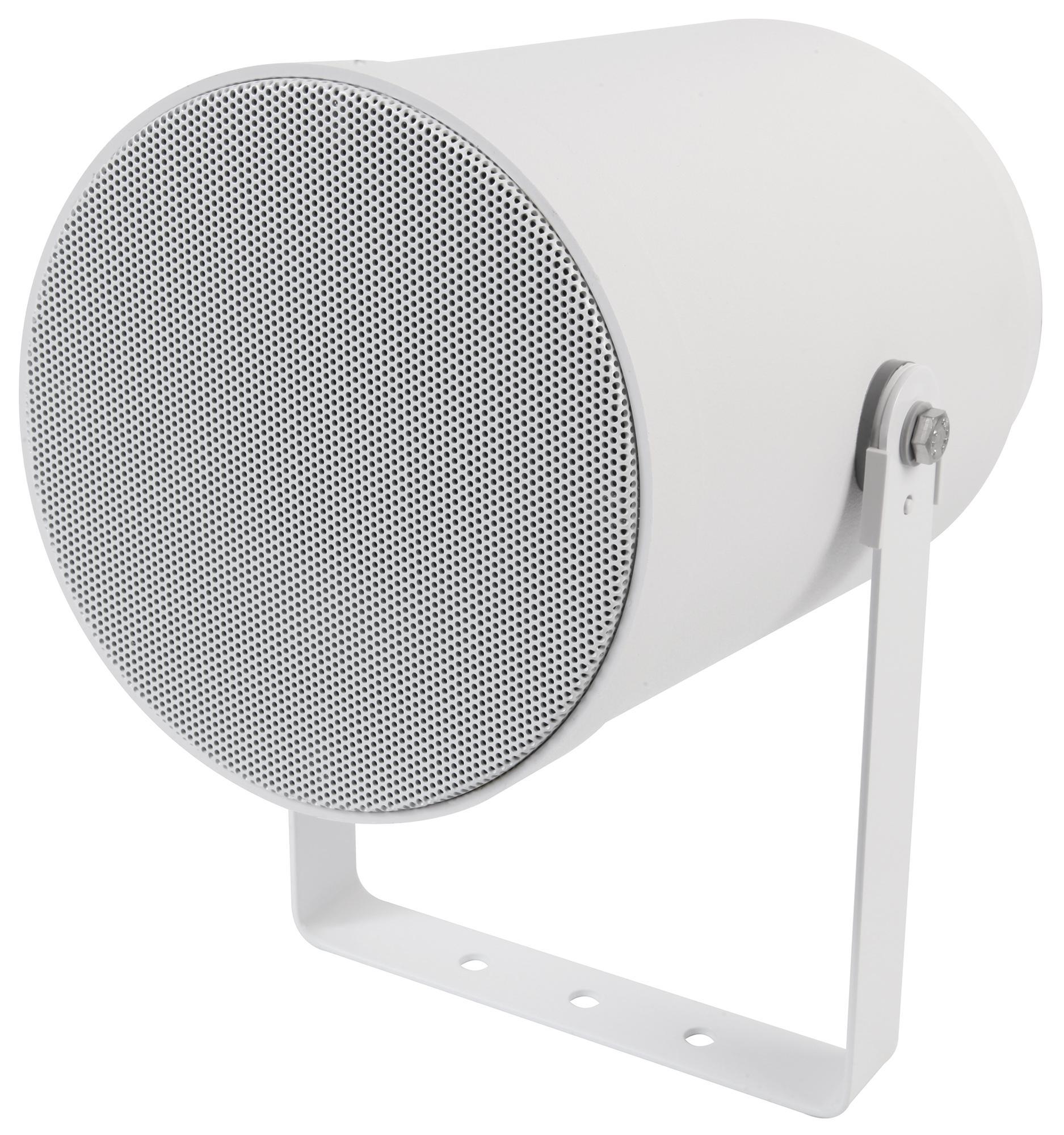

The Penton CAD10T/ENC is an EN54-24 compliant sound projector fitted with a dual cone driver for clear speech and excellent background music reproduction.

Rated at 10 Watts for use on 100 Volt line loudspeaker circuits.

Water resistant & IP66 rated, the CAD10T/ENC is constructed from white low smoke zero Halogen UL-94V0 plastic with UV inhibitors with stainless steel hardware and mounted using the aluminium U bracket supplied. Fitted with a capacitor for DC line monitoring.

This weatherproof projection loudspeaker is ideal for outdoors in places like railway stations, shopping centres and prisons.

100 Volt Line transformer tappings are provided at 10, 5, 2.5 & 1.25 W.

Warranty: 3 Years.

A standard non-compliant version is also available where EN54-24 certification is not required – see CAD10/T.

100V Evac IP66
List Ex VAT: £91.61
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

10 Watts

Tappings, 100 volt line

10/5/2.5/1.25 Watts

Transformer Impedance

1k/2k/4k/8k Ohms (100V)

Tappings, 70.7 volt line

5/2.5/1.25/0.625 Watts

Driver impedance

8 Ohms

Effective Frequency Range

110Hz – 18KHz

S.P.L. 1watt/1m

90dB

Max S.P.L. rated/1m

100dB

Dispersion at 1k/2kHz

180/120 Degrees

IP Rating

66

Dimensions

Ø138 x 204 mm

Net Weight

1.3 Kg

Colour

White

Material

Low smoke zero Halogen UL-94V0 plastic with UV inhibitor & stainless steel hardware

Mounting

Aluminium U bracket
