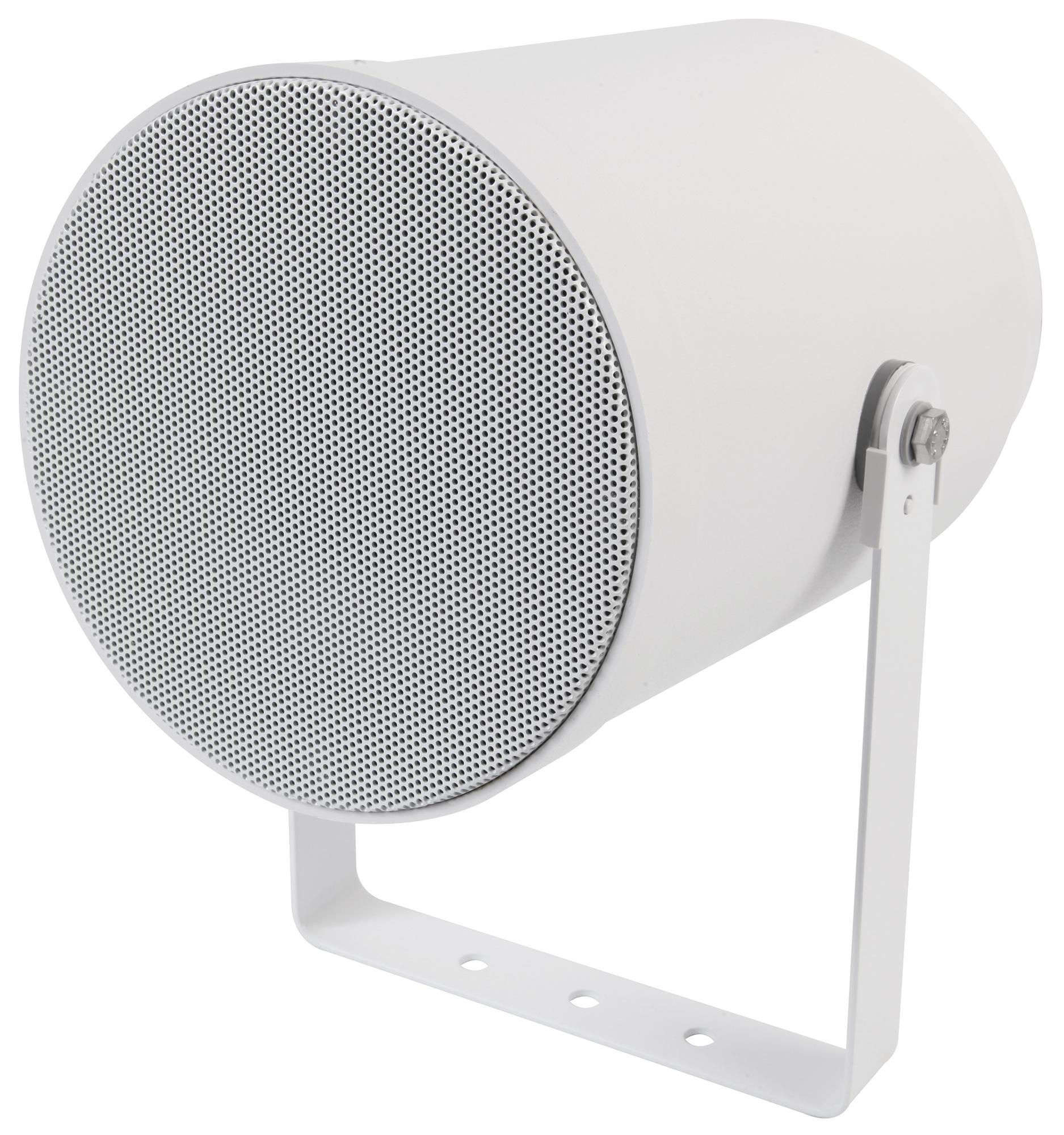

Penton CAD20T/ENC

The Penton CAD20T/ENC is an EN54-24 compliant sound projector fitted with a dual cone driver for clear speech and excellent background music reproduction.

Rated at 20 Watts for use on 100 Volt line loudspeaker circuits.

Water resistant & IP66 rated, the CAD20T/ENC is constructed from white low smoke zero Halogen UL-94V0 plastic with UV inhibitors with stainless steel hardware and mounted using the aluminium U bracket supplied. Fitted with a capacitor for DC line monitoring.

This weatherproof loudspeaker is ideal for outdoors in places like railway stations, shopping centres and prisons.

100 Volt Line transformer tappings are provided at 20, 10, 5, 2.5 W.

A standard non-compliant version is also available where EN54-24 certification is not required – see CAD20/T.

100V Evac IP66
List Ex VAT: £117.33
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

20 Watts

Tappings, 100 volt line

20/10/5/2.5 Watts

Transformer Impedance

500/1k/2k/4k Ohms (100V)

Tappings, 70.7 volt line

10/5/2.5/1.25 Watts

Driver impedance

8 Ohms

Effective Frequency Range

110Hz – 18KHz

S.P.L. 1watt/1m

91dB

Max S.P.L. rated/1m

104dB

Dispersion at 1k/2kHz

180/120 Degrees

IP Rating

66

Dimensions

Ø138 x 204 mm

Net Weight

1.3 Kg

Colour

White

Material

Low smoke zero Halogen UL-94V0 plastic with UV inhibitor & stainless steel hardware

Mounting

Aluminium U bracket
