Penton PH20/T

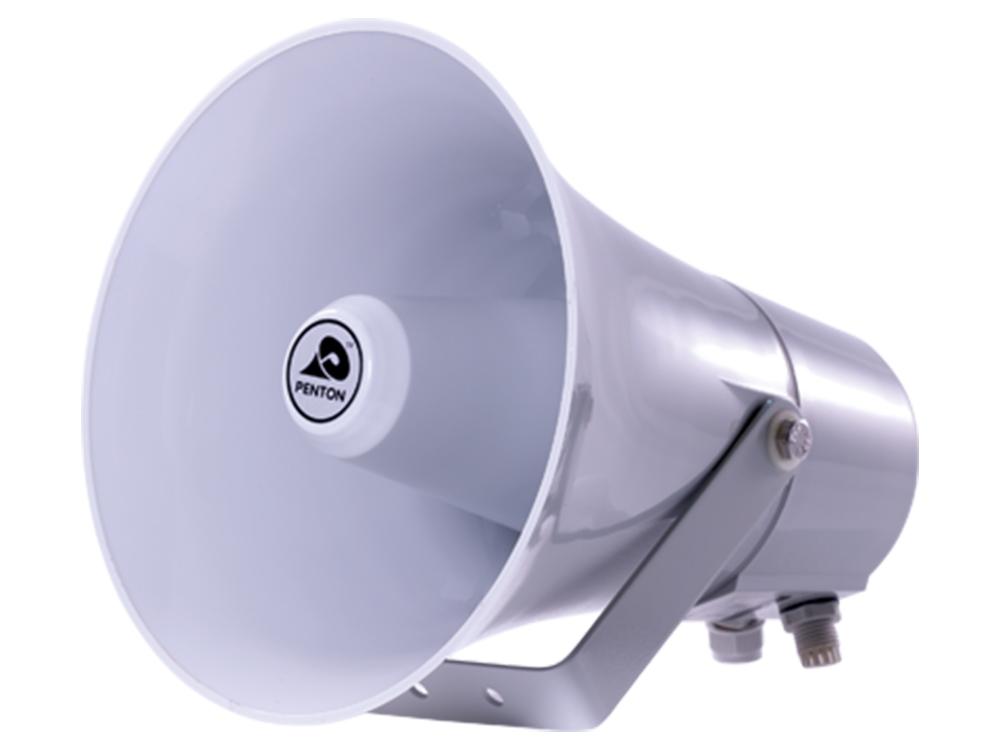

The Penton PH20/T weatherproof, lightweight plastic re-entrant horn is rated at 20 Watts, 100 Volt line.

IP56 rated, suitable for use outdoors.

Good speech clarity makes this horn suitable for communication or warning signals.

The PH20T horn is manufactured from a strengthened ABS moulded plastic with UV inhibitors and is supplied with an epoxy coated, stainless steel U bracket. These horns are ideal for marine and industrial use as they are non-corrosive and resistant to salt laden air.

Fitted, as standard, with 1 x PG9 gland but will open to 20mm + 1 x 20mm knockout allowing the installer to loop in & loop out the cabling without the need for an additional junction box.

Grey finish, RAL7035.

An EN54-24 compliant version is also available – please see APH20/T.

100V IPxx
List Ex VAT: £76.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

20 Watts

Tappings, 100 volt line

20/10/5/2.5 Watts

Transformer Impedance

500/1k/2k/4k Ohms (100V)

Tappings, 70.7 volt line

10/5/2.5/1.25 Watts

Driver impedance

20 Ohms

Effective Frequency Range

250Hz – 8KHz

S.P.L. 1watt/1m

101dB

Max S.P.L. rated/1m

114dB

Dispersion at 1k/2kHz

130/70 Degrees

IP Rating

56

Dimensions

Ø203 x 254 mm

Net Weight

1.7 Kg

Colour

Grey, RAL7035

Material

ABS plastic with UV inhibitors

Mounting

epoxy coated stainless steel U bracket
