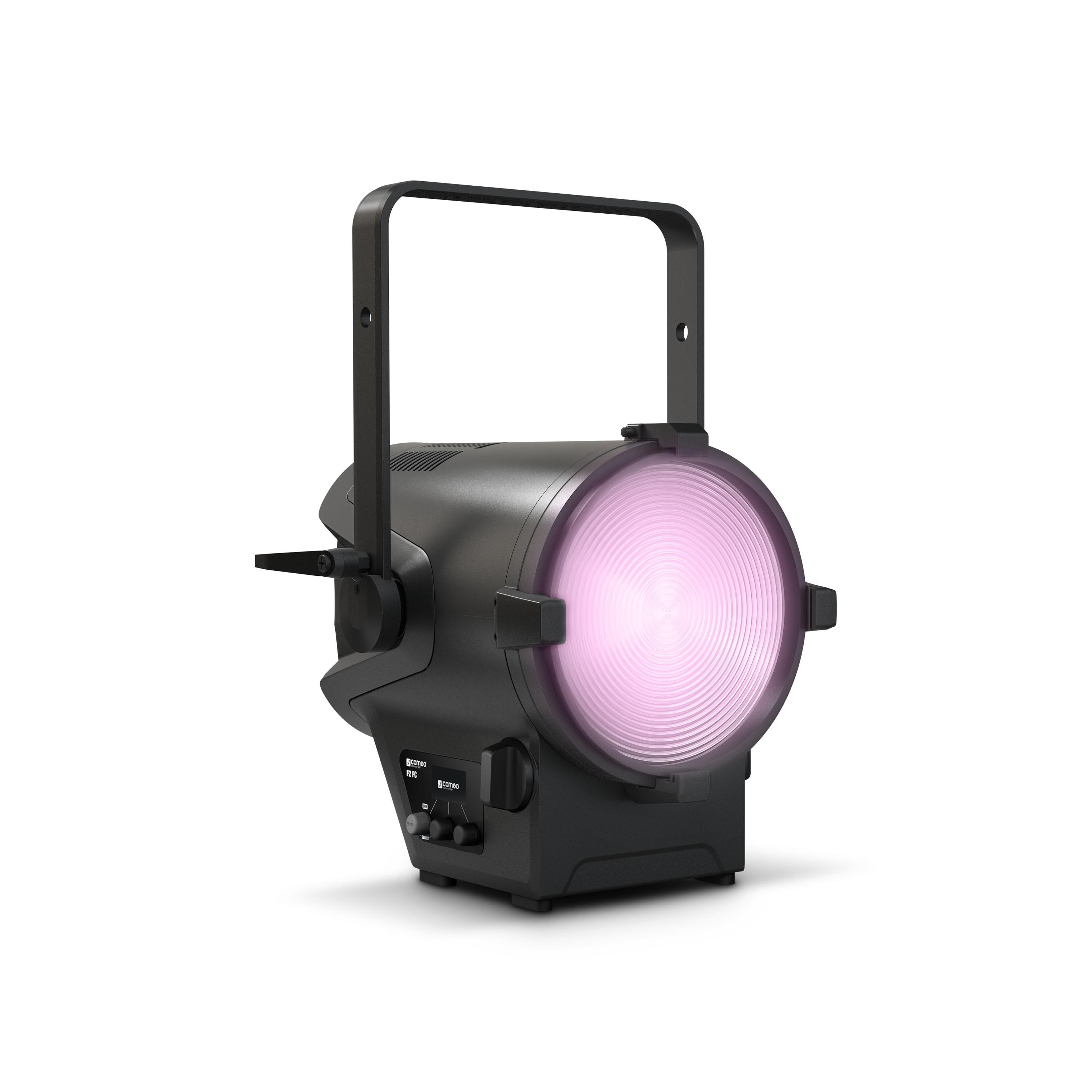

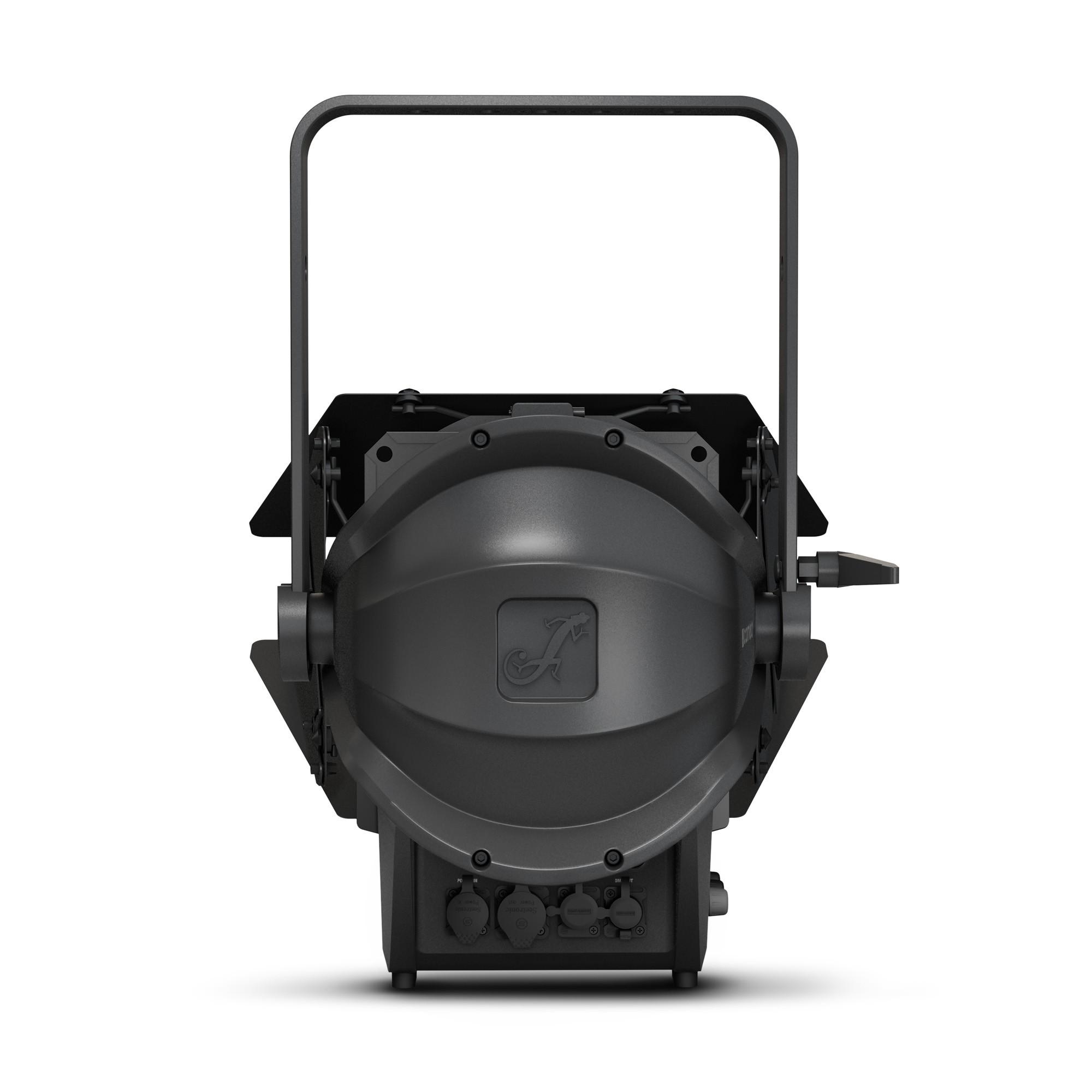

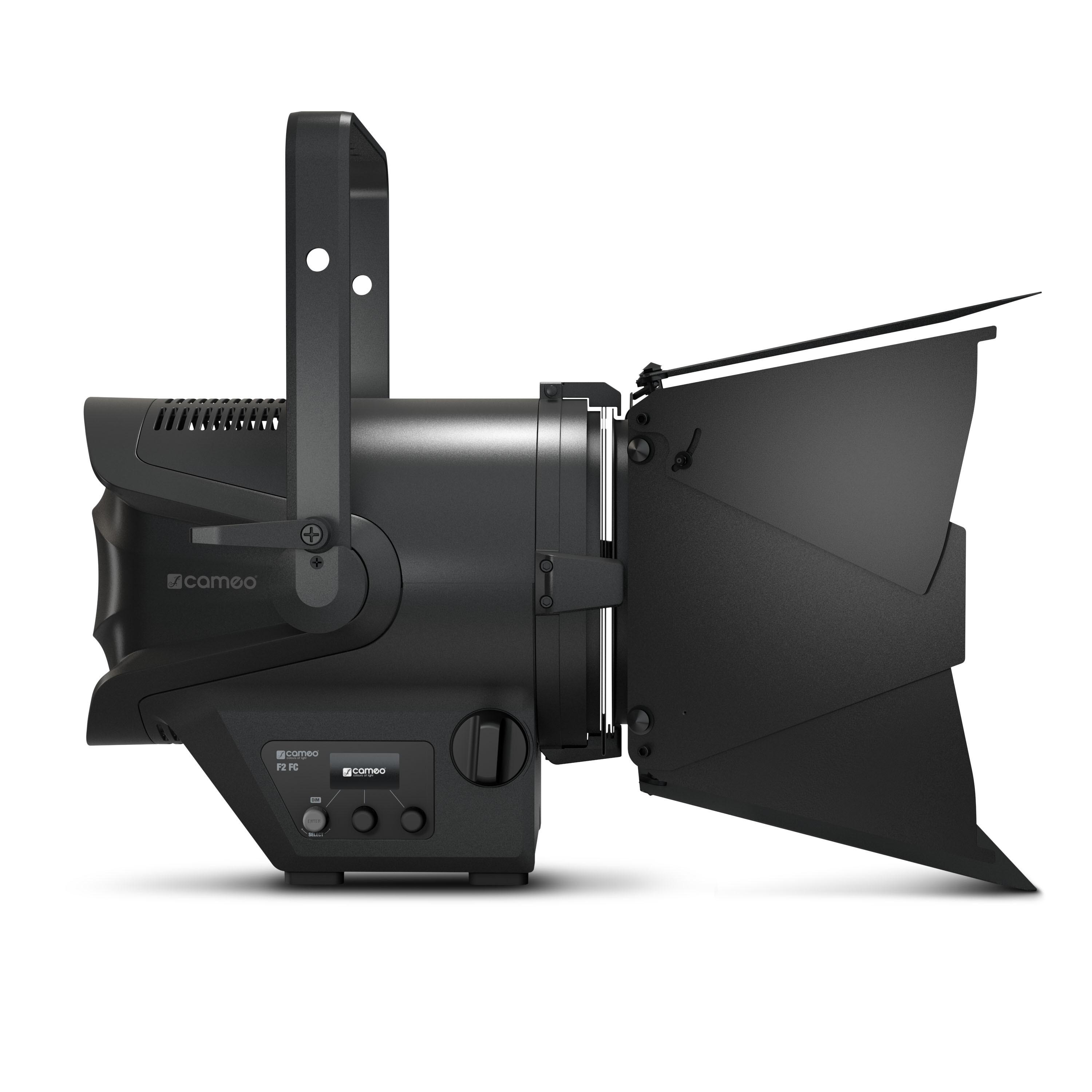

The Cameo F2 FC IP is a water resistant, IP65 rated version of the Cameo F2 FC professional high power Fresnel spotlight with a 240W RGBW LED, high-quality 200 mm lens and 6500 lm output delivering a soft-edged beam with continuously variable 17° to 53° spread. The integrated condenser lens provides evenly blended colours and colour shadow-free light dispersion, even when using the barndoor.

The IP65 upgrade makes this weatherproof Fresnel spot ideal for outdoor events & concerts as well as open-air theatres and film & television production.

A perfect energy saving replacement for conventional 1 kW Fresnels, the F2FCIP spot light enables precision-adjustment of white tones in CCT mode from 1,600 K to 6,500 K at a constant CRI of over 90, and perfectly adjusted to skin tones, camera sensors and ambient light via additional green-magenta correction.

RGBW colour-blending in HSI mode facilitates rapid adjustment of colour, intensity and saturation at the light desk using only three control circuits. No need for additional colour filters.

The F2 FC is fully RDM-capable, and has a range of DMX control modes as well as four 16-bit dimmer curves with adjustable response. Even at its lowest setting, gradual dimming meets the highest theatre demands.

Six selectable pulse width modulation frequencies of 800 Hz to 25 kHz ensure flicker-free operation, even for high-speed camera settings and heatpipe combined with a temperature-controlled fan provides highly-efficient cooling for virtually silent operation.

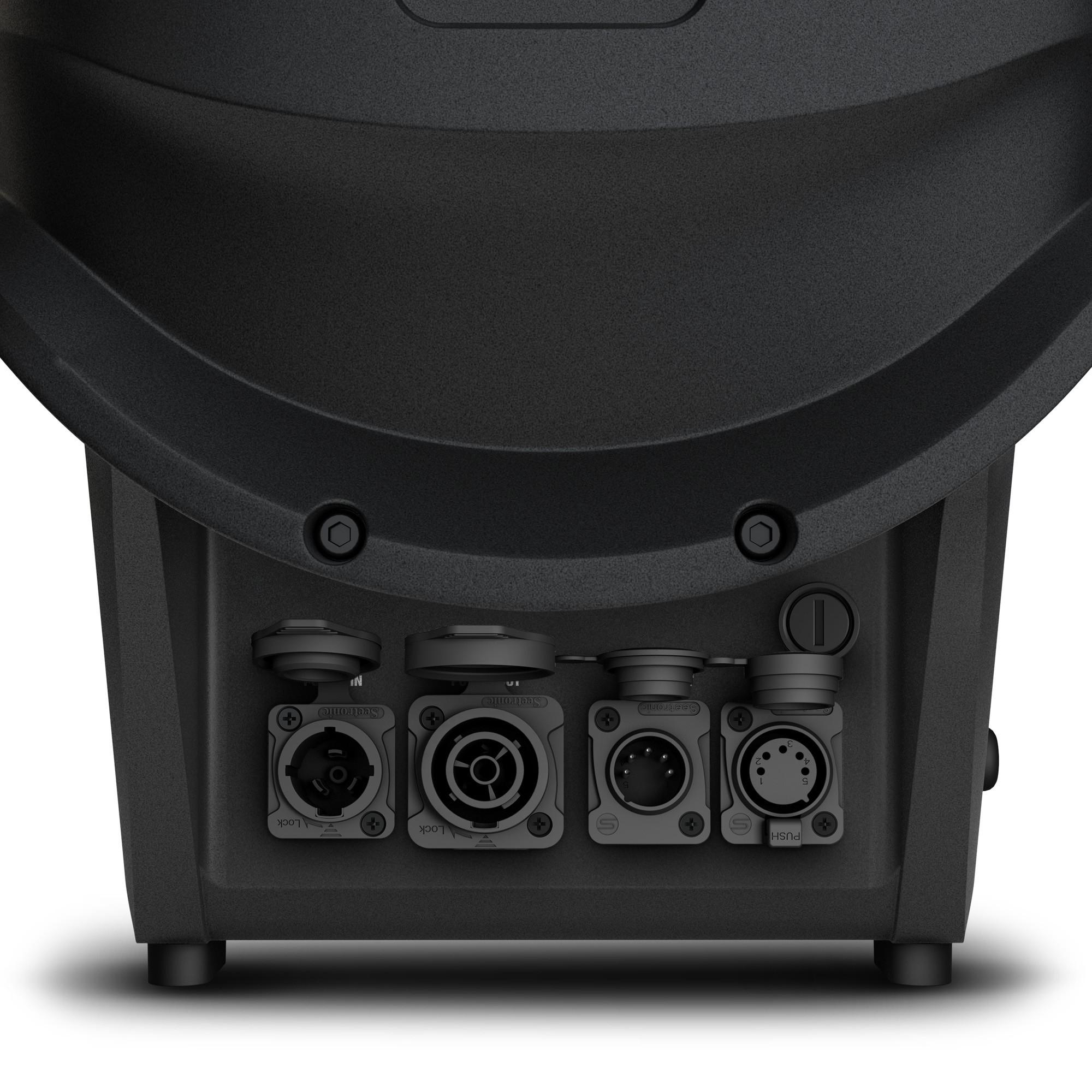

The rugged die-cast aluminium housing of this Cameo F2 FCIP Fresnel spotlight features a three rotary encoders and an OLED display for easy configuration plus 5-pin DMX and Power Twist inputs and outputs for convenient daisy-chaining.

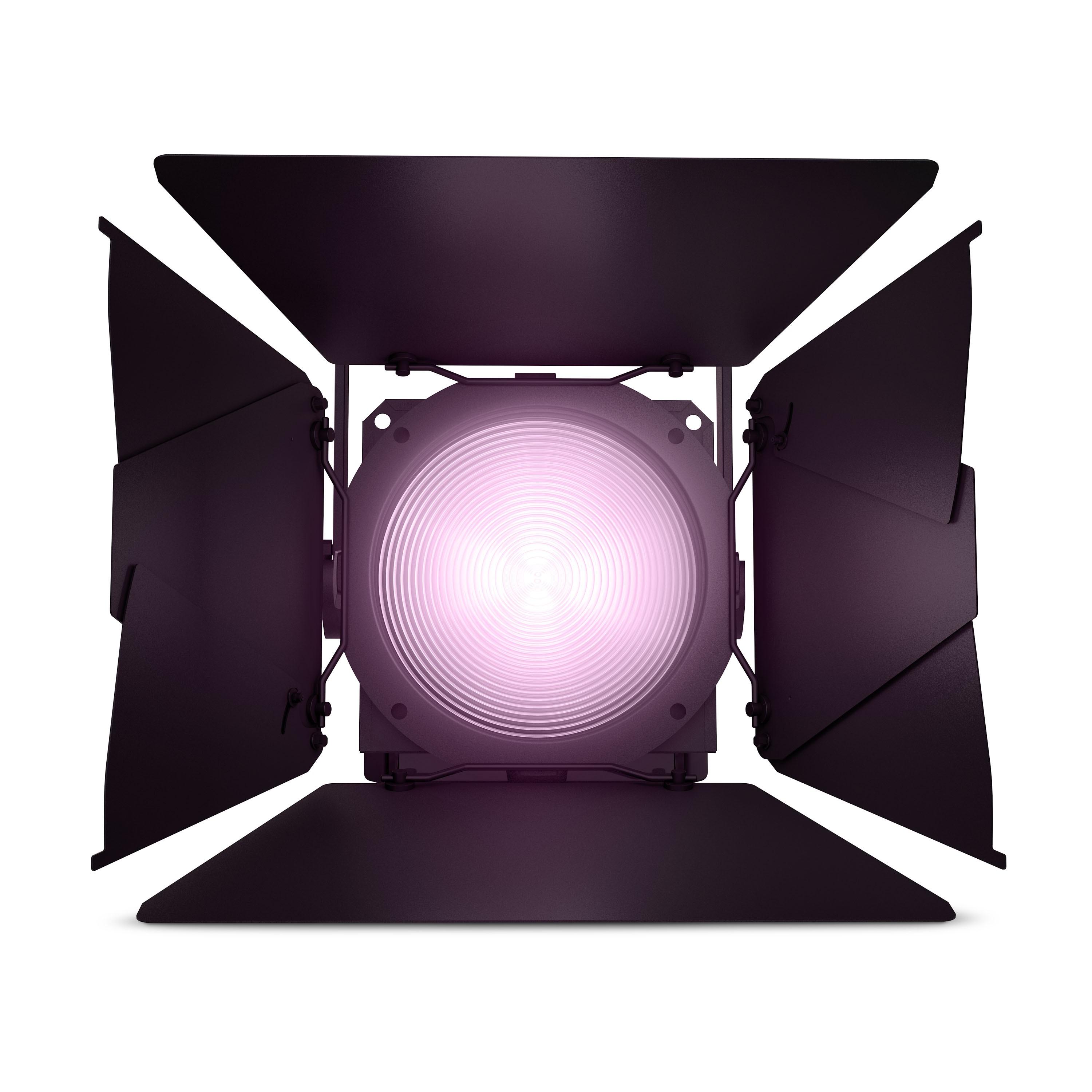

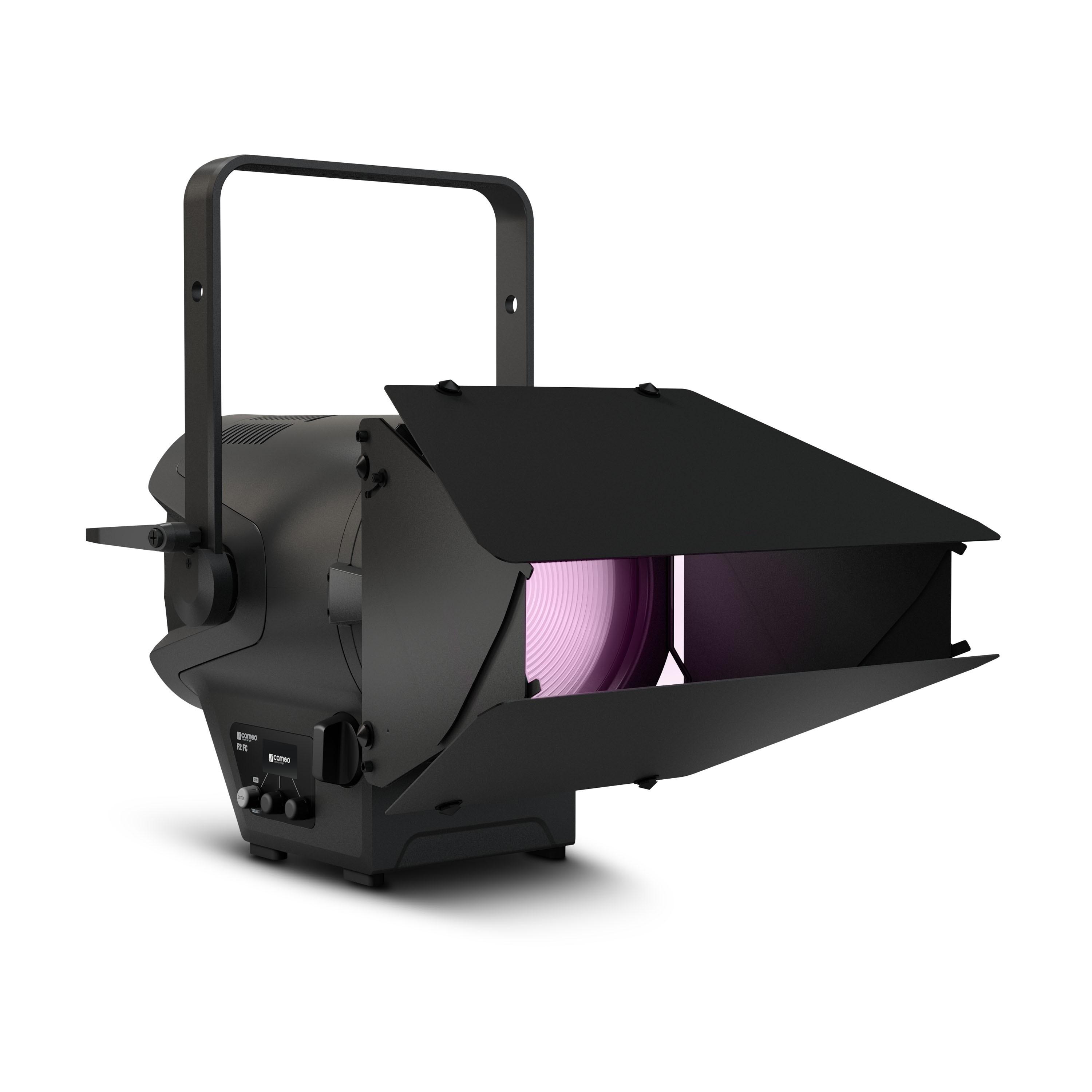

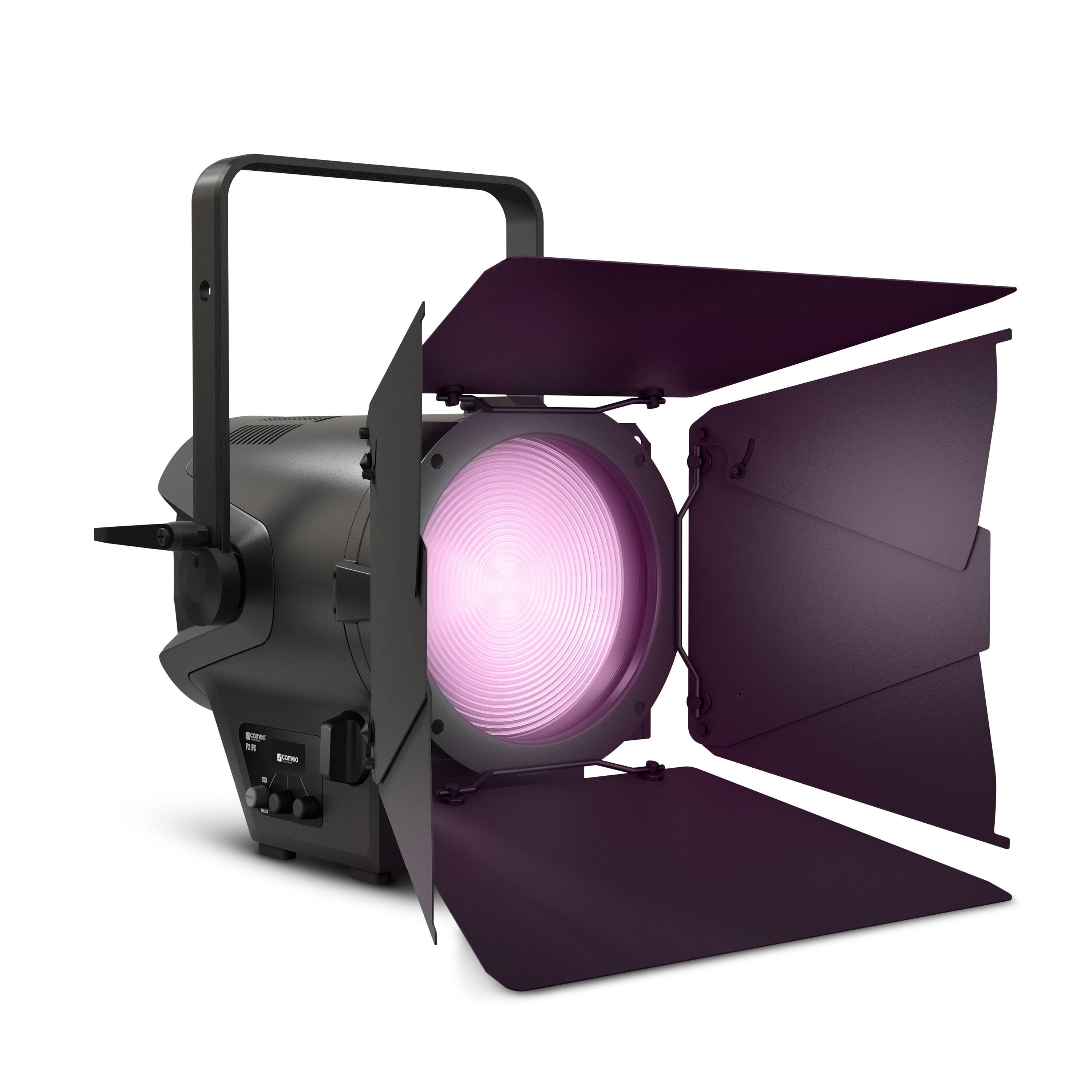

Supplied with an 8-way barndoor, filter frame and a mains cable.

• Full colour Fresnel with special RGBW LED and a CRI of over 90
• IP65 rated, suitable for use outdoors
• Seamless colour temperature adjustment from 1,600 K to 6,500 K
• Adjustable green-magenta correction
• Brilliant colours and precise white tone adjustment
• Continuous zoom for beam angles from 18° to 55°
• Four selectable 16-bit dimmer curves with adjustable response
• Highly efficient cooling thanks to a heatpipe and temperature-controlled fan
• Control via DMX and RDM
• Selectable pulse width modulation frequencies up to 25 kHz
• Flicker-free and noiseless operation, ideal for TV, film, photography studios and theatre
• Includes 8-way barndoor and gel filter frames

For more details, please download the Cameo F2 FC IP Datasheet and User Manual via the links below.
