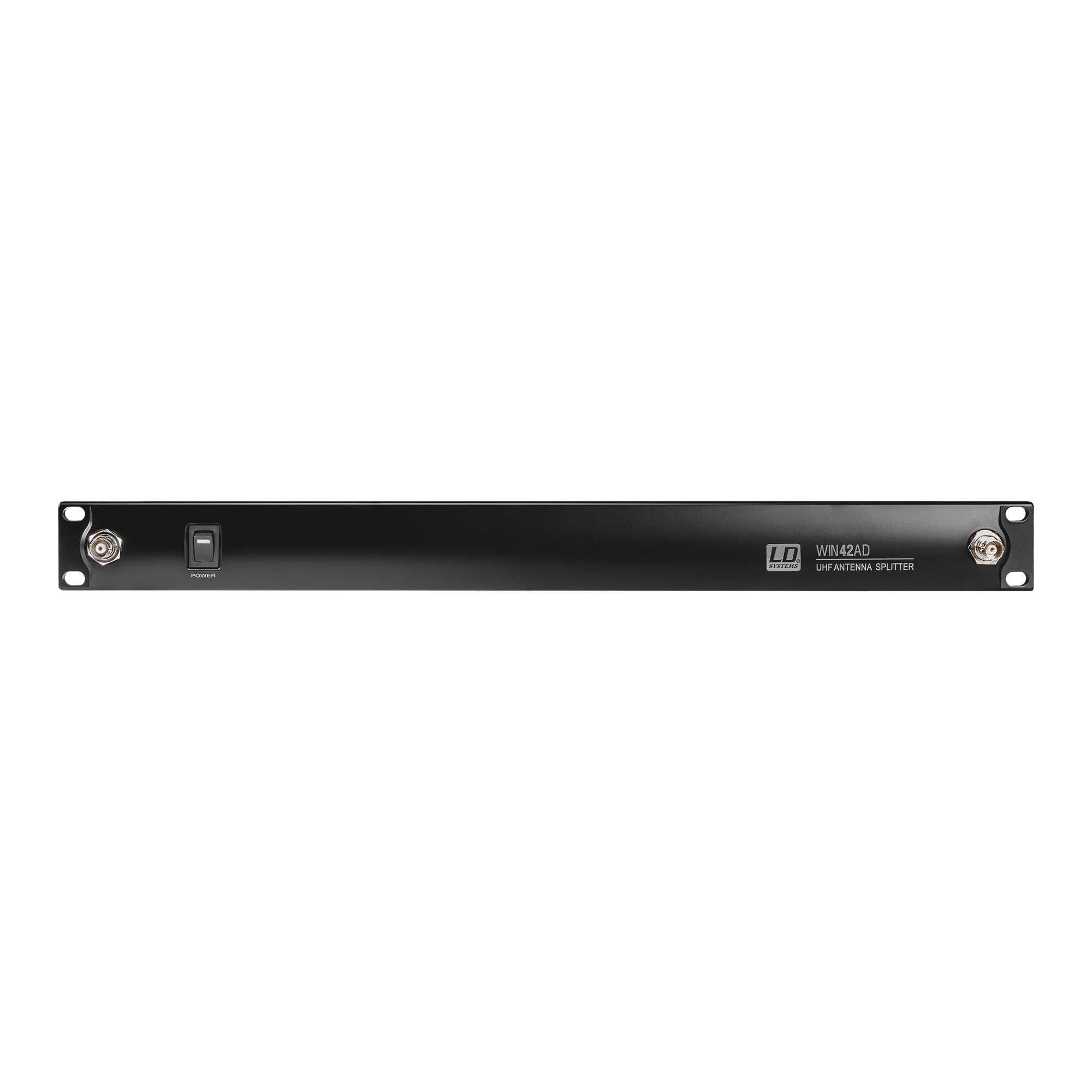

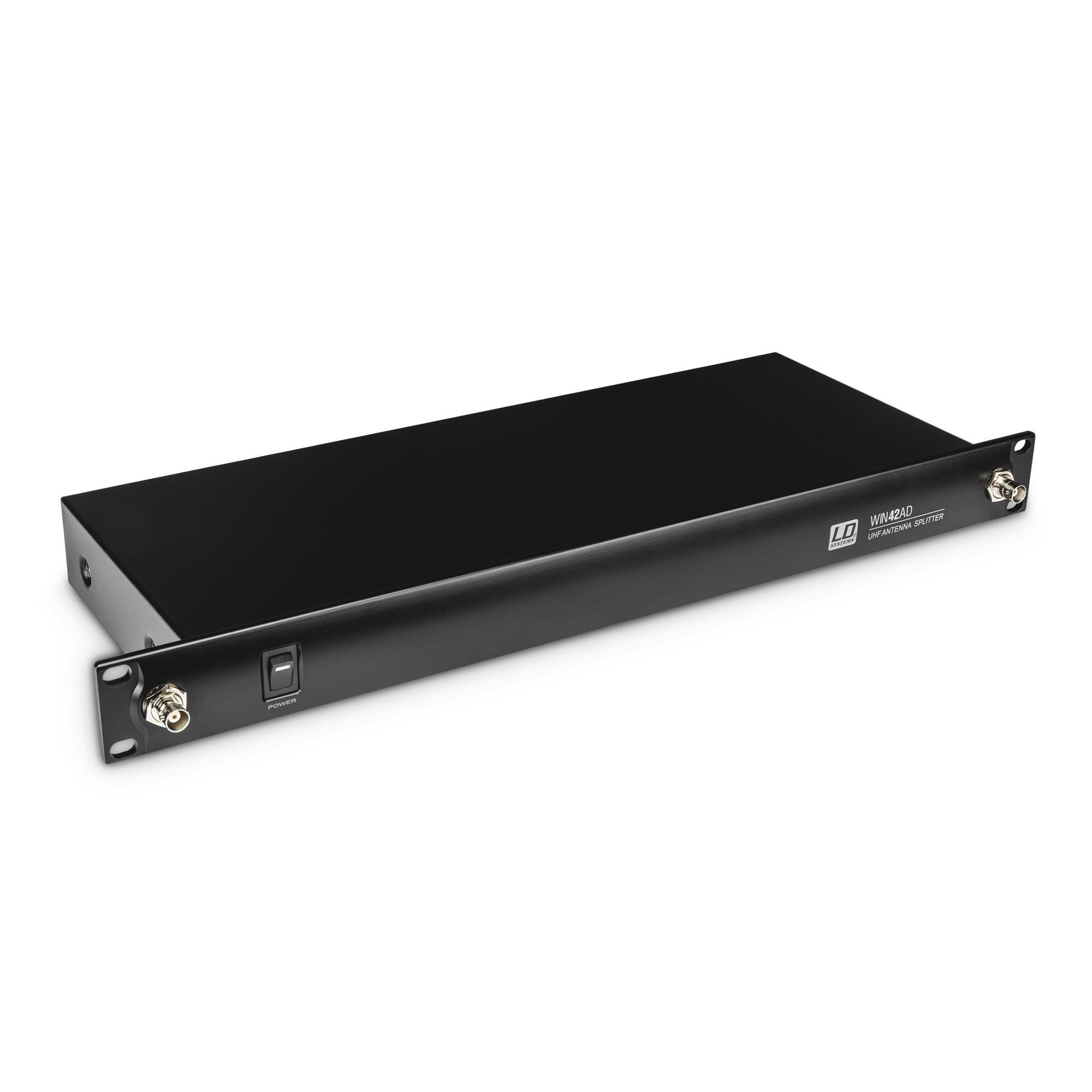

The LD Systems WIN 42 AD 4-way Antenna Splitter Box is suitable for all types of wireless microphone systems working in a range between 500 and 900 MHz.
|
Product type |
Antenna Splitter |
|
Frequency band |
500 - 900 MHz |
|
Frequency bandwidth |
400 MHz |
|
Signal gain |
3 dB |
|
Antenna inputs |
2 |
|
Antenna input connection |
BNC |
|
Input impedance |
50 Ohm(s) |
|
Power supply for antenna booster |
9 V |
|

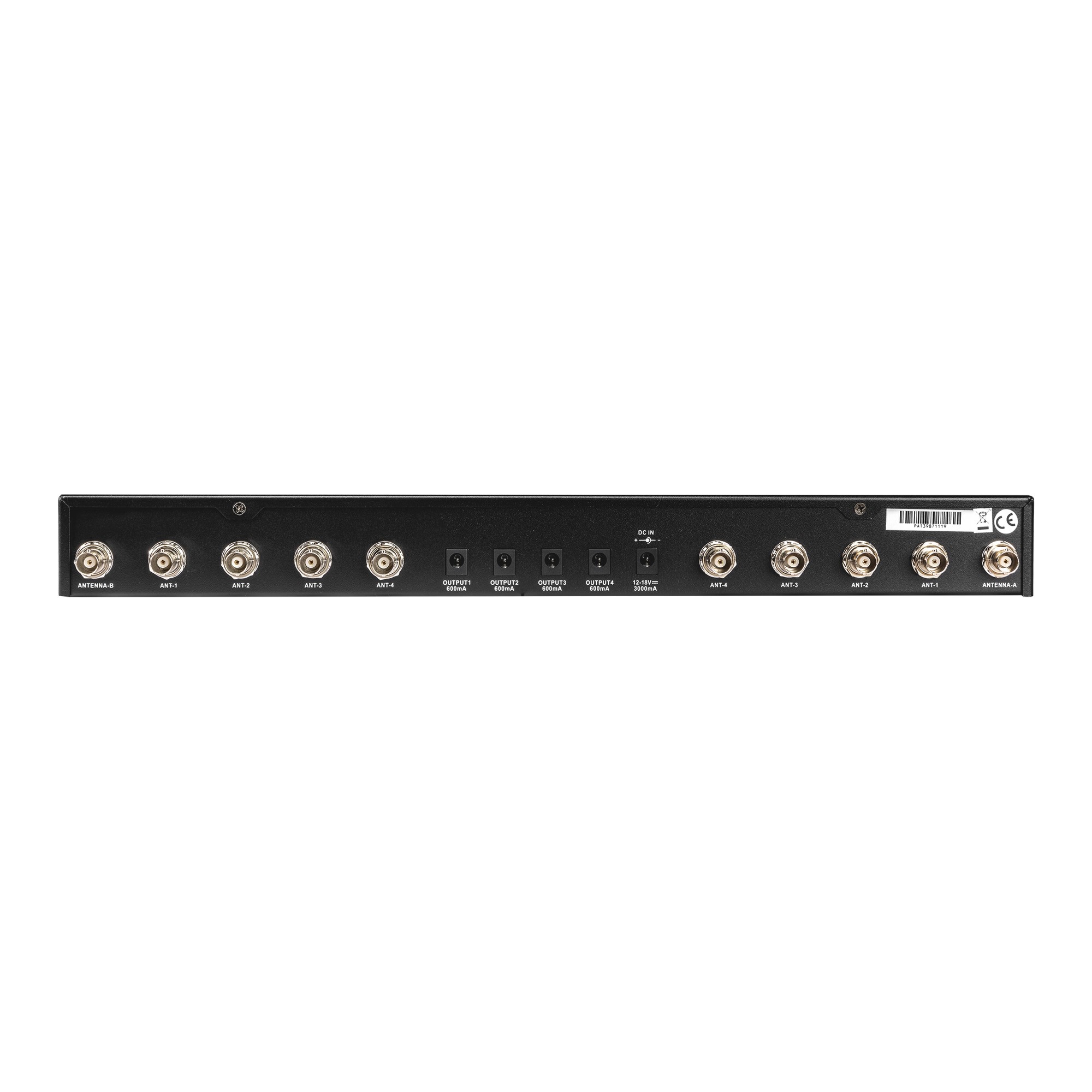

Antenna outputs |
4 x 2 |
|
Antenna output connection |
BNC |
|
Output impedance |
50 Ohm(s) |
|
Power supply for radio receiver |
4 x 12 - 18 V DC V |
|
Power supply |
12 - 18 V DC, 3A |
|
Operating voltage |
12 V DC - 18 V DC (100 mA) |
|
Width x Height x Depth |
482mm x 44.4mm x 160mm |
|
Weight |
4.672 kg |
|
Accessories (included) |

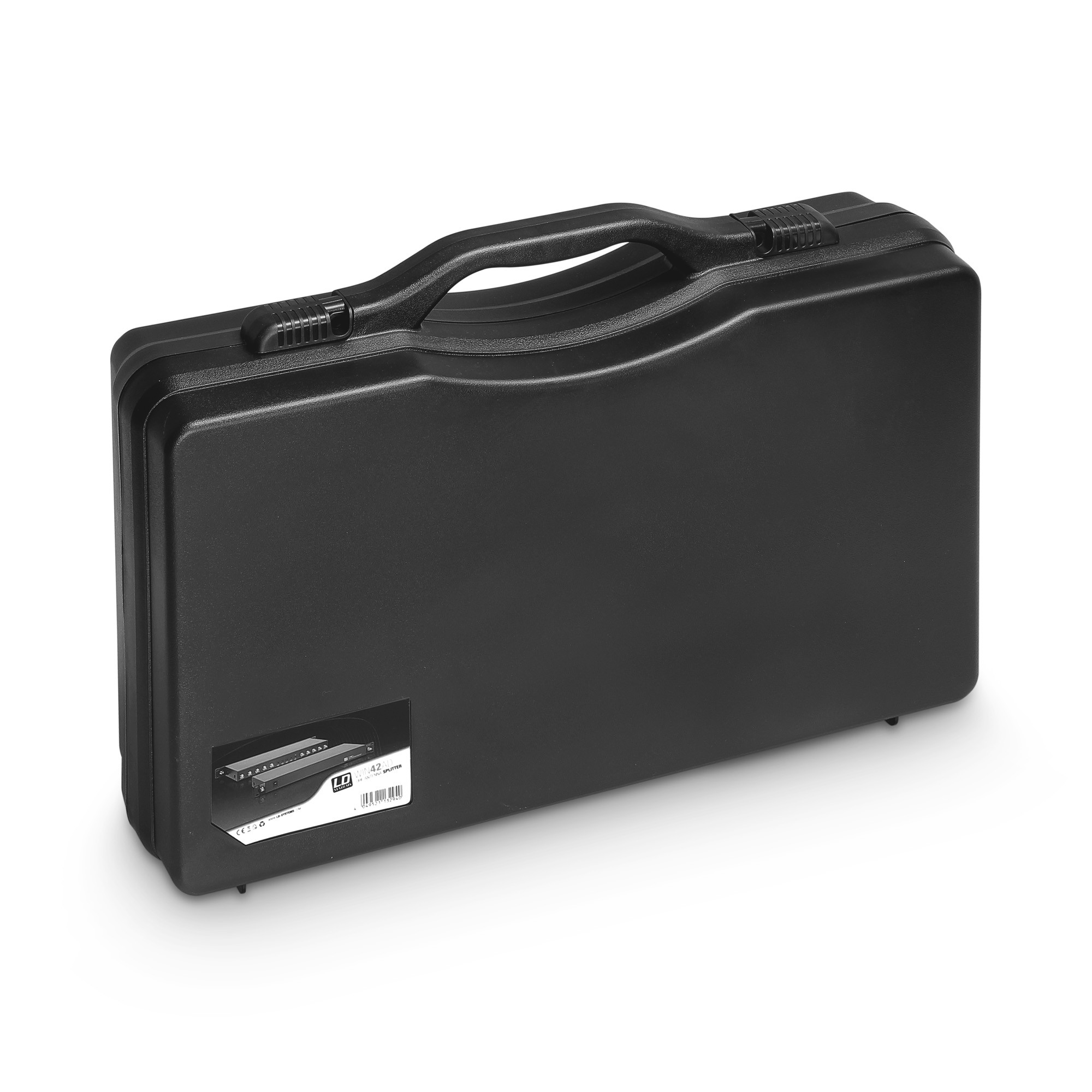

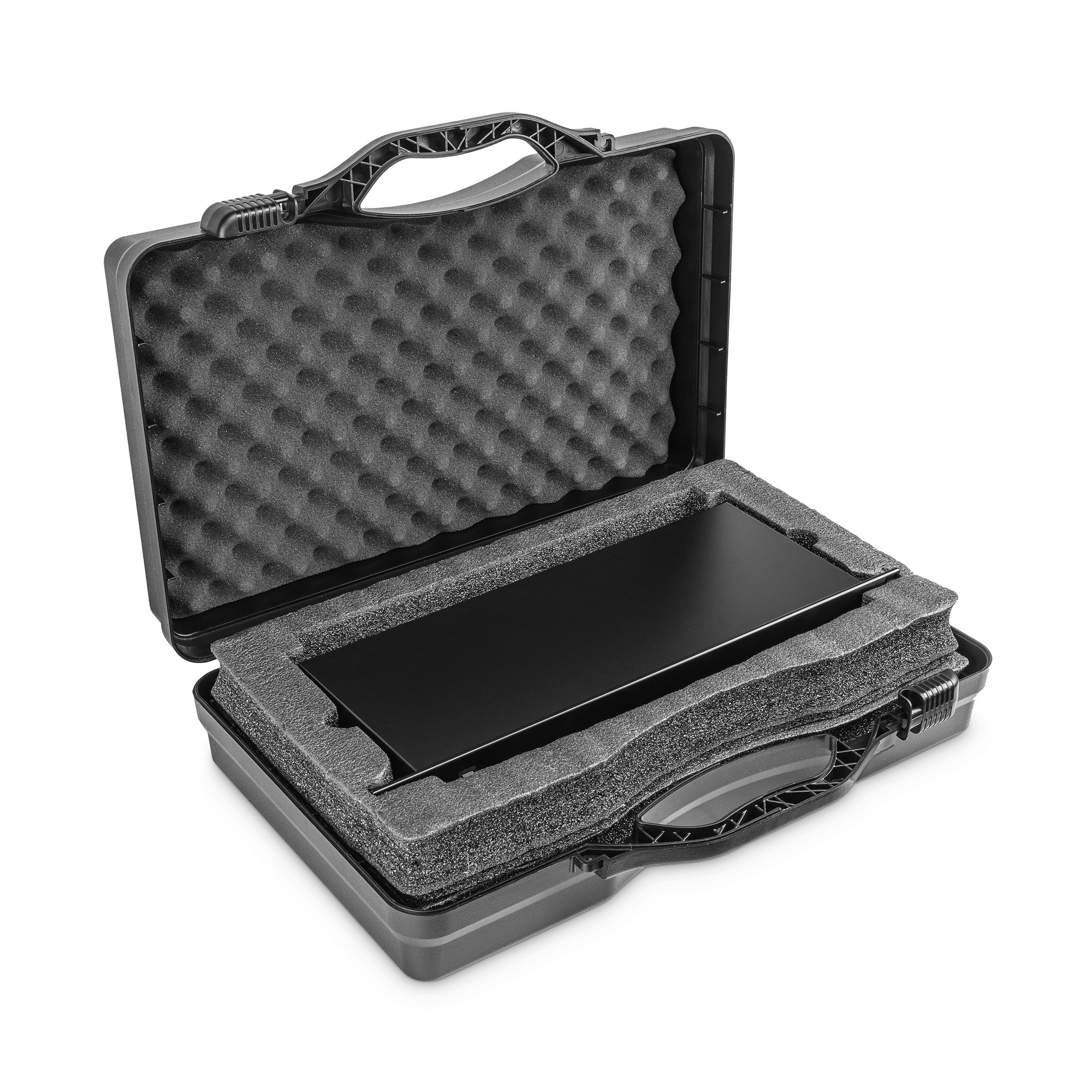

10 x BNC Kabel, 0.5m, 2 x BNC adapter, 4 x DC cable, 0.5m, 4 x Output 600 mA, Plastic case, Power supply |
