Ecler VEO-SWC44
Click to expand

Ecler VEO-SWC44

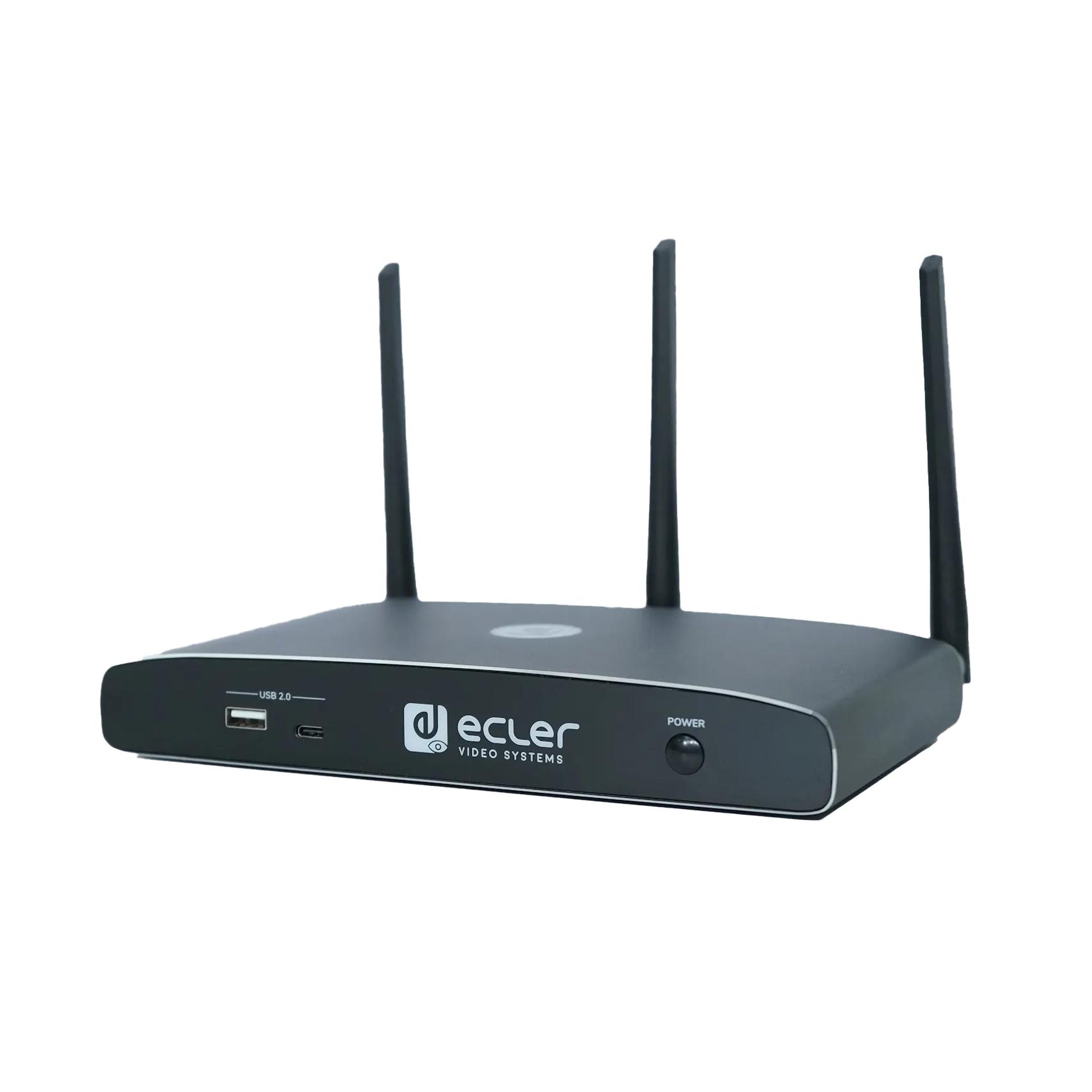

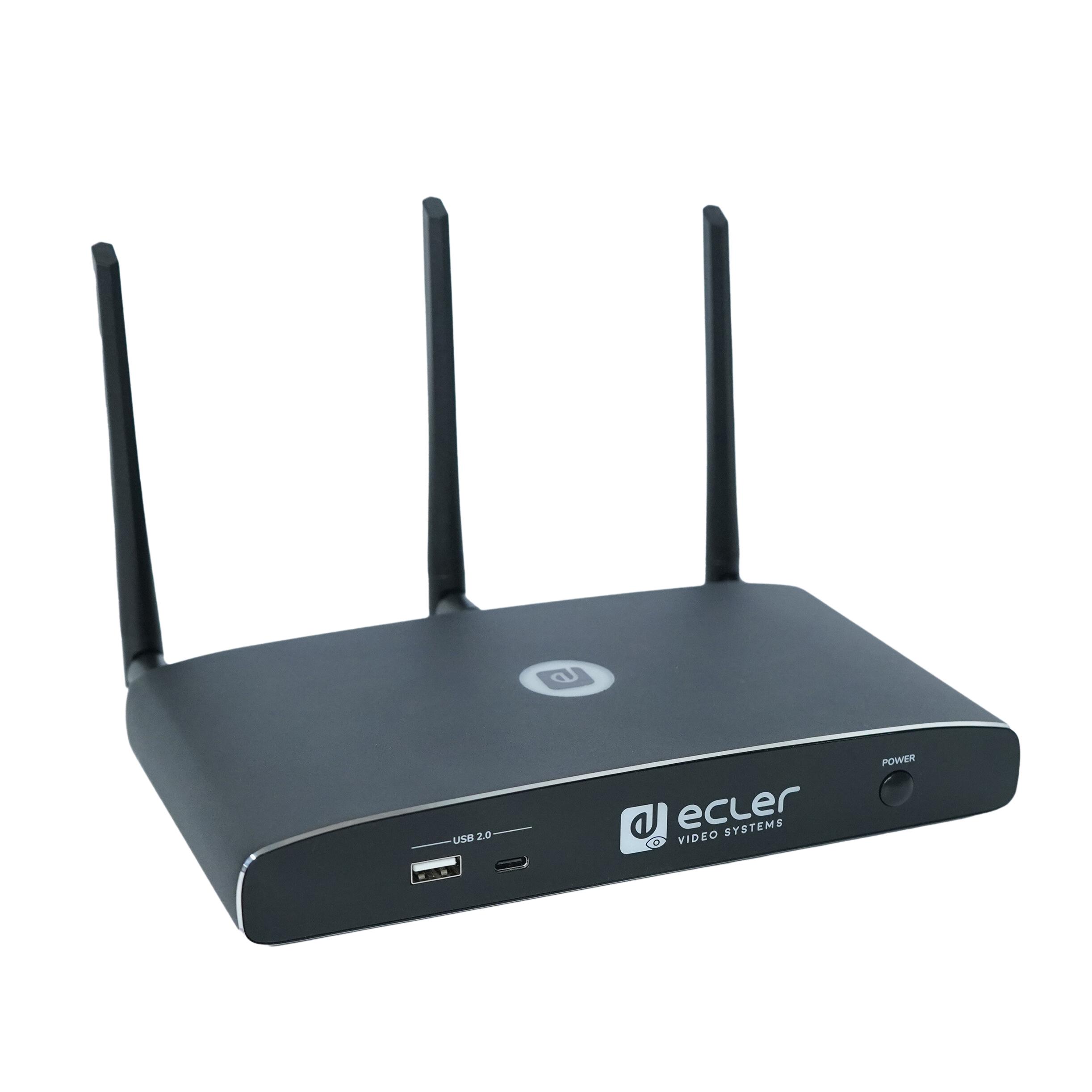

The Ecler VEO-SWC44 is a wireless conferencing and presentation switcher with Full HD video resolution wireless inputs and a 4K / UHD HDMI 2.0 video output.

It supports wireless connection for USB devices like webcam and mic via VEO-SWC44TH or VEO-SWC44TU wireless transmitters, Windows & macOS applications and is also Airplay / Miracast compliant. An integrated audio de-embedder provides stereo unbalanced analogue output on a 3.5mm jack connector.

The VEOSWC44 features a WebGUI is for configuration and management as well as RS-232, TCP/IP remote control, all enabled by a pair of LAN RJ-45 connectors with independent networks available.

Up to 4 devices can be displayed simultaneously in a multi-view layout.

Other features include HDCP 2.2 support, smart EDID management and support for PoE.

  • USB 3.0 ports for wireless connection between a laptop and room USB devices like camera and mic for an easy video conference
  • Wireless input up to Full HD video resolution and a HDMI 2.0 4K / UHD video output.
  • Analogue audio extraction on stereo unbalanced 3,5mm jack connector.
  • Support for native wireless mirroring protocols like Airplay and Miracast for a flawless presentation.
  • Plug-n-play by optional wireless transmitters HDMI VEO-SWC44TH or USB Type-C VEO-SWC44TU as well as Windows and macOS apps for wireless connection with a laptop or PC.
  • RS-232 and IP control as well as WebGUI management.
  • Extra security layer for an encrypted wireless transmission.
  • Support for up to 4 simultaneous split screen view presentation as well as up to 16 participants on hold.
  • Customizable background image or logo for the welcome screen page.
  • Support wireless touchback for interactive screen as well as whiteboard and live annotation tool.
  • Support for PoE.
  • Local 12V DC power supply.
  • Warranty: 5 Years.

For further information, please download the Datasheet and/or User Manual.

To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure
List Ex VAT: £823.65
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Video Input Connectors

USB 3.0, USB-C, USB 2.0 (UVC)

Video Output Connectors

HDMI Type A Female, 1.4, 10.2 Gbps

Video Input Resolutions

1080p@60Hz

Video Output Resolutions

3840x2160@60Hz,3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz

HDCP

2.2

Video Composing Capabilities

Multiviewing up to 4 windows; 16 participants on hold

Screen Mirroring

Airplay, Chromecast, Miracast, VEOShare app, Dongle Transmitter

Wireless Conferencing

Yes

Other Features

Whiteboard annotation tool, Wireless Touchback, Customizable background

Audio De-Embedding

Yes

Control Protocols

Web, Telnet, RS-232

EDID Management

Software

Power supply

PoE (IEEE802.3af.) or External Power supply

Included accessories

1 x 3pin Euroblock connector, 3 x antennas, 1x 12V PSU

Optional accessories

VEO-SWC44TH, VEO-SWC44TU

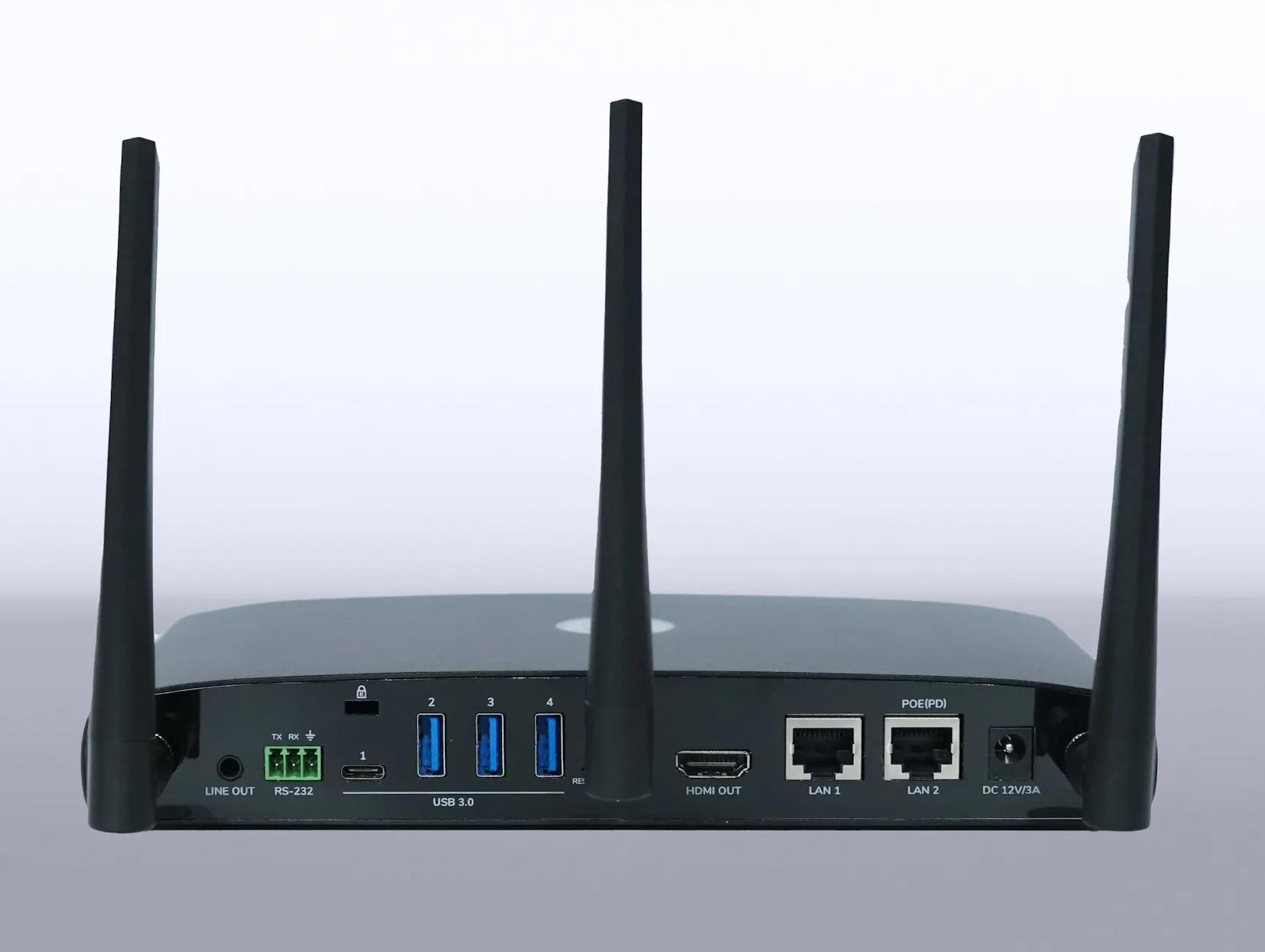

Network Connectors

2 x RJ-45 (LAN port 1 is 100Mbps and LAN port 2 is 1Gbps), WiFi (Wireless transmission protocol is WIFI IEEE 802.11 a/g/n/ac. Compatible with 2.4 GHz and 5GHz frequency bands)

Average Streaming Bitrate

Up to 1200Mbps

Transmission Distance

100m via Ethernet Network

Related Products

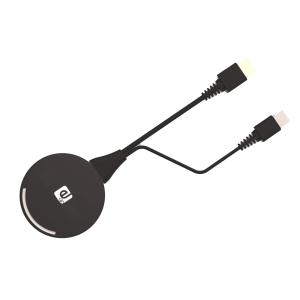

Ecler VEO-SWC44TH

Wireless Transmitter with HDMI & USB. For Ecler VEO-SWC44 Video Switcher.

see more
List Ex VAT: £256.70

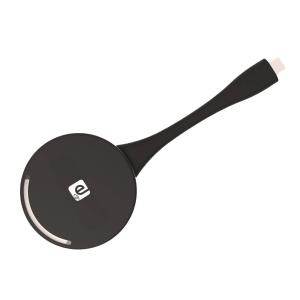

Ecler VEO-SWC44TU
