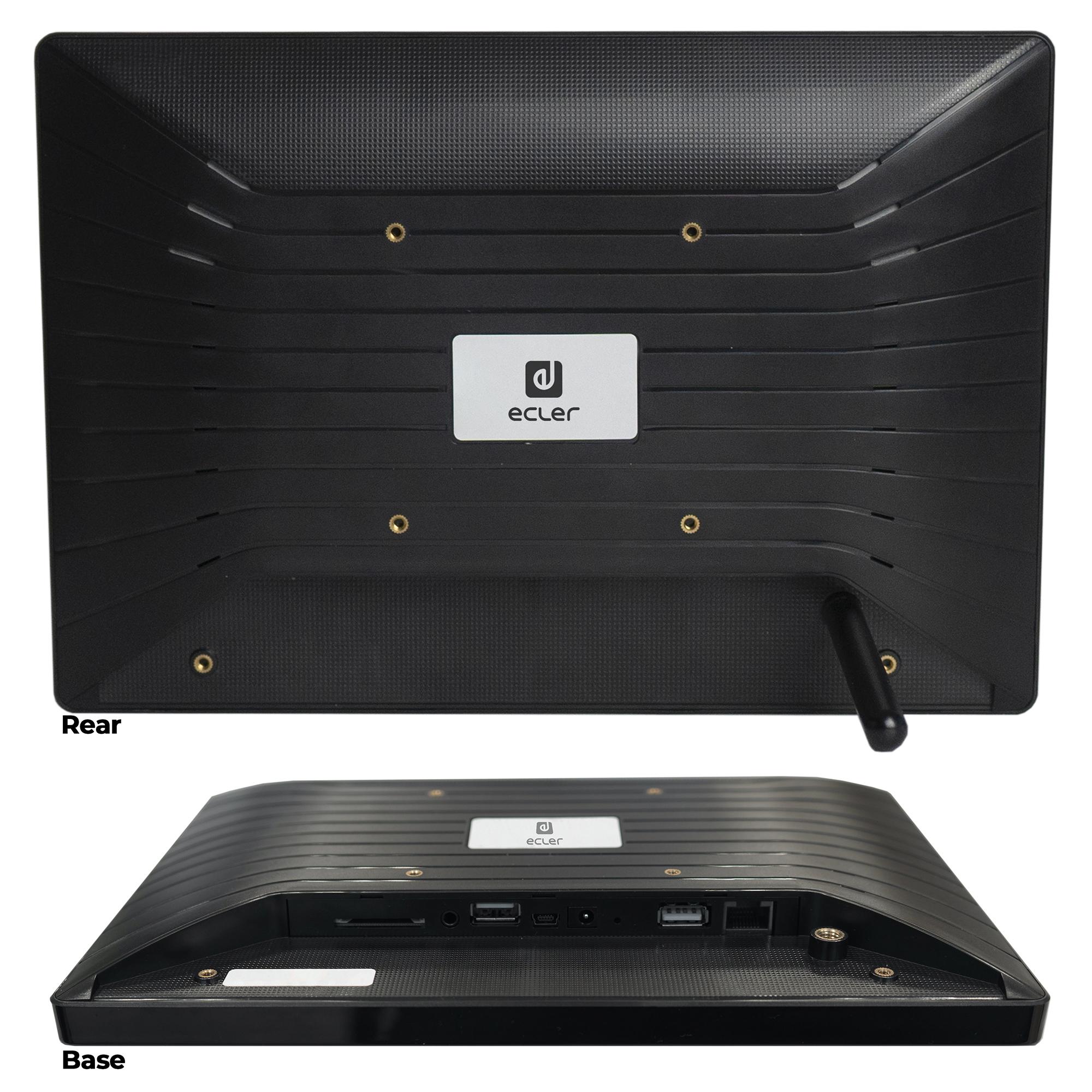

The Ecler WPNETTOUCH 10” capacitive TFT tactile panel is compatible with all the VEO Series networked products as well as the EclerNet native products.

WPNETTOUCH can be used in place of a computer to manage connected devices.

Each WPNETTOUCH unit can be configured to work as a single zone control panel or as a global multi-zone controller.

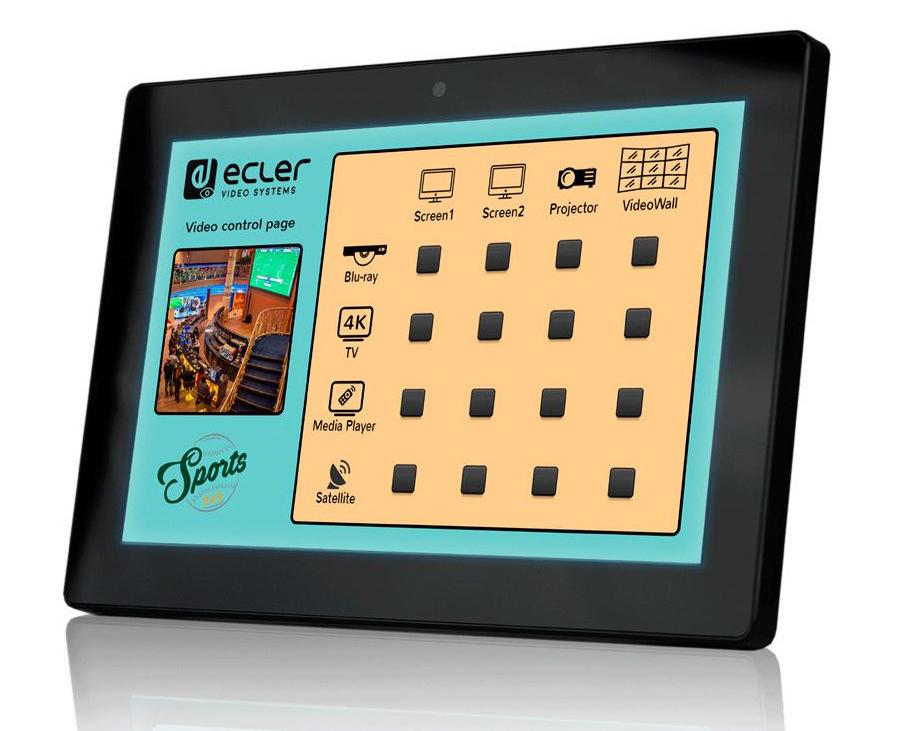

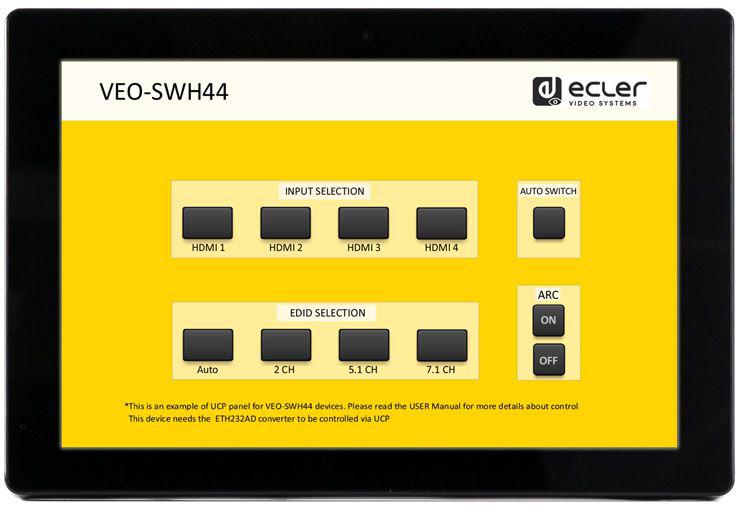

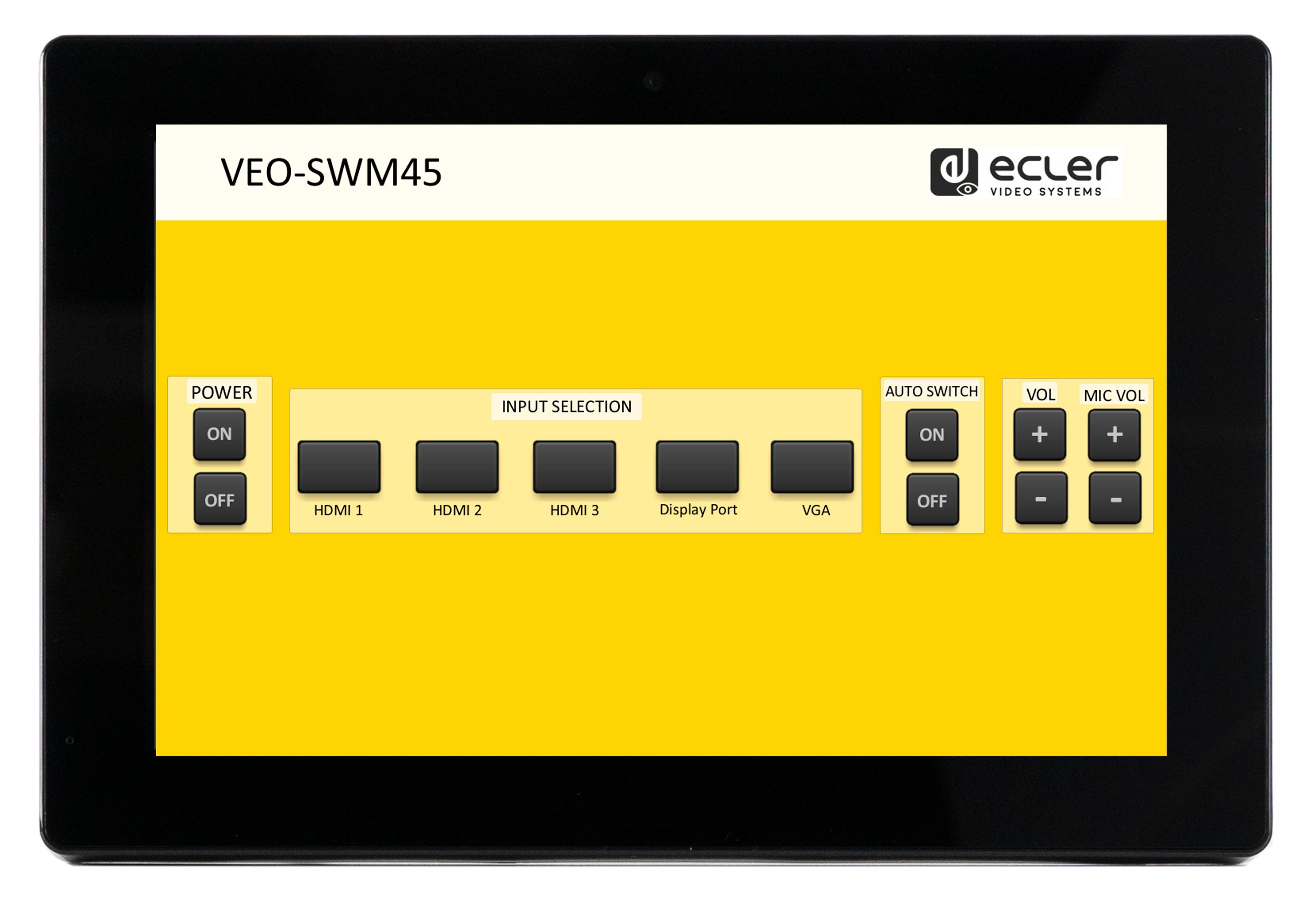

Customized User Control Panels can be designed using Eclernet Manager (free software download) to control volume, sound source selection, video sources selection, presets recovery, communication via TCP/UDP with external devices, etc.

It can also be used as a UCP server for third party devices (iOS©,Android©, Windows©, etc.).

EclerNet Manager allows for the creation of UCP’s to control EclerNet native devices, along with other equipment fitted with third party control protocol (TCP/IP, UDP, RS-232 through Ethernet adaptor to RS-232). Control of Ecler Audio, VEO series Ecler Video and other third party apparatus can then be accessed via WPNETTOUCH (as shown in the image), Ecler UCP APP on Android©/iOS© devices or by using a web browser.

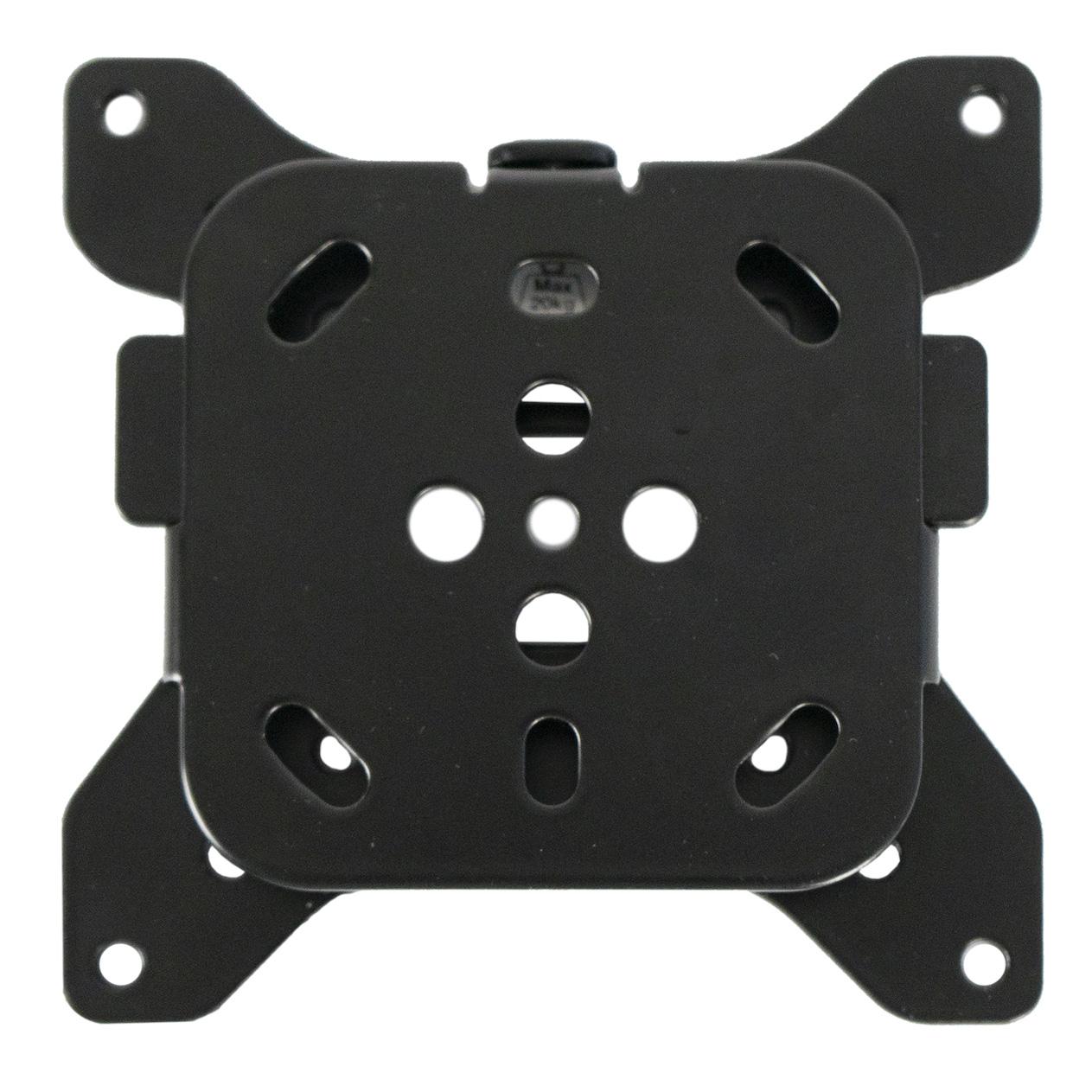

WPNETTOUCH can be mounted securely onto a wall or other surface using the VESA75 standard mounting bracket supplied.

• 10” Capacitive Touch Panel for fully customized control surfaces
• EclerNet, VEO Series and third party devices remote control compatible
• UCP client/server
• POE and local power supply (multi-plug universal PSU included)
• VESA75 standard mounting accessory included
