Ecler VEO-SWM44

The Ecler VEO-SWM44 compact 4K presentation switcher includes 2 HDMI 2.0, a USB-C and wireless input selection via VEOCast to a single HDMI 2.0 output, supporting resolutions up to 4K/60Hz 4:4:4 HDR10 and Dolby Vision.

Smart EDID management and HDCP 2.2 support ensures optimum compatibility and an integrated audio de-embedder provides stereo analogue balanced outputs on Euroblock connectors.

The VEO-SWM44 switcher includes 2 USB 3.0 type B and 2 USB 3.0 type A to support soft codec applications and external devices like webcam and KVM kits.

Inputs can be selected via Auto-switching function, front panel buttons or RS-232.

Display control via front panel buttons through CEC or RS-232.

  • Bandwidth up to 18Gbps, resolution up to 4k @60hz, YUV, 4:4:4, HDR10 and Dolby Vision
  • Wireless BYOD (bring your own device) capability via VEOCast (for macOS, iOS, Android and Windows devices).
  • Provides up to 60W powering supply, USB data and 4K video over USB-C.
  • HDMI Audio de-embedded via balanced analog audio port on Euroblock connectors.
  • HDCP2.2 Compliant.
  • EDID Smart Management (via Dip-switch).
  • Switching function via front panel, auto-switching function, RS-232.
  • Configuration via web-page (WiFi).
  • CEC and RS-232 commands for display control.

For further information, please download the Datasheet and/or User Manual. To see more of the range, please download the Ecler Video Brochure here.

List Ex VAT: £1,250.10
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

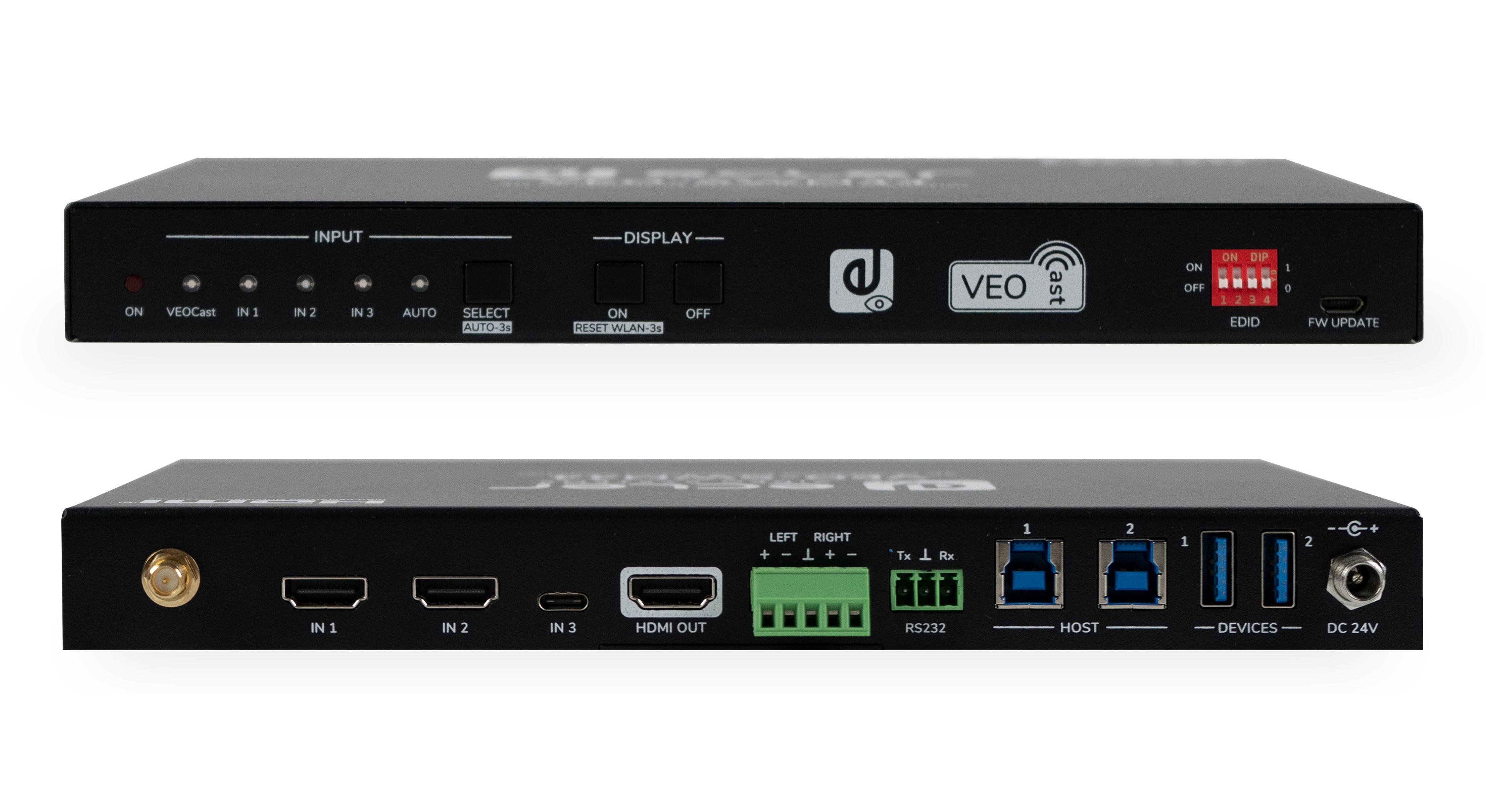

Video Input Connectors

2 x Type A female HDMI, 1 x Type C USB 3.0 with DP ALT-MODE connector, 1 x External Antenna connector

Video Output Connectors

1 x Type A female HDMI

Video Input Resolutions

HDMI: Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision_USB-C (DP Alt Mode compliant): Up to 4K@30Hz 4:4:4_VEOCast: Up to 4K@30Hz 4:4:4

Video Output Resolutions

Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision

Chroma Subsampling

4:4:4

Colour Depth

Up to 12-bit

HDCP

2.2/1.4 Compliant

Audio Input Connectors

5-pin Euroblock (Balanced Stereo)

Audio Formats

Dolby® Atmos, Dolby® TrueHD, Dolby® Digital Plus, Dolby® Digital, DTS-X™, DTS-HD Master Audio™, DTS 5.1™, PCM

Sample Rate

32 KHz, 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176.4 KHz, 192 KHz

Bit Depth

Up to 24-bit

Control Connectors

2 x Type-B USB 3.0, 2 x Type-A USB 3.0, 1x Type-C USB 3.0, 1 x 3-pin Euroblock, 1 x Micro-USB

Control Protocols

1 x 4-pin DIP switch, 2 x HOST (PC1&PC2), 2 x DEVICES, 1 x RS-232, 1 x FW Update

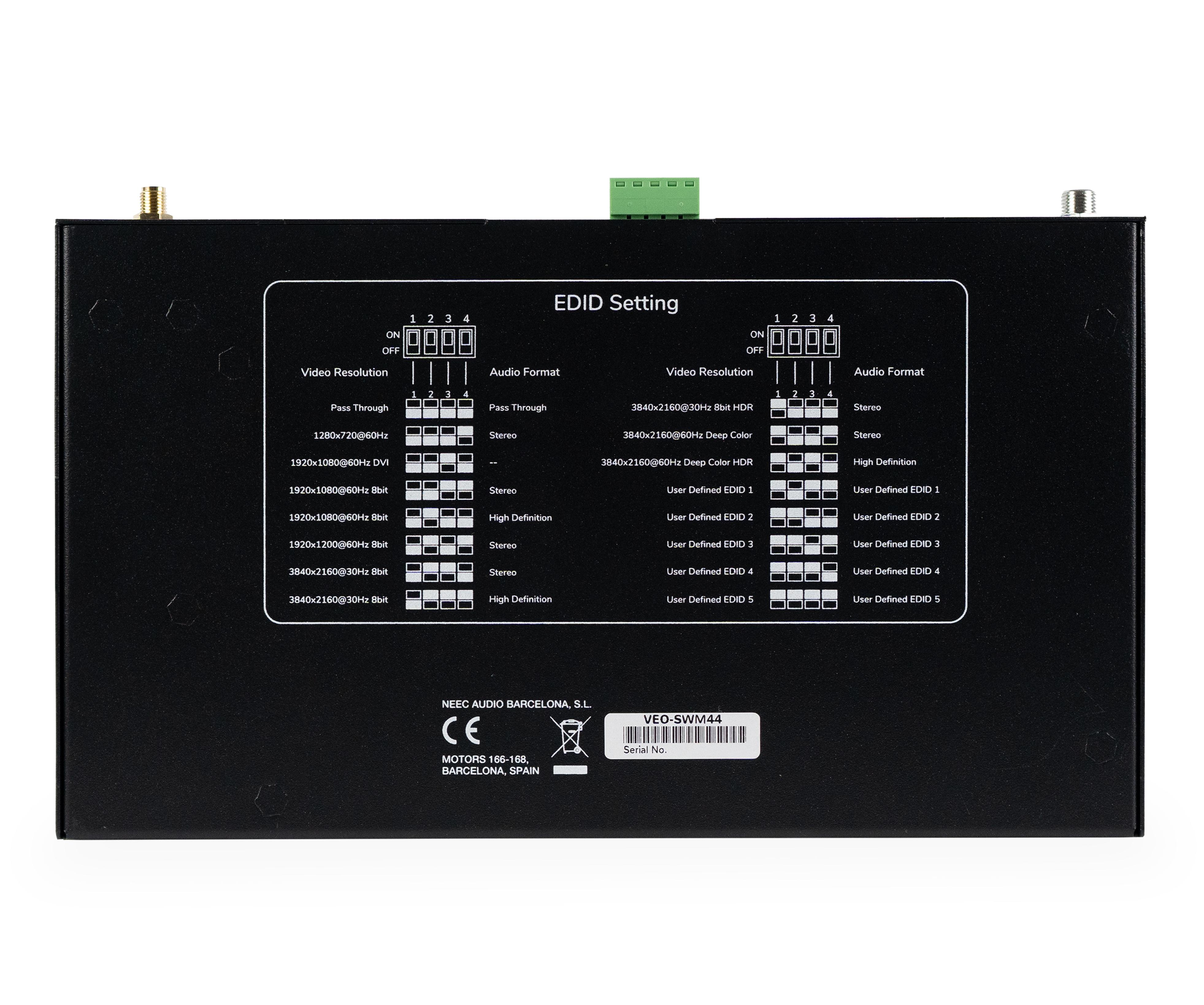

EDID Management

mini-switch DIP (4 contacts)

Power supply

AC 100V ~ 240V 50/60Hz Output: DC 24V---5A

Power consumption

85W Max with the included PSU / 60W Max power charging over USB-C

Dimensions (WxHxD)

238x 24.5 x 135 mm / 9.37 x 0.96 x 5.31 in.

Weight

1.25 kg / 2.75 lb
