Ecler VEO-SWH44

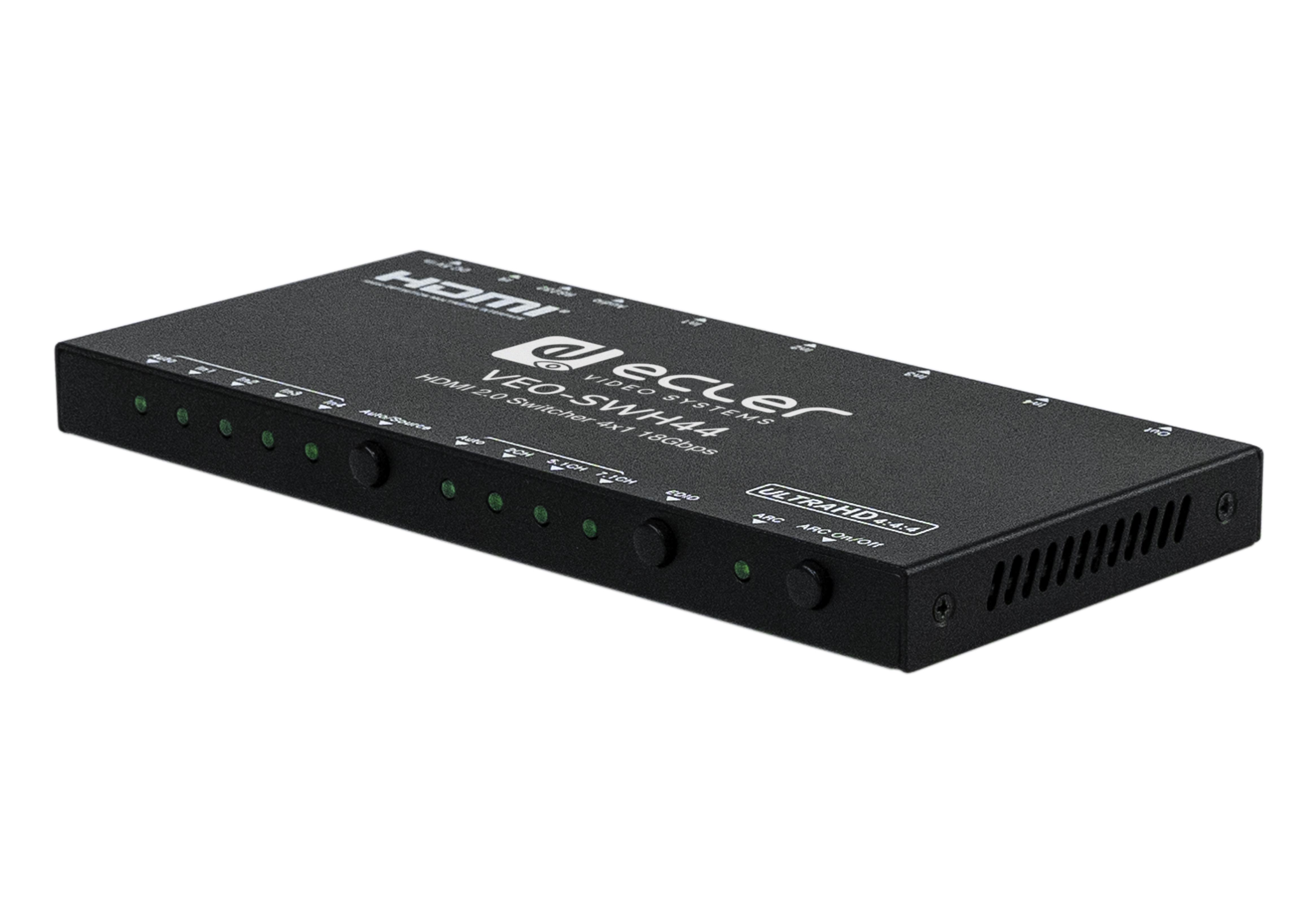

The Ecler VEO-SWH44 is a 4x1 HDMI switcher for high dynamic range (HDR) formats. It's the ideal solution for applications requiring 4K/UHD and HDR sources and displays.

The VEO-SWH44 includes audio de-embedding features and audio EDID management.

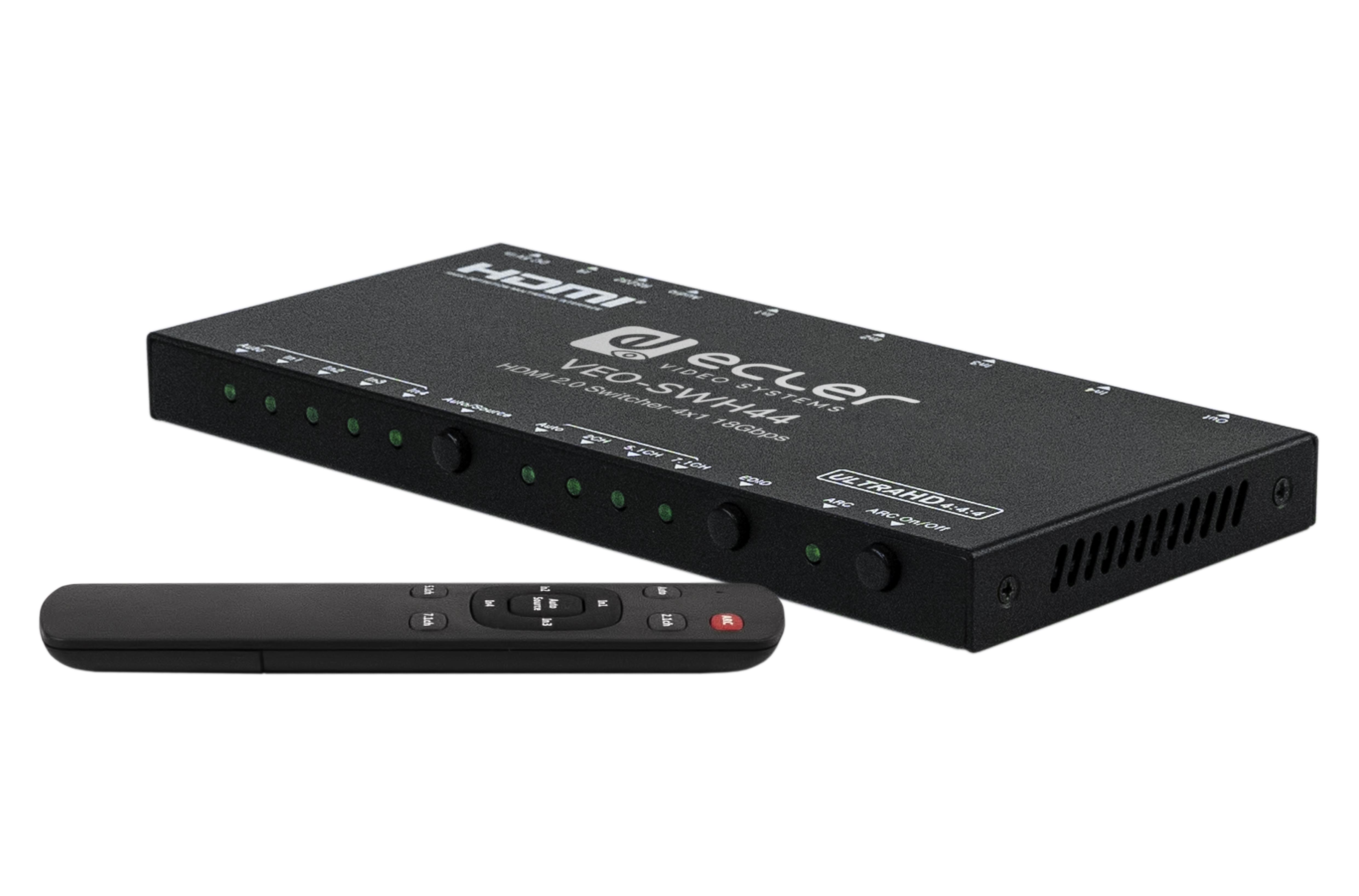

The HDMI selection is made automatically (sense selection) or manually on the front panel, with the remote control or via RS232 control.

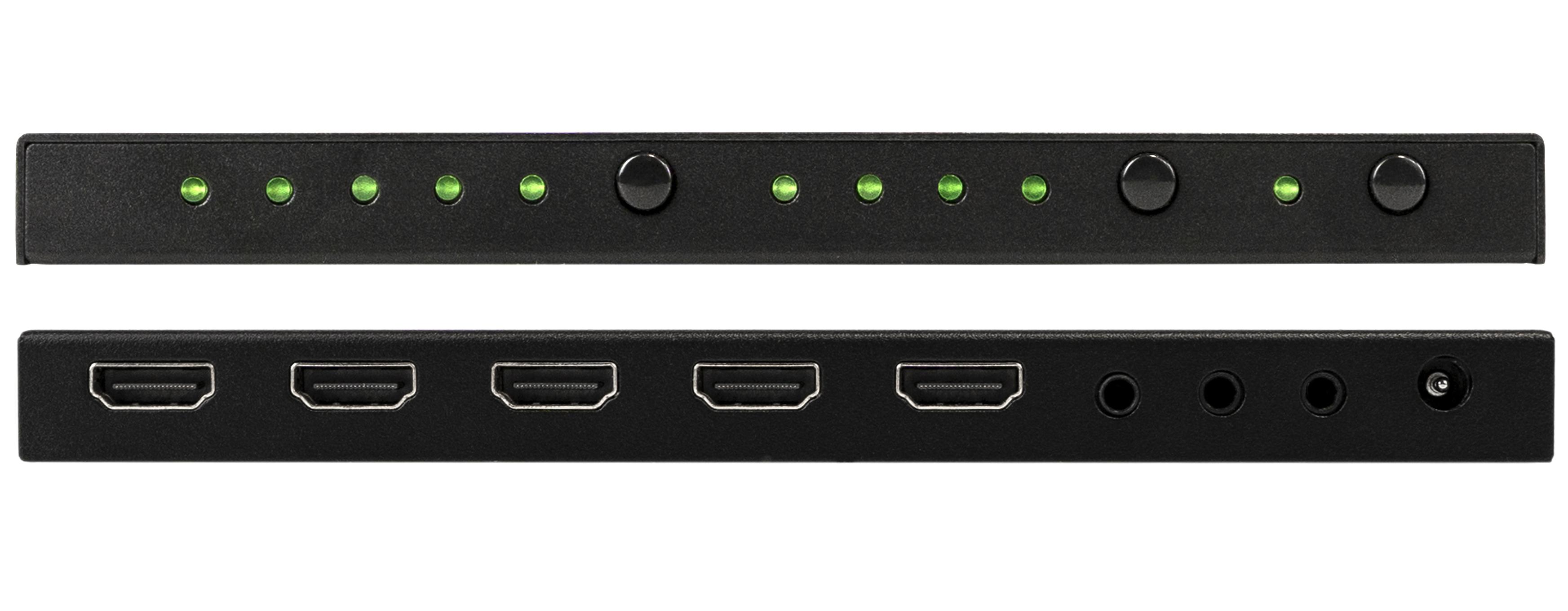

Front mounted LEDs indicate the selected sources and settings.

  • 4x1 Ultra High Definition sources selector compliant with HDMI 2.0a standards
  • Video formats up to 4Kx2K(4096x2160@60Hz YUV 4:4:4) and all HDMI 3D video formats and all HDMI
  • Supports HDR and 3D contents
  • HDCP2.2/1.4 Compliant
  • Supports 36 bit Deep Colour
  • Smart EDID management (Auto/2CH/5.1CH/7.1CH selectable)
  • PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH
  • Supports Audio Return Channel (ARC)
  • Digital and analog audio output
  • RS-232 Control

For further information, please download the Datasheet and/or User Manual. To see more of the range, please download the Ecler Video Brochure here.

List Ex VAT: £228.50
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Video Input Connectors

HDMI Type A Female, 2.0, 18 Gbps

Video Output Connectors

HDMI Type A Female, 2.0, 18 Gbps

Supported Resolutions

4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i

Chroma Subsampling

4:4:4, 4:2:2, 4:2:0

Colour Depth

8-bit, 10-bit, 12-bit

Colour Space

YCbCr, RGB

HDCP

2.2, 1.4 Compliant

HDR

HDR10

Audio Output Connectors

Analog 3.5mm Stereo Minijack or Toslink Digital Output using the included adapter

Audio Formats

PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio

Sample Rate

32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Bit Depth

up to 24-bit

ARC/eARC

Yes

Audio De-Embedding

Yes

Audio Embedding

No

Control Protocols

RS-232, IR

Control Buttons

Source selection mode button (Auto/Manual), EDID select button, ARC Activation button

EDID Management

Button

Status Indicators

Source Selection LED indicators, EDID Status LED, ARC Status LED

Power supply

AC100 - 240V 50/60Hz Output: DC 5V/1A

Included accessories

1 x 5V DC 1A International Power Supply, 1 x IR RX cable, 1 x Optical Adapter (for SPDIF audio output), 1 x HDMI 4x1 IR Remote
