Ecler VEO-MXH44D

The Ecler VEO-MXH44D 4x4 HDMI 2.0 matrix supports up to 4K/UHD video resolution at 60 Hz with 4:4:4 chroma sampling.

It features 4 HDMI inputs routable to any of 4 HDMI outputs with 4 analogue and 4 digital audio de-embedding outputs. It has EDID management, an LCD display, and an integrated web GUI, providing a user-friendly configuration and control interface.

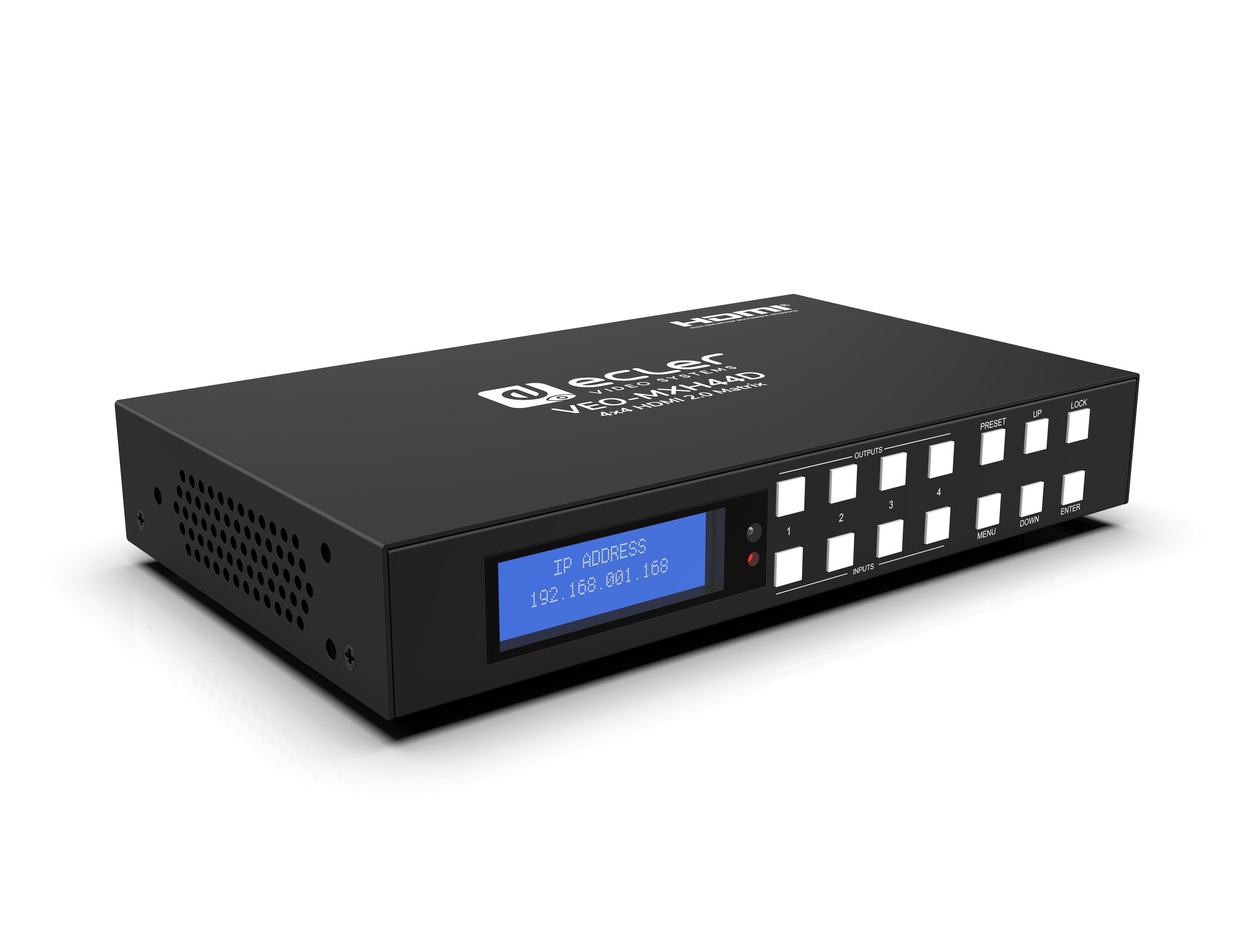

HDMI sources can be selected with the buttons on the front panel or via serial commands, TCP/IP, and IR.
The VEO-MXH44D is compliant with HDCP 2.2 and 1.4 standards.

Additionally, the VEOMXH44D can load and launch up to 8 presets, making it a professional solution for routing video and audio HDMI signals between 4K/UHD sources and displays, with smart control management.

  • 4 x HDMI 2.0 inputs which can be independently routed to 4 x HDMI 2.0 outputs.
  • Supports HDMI 2.0 up to 4K @60Hz, YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit).
  • Support for Full HD video downscaling.
  • 8 preset storage.
  • Supports audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions.

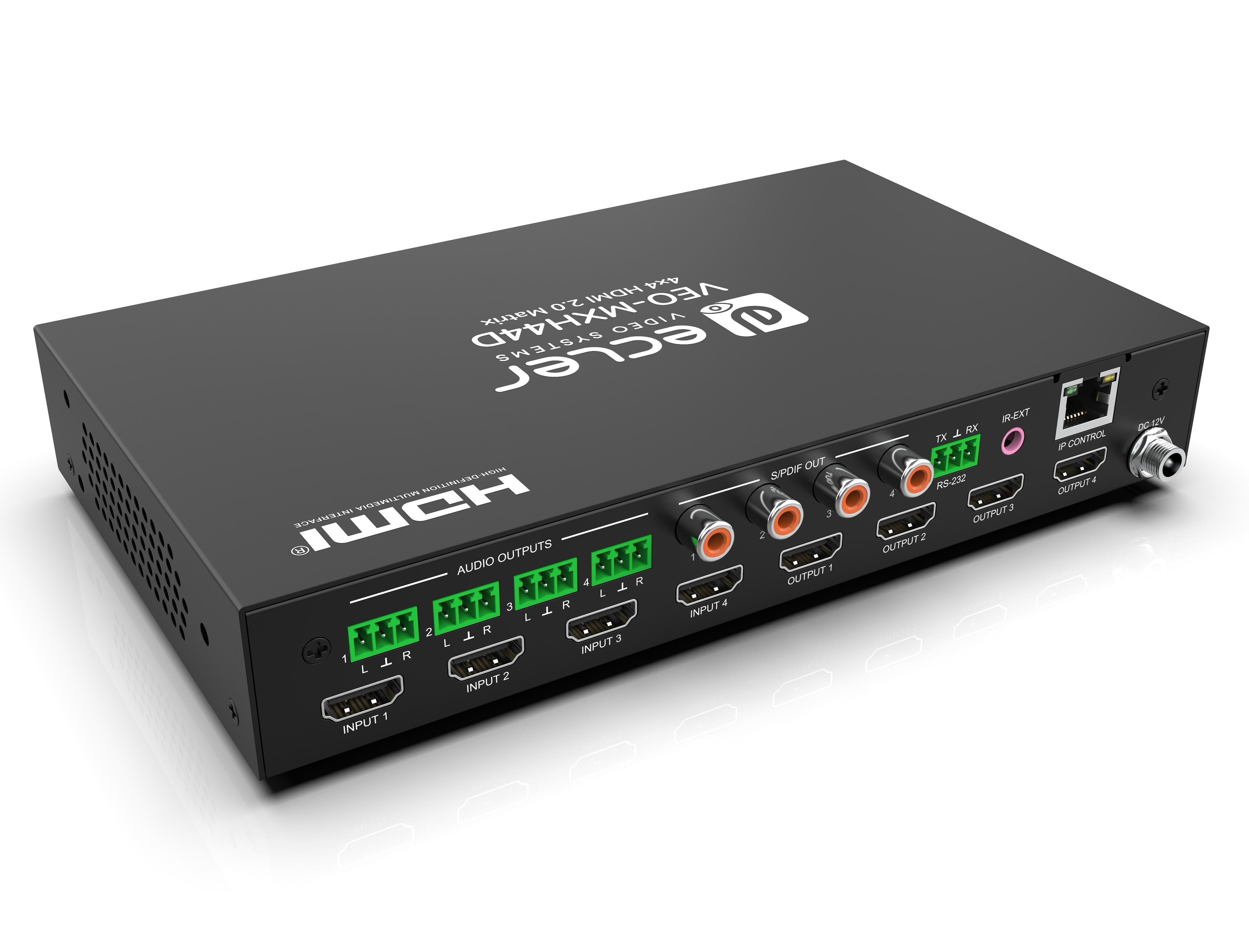

  • Analogue audio extraction on stereo unbalanced Euroblock connector as well as stereo and surround digital audio extraction on S/PDIF coaxial connector

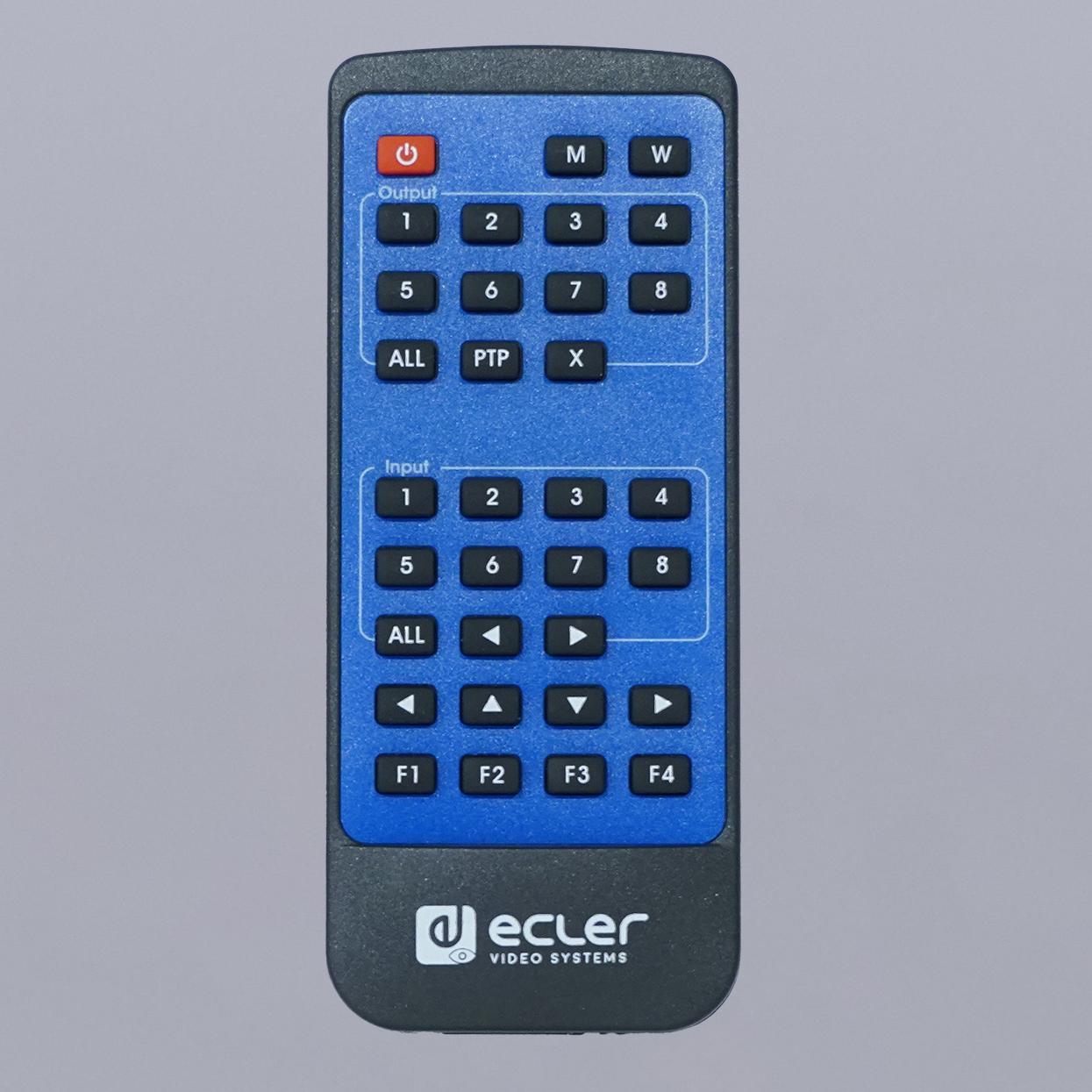

  • Control via front panel and display, IR remote, RS-232 control, IP control and WebGUI.
  • Advanced EDID management.
  • HDCP 2.2 compliant.
  • Local 12V DC power supply.
  • Warranty: 5 Years.

For further information, please download the Datasheet and/or User Manual.

To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure
List Ex VAT: £605.20
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Video Input Connectors

4 x HDMI Type A Female, 2.0, 18 Gbps

Video Output Connectors

4 x HDMI Type A Female, 2.0, 18 Gbps

Supported Resolutions

480p@60hz, 576p@50hz, 720p@60hz, 1080p@24hz, 1080p@50hz, 1080p@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4

Chroma Subsampling

YUV 4:4:4, YUV 4:2:0 (4K @ 60Hz)

Colour Depth

8-bit, 10-bit, 12-bit

Colour Space

RGB, YUV

HDCP

2.2

HDR

HDR10, Dolby Vision, HLG

Audio Output Connectors

4 x 3 pin Euroblock connector, 4 x Coaxial Digital Out connector

Audio Formats

PCM2.0, PCM5.1, PCM7.1, Dolby Digital, DTS 5.1, Dolby Digital+ Dolby True HD, DTS-HD master audio, Dolby Atmos, DTS-X

Sample Rate

Up to 192KHz

Audio De-Embedding

Yes

Control Connectors

Euroblock, RJ-45, IR 3,5mm stereo jack

Control Protocols

Web, Telnet, RS-232, IR, Front panel Buttons and LCD Display

Control Buttons

1 x Enter, 1 x Lock , 1 x Up, 1 x Down, 1 x Preset Selection, 1 x Menu, 4 x Input Selection, 4 x Output Selection, Remote control

EDID Management

Software, Front Panel Buttons

Status Indicators

Input LED, LCD Display

Power supply

External Power supply

Included accessories

5 x 3 pin Euroblock connector, 1 x Remote Control, 1 x IR receiver, 1x 12V PSU

Dimensions

217.4 x 35 x 128.7 mm / 8.56 x 1.38 x 5.07 in. (WxHxD)

Weight

0.47 Kg / 1.04 lb

Network Connectors

1 x RJ-45
