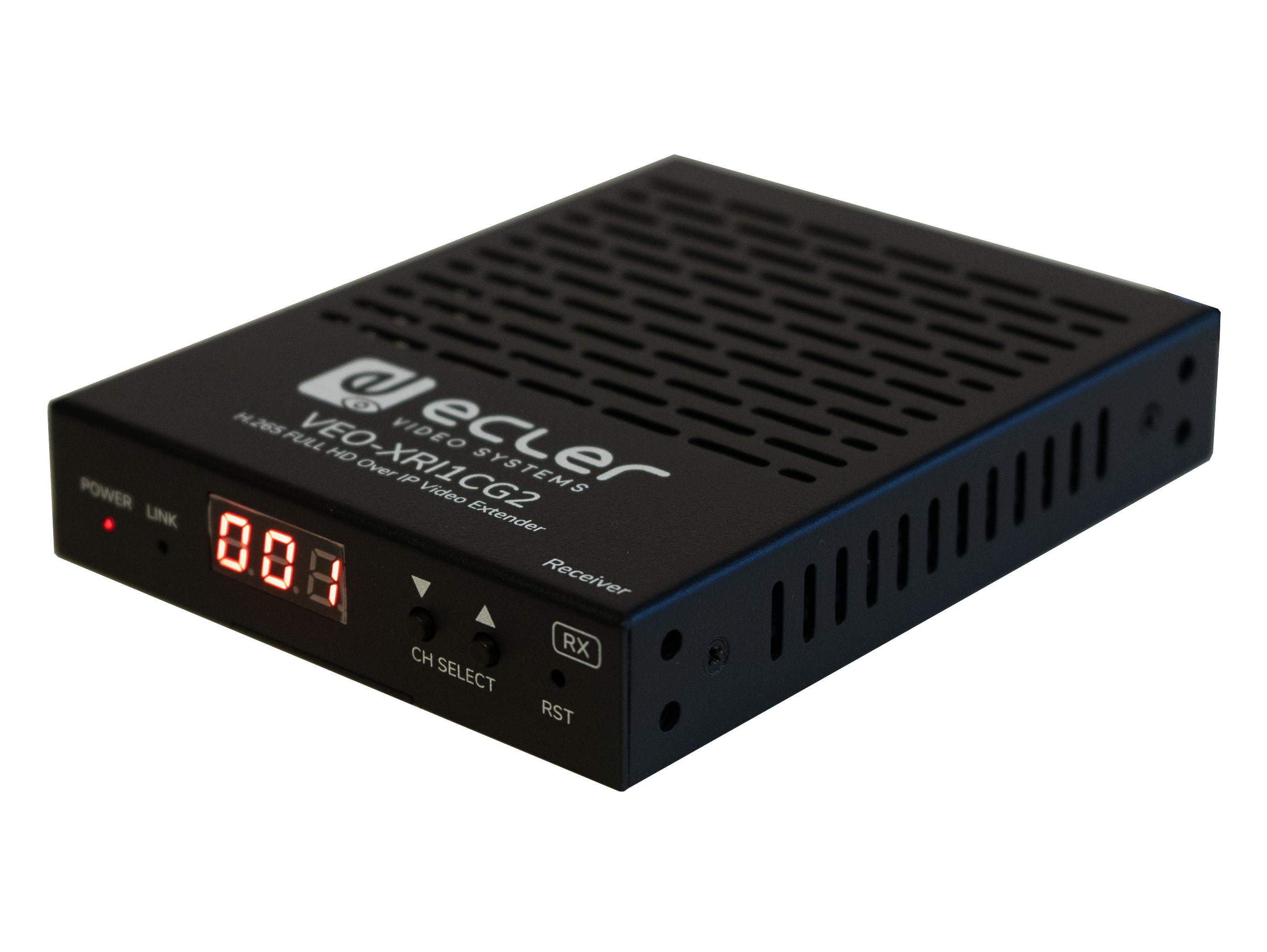

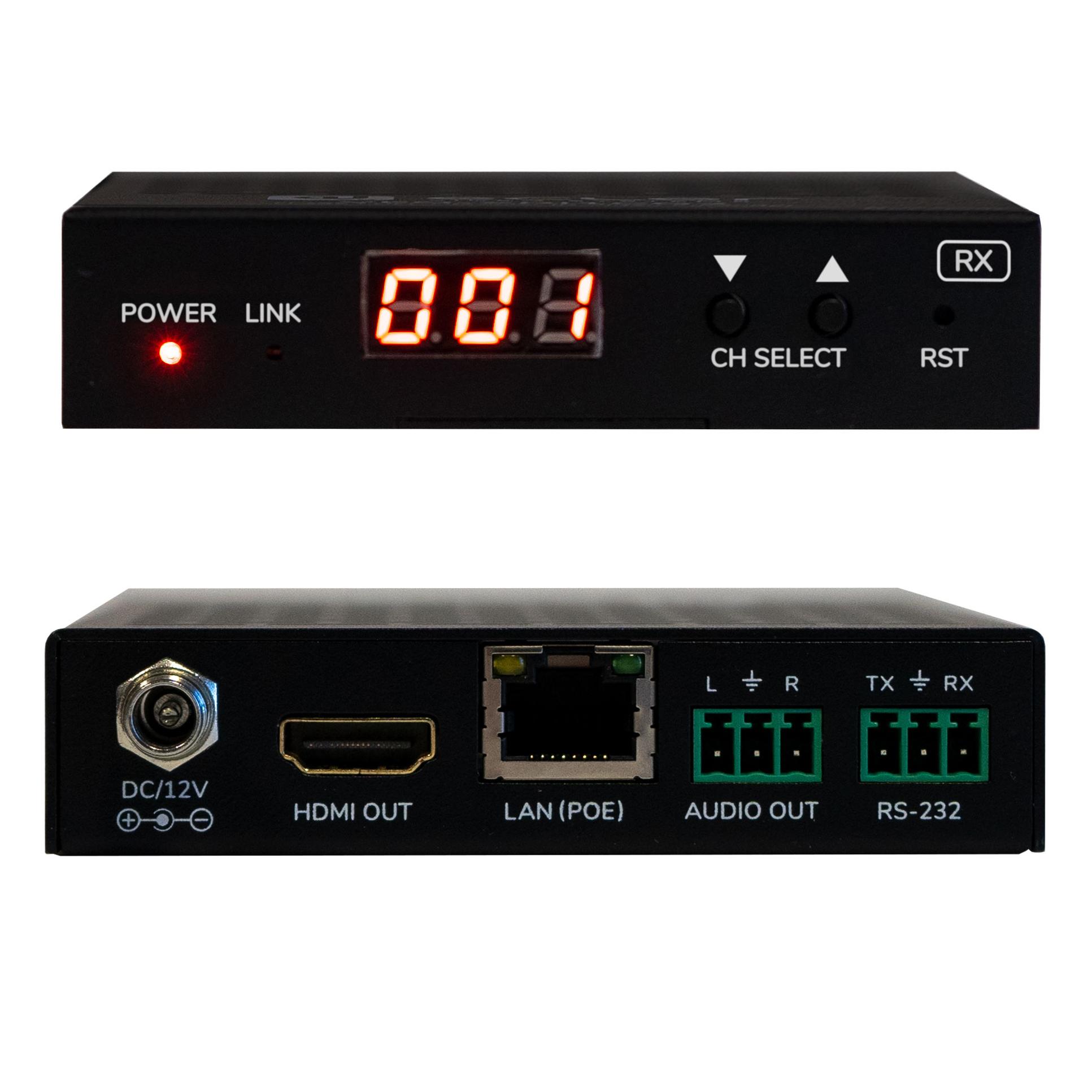

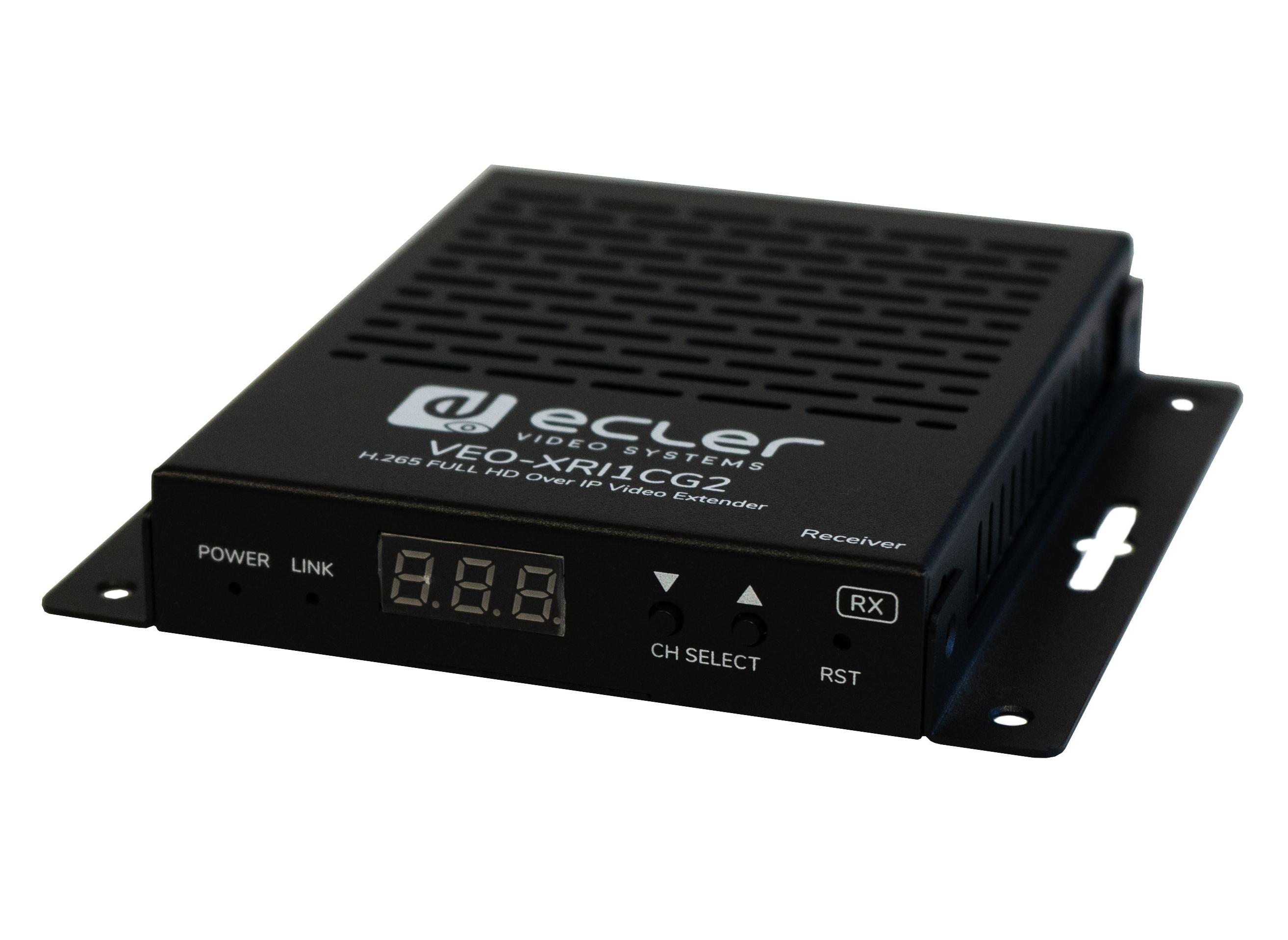

Ecler VEO-XRI1CG2
The Ecler VEO-XRI1CG2 VoIP transmitter works in conjunction with the VEO-XRI1CG2 receiver (available separately) and together they are a H.265 / H.264 over IP set of extenders that allow for HDMI distribution over 1Gb Ethernet networks with up to 1080p@60Hz video support.
With professional high-quality compression and low bandwidth, they enable point-to-point as well as multipoint-to-multipoint scenarios over a single 100m Cat5e/6/7 cable.
The VEO-XTI1CG2 and VEO-XRI1CG2 are a flexible & scalable solution for various applications which also require PoE, audio management, video wall compositing or remote control in educational, commercial, or corporate AV installations.
Together, they can be paired with VEO-XCTRLG2 control module for an expanded management experience with in-built WEB configuration interface.
- HDMI 1.4 with video resolution up to 1920x1200p@60Hz 4:4:4.
- Signal transmission distance up to 100m over Cat5e/6/7 cable.
- Support for unicast over 1Gb unmanaged networks and multicast signal extension over 1Gb managed networks.
- Support for video wall compositing up to 9 x 9 setups.
- Support for audio embedding and extraction.
- Support for mainstream and sub stream encoding modes.
- Support for pass through and RS-232, TCP/IP, Web GUI management using VEO-XCTRLG2 controller module.
- HDCP 1.4 compliant.
- Support for PoE function.
- Local 12V DC power supply.
- Warranty: 5 Years.
For further information, please download the Datasheet and/or User Manual.
To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.
 |
