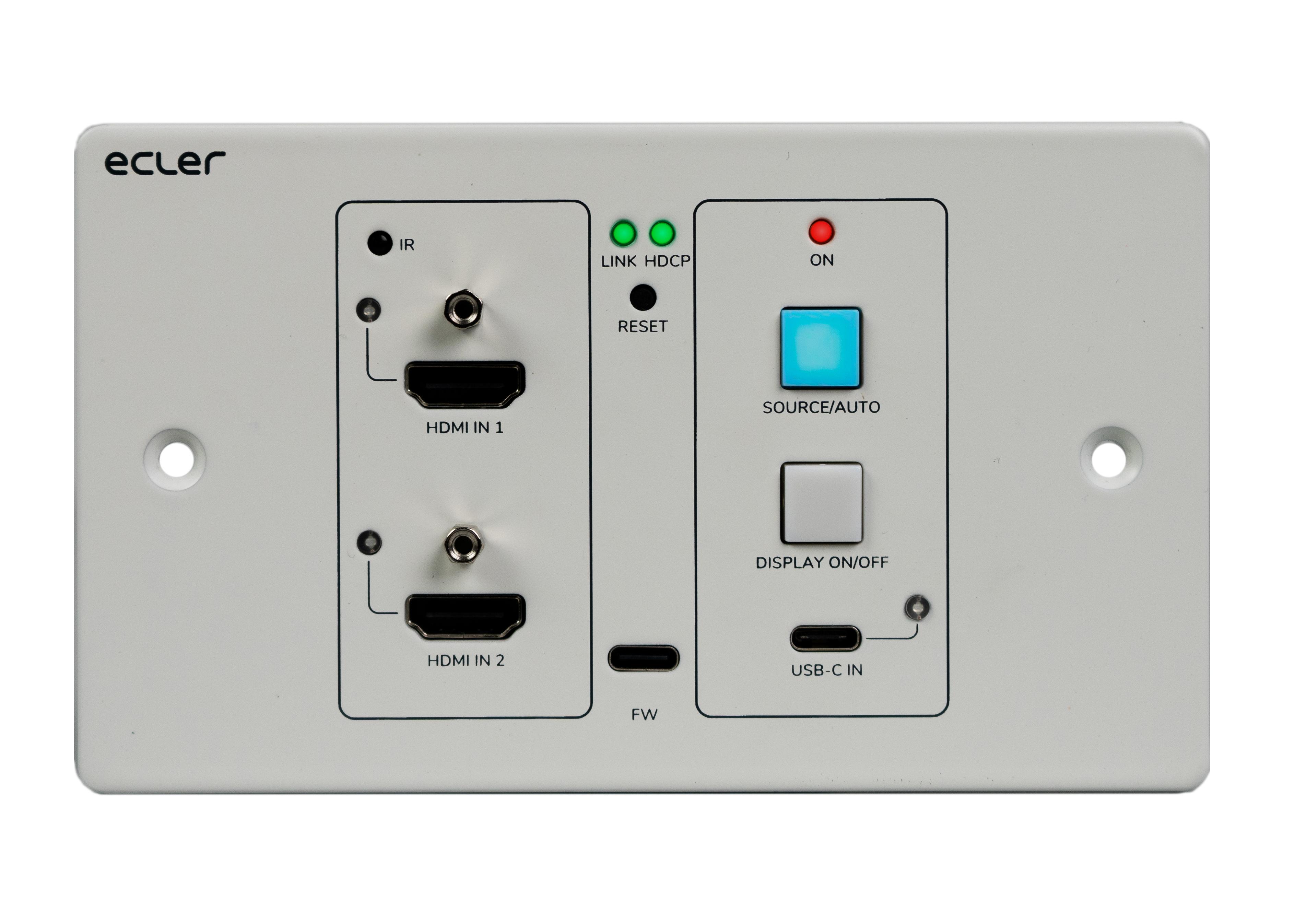

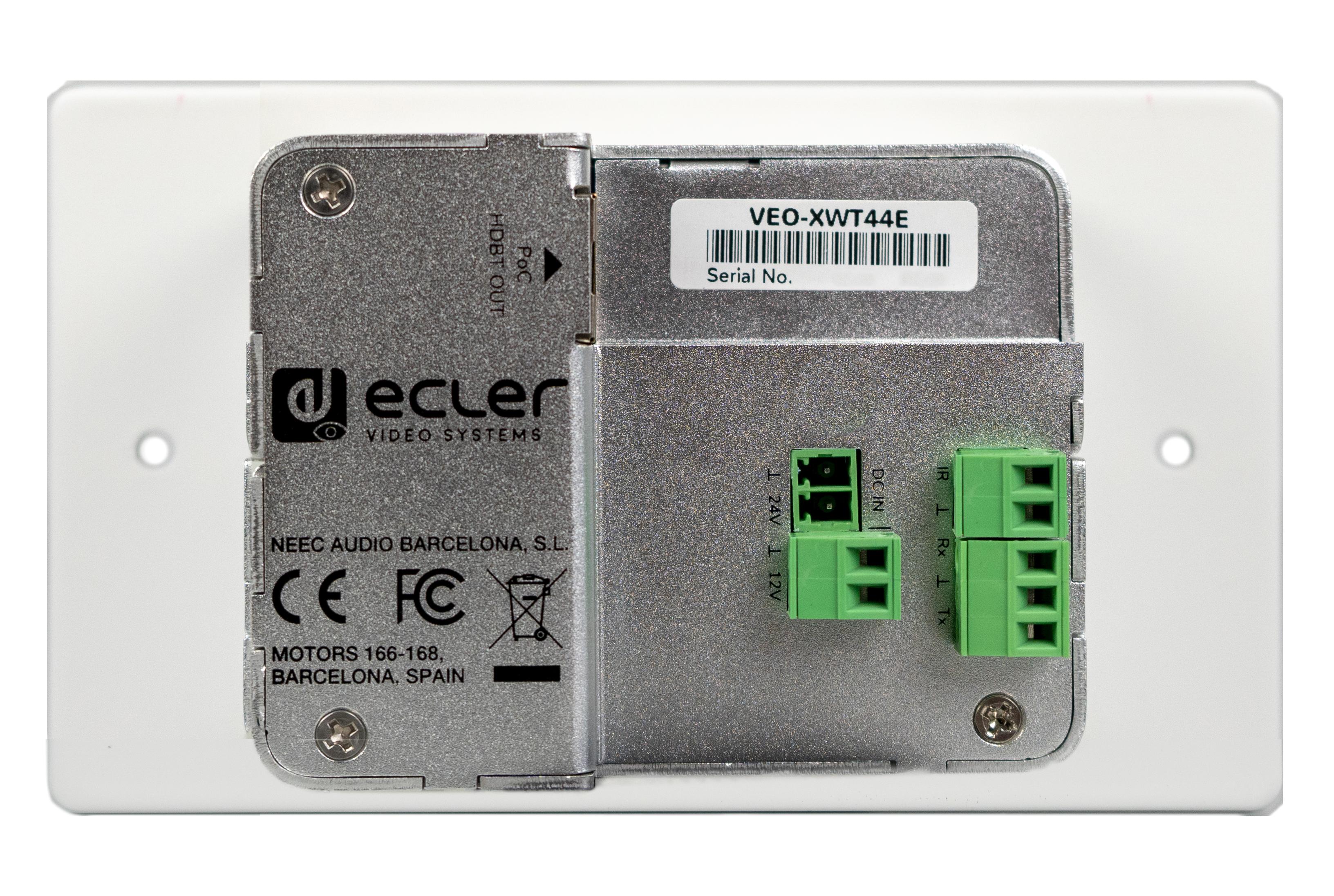

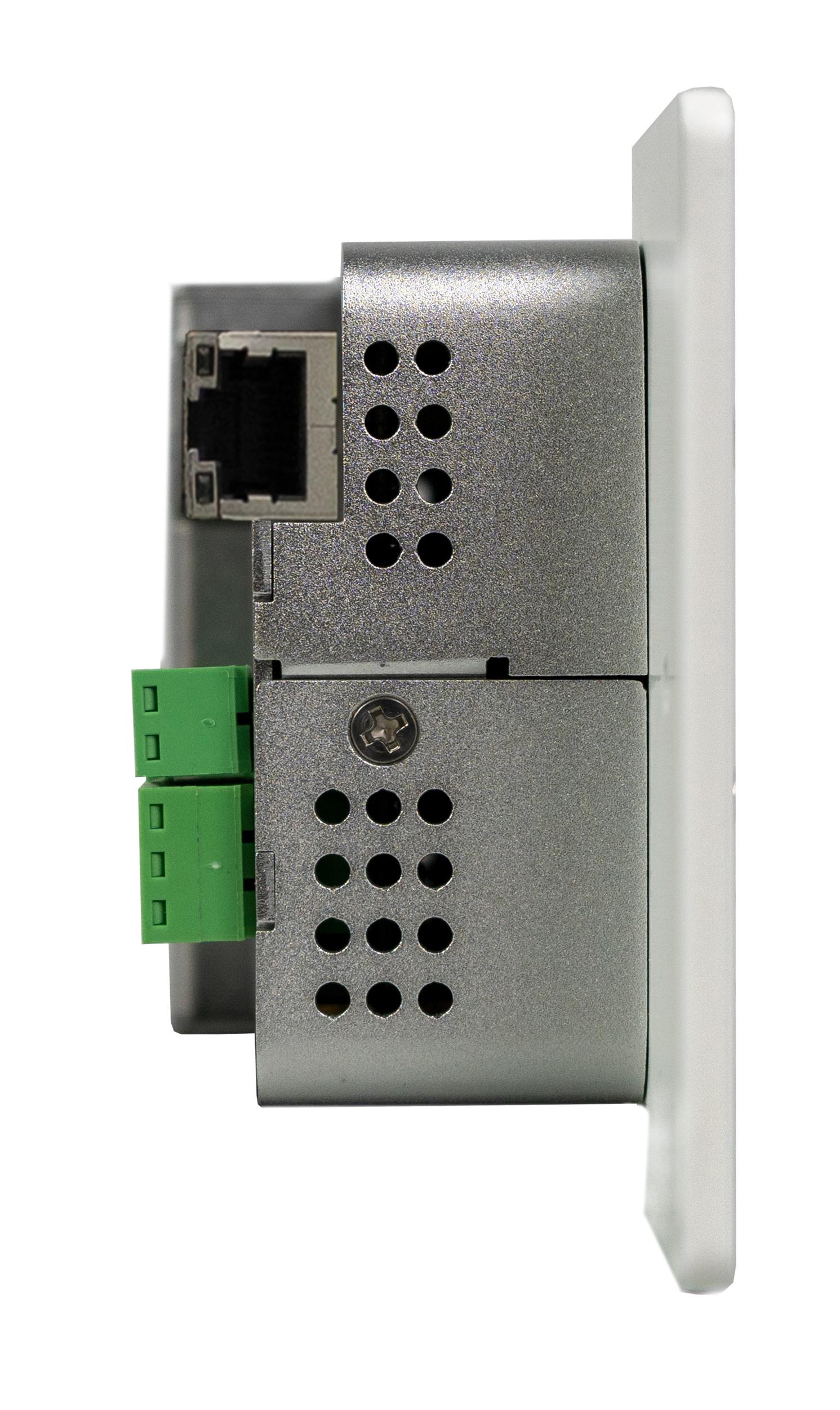

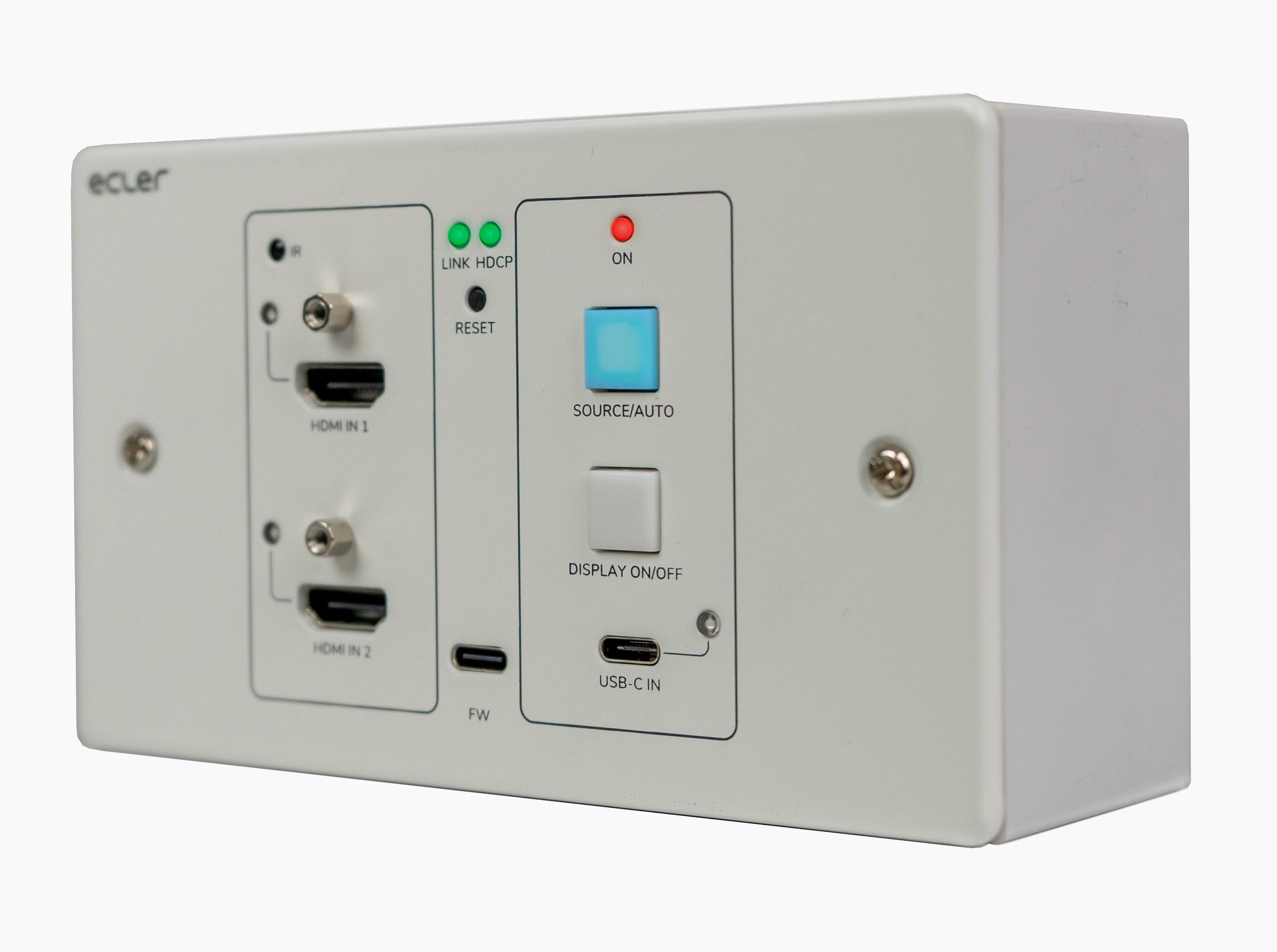

Ecler VEO-XWT44E
The Ecler VEO-XWT44E HDBaseT wallplate transmitter is used in conjunction with the VEO-XRT44 receiver to transmit one 4K video signal up to 40m over a single Cat 5e/6 cable or a FullHD signal up to 70m.
It is designed for use with a European 2-gang pattress box or with the supplied surface mount box.
The VEOXWT44E supports real 4K video signals at 60Hz with 4:4:4 YUV chroma subsampling and HDR 10 with a maximum bandwidth of 18Gbps.
With bidirectional PoC feature, the transmitter can be powered by the receiver and vice versa.
A second front panel button can be used to switch ON/OFF a display via CEC or it can be alternatively programmed by IR learning or RS-232 to send two RS-232 commands, offering a simple and versatile control option.
- 4K HDMI wall-plate transmitter with 2 HDMI IN, and 1 USB-C IN
- Supports HDMI 2.0, 4Kx2K/60Hz/4:4:4
- HDCP 2.2 compliant
- Video source auto-switching
- Video lossless compression for HDBaseT technology, transmission up to 40m@4K
and 70m@1080p over CATx cable - Displays can be turned ON/OFF via CEC & RS-232 commands by ‘DISPLAY
ON/OFF’ button - RS-232 and IR pass through
- IR learning to control display on/off.
- EDID pass through and smart managing
- Two-way PoC Supports CEC pass-through.
- Provides LEDs to indicate the current operating status.
- Firmware upgrade by Micro-USB port.
- ESD protection
- White finish
- Warranty: 5 Years.
For further information, please download the Datasheet and/or User Manual.
To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.
 |
