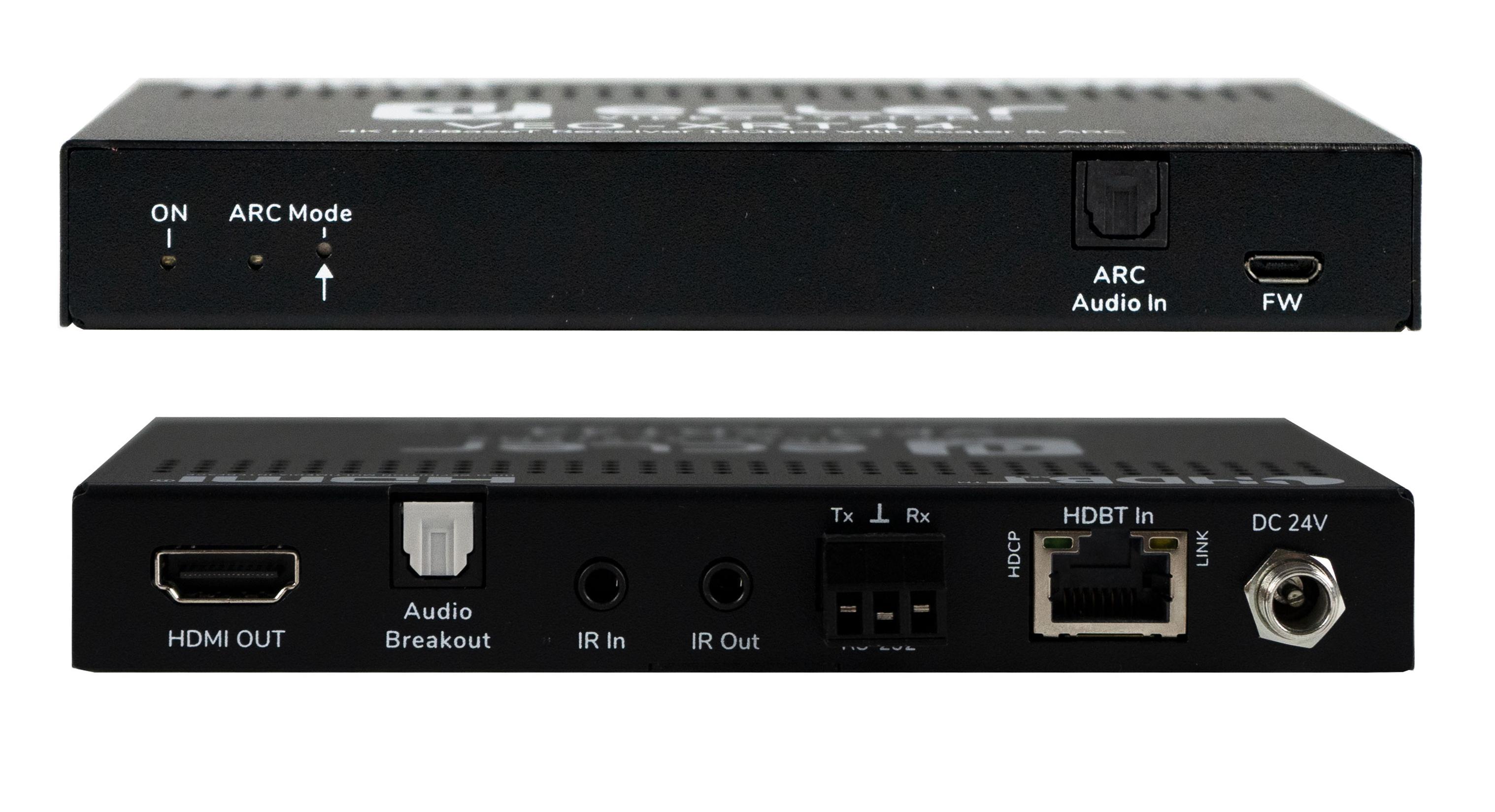

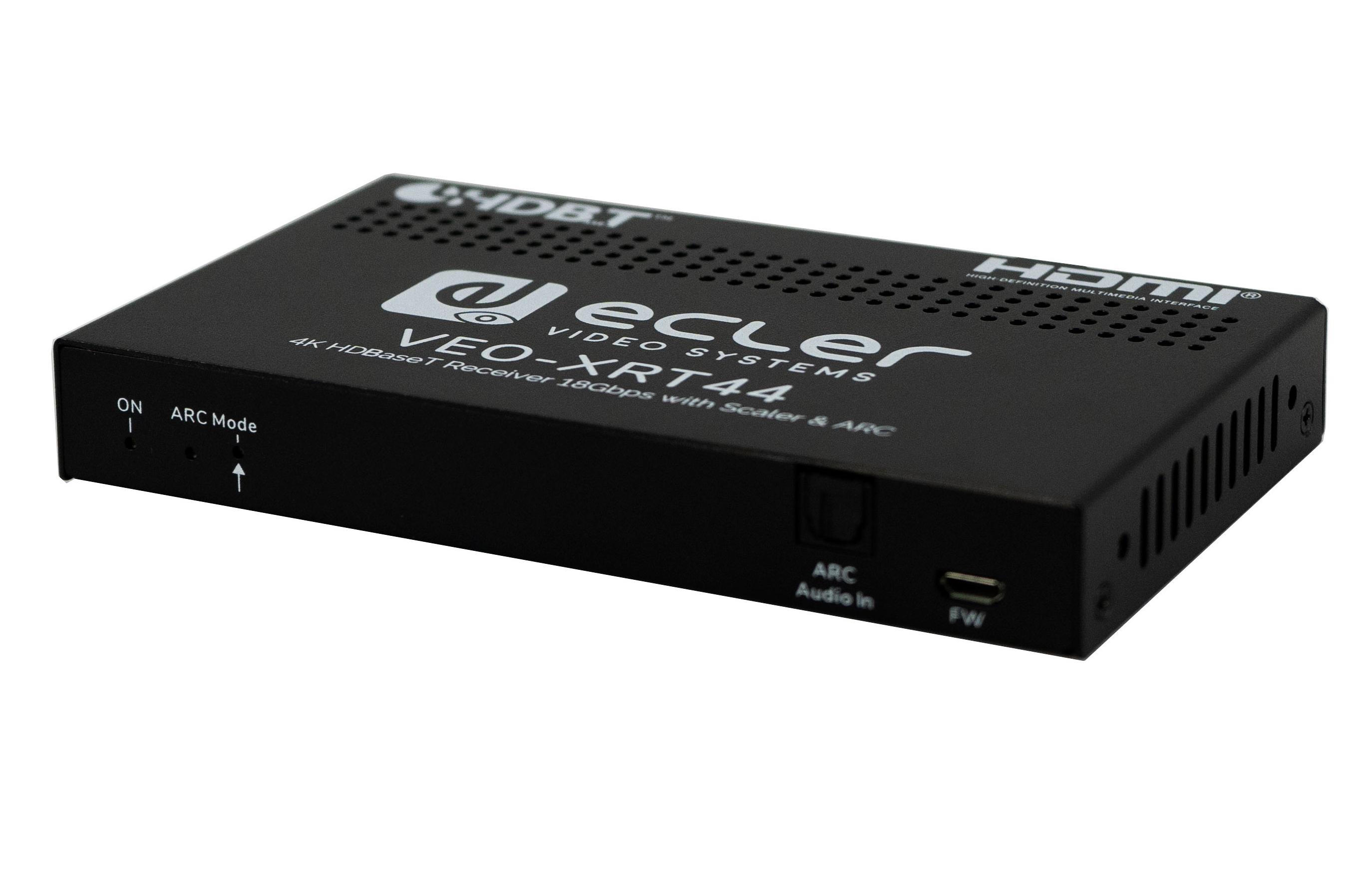

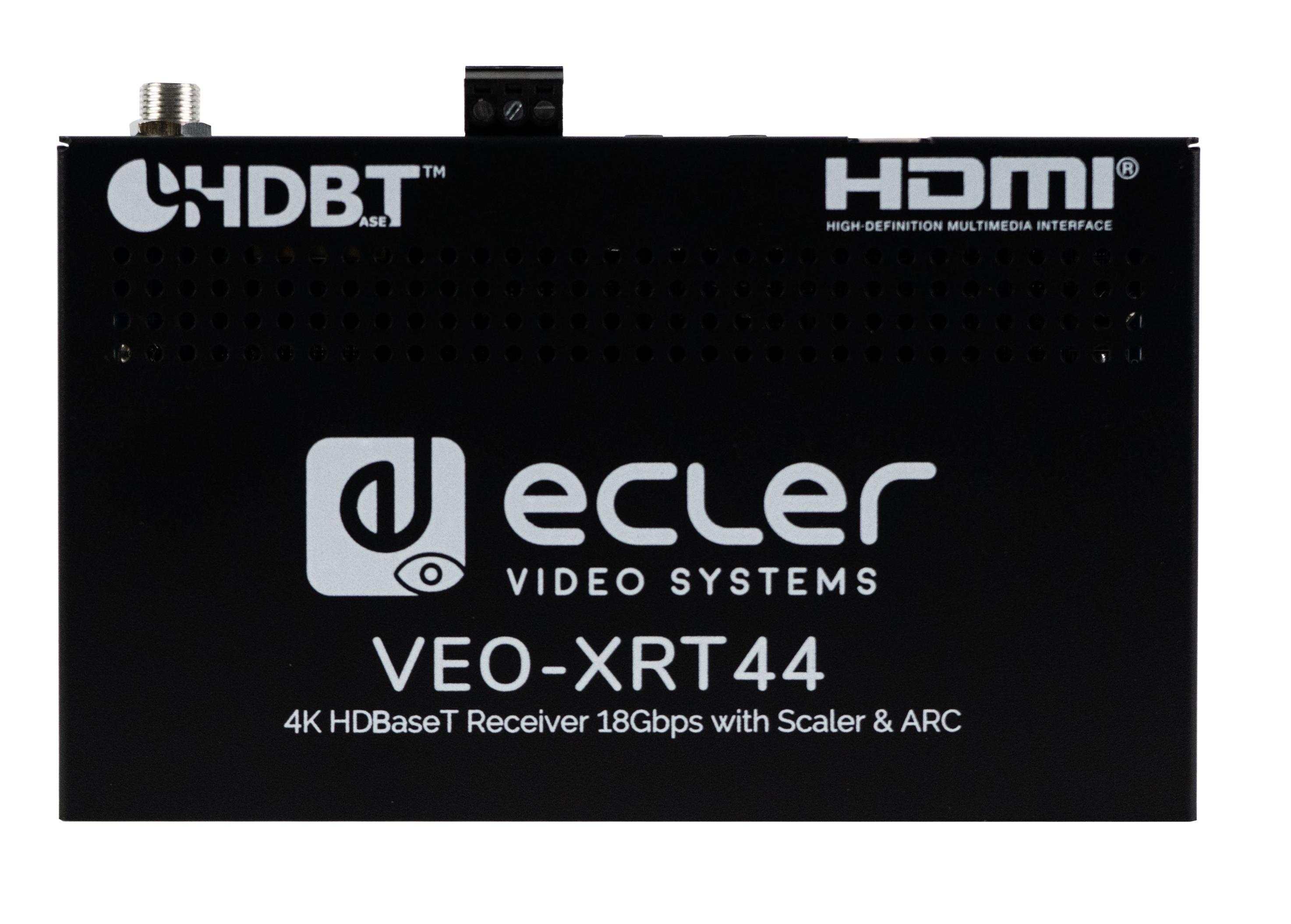

Ecler VEO-XRT44
The Ecler VEO-XRT44 professional HDBaseT receiver is used in conjunction with the VEO-XTT44 transmitter to transmit one 4K video signal up to 40m (or a FullHD signal up to 70m) over a single Cat 5e/6 cable.
Bidirectional PoH (Power Over HDBaseT) enables both Transmitter and Receiver to be powered with just one power supply which can be connected to either unit.
The VEO-XTT44 (or VEO-XWT44E wallplate) and VEO XRT44 HDBaseT extenders provide the ideal solution for residential and commercial applications using the latest 4K/UHD and HDR sources with displays situated more than a few metres away.
- Supports HDMI 2.0 and the HDMI video resolution up to 4K@60Hz 4:4:4 HDR.
- HDCP 2.2 and 1.4 supported.
- Extends 4K signals to distances up to 40 meters (131 feet) and 1080P signals to distances up to 70 meters (230 feet) over a single CATx cable.
- Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.
- SPDIF out on receiver for source audio de-embedding.
- 18Gbps high bandwidth.
- Advanced EDID management: multiple built-in EDID settings or customized EDID can be selected.
- Test pattern provides a built-in 4K/1080P image for troubleshooting.
- Bidirectional IR, RS-232 and 24V PoH.
- Supports ARC.
- Supports CEC pass-through.
- Provides LEDs to indicate the current operating status.
- Firmware upgrade by Micro-USB port.
- ESD protection.
- Warranty: 5 Years.
For further information, please download the Datasheet and/or User Manual.
To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.
 |
