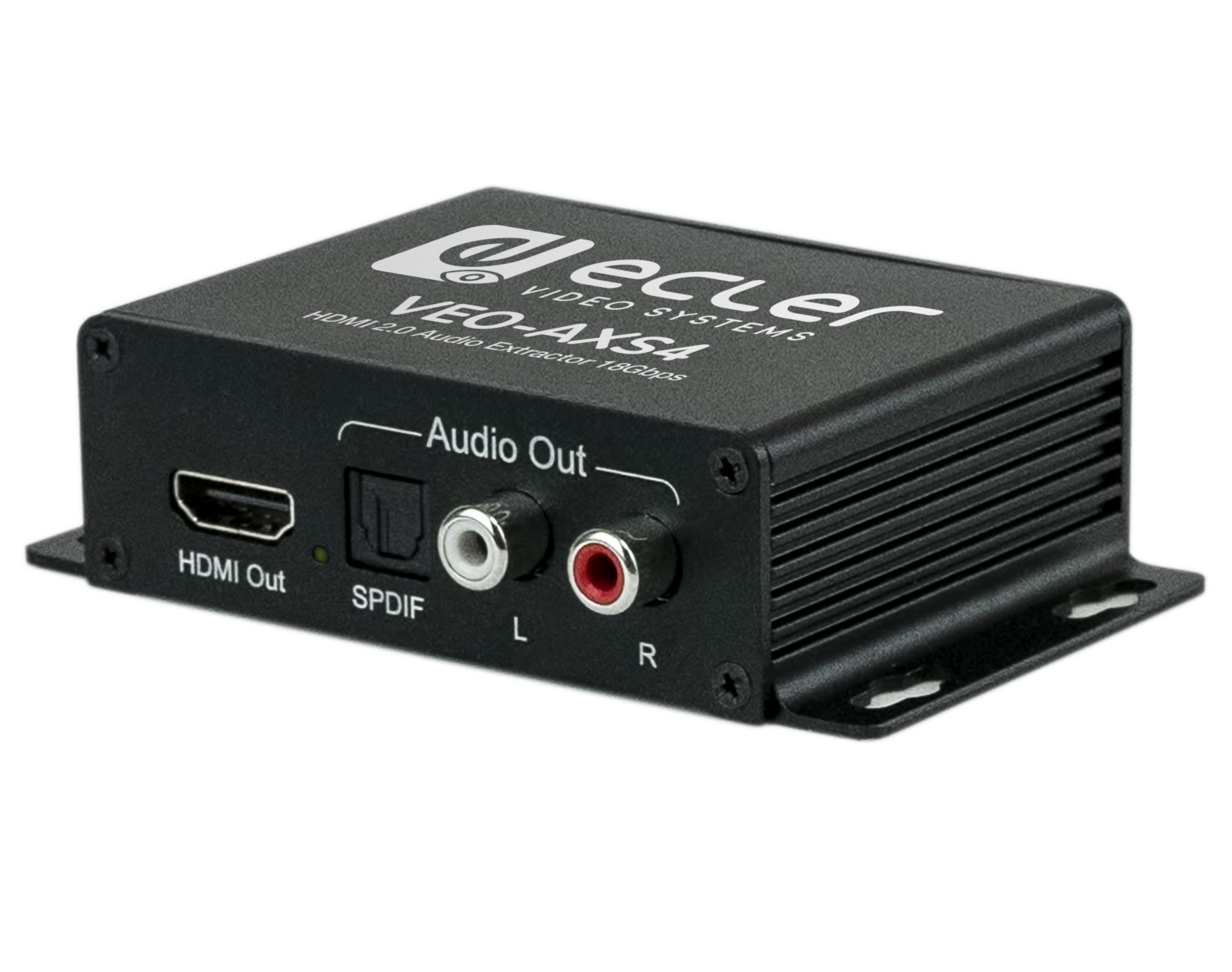

Ecler VEO-AXS4
The Ecler VEO-AXS4 HDMI audio extractor facilitates de-embedding of audio from a HDMI signal up 4K.

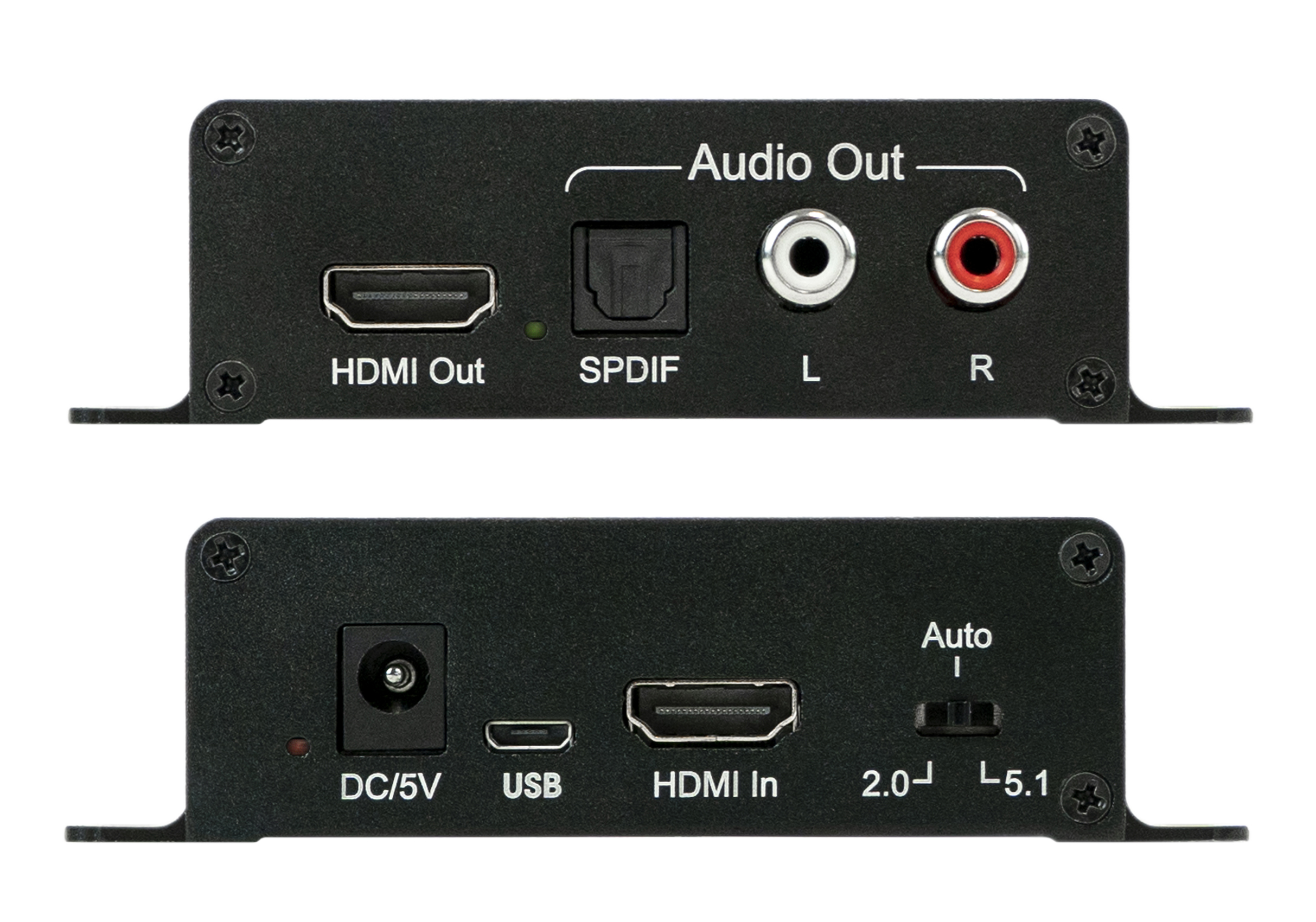

A stereo analog output is provided on RCA connectors as well as a 5.1 digital output on Toslink connector, selectable through the onboard switch.
- Extracts the digital HDMI audio signal from the HDMI input to analog stereo output or to 5.1 S/PDIF output
- Audio EDID Settings: Auto/2.0 CH/5.1CH
- Signal amplification and equalization to extend HDMI input and output ports up to 10 meters (33 feet)
- Supports LPCM, Dolby Digital and DTS
- Supports resolution up to 4K@60Hz YUV4:4:4
- Supports deep color up to 36bit
- Supports sample rate up to 192 KHz and resolutions up to 24 bit
- HDCP2.2/1.4 Compliant
- Supports CEC
- Supports up to 18Gbps video data rate
- Warranty: 5 Years.
For further information, please download the Ecler VEOAXS4 Datasheet and/or User Manual.
To see more of the Ecler video range, please download the Ecler Video Brochure here or download the full Product catalogue below.
 |
