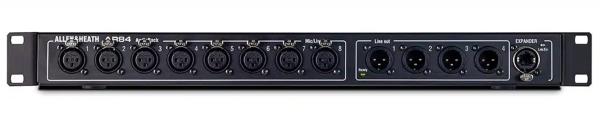

Allen & Heath AR84

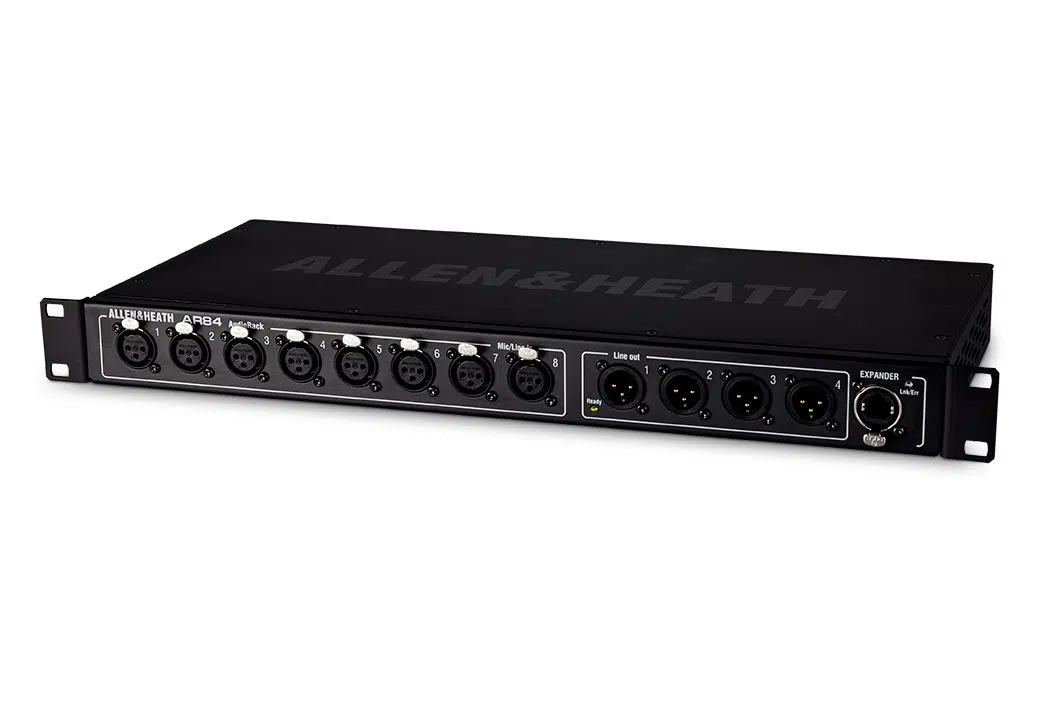

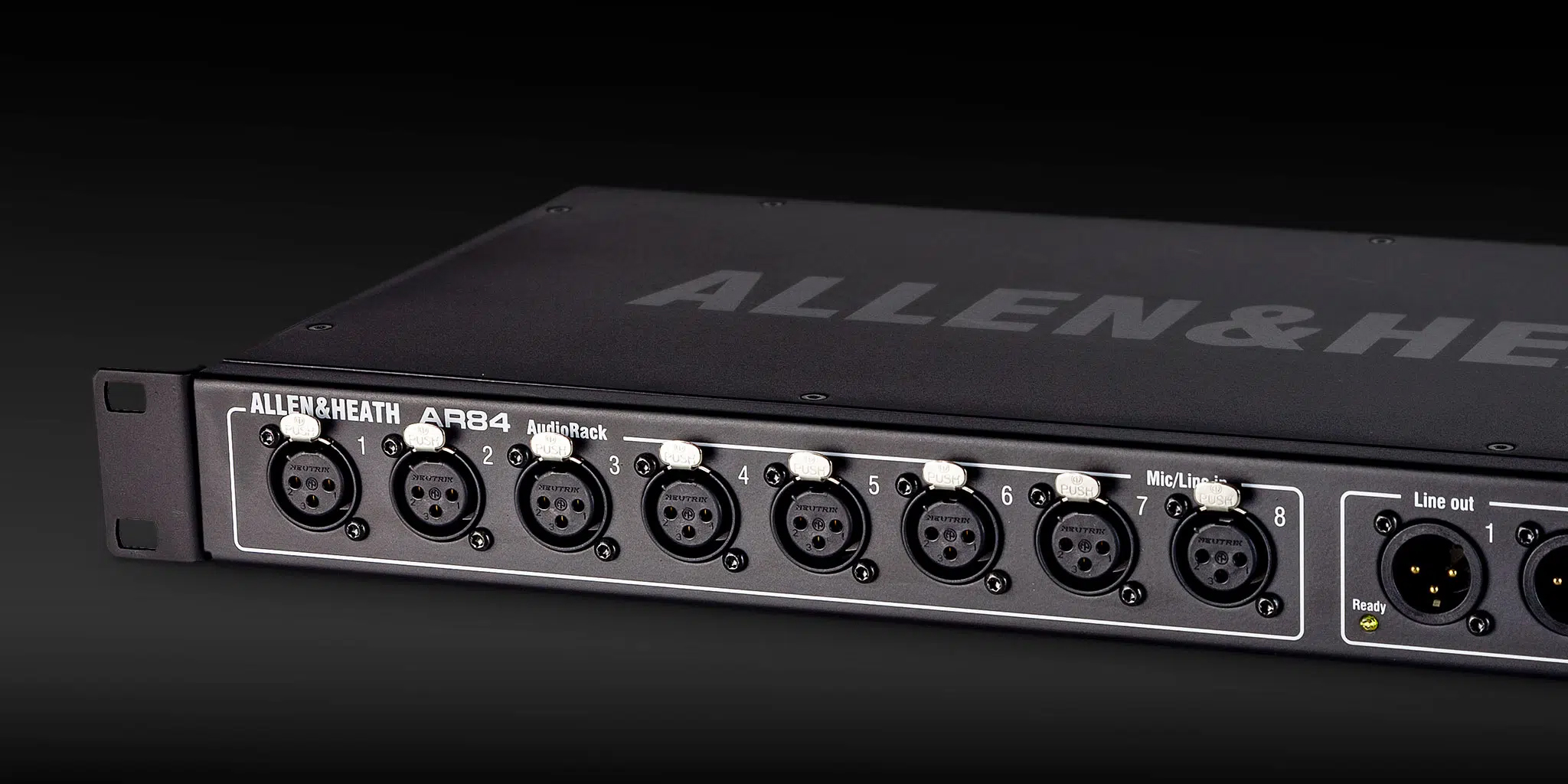

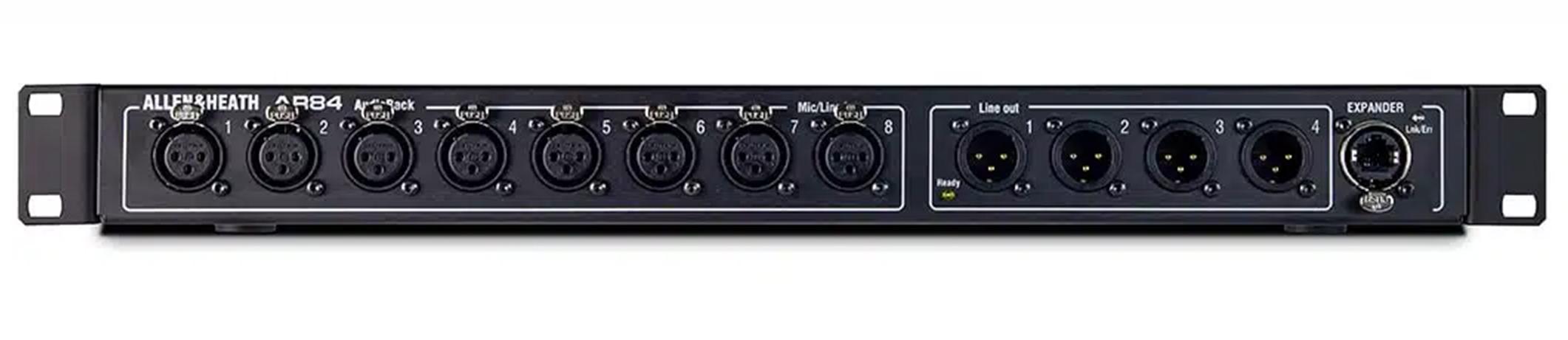

The Allen & Heath AR84 8 XLR input, 4 XLR output AudioRack provides 8 remote controlled mic/line preamps and 4 XLR line outputs and is compatible with Qu & SQ compact digital mixers and AHM audio matrix mixers.
Using Allen & Heaths dSnake protocol, the AR84 can be placed up to 100m away from the mixer for maximum flexibility of positioning. Using a single network cable, the AR84 can be connected directly to the mixer or cascaded from an AR2412 or AB168.
The AR84 is used to increase the number of I/O sockets in a system and position both sockets and AD/DA conversion close to the source/stage. It will not increase the number of processing channels available in the system and must be connected to a mixer where the audio can be processed and routed.
- 8 mic preamps with+60dB of gain and -20dB pad for line level sources.
- 4 Balanced, relay protected line outputs on XLR.
- Expander Port for daisy-chaining 2 compatible Expanders or connection to ME personal mixers.
- Plug-and-Play - no configuration required.
- Optional 4U rack mounting kit for installation in 19-inch racks.
- 19” rack mountable(1U) & fitted with rack ears
- Warranty: 1 Year
For further information on the AR84 Audio Rack, please download the Datasheet below. Alternatively, please download the Allen & Heath Qu Mixer Brochure which covers the full range.
