AMC iPlay 5TB
AMC iPlay 5TB
Click to expand

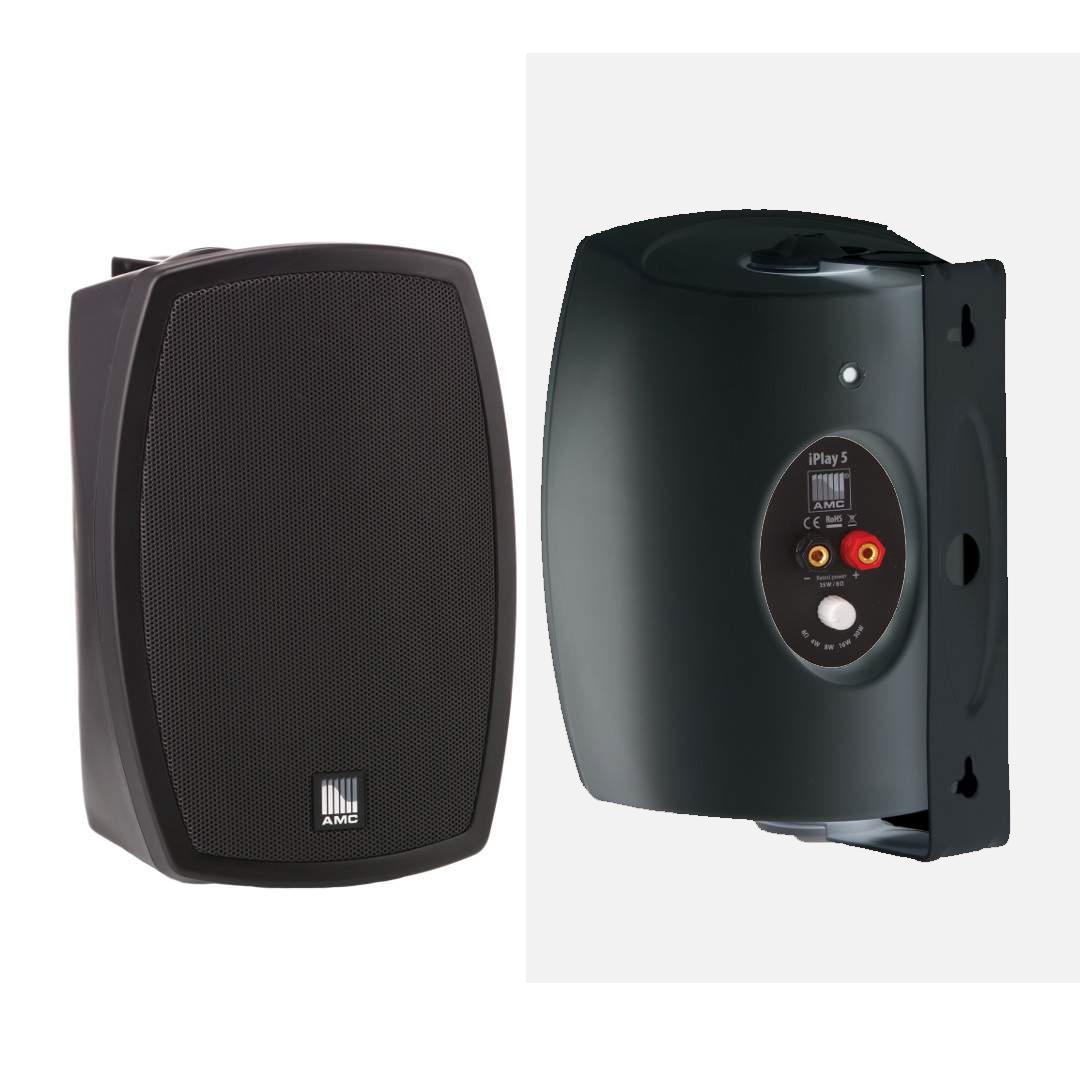

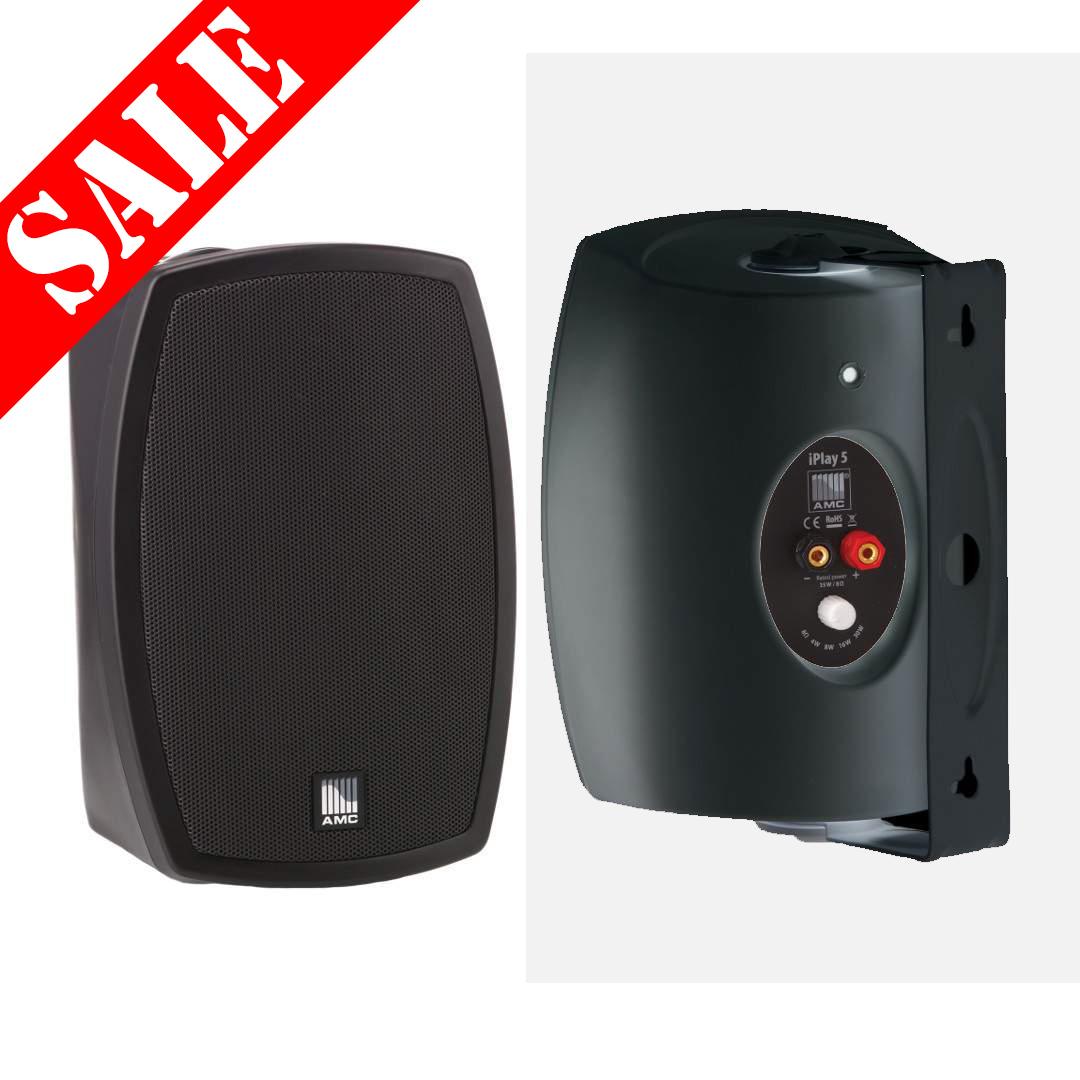

AMC iPlay 5TB

The AMC iPLAY 5TB wall mounted background music speakers are suitable for both 100 volt line distributed sound systems as well as 8Ω, low impedance music systems. Rated at 35 watts, 8 ohm and 30 watts, 100 volt line.

CLEARANCE - LAST PAIR - Scuffed Box.

The cabinet is constructed from polypropylene with an aluminium grille and houses a 5" woofer with 1" tweeter.

Black - iPlay-5TB. Supplied with a wall mounting bracket.

100V 8ohms
List Ex VAT: £25.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power: 35W (8 Ω)
Transformer Power Taps 30W - 16W - 8W - 4W - 8 Ω
Sensitivity 89 dB (1W/1 m)
Maximum SPL 109 dB (Pmax/1 m) at 5573 Hz
Frequency Response: 120 Hz – 20 kHz
Dispersion at 1000 Hz 180° (H), 160° (V)
Driver dimensions 5" (101 mm) woofer, 1" (25 mm) tweeter
Dimensions 240 mm x 165 mm x 160 mm
Weight 2.2 kg
Material Polypropylene housing with aluminium grill, U-bracket – steel
Colour Black (RAL 9017)





Related Products

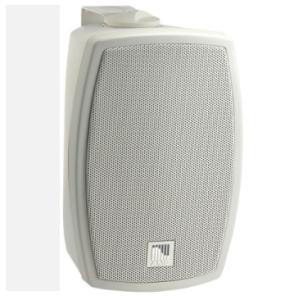

AMC iPlay 5TW
