Contacta V15
Click to expand

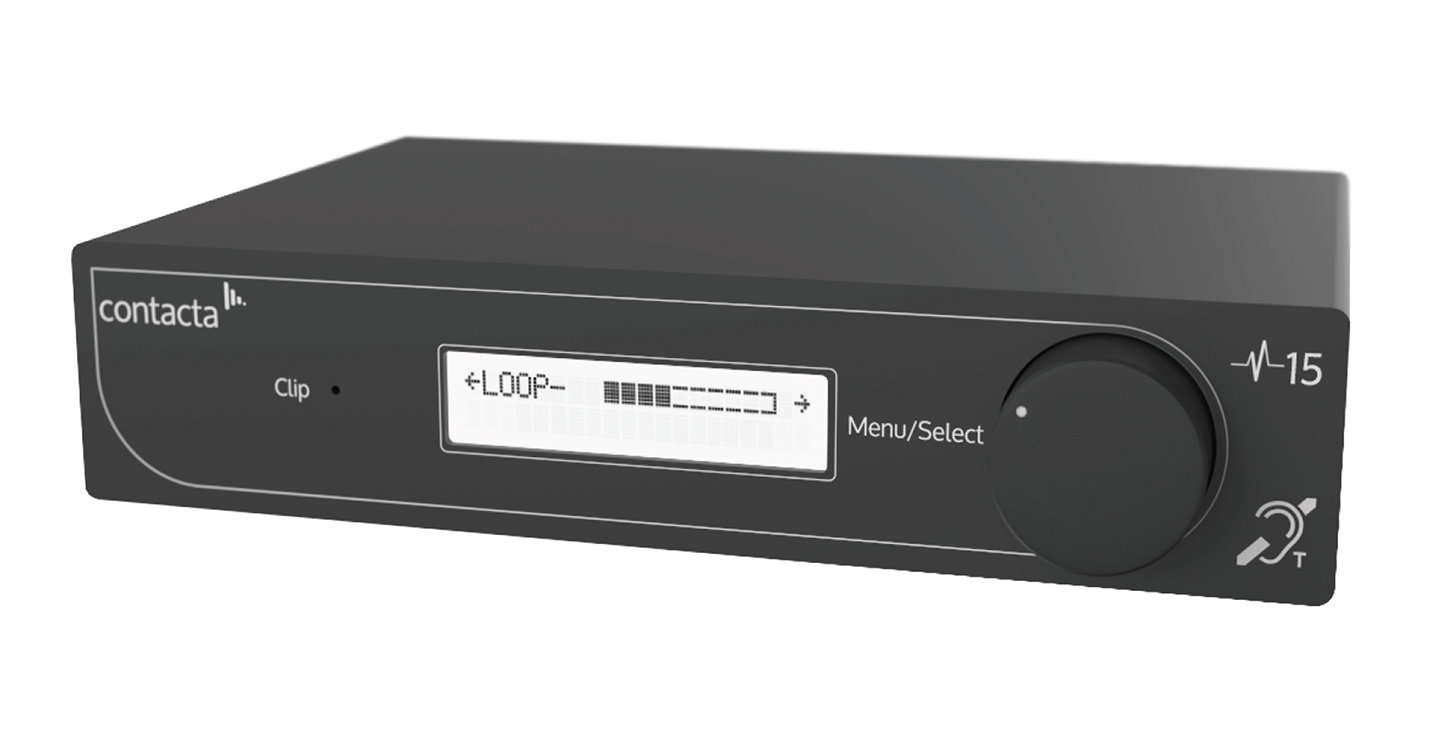

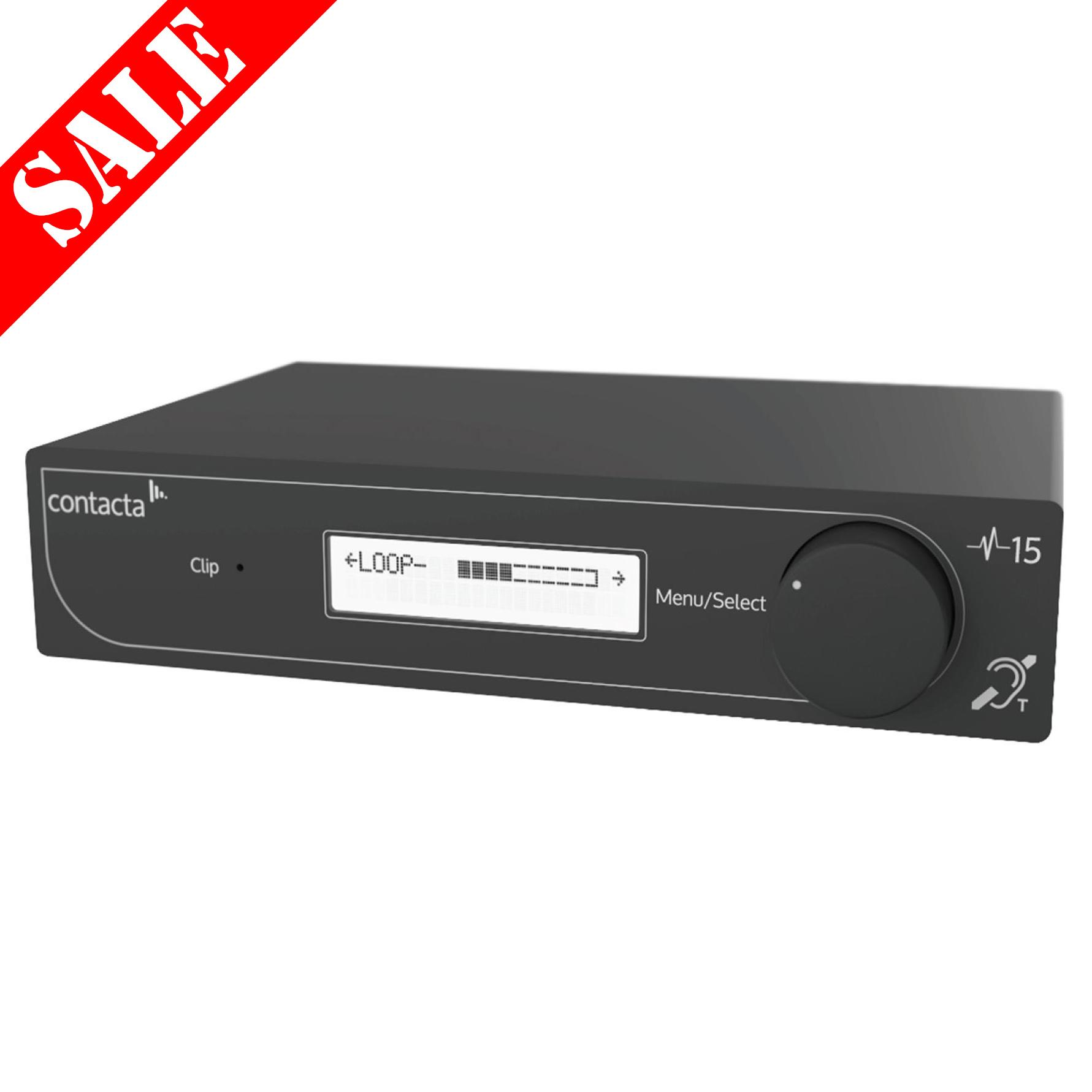

Contacta V15

The Contacta V15 constant current, single output hearing loop driver, suitable for medium-sized facilities and venues.

Clearance Line - Limited Stock. Please contact us for up to date availability.
Loop amps are unused but boxes have been opened, hence the increbily low price - well below half RRP.

Highly efficient and compact, it has a Class-D amplifier output stage and an audio subsystem built around an advanced DSP core. Combined with a powerful CPU to ensure peak performance, the V15 uses cutting edge technology proven in the pro audio world to achieve life-like speech and first-class music reproduction.
  • DSP controlled automatic gain control and high frequency compensation for metal loss
  • Class-D amplifier output stage capable of delivering 5ARMS @ >15VRMS
  • Ultra-efficient power utilisation (up to 90% efficient)
  • True constant current output stage
  • Simple user interface
  • Backlit LCD display
  • Sleep mode
  • Continuous self-testing
  • Integrated protection circuits with temperature, voltage, short circuit and DC detection
  • Compact half-width 1U chassis

Optional rack mounting bracket available separately - see MBR-V1.

Loop
List Ex VAT: £175.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power Supply

100W 24Vdc 4.17A via External PSU (PS-60)

Class 6 External PSU (100V-240V AC 50Hz-60Hz)

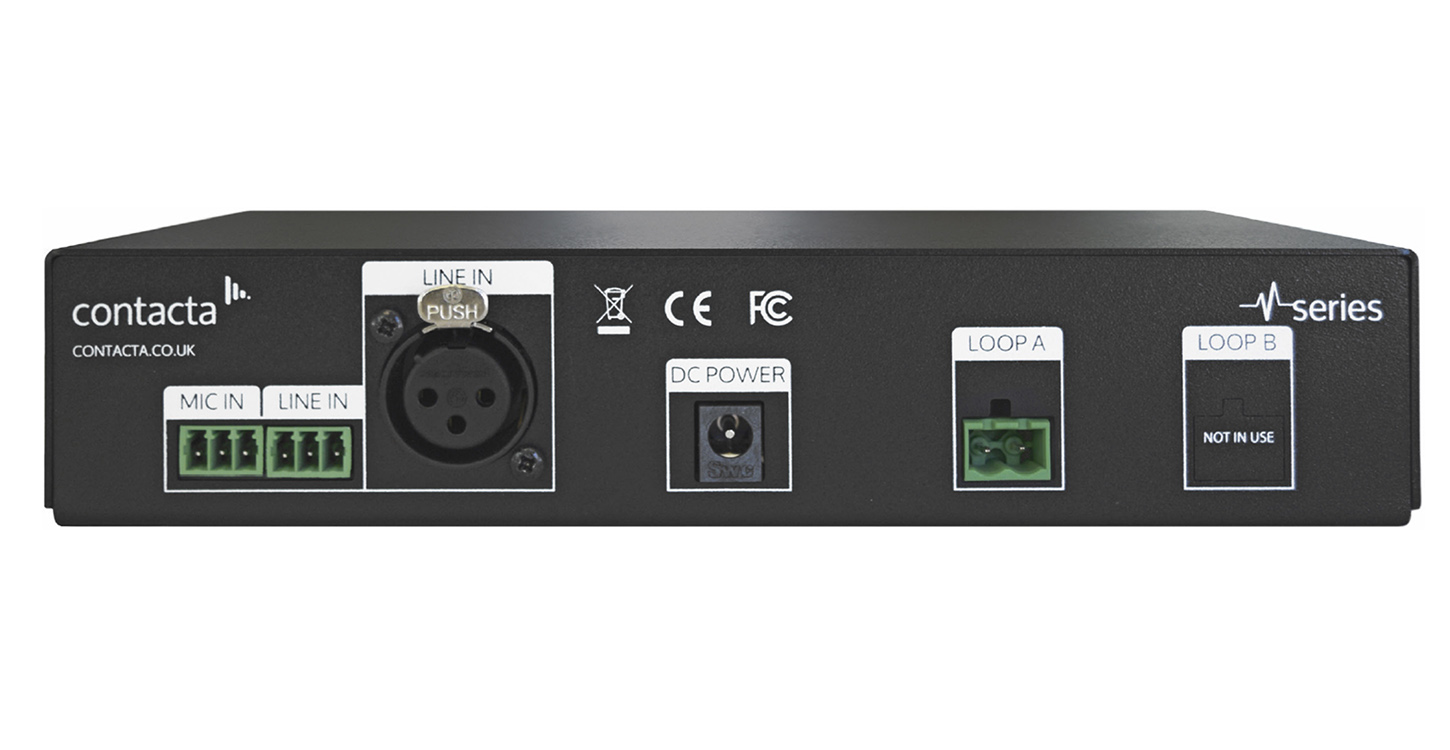

Inputs

1 X Balanced Line Level (3 Pin Euro-Block)or

1 X Balanced Line Level (XLR) [optimised for -10dBV to 0dBv]

1 X Mic Level (12V phantom power via 680Ω) [optimised for levels above -45dBv]

1 X DC Input

Outputs

1 X Loop Output (5.08mm Euro-Block)

Voltage

15Vrms (42.3Vpk-pk) @ 5Arms (14.14Apk-pk)*

Current

5Arms (14.14Apk-pk) up to 300 seconds*

Loop Connector

5.08mm Euro-block

Frequency Response

80Hz to 6.5kHz

Distortion

THD+N <1% (-40dB)

AGC

Peak detecting

HF Comp

7 optimised stages

Display

LED Backlit LCD display

Control

Single rotary control

Main Display

Open circuit loop (DCR measurement)

Loop ground fault

Front Panel LED

Output voltage clipping

Cooling

Internal heatsink with thermal protection

Related Products

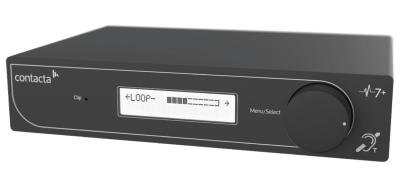

Contacta V7+

Induction loop driver (Class D), 5A, for maximum area coverage 200m²

see more
List Ex VAT: £420.00

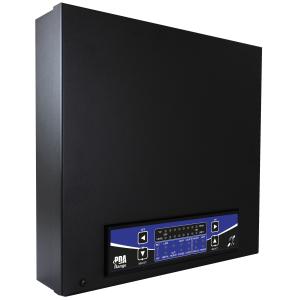

Signet PDA5/SW

Wall mounted loop amplifier with LED display. 4.75 Amps, for up to 200m².

see more
List Ex VAT: £417.45

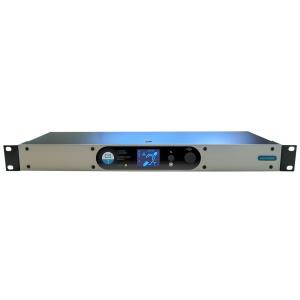

Ampetronic C5-1

Standalone professional perimeter induction loop amplifier. 5A RMS output current.

see more
List Ex VAT: £570.60

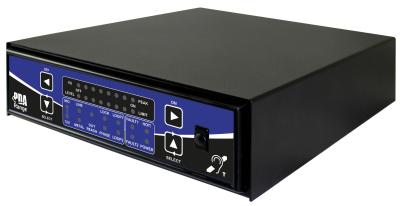

Signet PDA5/SD
