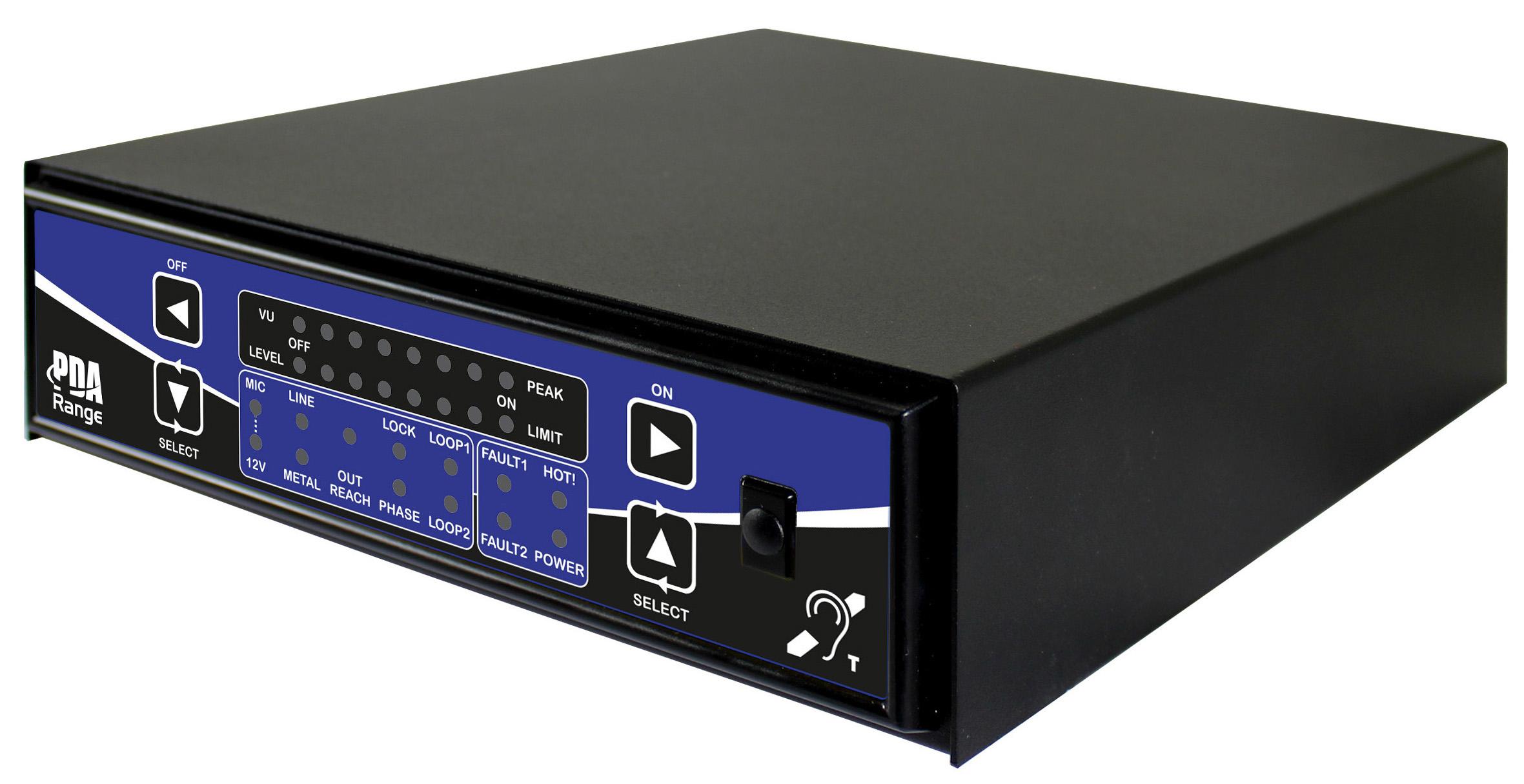

Signet PDA5/SD

Signet PDA5/SD

The Signet PDA5/SD hearing loop amplifier is ideal for larger installations with its output current of 4.75 Amps, suitable up to 200m².

There are three versions of this freestanding amp available with the following loop drive current / approximate coverage ratings;

  • PDA5/SD - 4.75 Amps, up to 200m²
  • PDA7/SD - 7.5 Amps, up to 500m²
  • PDA11/SD - 11 Amps, up to 1000m²

The Intuitive LED interface allows simple set-up of input levels, output current, phantom power and metal compensation settings and the display gives a clear indication of operation or fault status.

  • Compact and rugged construction
  • Intuitive LED display for easy set up
  • 2 x XLR mic / line inputs
  • Outreach connector allows up to 10 Signet Outreach Utility Plates to be added
  • Class D output stage for maximum efficiency
  • Short circuit protection against loop faults
  • Dual action auto gain control compensates for poor mic technique
  • Complies with EN62368-1 (Safety requirements for audio/video, information and communication technology equipment)
  • Phantom power (12V) for electret microphones
  • Metal compensation for buildings with high metal content
  • Anti-tamper lock function
  • Rack mountable with optional PDA/RM3

Also available as a wall mounted version - see PDA5/SW, PDA7/SW and PDA11/SW.

Loop
List Ex VAT: £381.65
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Type

Free-standing. Plugtop IEC mains lead supplied.

Coverage

PDA5/SD: 200m2 approx.

Mains Suppply

Plugtop IEC mains lead supplied.

Output

PDA5/SD: 4.75A loop drive current @ 1 Ohm; Loop output voltage 14V.

Max Battery Size & Type

n/a

Auxiliary Inputs

2 x XLR mic/line inputs with switchable 12V phantom power (on or off) & Outreach

Indicators

LED display with level, peak and limit indicators, Mic, 12V, Line, Metal, Outreach, Lock, Loop, Fault, Hot and Power Indicators.

Controls

Line Input, Microphone, 12V Phantom, Outreach, Metal Comp, Loop Drive

Connections

Mic (3-pin XLR); Line In (3-pin XLR); Loop (2 way binding post); Outreach (4-way pluggable connector); Line Out (3-way pluggable connector); Fault Relay (3-way pluggable connector);

Dimensions (mm)

67 (H) x 218 (W) x 280 (D) mm.

Construction

Mild steel zintec, 1mm thick, black powder coated

IP Rating

IP40

Weight

2.38kg

DOWNLOADS

Signet PDA5S, 7S & 11S Datasheet
Signet PDA5, 7 & 11 instruction manual
Guidelines for Planning an Induction Loop
SigNET Guide to Assistive Listening

Related Products

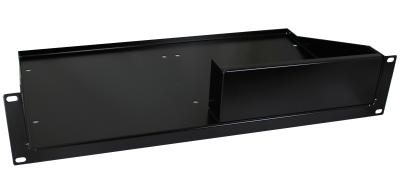

Signet PDA/RM3
Signet PDA/RM3

Rack mount for Signet PDA / PRO 5, 7 or 11DD induction loop amplifiers.

see more
List Ex VAT: £50.36
Signet PDA5/SW
Signet PDA5/SW

Wall mounted loop amplifier with LED display. 4.75 Amps, for up to 200m².

see more
List Ex VAT: £417.45

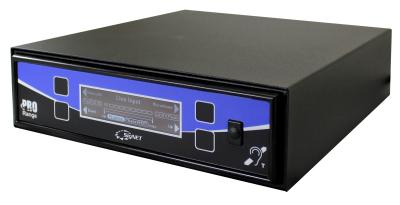

Signet PRO5/SD
Signet PRO5/SD

Freestanding loop amplifier with OLED display. 4.75 Amps, for rooms up to 200m².

see more
List Ex VAT: £442.69

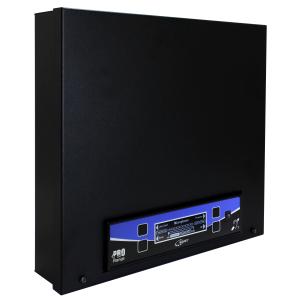

Signet PRO5/SW
Signet PRO5/SW

Wall mounted loop amplifier with OLED display. 4.75 Amps, for rooms up to 200m².

see more
List Ex VAT: £478.48

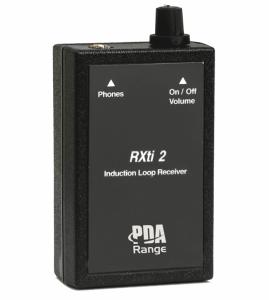

Signet RXTI2
Signet RXTI2

Induction loop listening device. Use with headphones to test if an induction loop system is working correctly.

see more
List Ex VAT: £55.75

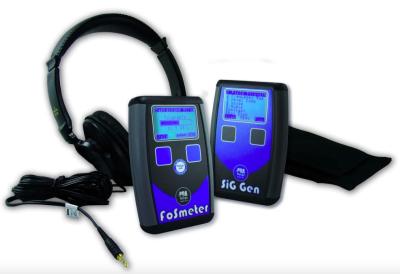

Signet FPROK1
