Signet PRO5/SD

Signet PRO5/SD

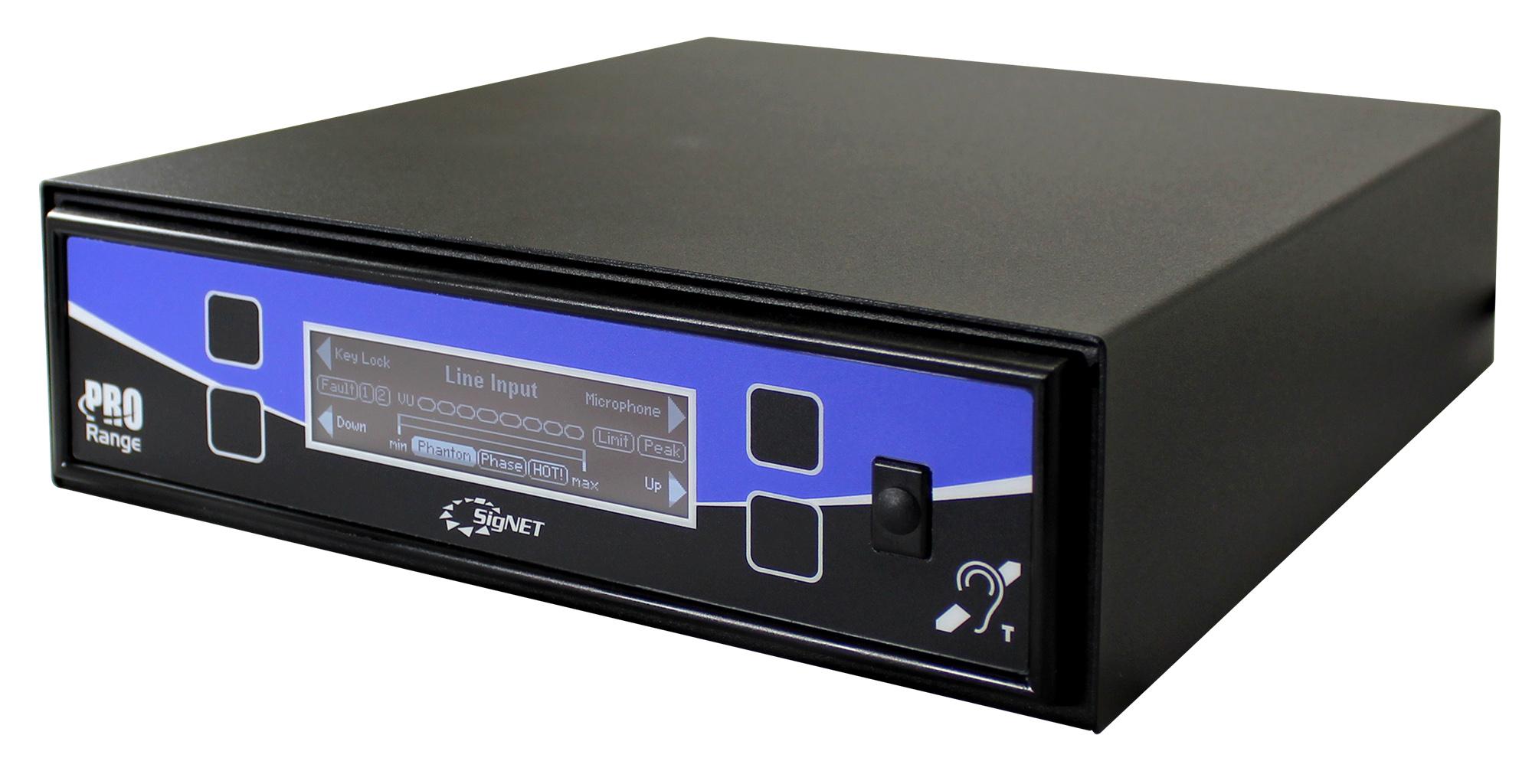

The Signet PRO5/SD desk mounted loop amplifier is ideal for larger installations. With an output current of 4.75 Amps, the PRO5SD provides coverage of up to 200m².

Three versions of this freestanding amp are available with the following loop drive current / approximate coverage ratings;

  • PRO5/SD - 4.75 Amps, up to 200m²
  • PRO7/SD - 7.5 Amps, up to 500m²
  • PRO11/SD - 11 Amps, up to 1000m²

The intuitive OLED graphical display interface allows simple set-up of input levels, output current, phantom power and metal compensation settings and the display gives a clear indication of operation or fault status.

  • Compact and rugged construction
  • Intuitive OLED graphical display for easy set up
  • 2 x XLR mic / line inputs
  • Outreach connector allows up to 10 utility plates to be added
  • Class D output stage for maximum efficiency
  • Short circuit protection against loop faults
  • Dual action auto gain control compensates for poor mic technique
  • Complies with EN62368-1 (Safety requirements for audio/video, information and communication technology equipment)
  • Phantom power (12V) for electret microphones
  • Metal compensation for buildings with high metal content
  • Anti-tamper lock function
  • Line level output for recording or daisy-chaining multiple units to cover larger areas
  • Rack mountable with optional PDA/RM3
  • Warranty: 5 Years

Also available as a wall mounted version - see PRO5/SW, PRO7/SW and PRO11/SW.

Loop
List Ex VAT: £442.69
Log in for Trade Prices
CONTACT US

This Signet video explains a little about the different types of Induction System:

SPECIFICATIONS

Type

Free-standing. Plugtop IEC mains lead supplied.

Coverage

PRO5/SD: 200m² approx.

Mains Suppply

Plugtop IEC mains lead supplied.

Output

PRO5/SD: 4.75A loop drive current @ 1 Ohm; Loop output voltage 14V.

Max Battery Size & Type

n/a

Auxiliary Inputs

2 x XLR mic/line inputs with switchable 12V phantom power (on or off) & Outreach connector

Indicators

Graphical OLED display with level, peak and limit indicators, Mic, 12V, Line, Metal, Outreach, Lock, Loop, Fault, Hot and Power Indicators

Controls

Line Input, Microphone, 12V Phantom, Outreach, Metal Comp, Loop Drive

Connections

Mic (3-pin XLR); Line In (3-pin XLR)
Loop (2 way binding post);
Outreach (4-way pluggable connector);
Line Out (3-way pluggable connector);
Fault Relay (3-way pluggable connector);
230Va.c. connector (Mains lead supplied).

Dimensions (mm)

67 (H) x 218 (W) x 280 (D) mm.

Construction

Mild steel zintec, 1mm thick, black powder coated

IP Rating

IP40

Weight

2.38kg

DOWNLOADS

Signet PRO5, 7 & 11S Datasheet
Signet PRO5, PRO7, PRO11 manual
SigNET Guide to Assistive Listening
Planning An Induction Loop System

Related Products

Signet PDA5/SD
Signet PDA5/SD

Freestanding loop amplifier with LED display. To suit rooms up to 200m².

see more
List Ex VAT: £381.65

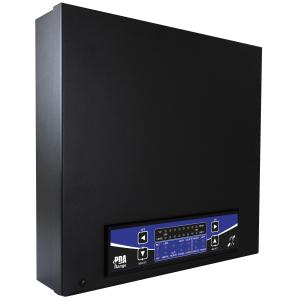

Signet PDA5/SW
Signet PDA5/SW

Wall mounted loop amplifier with LED display. 4.75 Amps, for up to 200m².

see more
List Ex VAT: £417.45

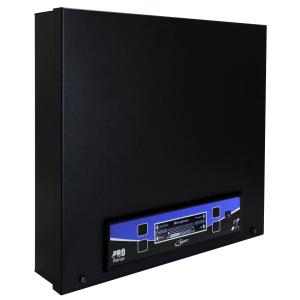

Signet PRO5/SW
