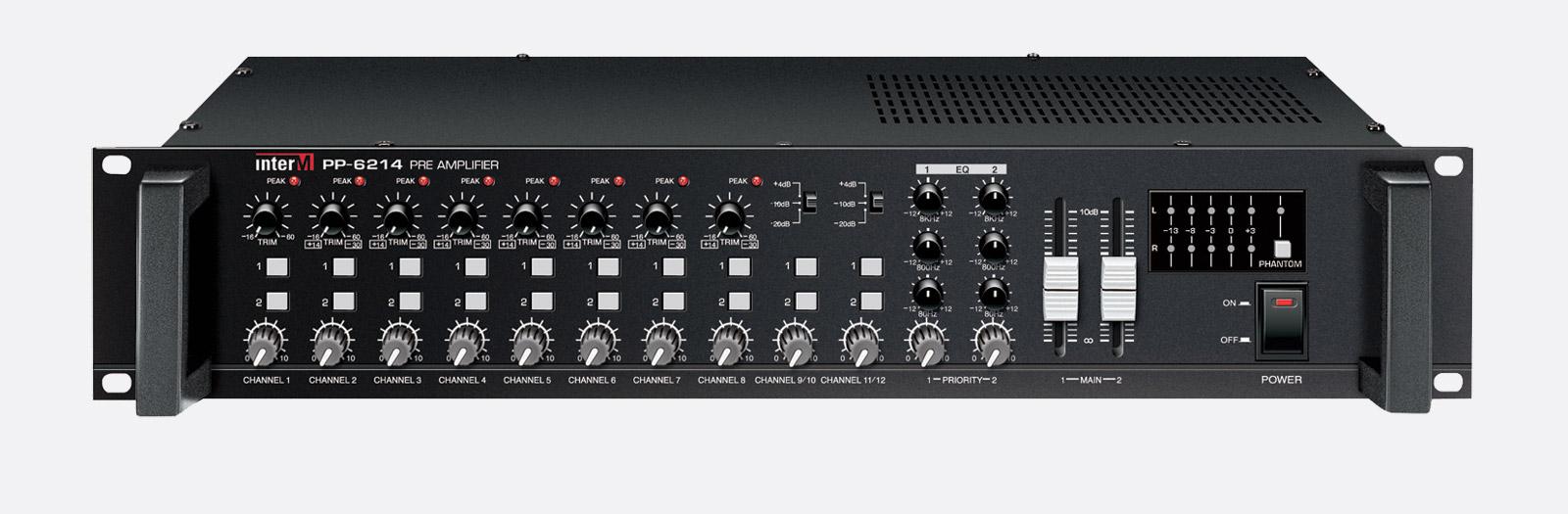

The Inter-M PP-6214 is an AC or DC powered mic/line mixer for use in conference and sound installations.

Clearance line - one only.

Simple to use with comprehensive features.

The 2U high unit has eight balanced mono mic/line (mic on XLR, line on 6.35mm jack) and two unbalanced stereo line inputs, each separately assignable to two outputs.

Mono inputs have separate rotary gain and output level controls, together with overload LEDs.

Phantom power (20V) is available, block switched.

Stereo inputs have three-position switched gain and rotary level controls.

In addition, the unit has two unbalanced priority inputs which, together with the 'Mic 1' input, having voice priority over all other inputs for paging and similar requirements.

The voice on 'Mic 1' being defeatable via a rear panel mounted switch.

Each of the two balanced 3-pin XLR outputs have 3-band EQ slider level controls.

In addition, two record outputs available, which are taken pre the main output faders.

• 8 Mic inputs (XLR)
• 7 Line inputs (¼ inch jack)
• 2 Stereo inputs (phono/¼ inch jack)
• 2 Outputs (XLR)
• Phantom power (18v block switched)
• Record output (2 x ¼ inch jack)
• Priority, mic 1, priority input 1, priority input 2
• 3 Band EQ per output
• Signal allocation per input channel
• Mains or 24v DC powered
• 2U high, 19 inch rack mounting
