Listen Technologies LA-140
Click to expand

Listen Technologies LA-140

The Listen Technologies LA-140 IR radiator/emitter packs high infrared power in a small and attractive design.

Designed for easy installation using standard components, the LA-140 is powered via CAT-5 cabling while the RF modulated carriers are delivered via standard RG-58 coaxial cable. Mounting brackets are included for wall, ceiling, desk, mic stand and tripod mounting.

Power can be supplied by the LT-82 transmitter or from a separate power supply (LA-205).

Built-in delay compensation prevents signal cancellation (multi-path) problems and eliminates the piled-up cabling that is required with other systems.

The LA-140 is used for government compliance (such as ADA), assistive listening, language interpretation, live theatre, houses of worship, courtrooms, secure rooms and for auditory description.

  • Outstanding coverage - 10,000 square feet (929 square meters)
  • Two radiators can be powered from one LT-82 transmitter or optional power supply using standard CAT-5 cabling - eliminating the need for multiple cables
  • White or grey color - allows for a variety of aesthetic settings.
Infrared
List Ex VAT: £961.20
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Range 1 MHz - 5 MHz
Input BNC Connection. -25 dBm to -5 dBm input nominal
Output BNC Connection. -15 dBu nominal
Compliance FCC Part 15, Industry Canada, CE, RoHS
Coverage Area 10,000 ft² (929 m²) when used with Listen Receivers
Power Input RJ-45 connector. 30 VDC, powered from transmitter via CAT-5 cable or optional LA-205 power supply
Power Output RJ-45 connector. 30 VDC, powers up to one additional radiator. (Maximum two radiators powered from each LT-82 transmitter or LA-205 power supply)
Number of Emitting Diodes 84
Emitter Power 3 watts
Dimensions (H x W x D) 5.50 x 8.00 x 2.60 in. (140 x 203 x 66 mm)
Unit Weight 2.1 lbs. (0.95 kg)

Related Products

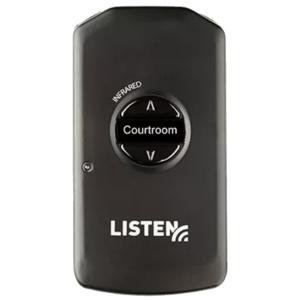

Listen Technologies LR-4200-IR
