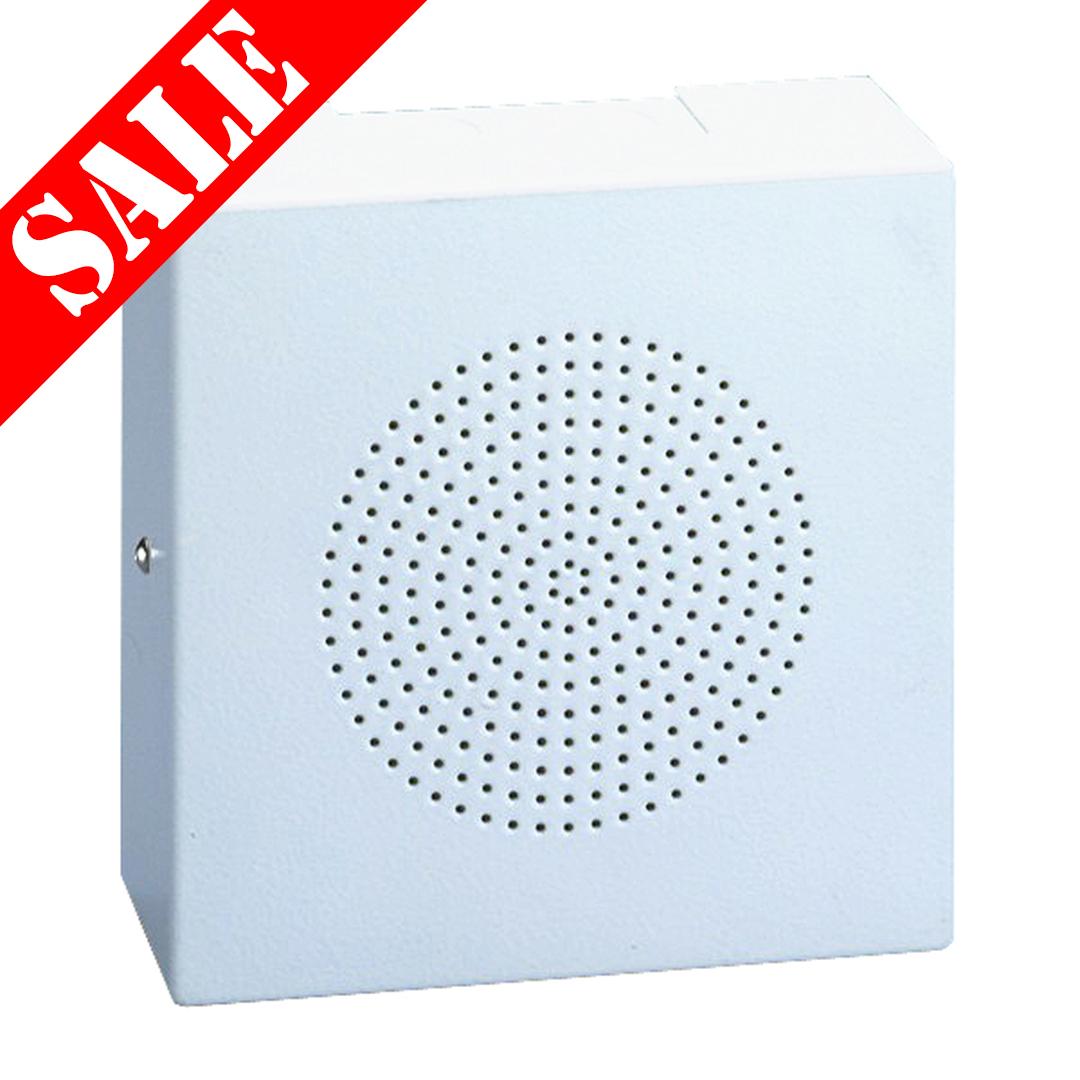

CES Audio WSM-5061VA

The CES Audio WSM-6061VA is a rugged metal wall cabinet loudspeaker, certified and compliant with voice alarm standards.

It's vandal-resistant design is ideal for environments such as schools, public buildings, car parks, offices etc.

Ideal for emergency paging and announcements as the WSM6061VA is certified as an EN54-24 loudspeaker.

Compliant to BS5839 part 8 and EN54-24 certified.

  • Rugged powder-coated steel construction.
  • Twin 20mm gland entry/exit points.
  • Two fix install system.
  • Twin ceramic termination blocks.
  • 150C thermal circuit isolating fuse.
  • Fire-resistant internal cabling.
  • Vandal - proof
  • Two cable entries to enable loop in loop out installation
  • Fitted with a 5 twin cone driver unit. Designed to wide response for music speech
  • 6 watt transformer with multi tappings down to 0.75W (100V) 0.375W (70V)
100V Evac
List Ex VAT: £25.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms)

6W

Impedance

1.67k, 3.33k, 6.67k 13.33k

Power Taps @ 100V

6W, 3W, 1.5W 0.75W

Power Taps @ 70.7V

3W, 1.5W, 0.75W 0.375W

SPL (1W/1m)

90dB

Max SPL (rated/1m)

88dB

Frequency Range (-10dB)

190HZ - 11KHZ

Dispersion1K Hz / 4K Hz

175 / 65

Power Selection Method

Plug

Material

Housing: Steel

Colour

White (RAL9010)

Dimensions mm

163.5 (6.44) X 163.5 (6.44) X 60.0 (2.36) mm. (in.)

Weight (kg)

2.00 kg (4.41 lb)

Mounting

Screw

Related Products

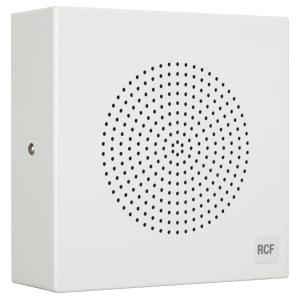

RCF DU 50EN

EN54-24 Wall cabinet speaker. 6 watts, 100 volt line.

see more
List Ex VAT: £76.00
Bosch LBC 3018/01

Cabinet speaker for Voice Alarm. 6 watts, 100 volt line. EN 54-24 compliant.

Water resistant. IP32 rated.

see more
List Ex VAT: £59.00

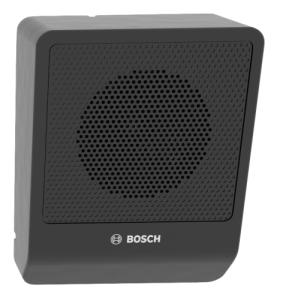

Bosch LB10-UC06-D & LB10-UC06-L

Wall mounted angled cabinet speaker. 6 watts, 100 volt line.

see more
List Ex VAT: £22.00

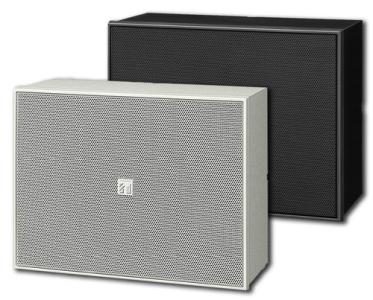

TOA BS-678
