RCF DU 50EN

RCF DU 50EN

The RCF DU 50EN metal wall cabinet speaker is compliant with EN54-24 for use in voice evacuation systems.

Rated at 6 watts RMS and suitable for 70v / 100 volt line distributed sound systems only. The tough, thick steel cabinet is fitted with a 4.5" wide band dual cone loudspeaker.

Finished in white.

  • Designed for transmitting alarm messages with high intelligibility, as well as background music.
  • Outout RMS: 6W
  • Wide-band dual cone loudspeaker, diameter 4.5”
  • Extra-thick steel housing
  • Ceramic terminal strip, flameproof input and output cables, thermal fuse and suitable internal wiring
  • Complies with EN 54-24
  • Colour: RAL 9010 White
  • Warranty: 3 Years
100V Evac
List Ex VAT: £76.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response (-10dB)

190Hz – 18kHz

Max SPL @ 1m

100dB

Max SPL @ 4m

88dB

Coverage Angle

175°

System Sensitivity

91dB

Power Handling

6W RMS

Peak Power Handling

24W Peak

Protection

Thermal Fuse

Transducers

5” Full Range

Input Connectors

Ceramic Screw Terminals

Output Connectors

Ceramic Screw Terminals

Constant Voltage Transformers

100V / 70V

Power Tappings

6W, 3W, 1.5W, 0.75W (100V)

Construction

Metal Cabinet, Steel Grille

Colour

White - RAL 9010

Height

164mm / 6.46”

Width

164mm / 6.46”

Depth

60mm / 2.36”

Weight

1.9kg / 4.19lbs

DOWNLOADS

RCF DU 50EN Datasheet

Related Products

CES Audio WSM-5061VA
CES Audio WSM-5061VA

Vandal resistant metal voice alarm speaker. EN54-24 & BS5839 part 8 compliant. 6 watts 100 volt line.
Clearance line - Last one!

see more
List Ex VAT: £25.00
Bosch LBC 3018/01
Bosch LBC 3018/01

Cabinet speaker for Voice Alarm. 6 watts, 100 volt line. EN 54-24 compliant.

Water resistant. IP32 rated.

see more
List Ex VAT: £59.00

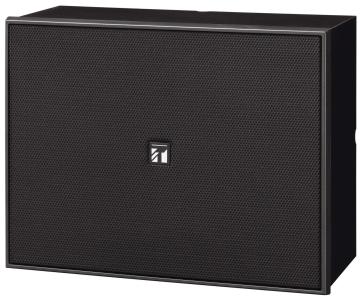

TOA BS-678BS
