LD Systems ANNY 10 BPH B8

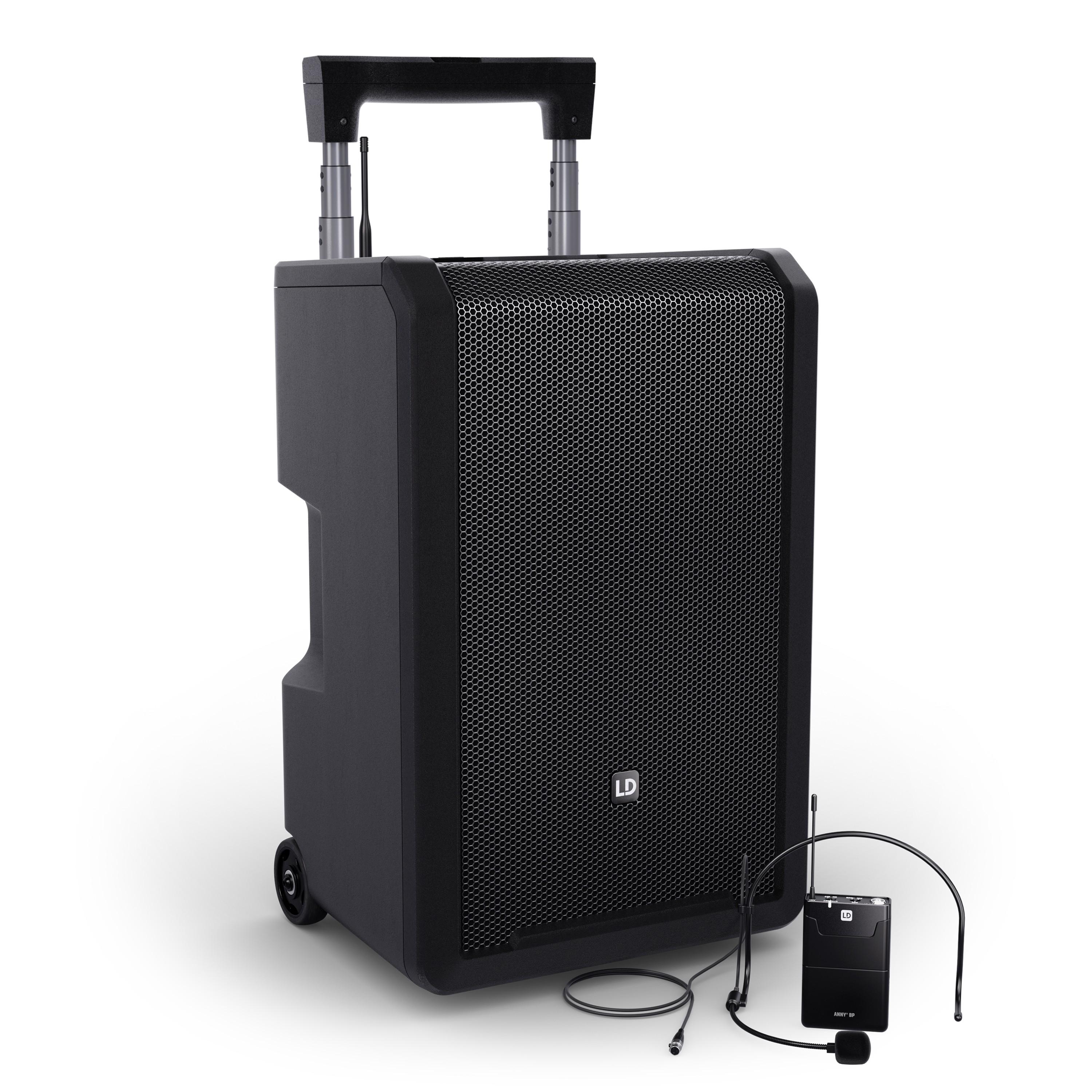

The LD Systems ANNY 10 HHD B8 is a complete ANNY 10 set up with wireless bodypack transmitter, headset microphone and slot-in receiver module.

Please note - the ANNY 10 can accept a maximum of two wireless receivers - please contact us for pricing on dual microphone combinations. A lapel mic is available separately.

Operating in the B8 frequency range of 823 - 832 MHz and 863 - 865 MHz. This includes frequencies in Channel 38 which are licence free but also includes frequencies in the Duplex Gap which require a Channel 38 licence.

Please use the links below to see the individual product pages for more detailed information on each item included.

Further accessories are available – please see related products at the bottom of the page.

Items in this set include:

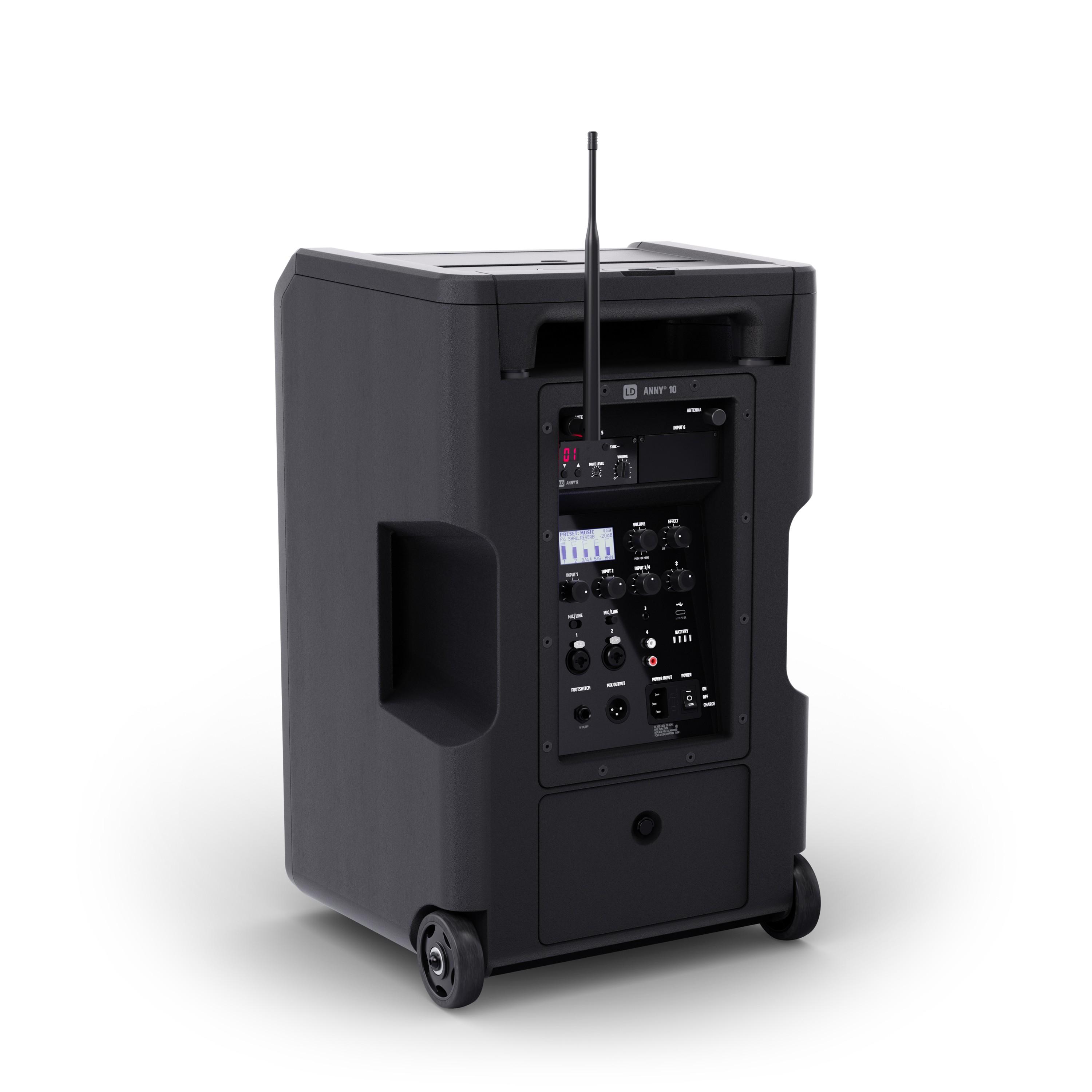

LD Systems ANNY 10 Portable battery-powered Bluetooth® PA system with mixer
LD Systems ANNY R B8 Receiver Module for ANNY
LD Systems ANNY BP B8 Bodypack Transmitter for ANNY
LD Systems WS 100 MH 1 Headset microphone, black

LD Systems ANNY 8 Portable battery-powered Bluetooth® PA system

  • 10" Portable active 2-way full-range loudspeaker
  • Built-in 6-channel mixer with 3-band EQ, reverb and delay
  • Long battery life: up to 25h (ECO mode) / 5h (max. volume)
  • Bluetooth® 5.0 and stereo streaming (TWS) with two ANNYs
  • Clear and distortion-free sound at maximum volume through DynX® DSP (Gen. 2)
  • 2x microphone/line inputs for versatile connection options
  • 1x stereo channel with 3.5mm jack (AUX) or Cinch
  • 2 x Receiver Module Slots to add ANNY wireless microphones
  • Priority/ducking mode to emphasise the microphone signal

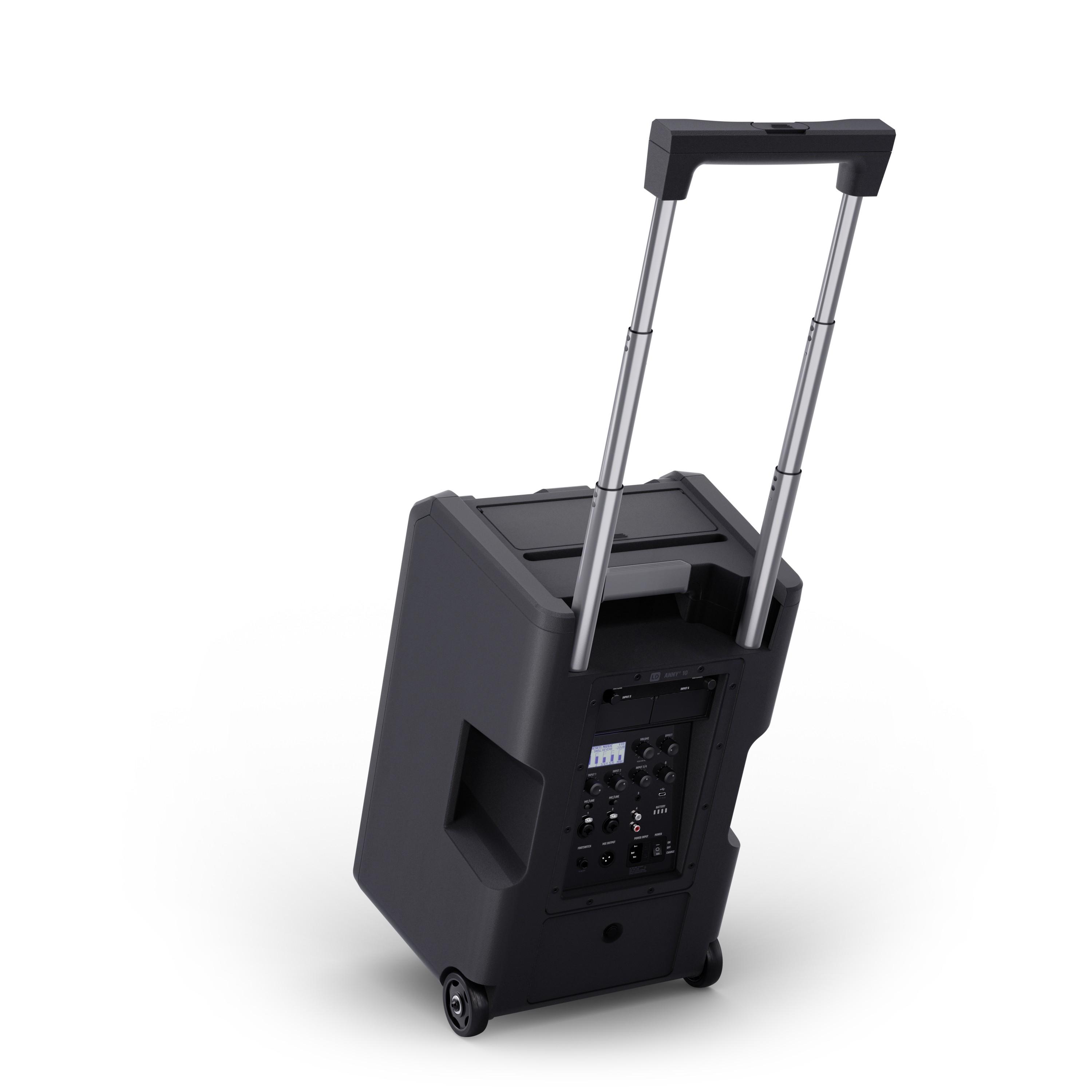

  • Wheels and telescopic handle for easy transport
  • 35-mm flange for use with a speaker stand
  • USB-C port for charging a tablet or smartphone
  • Footswitch input for hands-free effect control
  • Integrated holder for tablet or smartphone
  • Warranty: 2 Years

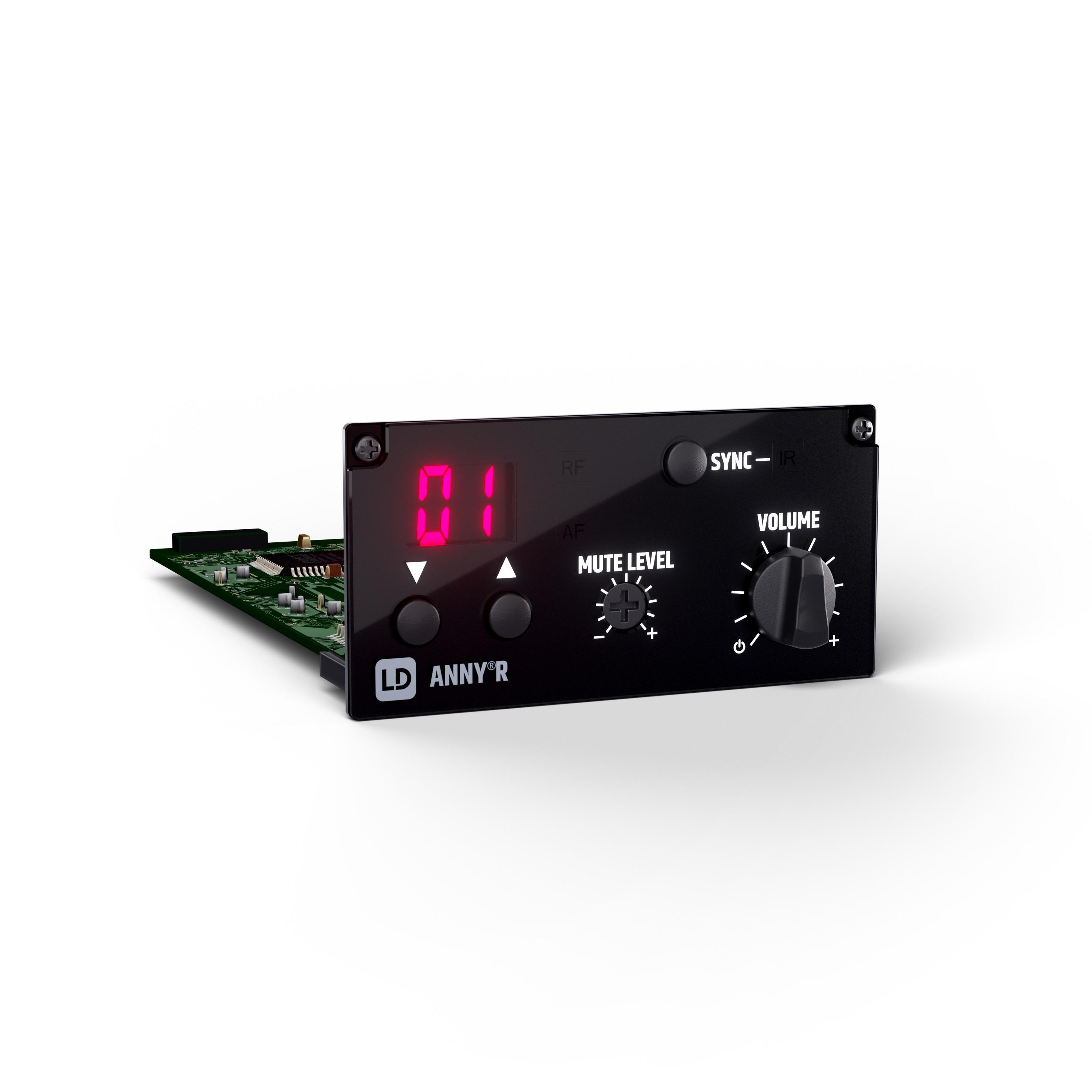

LD Systems ANNY R B8 Receiver Module

  • Wireless receiver system with FM technology incl. separate antenna
  • Can be retrofitted to all ANNY® loudspeakers
  • Reception range up to 80 m
  • Separate volume control
  • 12 selectable radio channels
  • Mute level control (squelch)
  • Warranty: 2 Years.

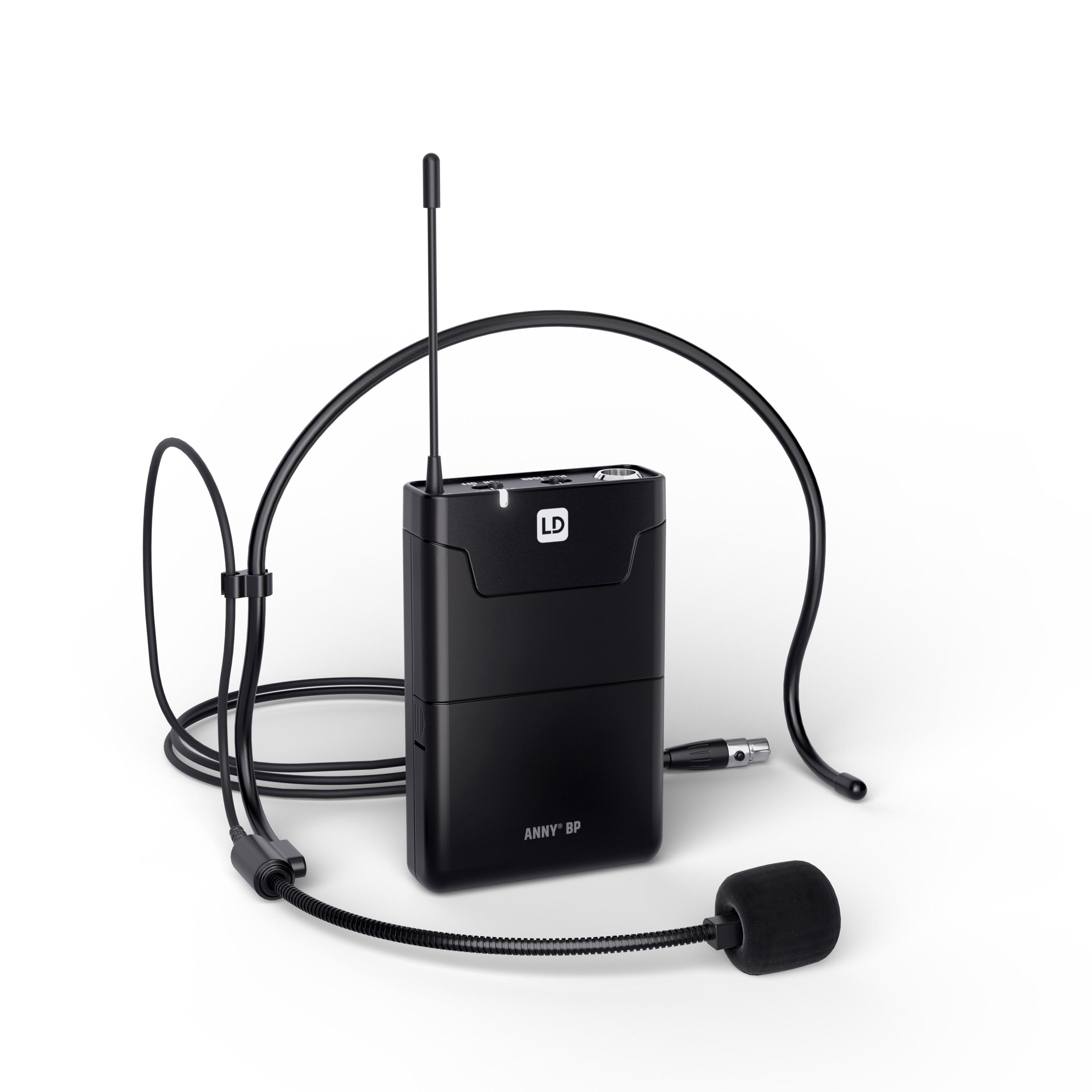

LD Systems ANNY BP B8 Bodypack Transmitter

  • Bodypack transmitter incl. 2x AA batteries
  • Up to 80 metres range
  • Mini XLR input
  • 8 hours operating time
  • Input level switch (MIC, 0dB, -10dB)
  • Standby mode
  • Integrated status LED
  • Warranty: 2 Years.

LD Systems WS 100 MH 1 Headset Microphone

  • Uni-directional Electret Condenser Headset Microphone
  • Impedance: < 680 Ohms
  • Frequency Response: 20 Hz - 20 KHz
  • Sensitivity : - 44 ± 2 dB (at 1 KHz)
  • Terminated with a 3 pin Mini-XLR
  • Requires 5V Phantom Power
  • Warranty: 2 Years



UHF
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Portable Bluetooth PA:

ANNY10

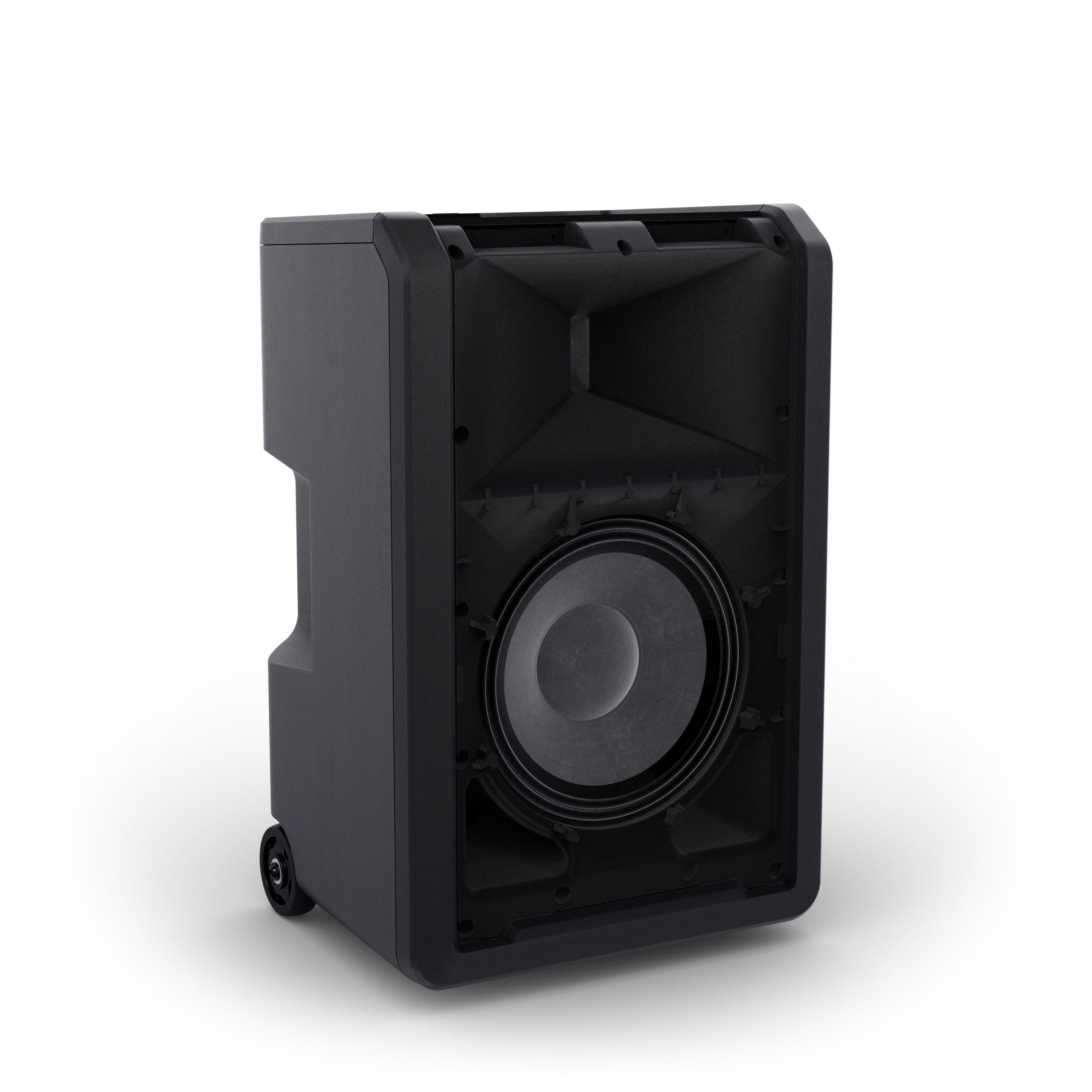

Low/mid woofer + HF driver

10" + 1"

Max. SPL (peak)

118 dB

Bluetooth

Bluetooth 5.0 with AAC codec

Link to Second ANNY

True wireless stereo

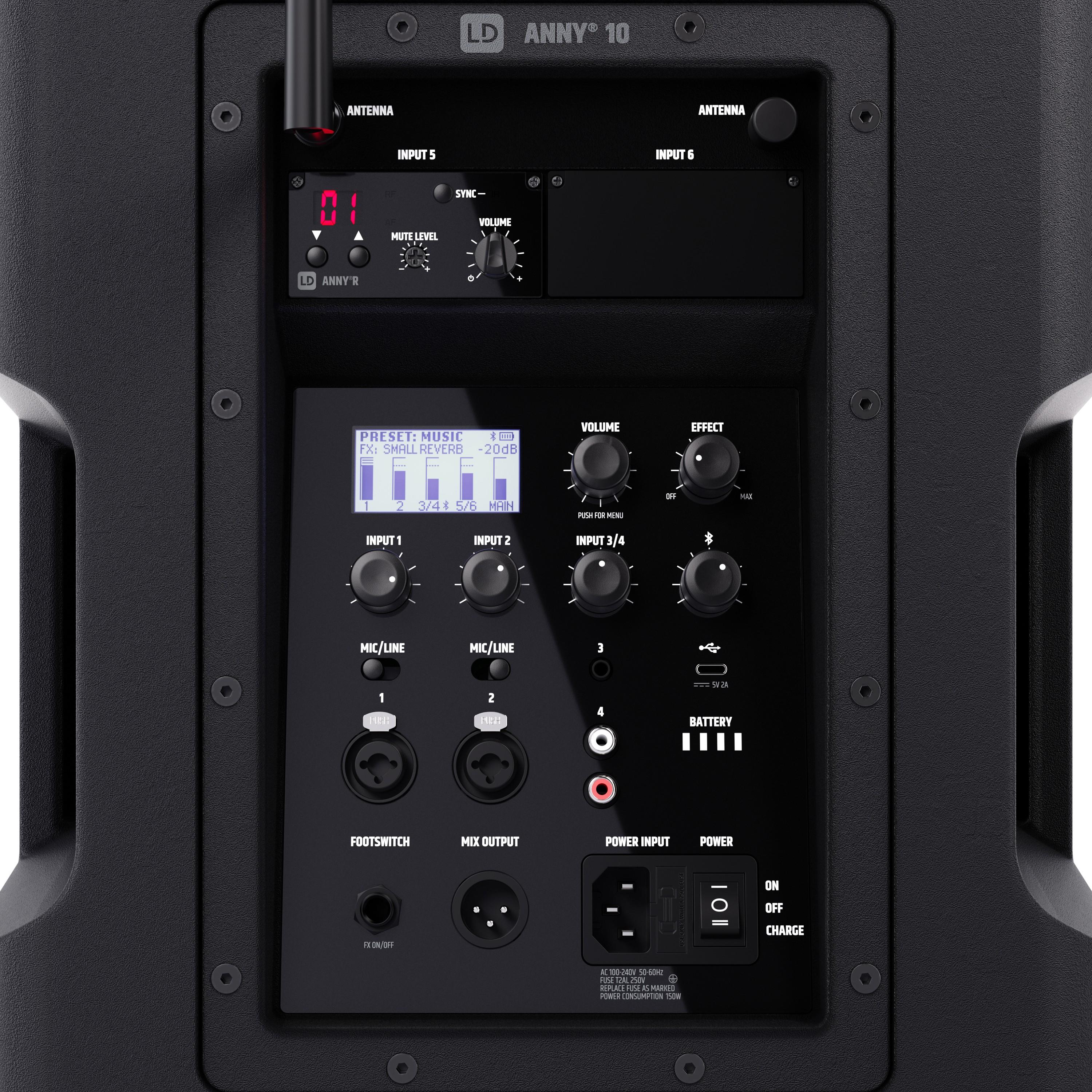

Inputs

2 × 6.3 mm/ XLR combo, 2 × cinch / 3.5 mm jack (AUX)

Wireless Mic Capability

Up to 2 wireless mics

Built In Mixer

6-channel mixer

EQ

3-band EQ

Cabinet Features

· Wheels and telescopic handle

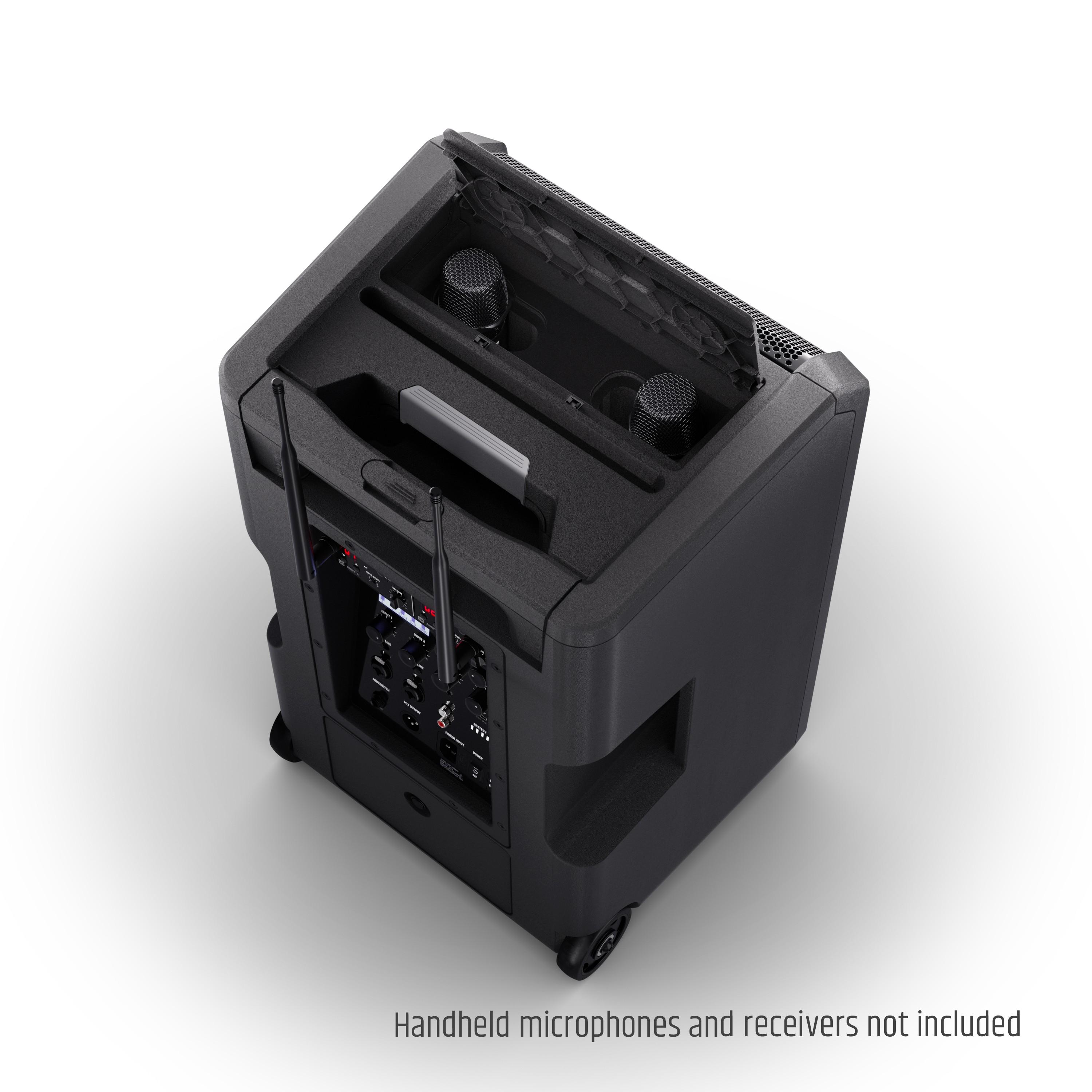

· Storage space for up to two microphones

· Integrated holder for tablet or smartphone

Battery life at mid volume

(ECO preset)

25 h

Battery life at full volume

(music preset)

11 h

Weight

18 kg

DSP

DynX DSP (Gen. 2).

Clear and distortion-free sound at maximum volume

Pole Mount

35 mm flange

System output (RMS / peak)

80 W / 160 W

Frequency response (-10 dB)

45 Hz - 20 kHz

Dispersion (H × V)

120° × 60°

Dimensions (W × H × D)

361 × 566 × 300 mm

Output

USB-C: 5 V, max. 2 A

Mix Output

1 × XLR male

Wireless range

80 m

Priority/ducking mode

Yes

Footswitch input

Yes

Battery

2 × 12V / 5.000 mAh

Charging time
(80%, no signal)

3.5 h
