SigTEL EVC302S

SigTEL EVC302S

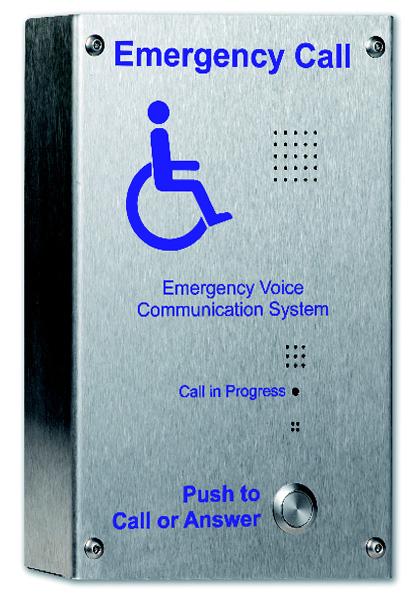

The SigNET EVC302S Disabled Refuge Outstation is a surface mounted, hands free intercom style outstation for disabled refuge applications offering high quality full duplex speech between the emergency call point and control centre.

Connects to the SigTEL Controller (or 8 line expansion unit) using two cores of 1.5mm2 of enhanced fire rated cable of up to 1 KM in length.

Painted green finish also available. (See separate product description).

  • Allows two way communication between someone in a disabled refuge and 'building control' at the touch of a button
  • High-quality brushed stainless steel finish
  • Includes connections for an optional audio-frequency induction loop system
  • Easily interfaced to strobes, CCTV activation relays and/or disabled persons toilet alarm systems
Evac
List Ex VAT: £231.40
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Input voltage (from controller)  5 VDC in use, 10.7 VDC quiescent
Current consumption @ 24 VDC 25 mA in use, 3 mA quiescent
Frequency response 250 Hz to 5 kHz ±3 dB (microphone); 250 Hz to 4 kHz ±3 dB (loudspeaker)
Audio output level 0 dB (775 mV) balanced line level
Switch output Opto-isolated normally open open-collector, max 24 VDC 3 mA
External indicators  Red call in progress LED
Controls External Push to Call or Answer button (Off Hook); Internal Loudspeaker volume & Engineer’s On Hook pins
Physical appearance Green steel fascia (EVC302GF/GS); Stainless steel fascia (EVC302F/S): Jet black RAL9005 base (all models)
Dimensions & Weight W 175 x H 240 x D 53mm (assembled); 1.4kg
Optional BF359/1 weatherproof enclosure dimensions W 200 x H 298 x D 124mm approx. (unassembled, no handle fitted)

DOWNLOADS

SigTEL Disabled Refuge
