SigTEL EVC302GF

SigTEL EVC302GF

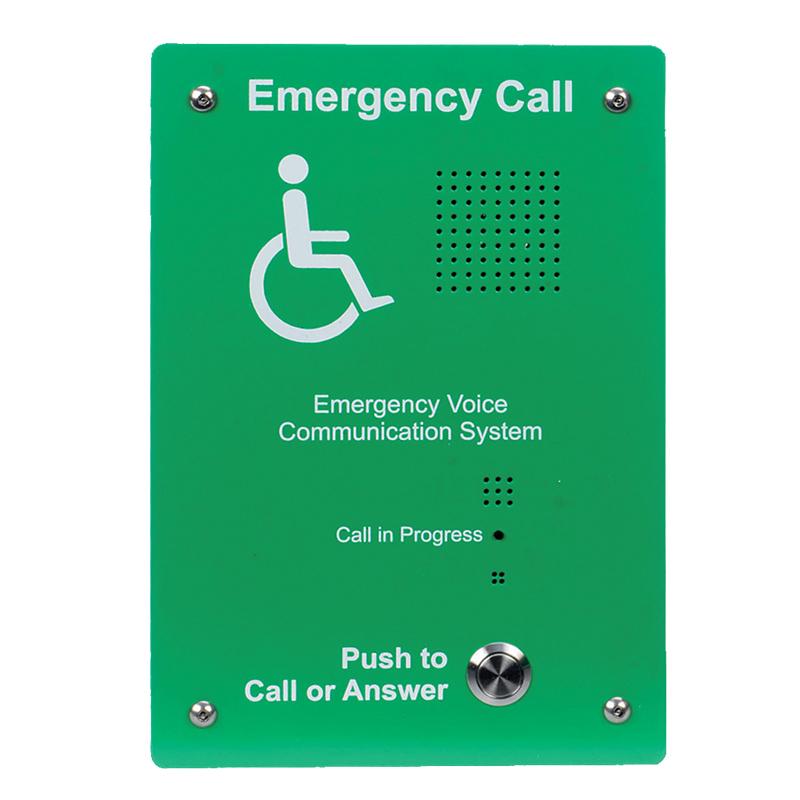

The SigNET EVC302GF Disabled Refuge Outstation from SigNET is a flush mounted, hands free intercom style outstation for disabled refuge applications offering high quality full duplex speech between the control room and emergency call point.

The EVC302GF provides a means of emergency voice communication between a vulnerable person and a central control point in the building in the case of an emergency.

Connects to the SigTEL Controller (or 8 line expansion unit) using two cores of 1.5mm2 of enhanced fire rated cable of up to 1 KM in length.

Brushed stainless steel finish also available. (See separate product description).

  • Allows two way communication between someone in a disabled refuge and 'building control' at the touch of a button
  • High-quality brushed stainless steel finish
  • Includes connections for an optional audio-frequency induction loop system
  • Easily interfaced to strobes, CCTV activation relays and/or disabled persons toilet alarm systems
Evac
List Ex VAT: £195.44
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Input voltage (from controller)  5 VDC in use, 10.7 VDC quiescent
Current consumption @ 24 VDC 25 mA in use, 3 mA quiescent
Frequency response 250 Hz to 5 kHz ±3 dB (microphone); 250 Hz to 4 kHz ±3 dB (loudspeaker)
Audio output level 0 dB (775 mV) balanced line level
Switch output Opto-isolated normally open open-collector, max 24 VDC 3 mA
External indicators  Red call in progress LED
Controls External Push to Call or Answer button (Off Hook); Internal Loudspeaker volume & Engineer’s On Hook pins
Physical appearance Green steel fascia (EVC302GF/GS); Stainless steel fascia (EVC302F/S): Jet black RAL9005 base (all models)
Dimensions & Weight W 175 x H 250 D 55mm (assembled); W 152 x H 228 x D 53mm (back box only); 1.4kg
Optional BF359/1 weatherproof enclosure dimensions W 200 x H 298 x D 124mm approx. (unassembled, no handle fitted)
