LD Systems AMP 205 D
Click to expand

LD Systems AMP 205 D

The LD Systems AMP205D is a Dante enabled professional 2-channel mini installation amplifier offering an output power of 2 x 50 watts RMS at 4 Ohms.

Dante connectivity lets you connect from the vast ecosystem of Dante-enabled products with full AES 67 and Dante Domain Manager compatibility.

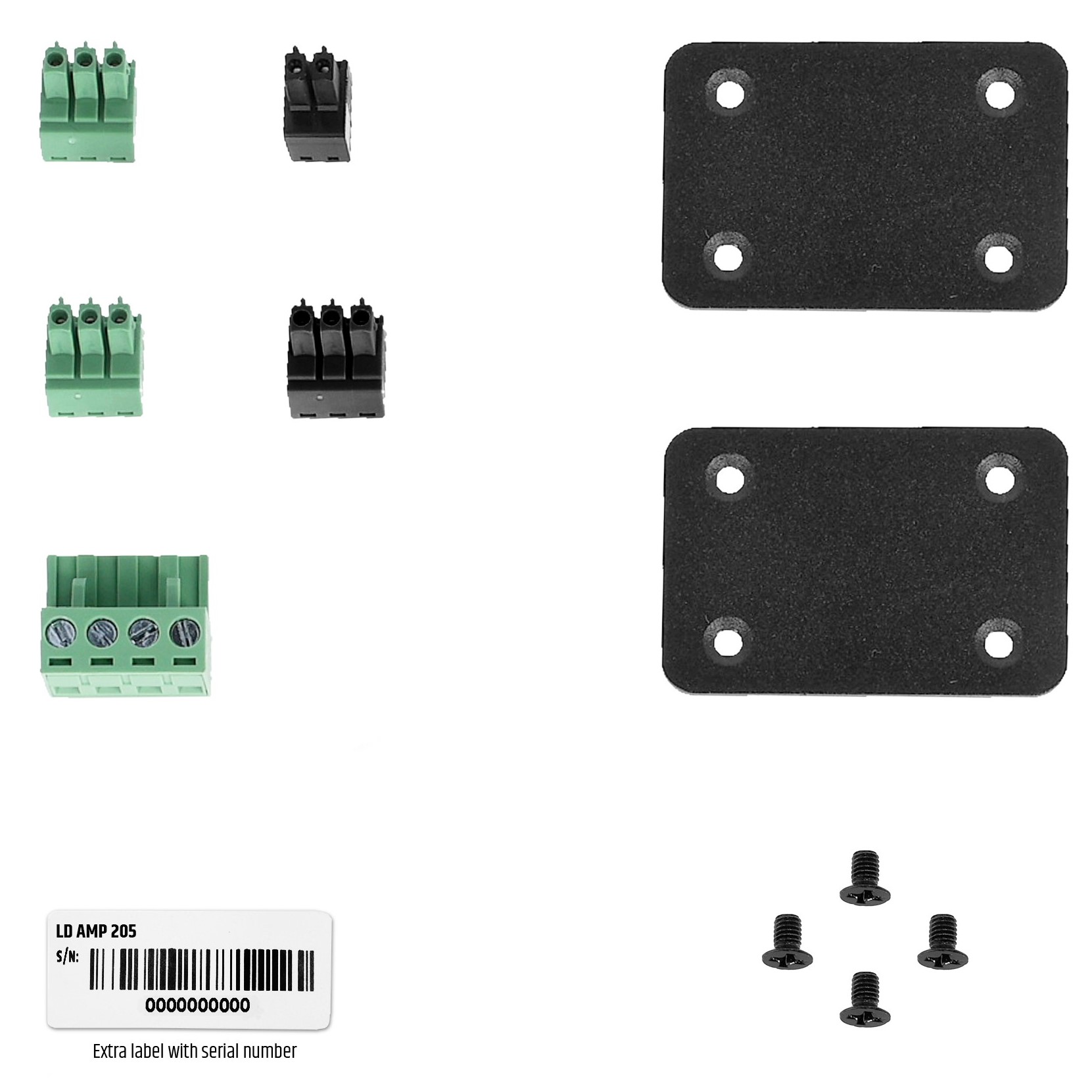

Part of the TICA® series, it’s compact size, passive cooling, and high efficiency makes it ideal for mounting discreetly almost anywhere; behind screens, under tables or even in in air-handling spaces and above suspended ceilings in a variety of audio installation applications. Mounting plates are included.

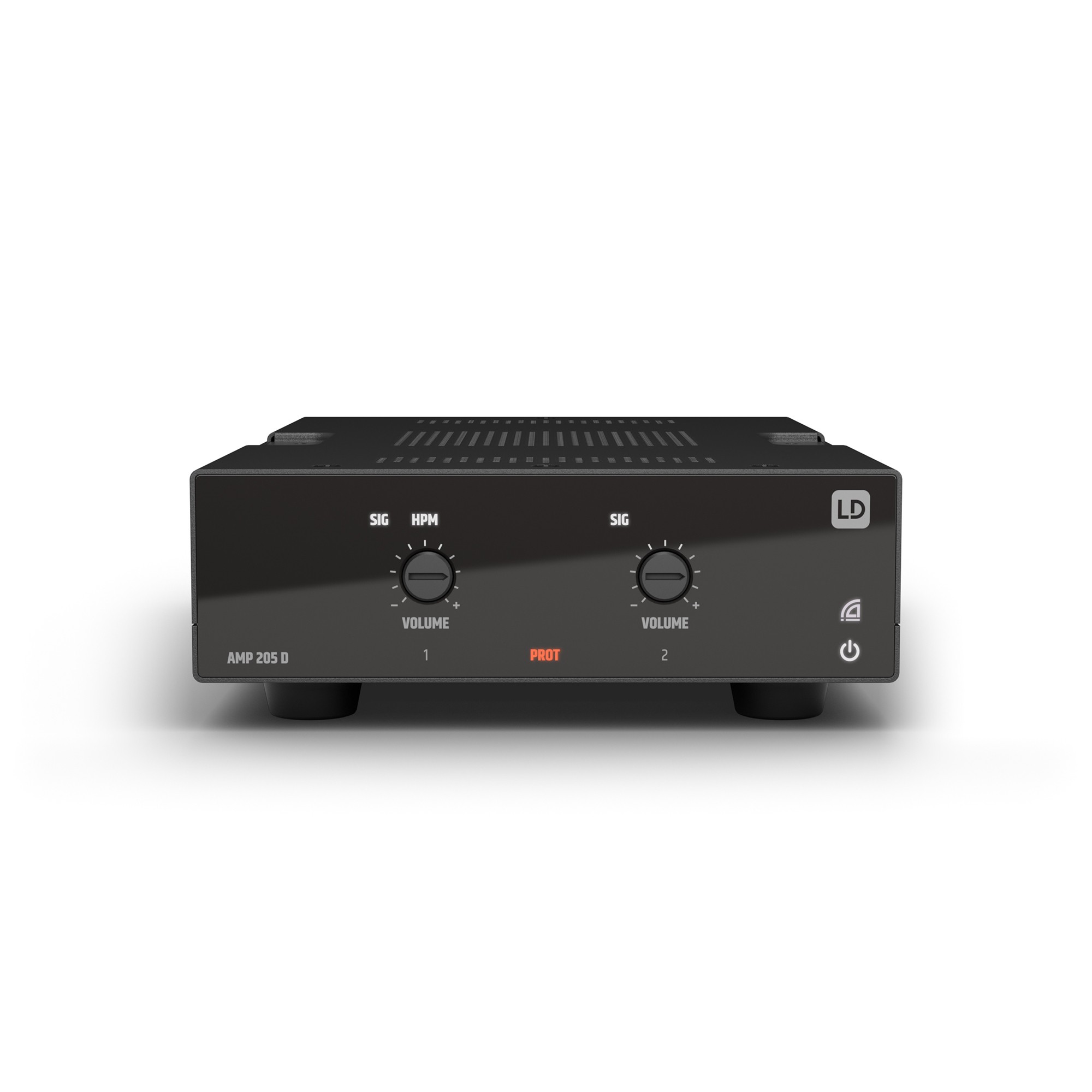

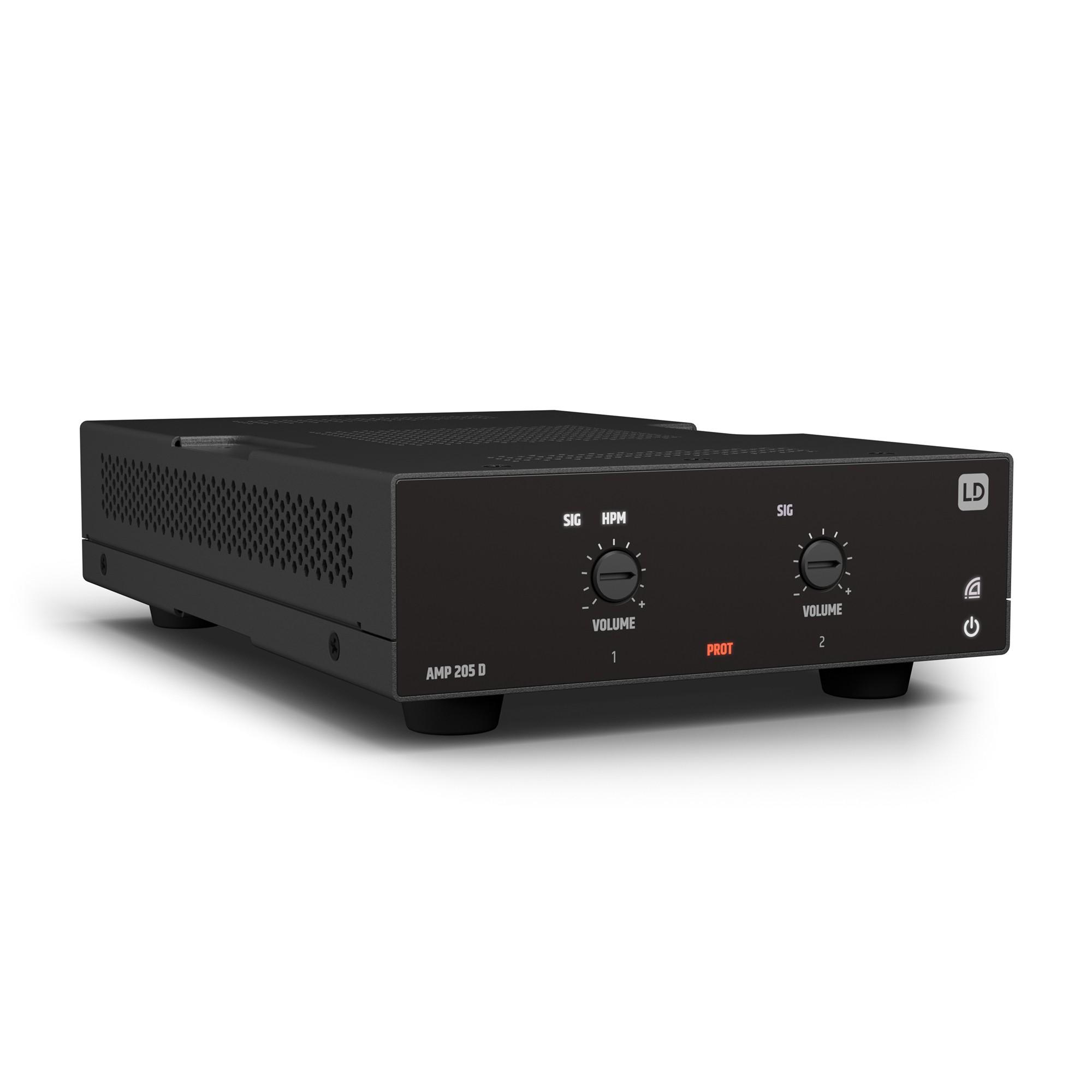

The LDAMP205D features a user-friendly front panel, equipped with signal, clip, and protection LEDs. A gain switch helps the amplifier deal with a variety of input sources.

With remote control connectivity for third-party devices, you can adjust volume on either channel or put the power amplifier into standby mode at any time, even when it's hidden. Optional auto-standby saves power when no audio is running.

The AMP 205 D can be powered using PoE+ or using the included 24 V power supply.

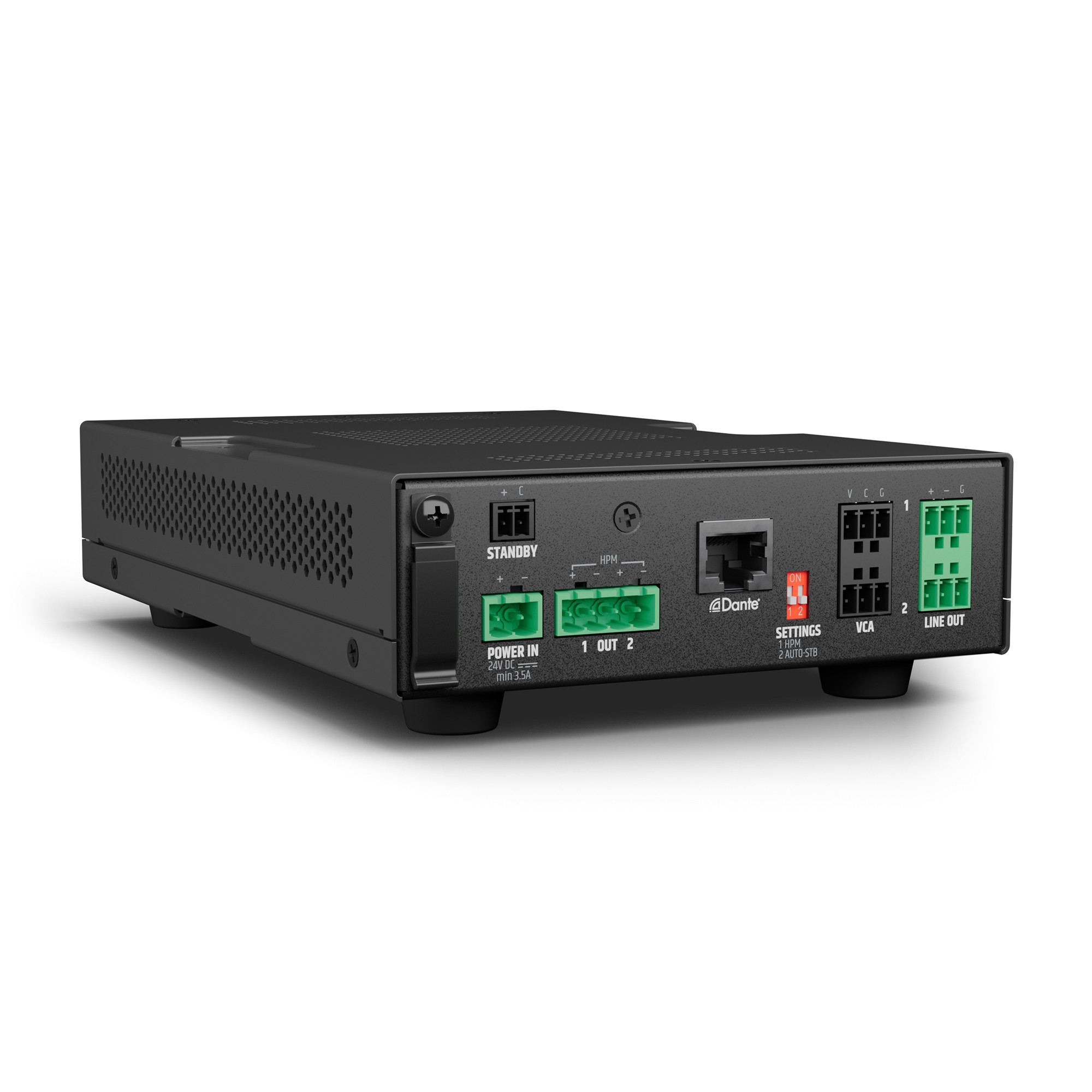

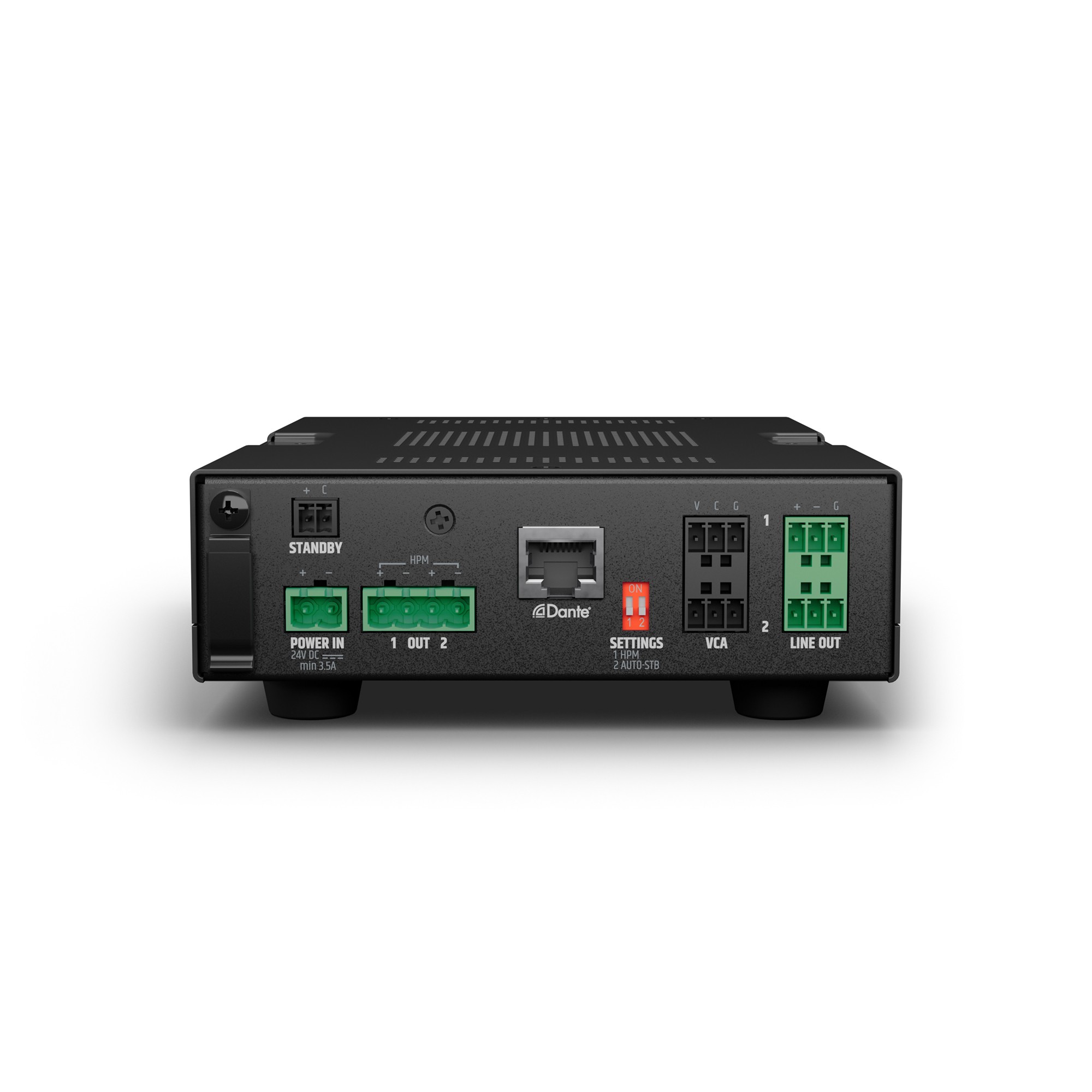

Terminal block connections for balanced line inputs and loudspeaker outputs make installation simple.

An optional rack tray is available to slot up to four LD Systems TICA Series products alongside each other and build a system to your exact requirements, using minimal rack space.

  • 2 x 50W Class-D amplifier with low impedance outputs
  • Dante Enabled
  • Compact size; 1/3 19" rack, 1U
  • Silent operation with passive cooling
  • Remote standby and volume control
  • PoE powered or external 100-240V power supply
  • Auto standby to save power
  • 2 x Balanced line inputs and loudspeaker outputs on terminal blocks
  • User-friendly front panel with signal, clip and protection LEDs
  • Optional rack tray for combining with other TICA® series products
  • Warranty: 5 Years
4ohms 1U 2ohm Dante
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US





SPECIFICATIONS

Digital inputs

1 x Dante (2 channels), 100 BASE-T

Line outputs

2

Line output connectors

Balanced line level with auto mute relay on loss of Dante/AES67 signal

Powered outputs

2 with output mode selector (Stereo / High Power Mode)

Cooling

Convection

Dante™ Audio Channels

2 outputs, 100 BASE-T RJ45

Amplifier Output

Class D

Output modes

Stereo, parallel, high power mode (ST / PAR / HPM)

Amplifier Outputs

2- channel (STEREO) / 1-Channel (HPM)

Amplifier connection

4-pole Terminal Block. Pitch 5.08mm

RMS output power

2x 50 W @ 4 ohm (ST) / 1 x 100 W @ 2 ohm (HPM), With PoE++:2 x 30 W @ 4 ohm (ST), 1 x 60W @ 2 ohm (HPM)

Minimum load impedance

4 ohm (ST), 2 ohm (HPM)

Protection circuits

DC protection, over-current, Short circuit, thermal overload, Undervoltage

Analogue Line Outputs

2

3rd Party Control, Main Volume (VCA)

10 kOhm (Linear Taper) External Potentiometer, 3-pin Terminal block, pitch (3.5 mm)

Weight

1.66 kg

Related Products

LD Systems RSMP

Radio streaming media player. FM/DAB/DAB+, MP3, Streaming, Bluetooth.

Log In for Trade Prices.

see more
List Ex VAT: Contact Us

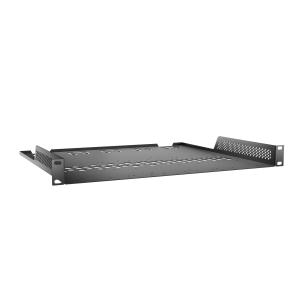

LD Systems TICA RK

Rack tray for TICA Series, IMA amps & RSMP Media Player.

Log In for Trade Prices.

see more
List Ex VAT: Contact Us

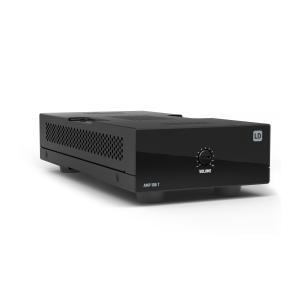

LD Systems AMP 106T

Single channel mini power amp. 60 watts, 70/100 volt line / 4 ohm.

Log In for Trade Prices.

see more
List Ex VAT: Contact Us

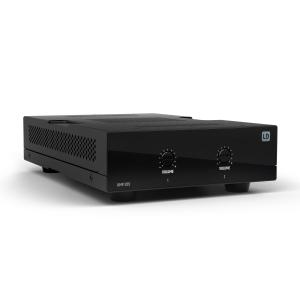

LD Systems AMP 205

Two channel low impedance mini power amp. 2 x 50W @ 4 ohm.

Log In for Trade Prices.



see more
List Ex VAT: Contact Us

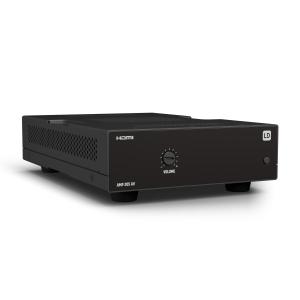

LD Systems AMP 205 AV
